NEMA 1 Ug Cab. 20X20X10
- Type of Door Single
$261.72In stock
Buy now
New
Type 1 Mild Steel Metering Cabinets - UG Style · CMCUG Series
Brand: Hammond Manufacturing · 4 part numbers
Hinge Door with Quarter Turn
- ■Designed for housing of metering transformers in underground situations.
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
- ■Formed and spot welded from 14 or 16 gauge steel.
from $261.72
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CMCUG Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Type · of Door | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|

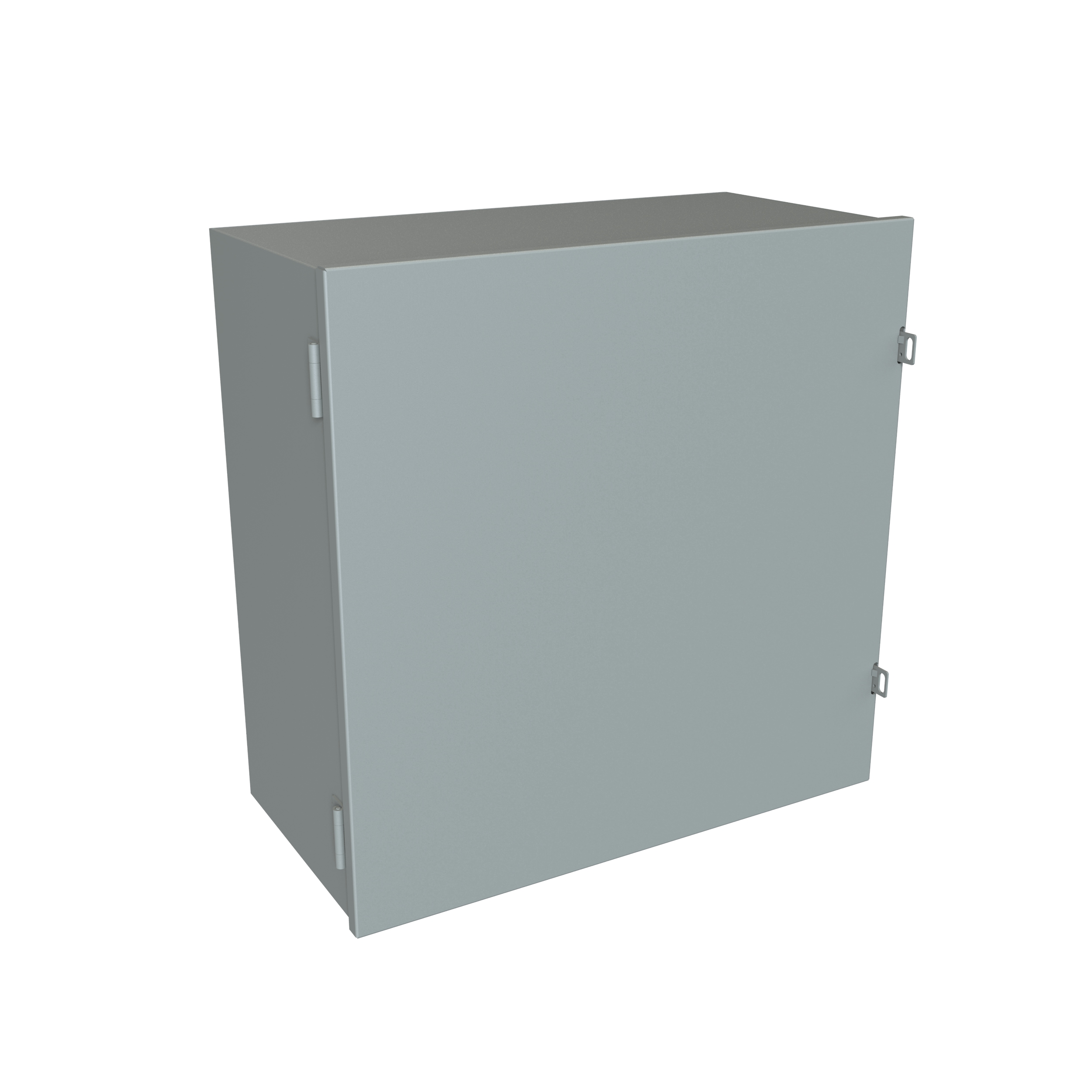

| CMC202010UG | Single | 20.00 | 20.00 | 10.00 | $261.72In stock | Buy now |

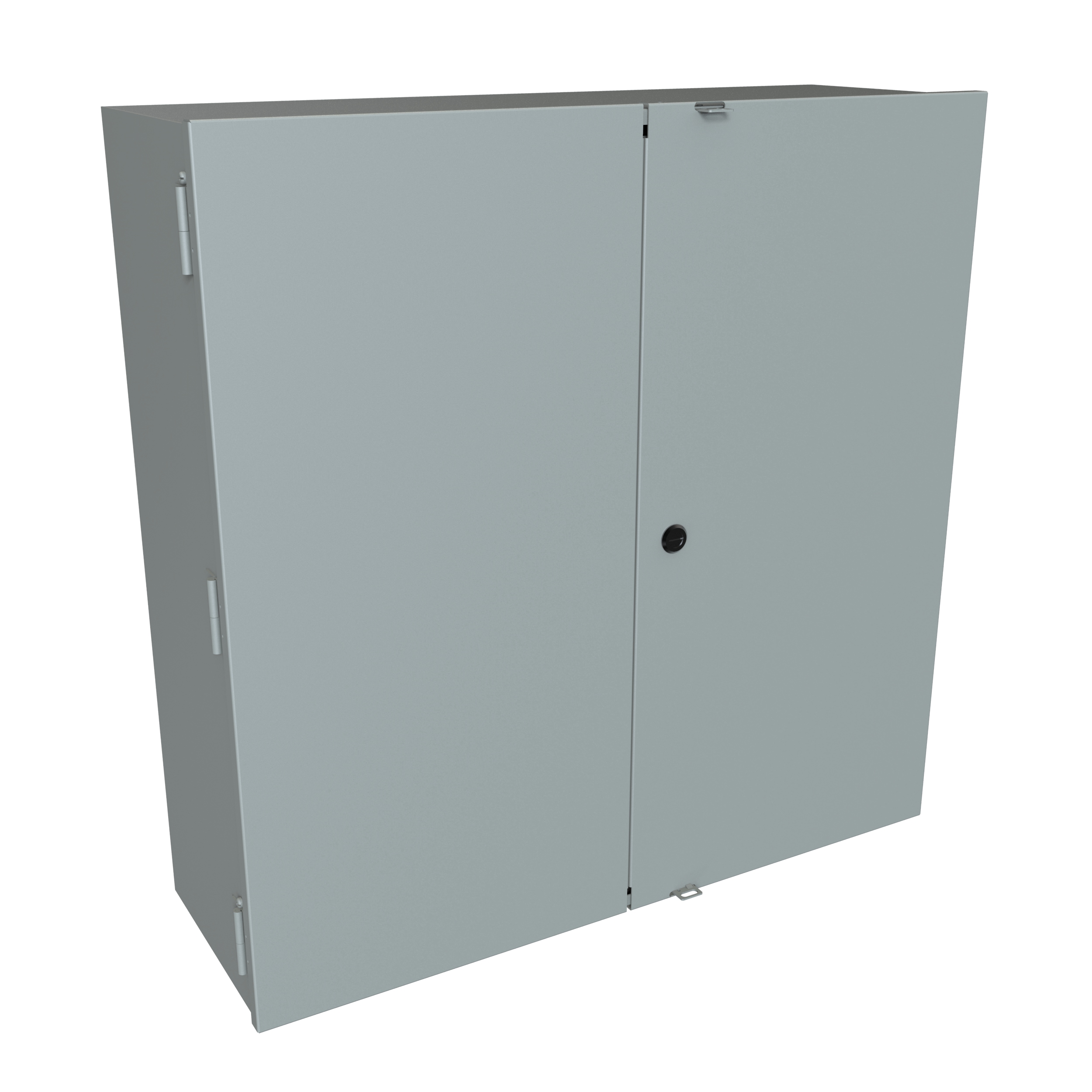

| CMC303010UG | Double | 30.00 | 30.00 | 10.00 | $298.45In stock | Buy now |

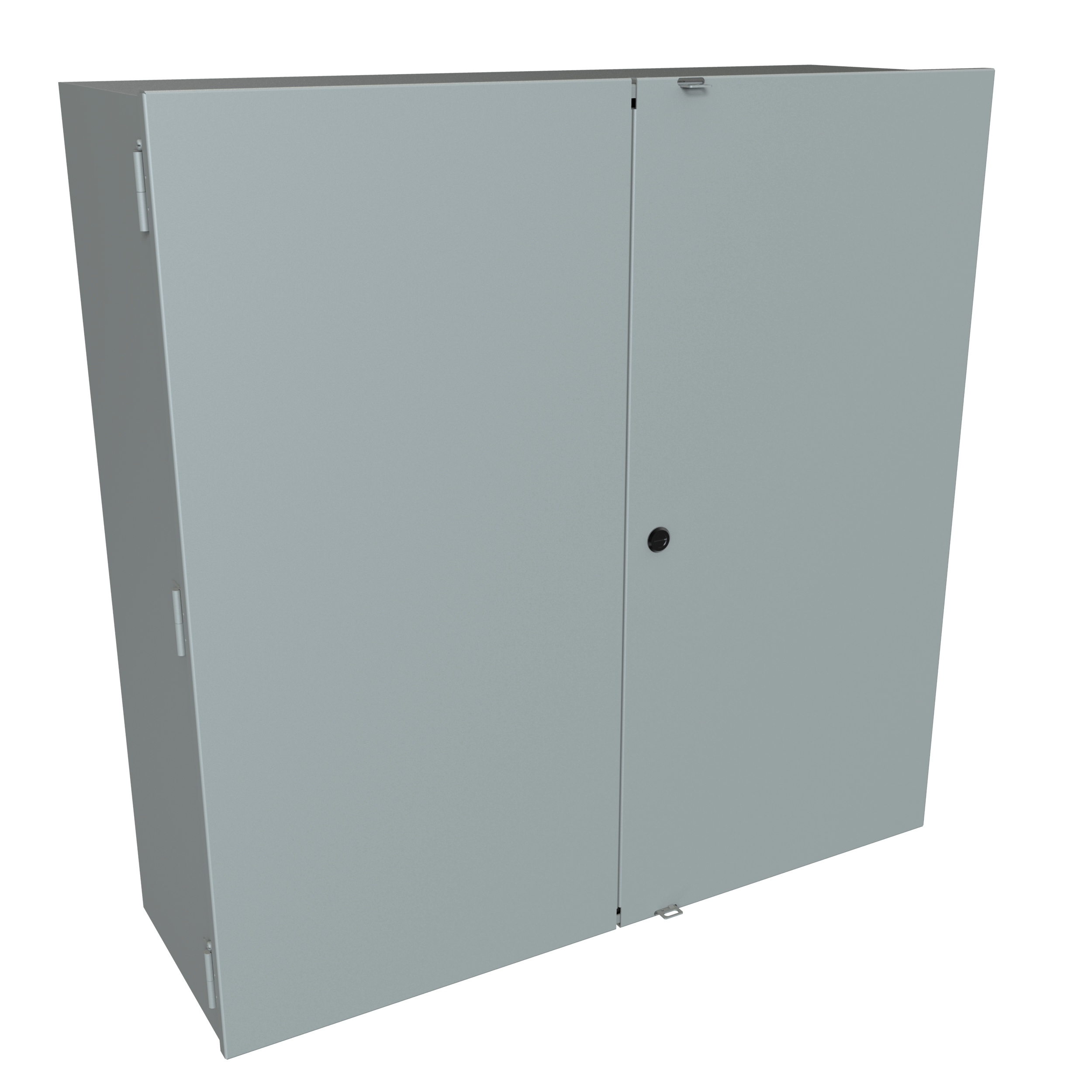

| CMC363612UG | Double | 36.00 | 36.00 | 12.00 | $496.69In stock | Buy now |

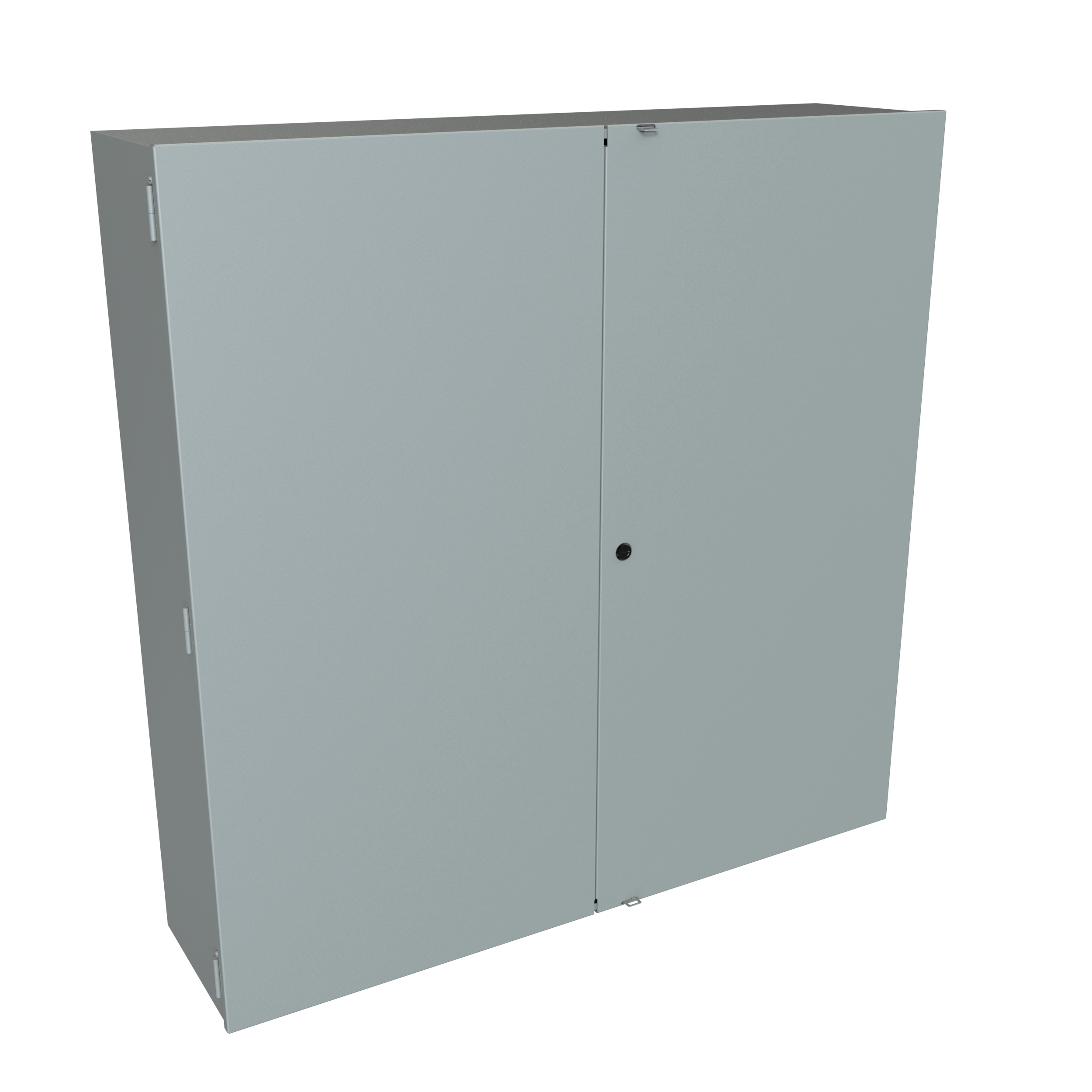

| CMC484812UG | Double | 48.00 | 48.00 | 12.00 | $802.97Backorder | Buy now |
Application
- ■Designed for housing of metering transformers in underground situations.
Standards
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Spot welded construction and formed edges.
- ■Single and Double Door versions.
- ■Hinged covers - single door with hasp closure, double door with hasp and quarter turn closure.
Finish
- ■Enclosure and cover are finished in ANSI 61 gray inside and out.
Documents
Additional information
Part Details
| Part No. | Type · of Door | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|
| CMC202010UG | Single | 20.00 | 20.00 | 10.00 |
| CMC303010UG | Double | 30.00 | 30.00 | 10.00 |
| CMC363612UG | Double | 36.00 | 36.00 | 12.00 |
| CMC484812UG | Double | 48.00 | 48.00 | 12.00 |
