NEMA1 Hq Mtr Cabinet 30X30X10
$374.63In stock
Buy now

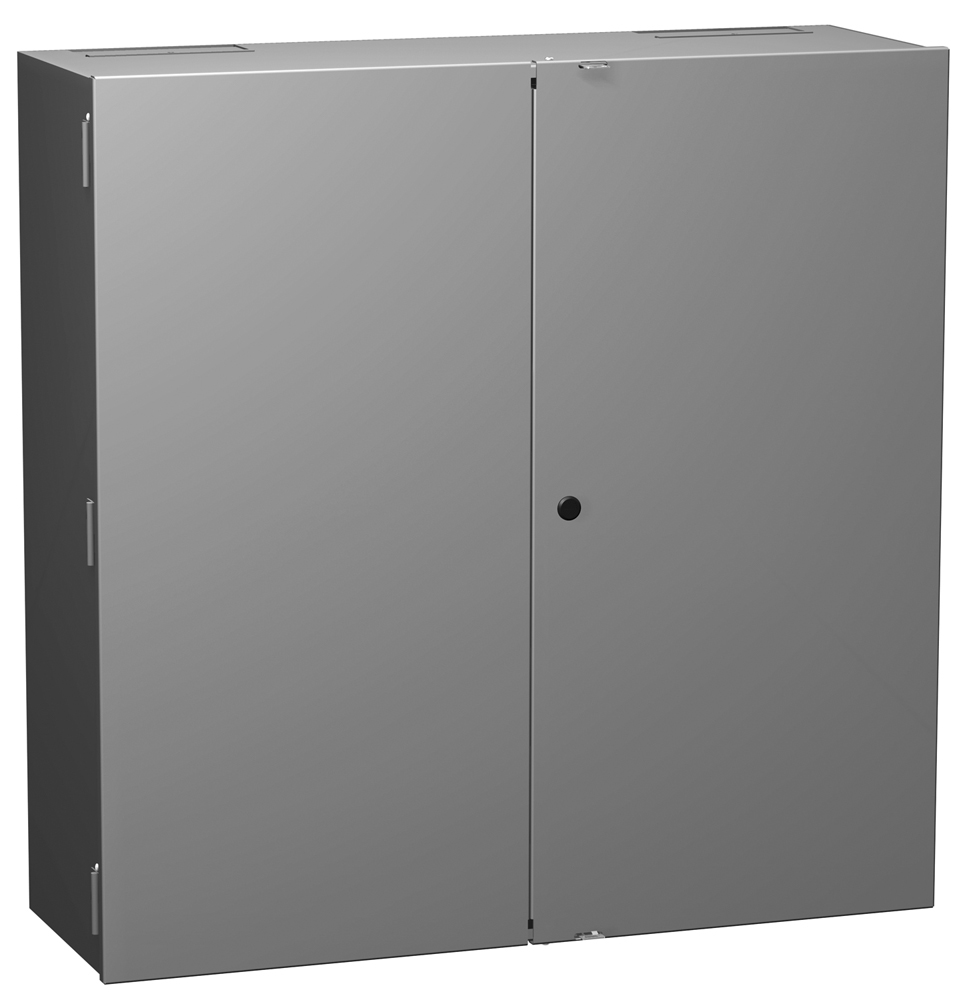

Type 1 Mild Steel Metering Cabinets (Hydro Quebec Version) · CMC Q Series
Brand: Hammond Manufacturing · 6 part numbers
Hinge Door with Quarter Turn
- ■Designed for indoor housing of metering transformers per Hydro Quebec specifications.
- ■CSA Type 1
- ■Complies with IEC 60529, IP20
- ■IEC 60529, IP20
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Spot welded construction and formed edges.
from $42.13
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CMC Q Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
NEMA1 Hq Mtr Cabinet 36X36X12
$586.15In stock
Buy nowNEMA1 Hq Mtr Cabinet 48X48X12
$881.01Backorder
Buy nowHq Mtr Cabinet Accessory Plate
- Description Accessory Plate
$46.56In stock
Buy nowHq Mtr Cabinet Current Panel
- Description Universal Support Current Panel
$42.13In stock
Buy nowHq Mtr Cabinet Voltage Panel
- Description Universal Support Voltage Panel
$84.81In stock
Buy nowDimension tables (inches / mm)
Enclosure
Units shown: inch . Switch units to: mm
| Part No. | H | W | D | Gauge | Price | Order |
|---|---|---|---|---|---|---|
| CMCQ303010 | 30.00 | 30.00 | 10.00 | 16 | $374.63In stock | Buy now |
| CMCQ363612 | 36.00 | 36.00 | 12.00 | 14 | $586.15In stock | Buy now |
| CMCQ484812 | 48.00 | 48.00 | 12.00 | 14 | $881.01Backorder | Buy now |
Panels
Panel Selection Guide
| Part No. | Panel supplied with enclosure · CMCQP1 | Panel supplied with enclosure · CMCQP2 | Panel supplied with enclosure · CMCQP3 | Panel capacity per enclosure · CMCQP1 | Panel capacity per enclosure · CMCQP2 | Panel capacity per enclosure · CMCQP3 | Price | Order |
|---|---|---|---|---|---|---|---|---|
| CMCQ303010 | 1 | 1 | 1 | 1 | 1 | 1 | $374.63In stock | Buy now |
| CMCQ363612 | 1 | 1 | 1 | 2 | 1 | 1 | $586.15In stock | Buy now |
| CMCQ484812 | 1 | 1 | 1 | 2 | 2 | 1 | $881.01Backorder | Buy now |
Application
- ■Designed for indoor housing of metering transformers per Hydro Quebec specifications.
Standards
- ■CSA Type 1
- ■Complies with IEC 60529, IP20
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Spot welded construction and formed edges.
- ■Removable inner panels.
- ■Hinged covers.
- ■2 cutouts in top of each cabinet with metering plates included.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray inside and out.
- ■Inner panel is finished in ANSI 61 gray powder coating.
Documents
Additional information
Enclosure
| Part No. | H | W | D | Gauge |
|---|---|---|---|---|
| CMCQ303010 | 30.00 | 30.00 | 10.00 | 16 |
| CMCQ363612 | 36.00 | 36.00 | 12.00 | 14 |
| CMCQ484812 | 48.00 | 48.00 | 12.00 | 14 |
Panels
| Part No. | Description | H | W |
|---|---|---|---|
| CMCQP1 | Accessory Plate | 24.68 | 7.00 |
| CMCQP2 | Universal Support Current Panel | 12.76 | 13.39 |
| CMCQP3 | Universal Support Voltage Panel | 25.59 | 15.01 |
Panel Selection Guide
| Part No. | Panel supplied with enclosure · CMCQP1 | Panel supplied with enclosure · CMCQP2 | Panel supplied with enclosure · CMCQP3 | Panel capacity per enclosure · CMCQP1 | Panel capacity per enclosure · CMCQP2 | Panel capacity per enclosure · CMCQP3 |
|---|---|---|---|---|---|---|
| CMCQ303010 | 1 | 1 | 1 | 1 | 1 | 1 |
| CMCQ363612 | 1 | 1 | 1 | 2 | 1 | 1 |
| CMCQ484812 | 1 | 1 | 1 | 2 | 2 | 1 |
