Ont Hydro Cabinet 24X16X10
$452.00In stock
Buy now

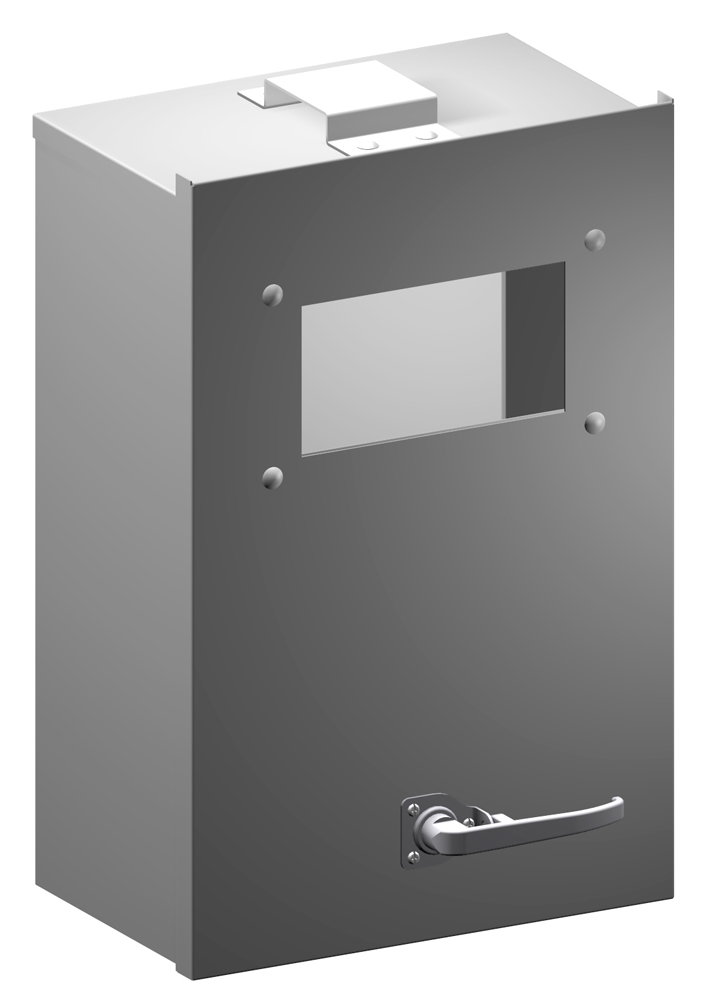

Type 1 Mild Steel Metering Cabinets (Ontario Hydro Version) · CMC O Series
Brand: Hammond Manufacturing · 1 part number
Hinge Door with Handle and Viewing Window
- ■Designed for certain specific Ontario metering applications.
- ■Spot welded 16 gauge steel construction.
- ■Heavy duty padlockable "L" handle.
- ■Viewing window with removable cover plate.
- ■Pre-mounted ground lug.
- ■Inner panel with pre-drilled holes and mounting bracket.
from $452.00
1 of 1 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CMC O Series part number
Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
1 of 1 part numbers · 1 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| CMCO241610 | 24.00 | 16.00 | 10.00 | 20.50 | 14.75 | $452.00In stock | Buy now |
Application
- ■Designed for certain specific Ontario metering applications.
Construction
- ■Spot welded 16 gauge steel construction.
- ■Heavy duty padlockable "L" handle.
- ■Viewing window with removable cover plate.
- ■Pre-mounted ground lug.
- ■Inner panel with pre-drilled holes and mounting bracket.
- ■Oil resistant gasket.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray inside and out.
- ■Inner panel is finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| CMCO241610 | 24.00 | 16.00 | 10.00 | 20.50 | 14.75 |
