N3R Jbox Screw Cover No K/O AL
$88.25In stock
Buy now
Type 3R Aluminum Junction Box · C3RESCNKAL Series
Brand: Hammond Manufacturing · 7 part numbers
Screw Cover and without Knockouts
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
from $60.13
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3RESCNKAL Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
N3R Jbox Screw Cover No K/O AL
$102.75In stock
Buy now
N3R Jbox Screw Cover No K/O AL
$110.40In stock
Buy now
N3R Jbox Screw Cover No K/O AL
$132.54Backorder
Buy now
N3R Jbox Screw Cover No K/O AL
$60.13In stock
Buy now
N3R Jbox Screw Cover No K/O AL
$71.60In stock
Buy now
N3R Jbox Screw Cover No K/O AL
$80.26Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|

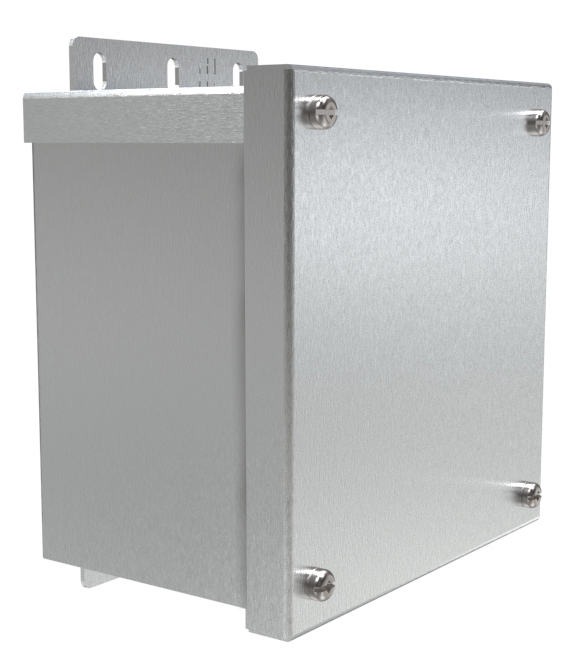

| C3R664ESCNKAL | 6.00 | 6.00 | 4.00 | $60.13In stock | Buy now |

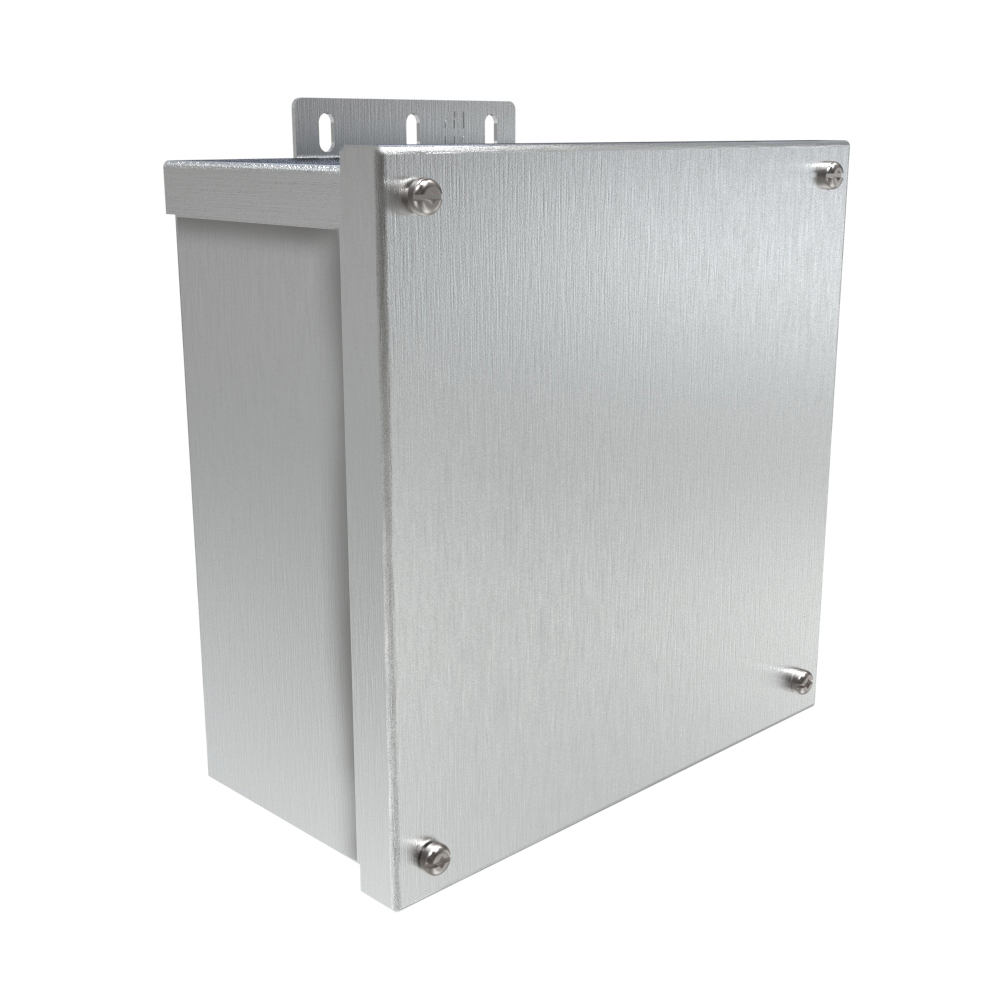

| C3R884ESCNKAL | 8.00 | 8.00 | 4.00 | $71.60In stock | Buy now |

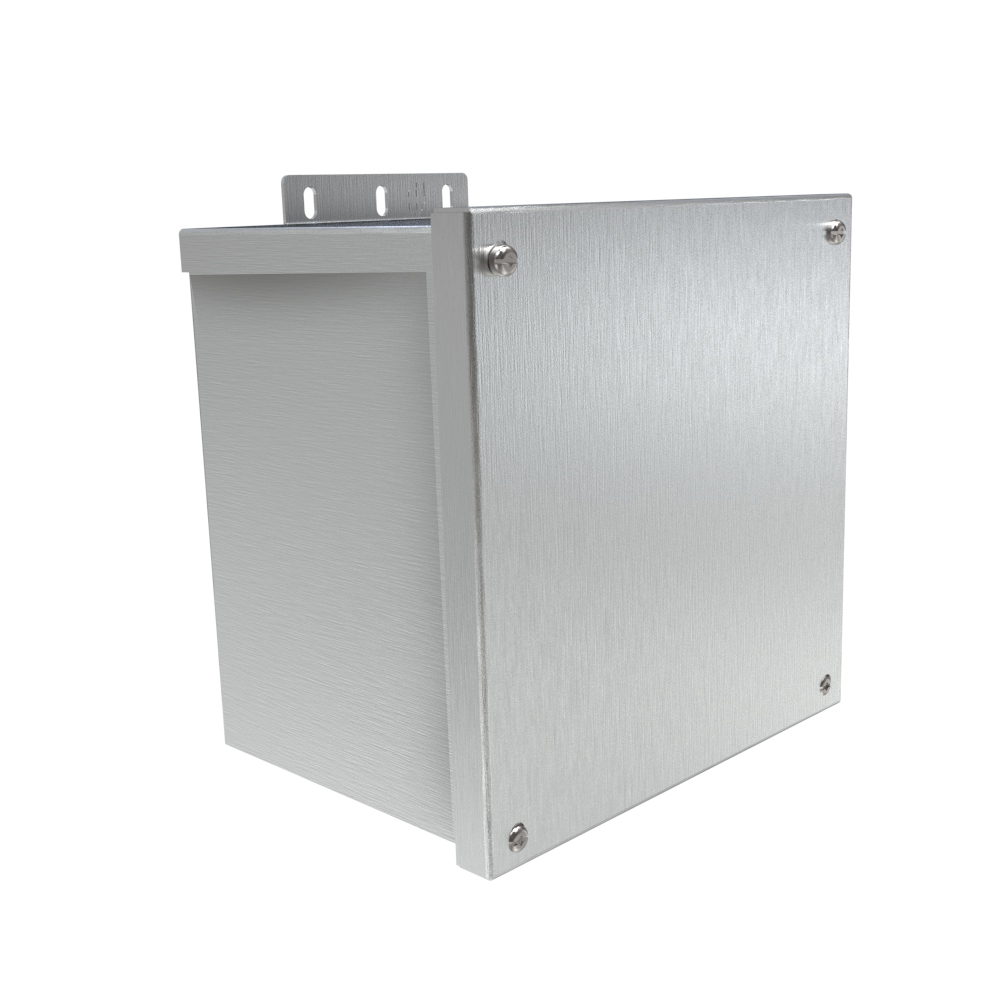

| C3R886ESCNKAL | 8.00 | 8.00 | 6.00 | $80.26Backorder | Buy now |

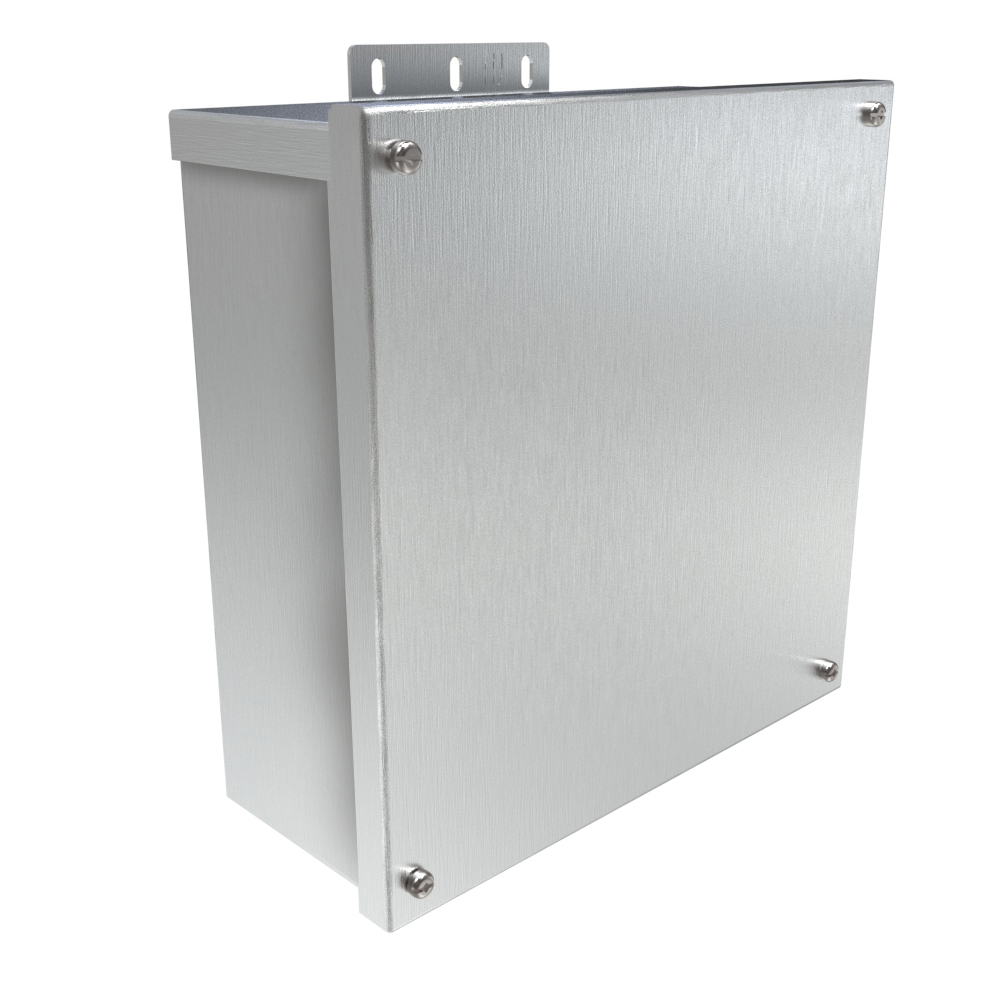

| C3R10104ESCNKAL | 10.00 | 10.00 | 4.00 | $88.25In stock | Buy now |

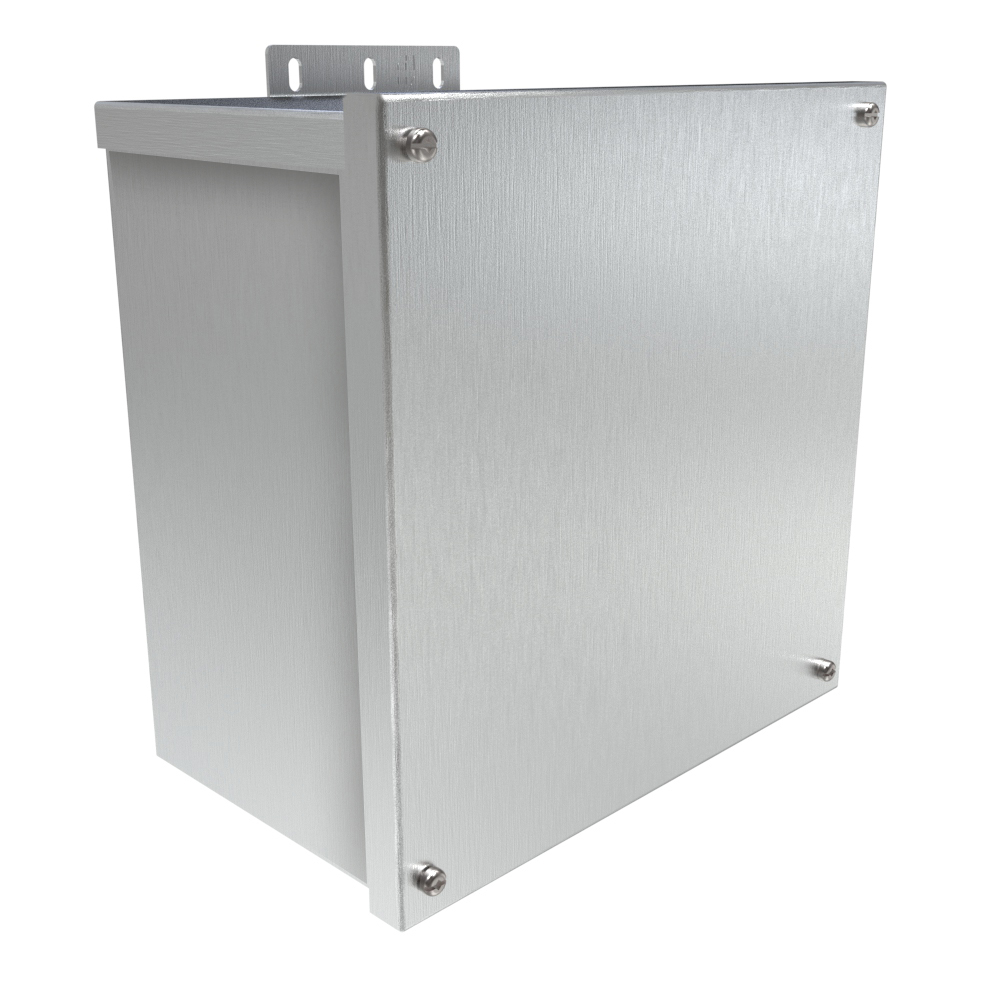

| C3R10106ESCNKAL | 10.00 | 10.00 | 6.00 | $102.75In stock | Buy now |

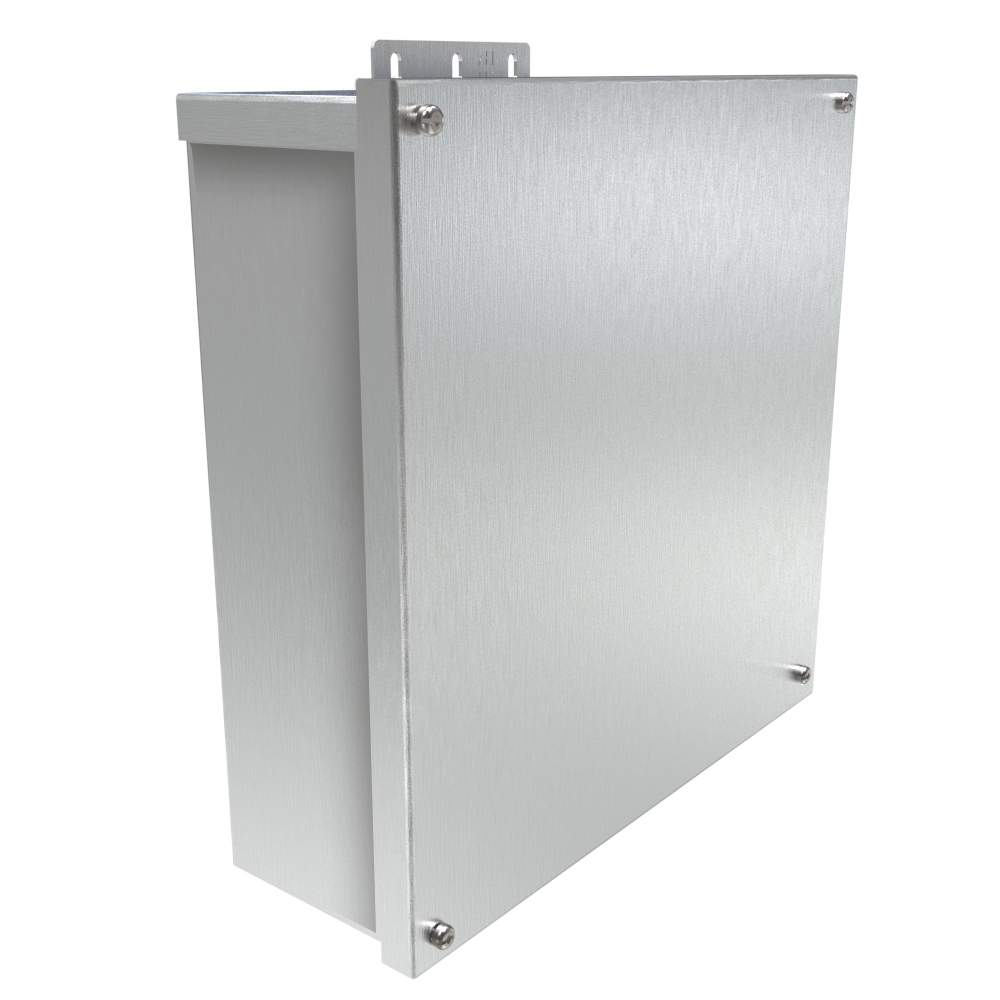

| C3R12124ESCNKAL | 12.00 | 12.00 | 4.00 | $110.40In stock | Buy now |

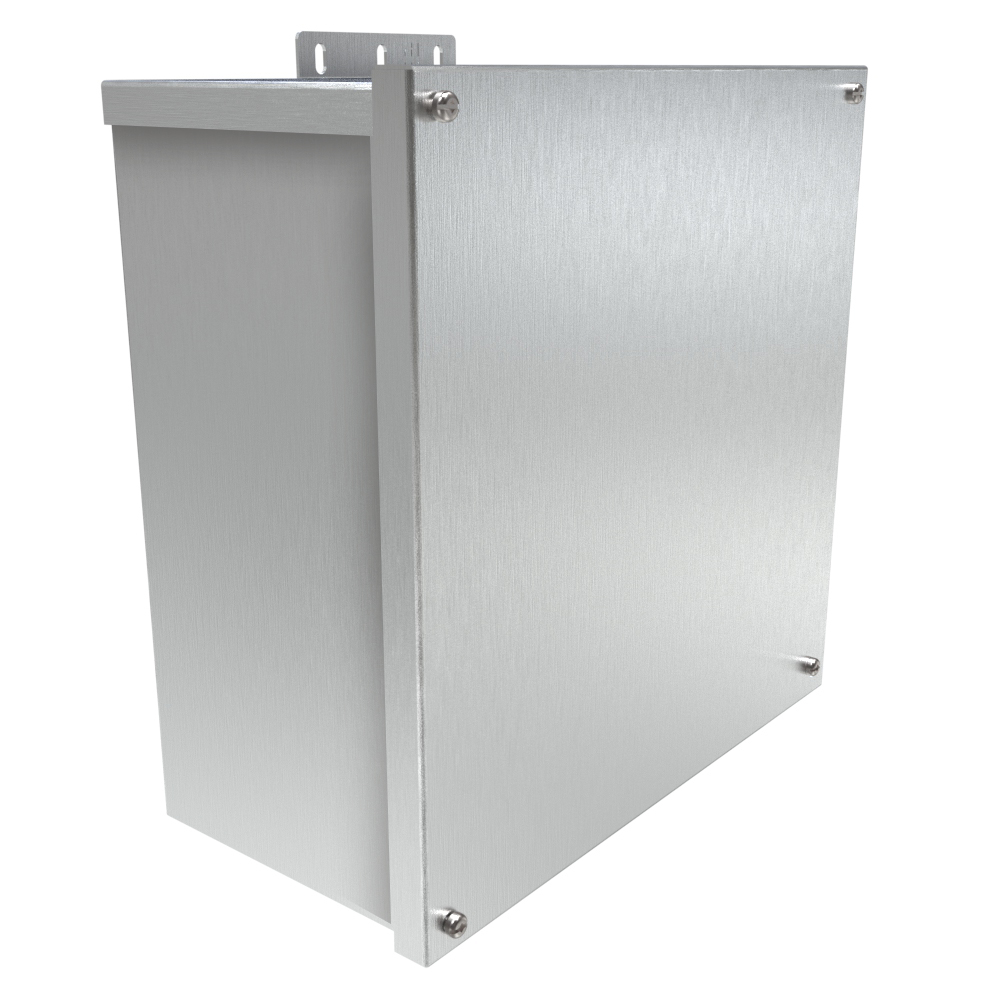

| C3R12126ESCNKAL | 12.00 | 12.00 | 6.00 | $132.54Backorder | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed from 0.08" Type 5052 H-32 aluminum
- ■Drip-shield top and seam-free sides, front and back.
- ■Slip-on removable cover fastened with plated steel screws.
- ■External mounting feet.
- ■Oil resistant gaskets are permanently secured.
- ■A grounding kit is provided.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in natural unfinished aluminum.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| C3R664ESCNKAL | 6.00 | 6.00 | 4.00 |
| C3R884ESCNKAL | 8.00 | 8.00 | 4.00 |
| C3R886ESCNKAL | 8.00 | 8.00 | 6.00 |
| C3R10104ESCNKAL | 10.00 | 10.00 | 4.00 |
| C3R10106ESCNKAL | 10.00 | 10.00 | 6.00 |
| C3R12124ESCNKAL | 12.00 | 12.00 | 4.00 |
| C3R12126ESCNKAL | 12.00 | 12.00 | 6.00 |
