N3R Jbox Screw Cover No K/O
$32.35In stock
Buy now
Type 3R Painted Galvanized Steel Junction Box · C3RESCNK Series
Brand: Hammond Manufacturing · 10 part numbers
Screw Cover and without Knockouts
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
from $18.91
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3RESCNK Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
N3R Jbox Screw Cover No K/O
$37.61In stock
Buy now
N3R Jbox Screw Cover No K/O
$40.44In stock
Buy now
N3R Jbox Screw Cover No K/O
$48.54In stock
Buy now
N3R Jbox Screw Cover No K/O
$91.22In stock
Buy now
N3R Jbox Screw Cover No K/O
$101.53In stock
Buy now
24X24X6
$160.08In stock
Buy now
N3R Jbox Screw Cover No K/O
$18.91In stock
Buy now
N3R Jbox Screw Cover No K/O
$26.22In stock
Buy now
N3R Jbox Screw Cover No K/O
$29.44In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|

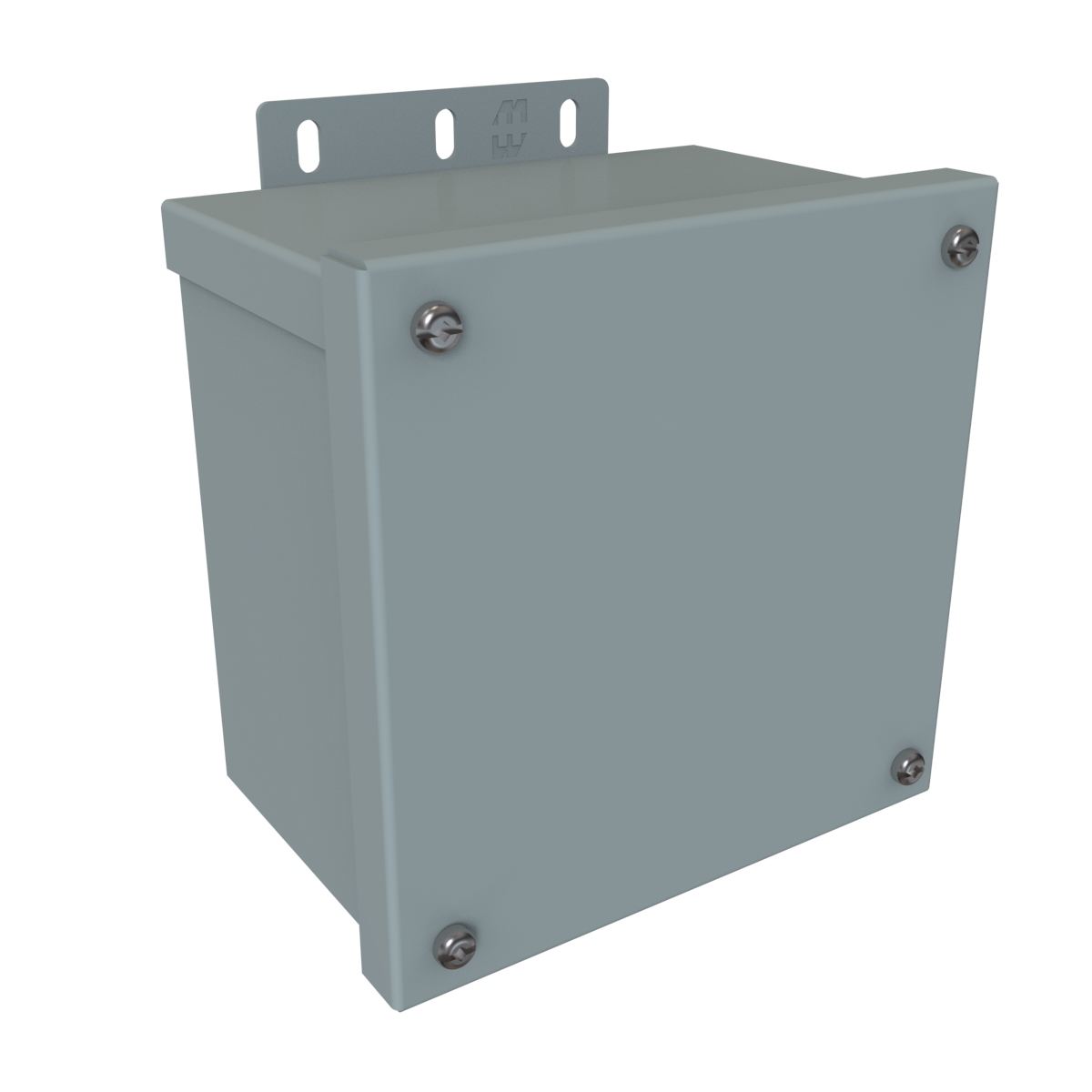

| C3R664ESCNK | 6.00 | 6.00 | 4.00 | $18.91In stock | Buy now |

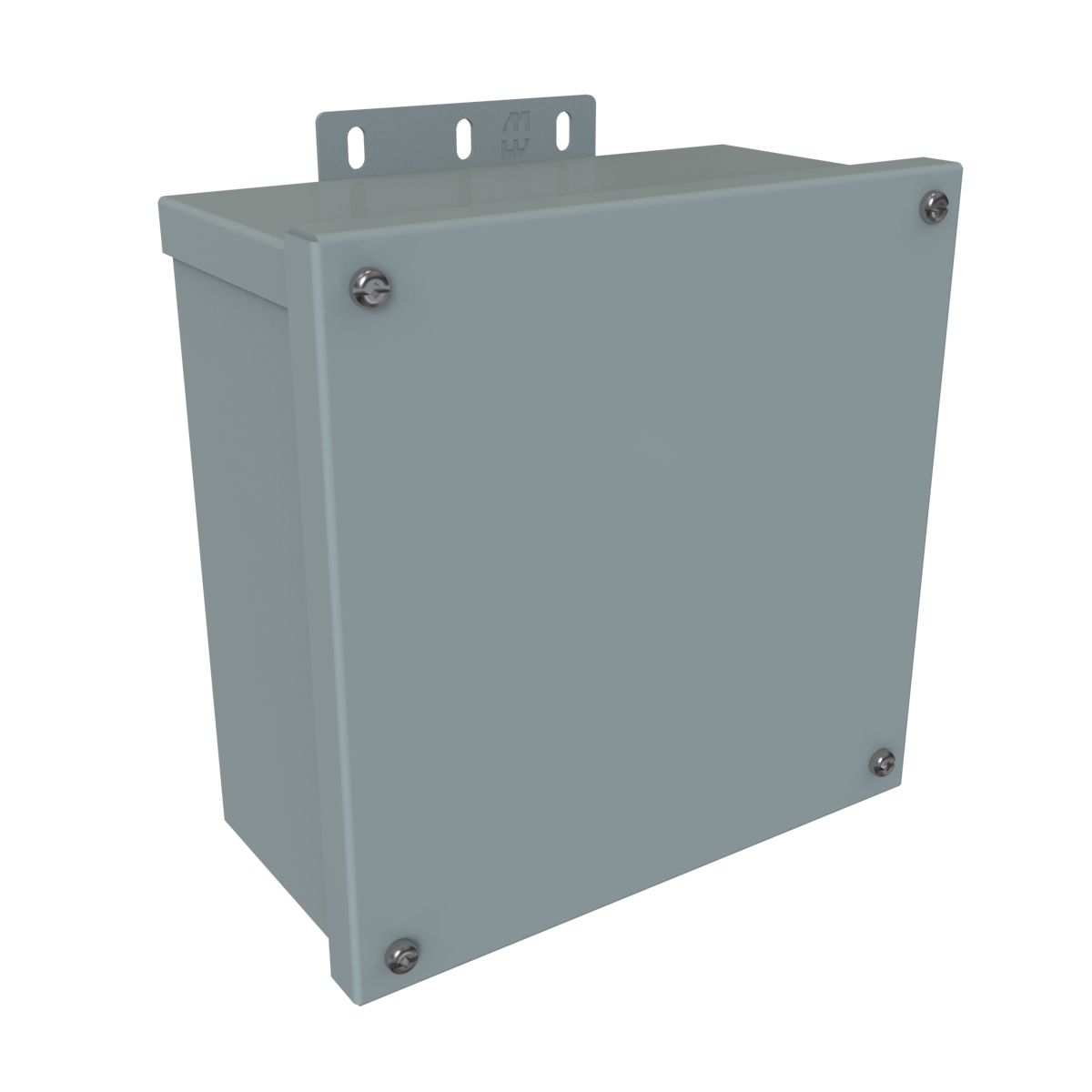

| C3R884ESCNK | 8.00 | 8.00 | 4.00 | $26.22In stock | Buy now |

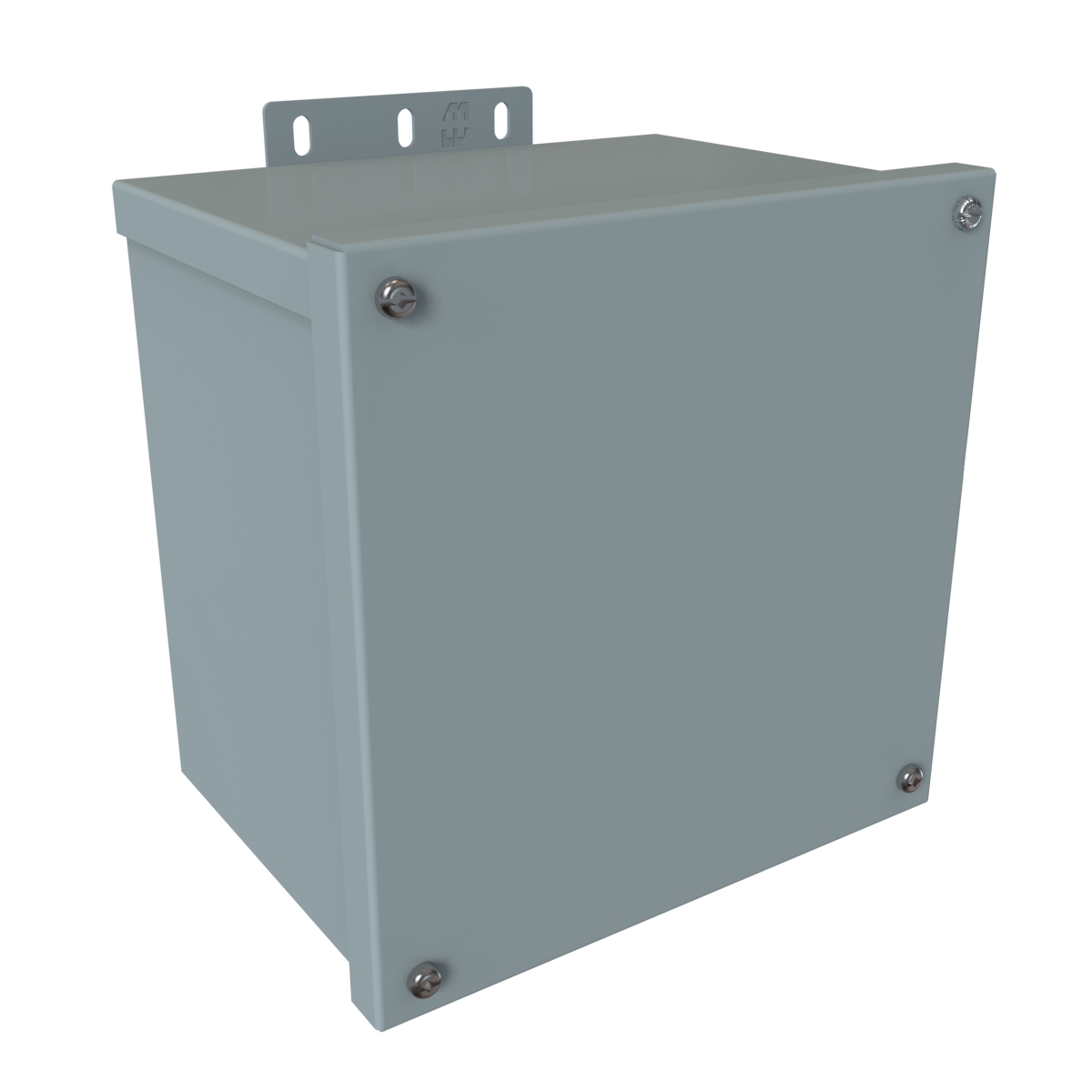

| C3R886ESCNK | 8.00 | 8.00 | 6.00 | $29.44In stock | Buy now |

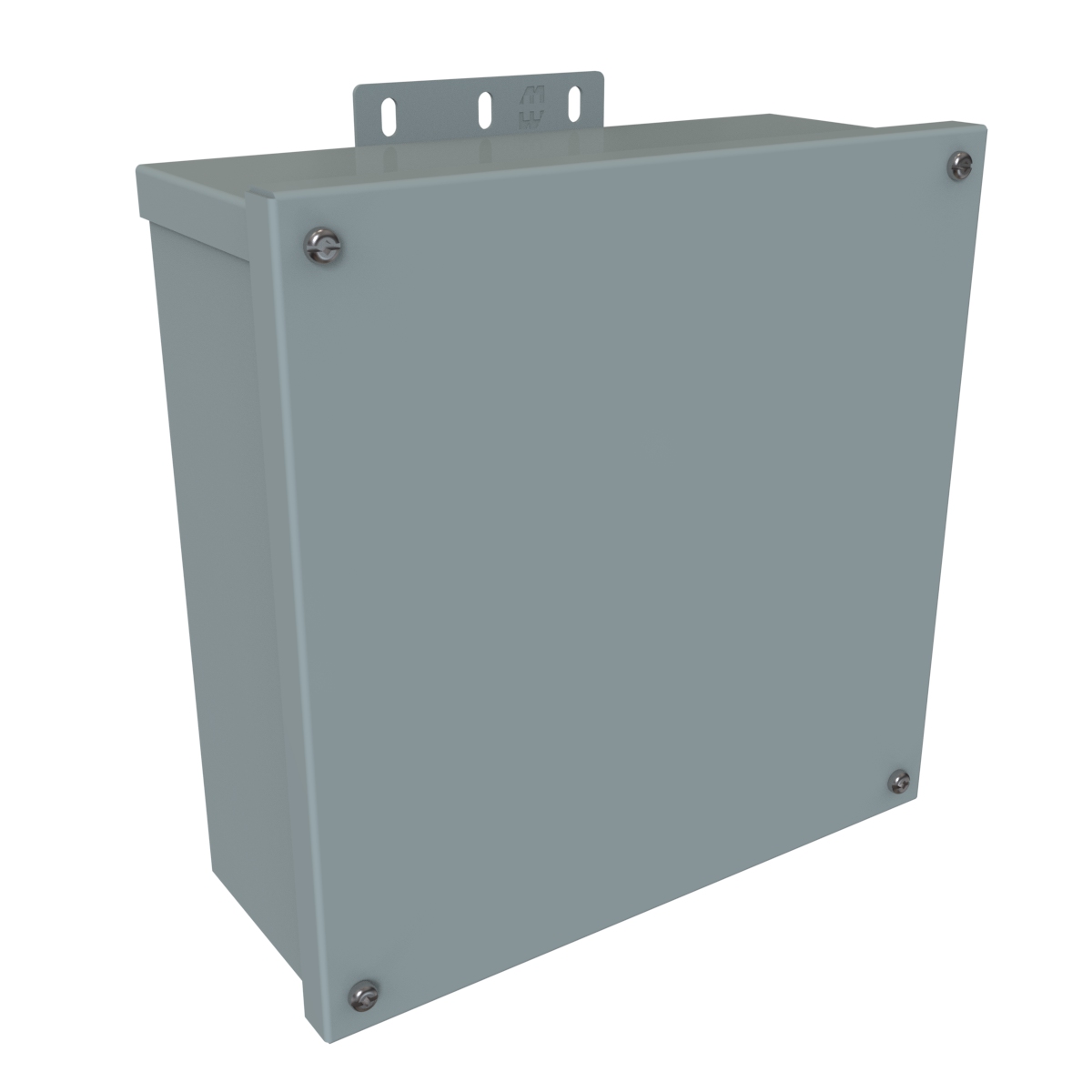

| C3R10104ESCNK | 10.00 | 10.00 | 4.00 | $32.35In stock | Buy now |

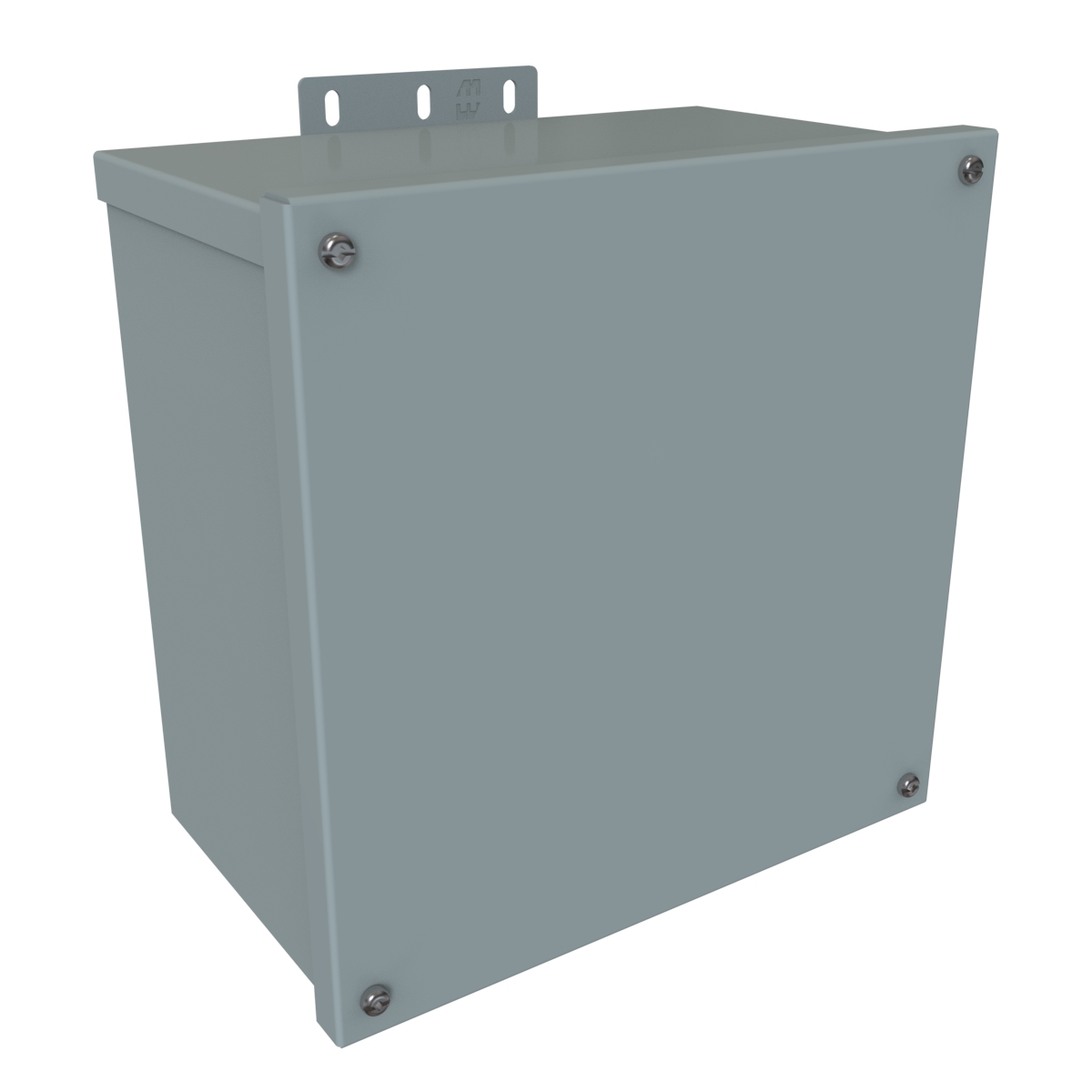

| C3R10106ESCNK | 10.00 | 10.00 | 6.00 | $37.61In stock | Buy now |

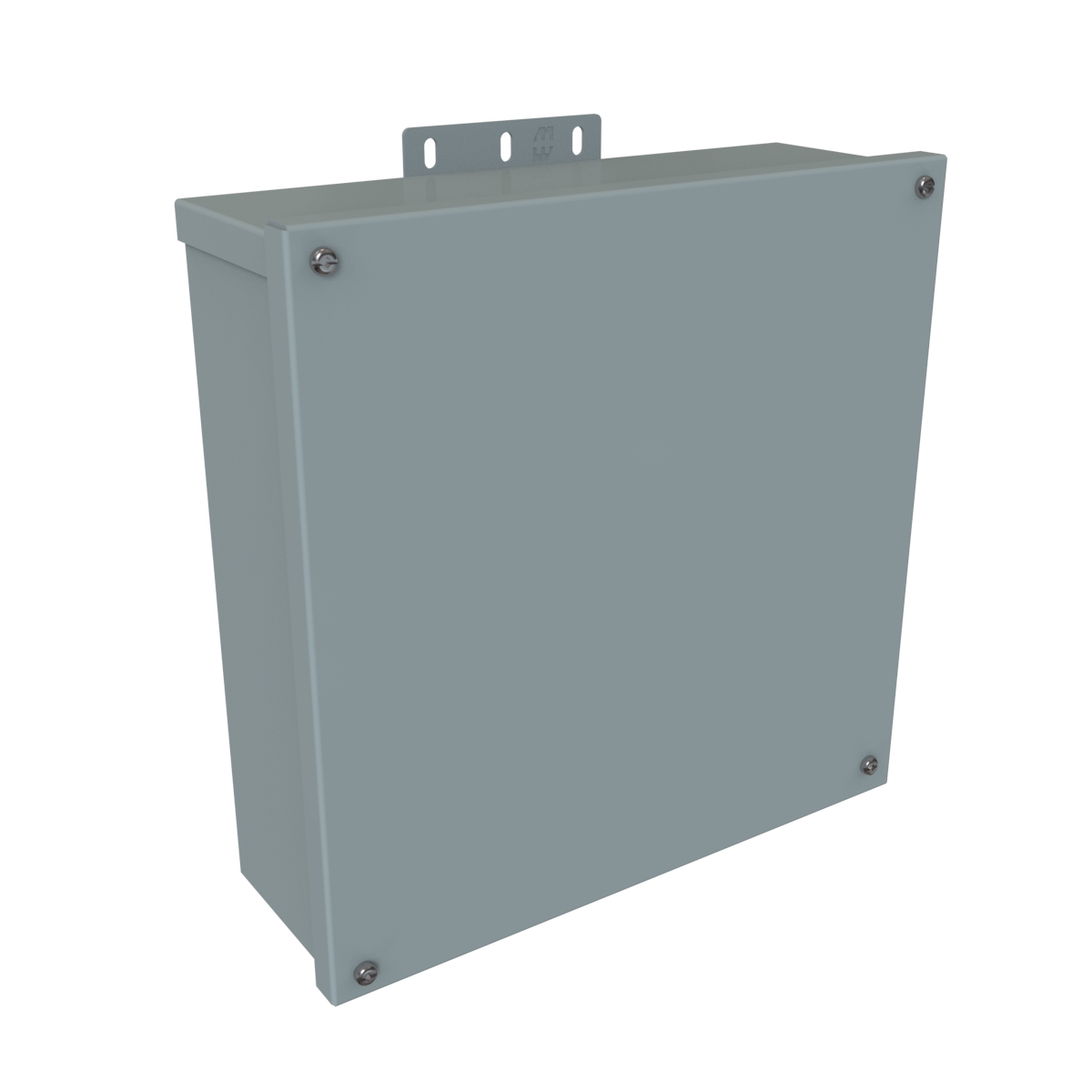

| C3R12124ESCNK | 12.00 | 12.00 | 4.00 | $40.44In stock | Buy now |

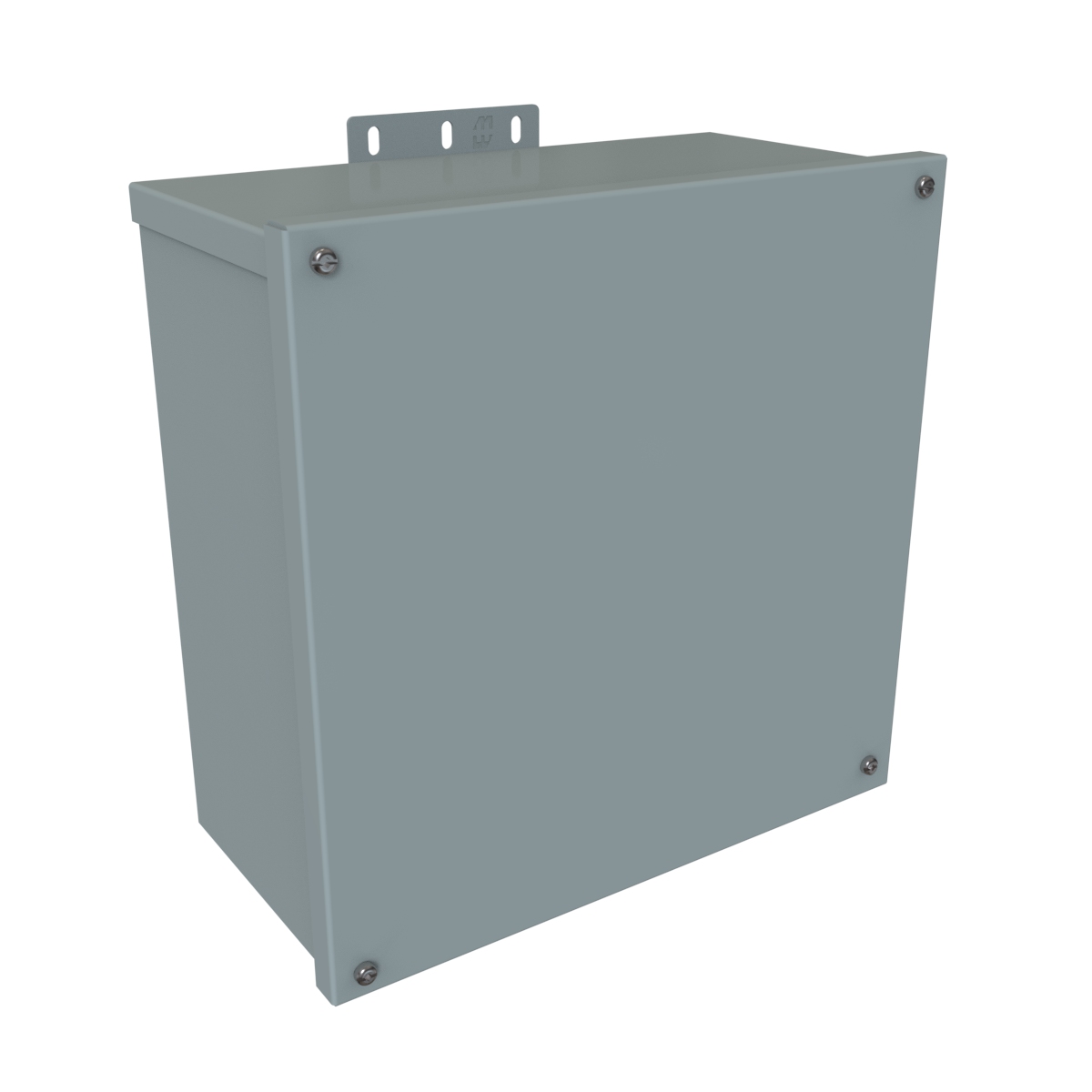

| C3R12126ESCNK | 12.00 | 12.00 | 6.00 | $48.54In stock | Buy now |

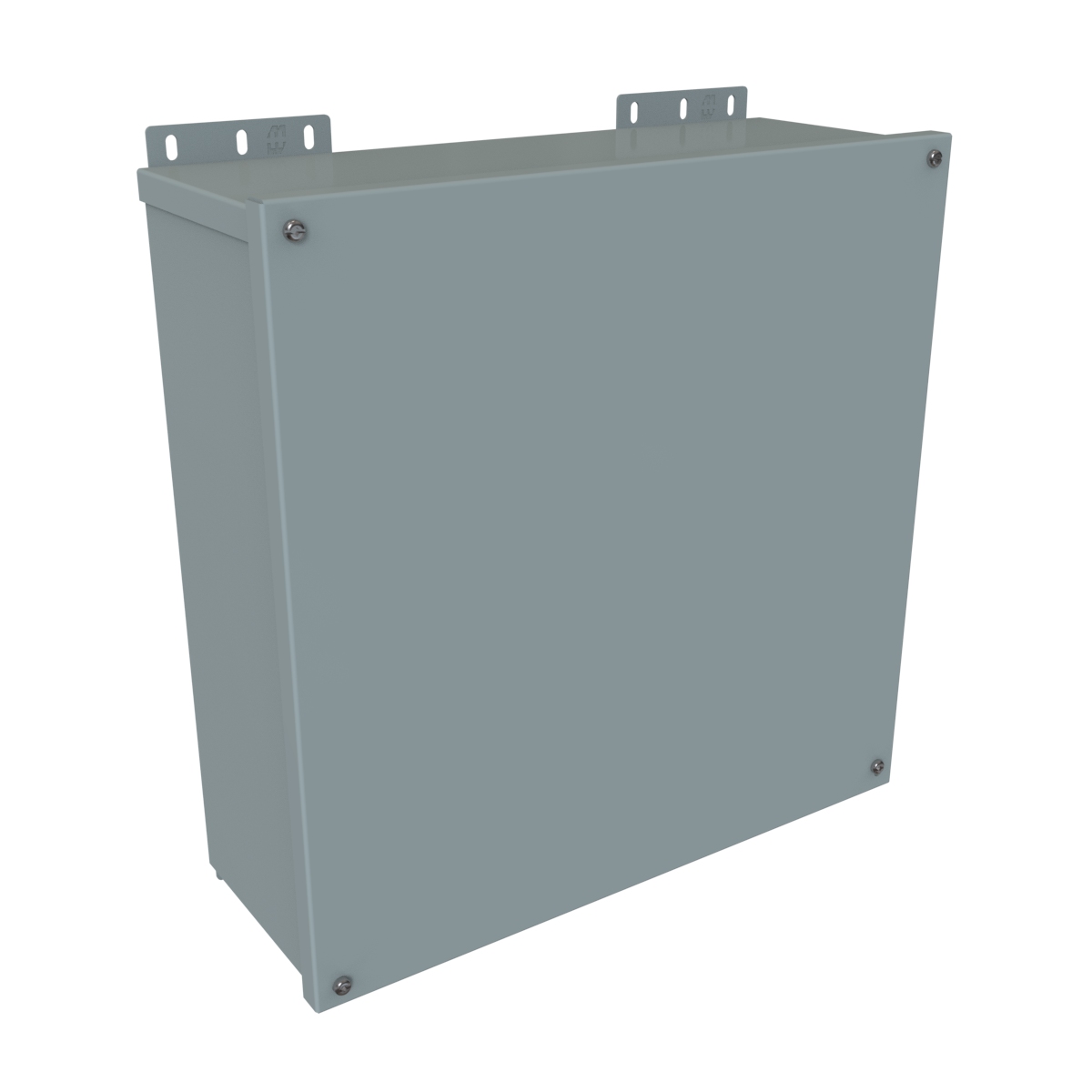

| C3R16166ESCNK | 16.00 | 16.00 | 6.00 | $91.22In stock | Buy now |

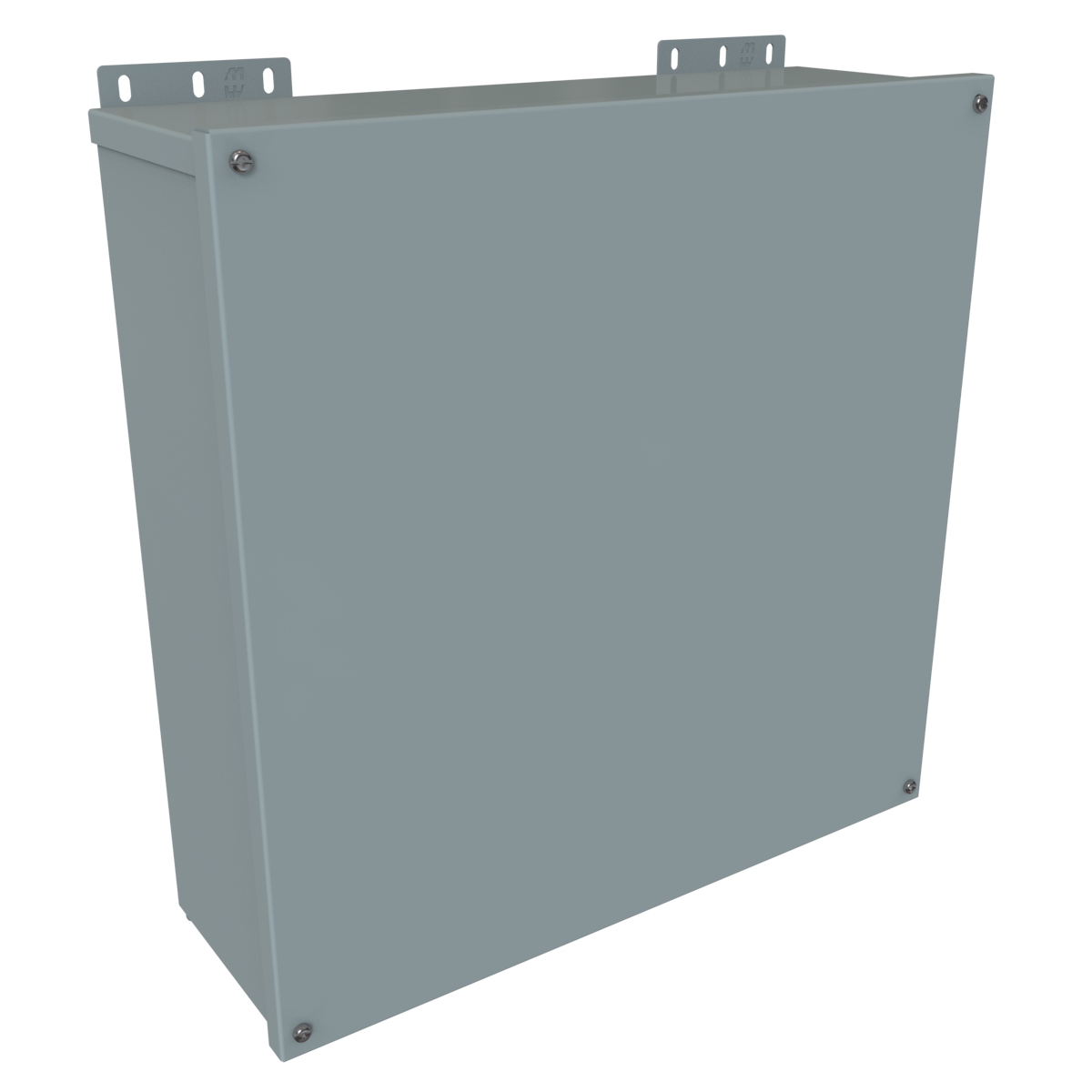

| C3R18186ESCNK | 18.00 | 18.00 | 6.00 | $101.53In stock | Buy now |

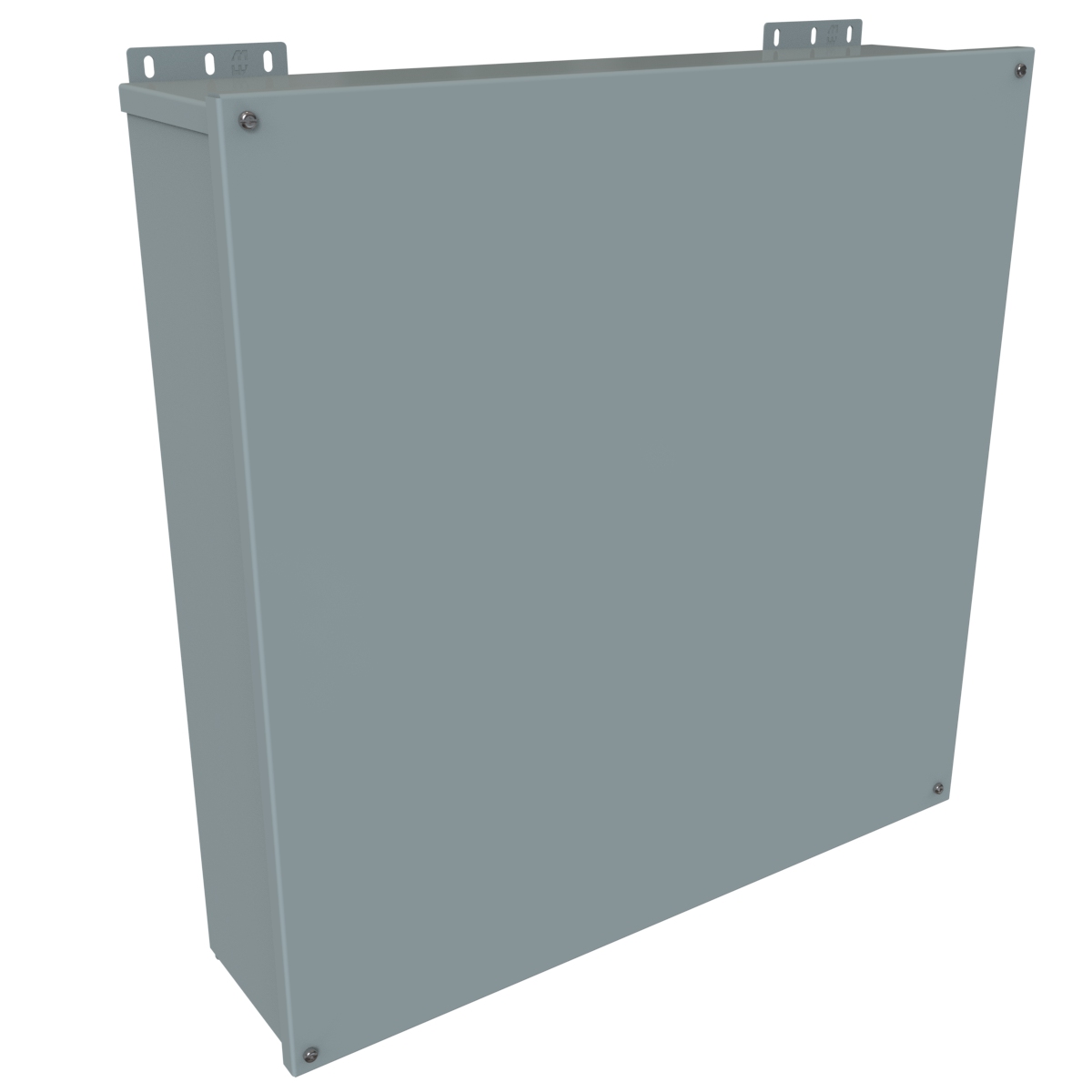

| C3R24246ESCNK | 24.00 | 24.00 | 6.00 | $160.08In stock | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 16 gauge galvanized steel (24x24x6 is 14 gauge).
- ■Drip-shield top and seam-free sides, front and back.
- ■Slip-on removable cover fastened with plated steel screws.
- ■External mounting feet
- ■Oil resistant gaskets are permanently secured
- ■A grounding kit is provided.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| C3R664ESCNK | 6.00 | 6.00 | 4.00 |
| C3R884ESCNK | 8.00 | 8.00 | 4.00 |
| C3R886ESCNK | 8.00 | 8.00 | 6.00 |
| C3R10104ESCNK | 10.00 | 10.00 | 4.00 |
| C3R10106ESCNK | 10.00 | 10.00 | 6.00 |
| C3R12124ESCNK | 12.00 | 12.00 | 4.00 |
| C3R12126ESCNK | 12.00 | 12.00 | 6.00 |
| C3R16166ESCNK | 16.00 | 16.00 | 6.00 |
| C3R18186ESCNK | 18.00 | 18.00 | 6.00 |
| C3R24246ESCNK | 24.00 | 24.00 | 6.00 |
