6 AWG X 10 Inch Bond Wire Kit
$32.45In stock
Buy now
Bonding Wire Kits · BWK Series
Brand: Hammond Manufacturing · 12 part numbers
- ■Constructed with UL Listed components.
- ■Mounting hardware is included for fastening to either 1/4-20 or 10-32 studs.
- ■Includes stick-on grounding symbol for compliance.
- ■TAA-compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
from $12.98
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
As seen on Linus Tech Tips. Click here to watch video.
Configure & price
Find your BWK Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
Dimension tables (inches / mm)
6 AWG
Units shown: inch . Switch units to: mm
| Part No. | Length | Cable Qty Included | Wire Ends | Bolt Hole Qty | Bolt Hole Spacing | Bolt Hole ∅ | Wire Gauge | Hardware Included | Quick Disconnecting Terminals | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

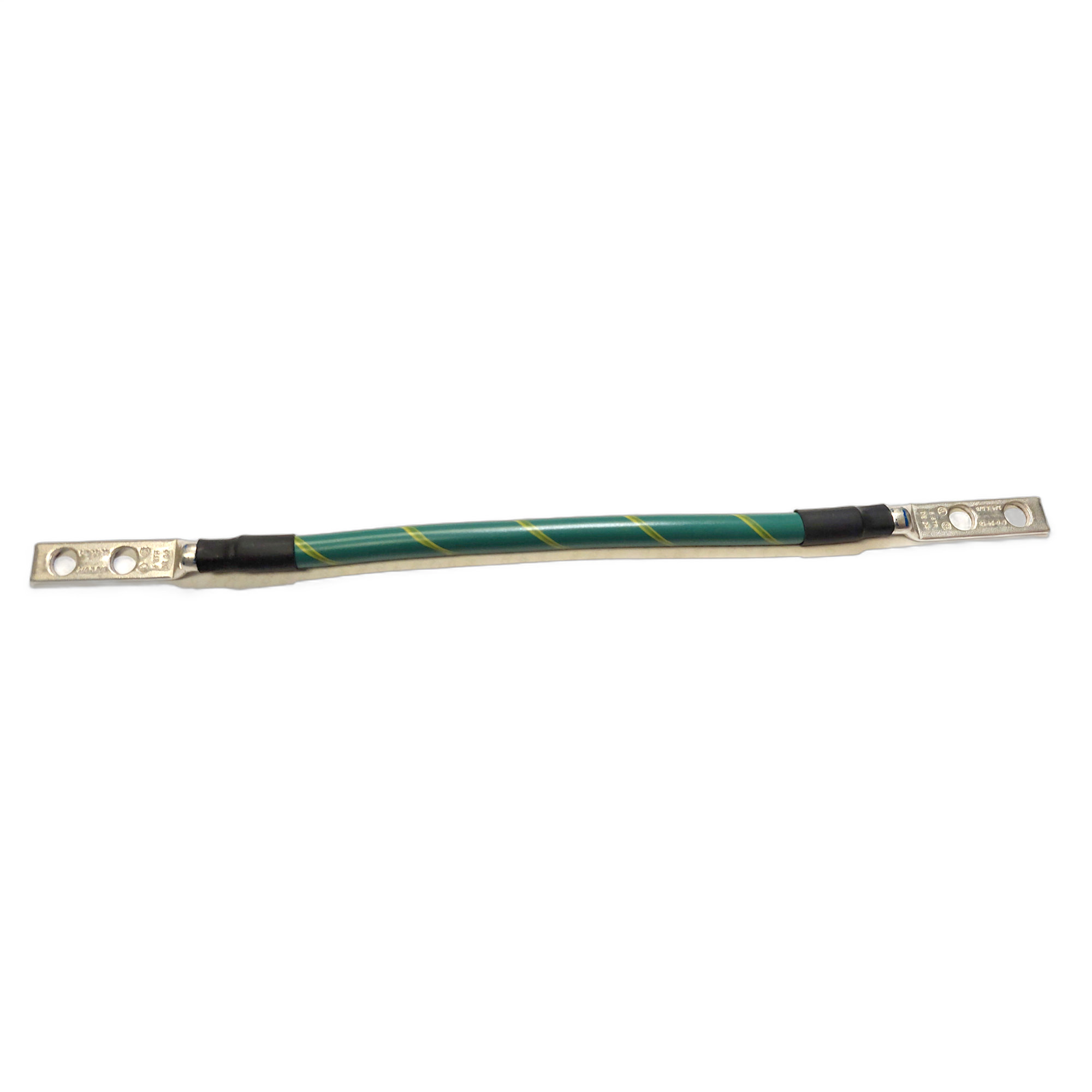

| BWK6A7 | 7.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $38.94In stock | Buy now |

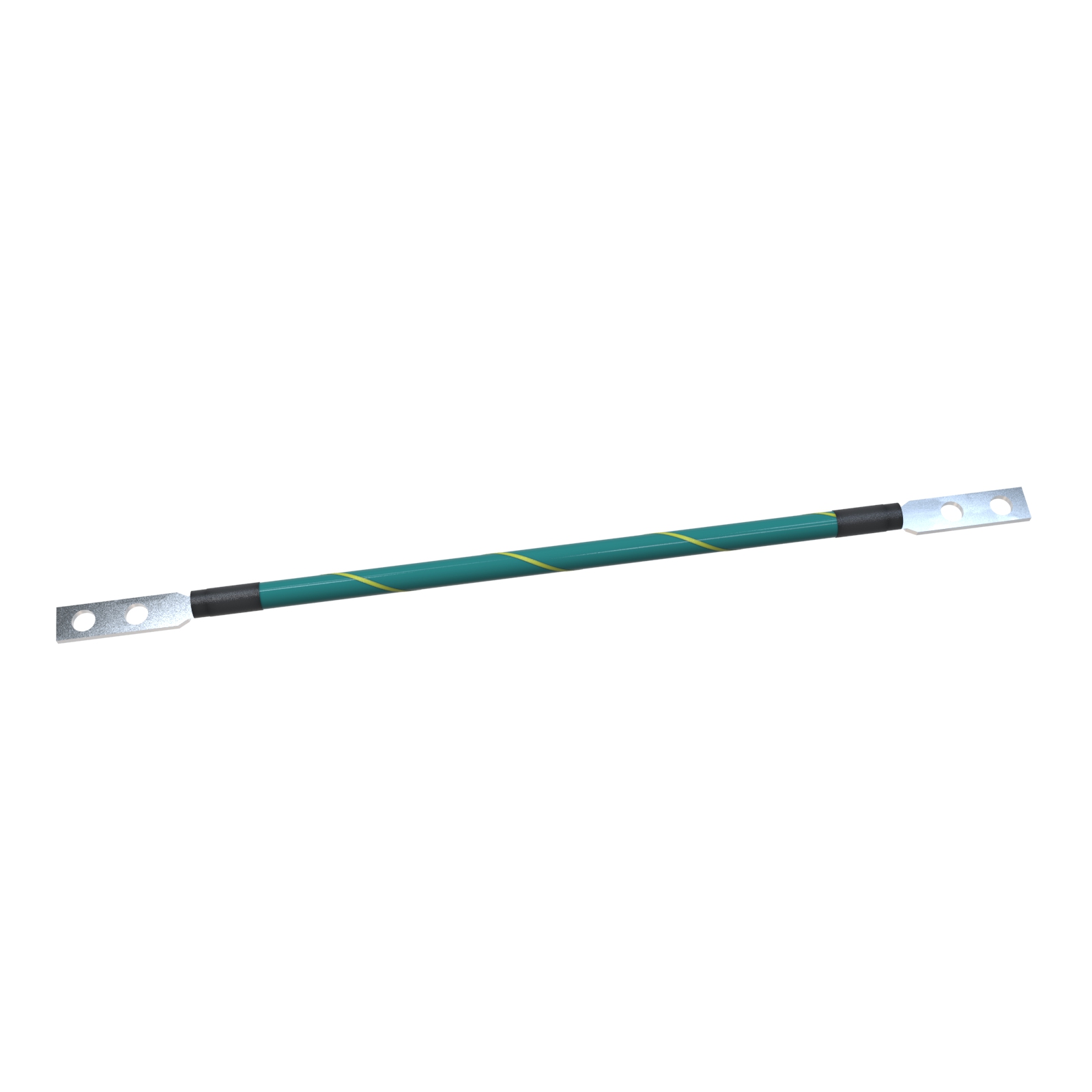

| BWK6A10 | 10.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $32.45In stock | Buy now |
| BWK6A11 | 11.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $38.94In stock | Buy now |

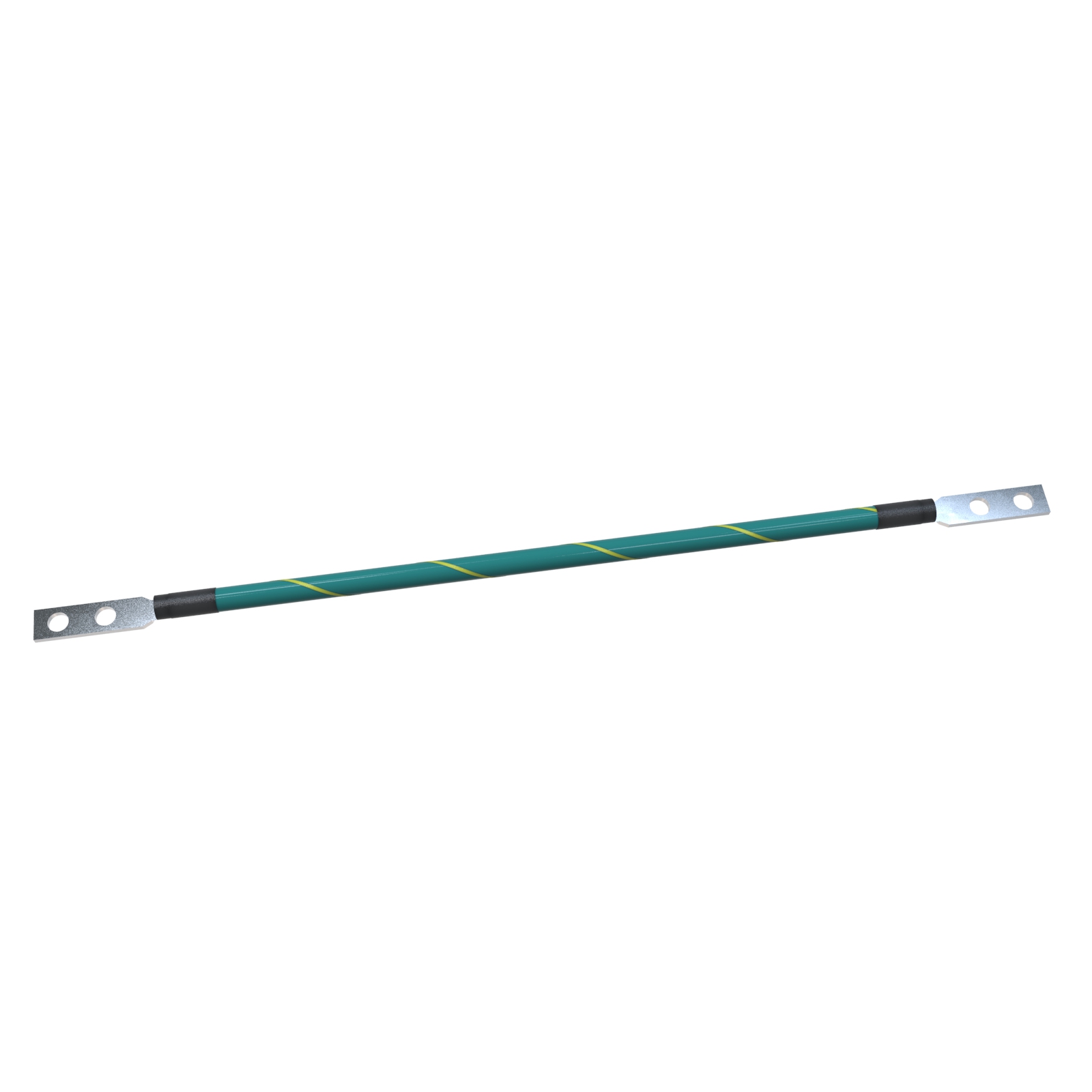

| BWK6A12 | 12.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $45.43In stock | Buy now |

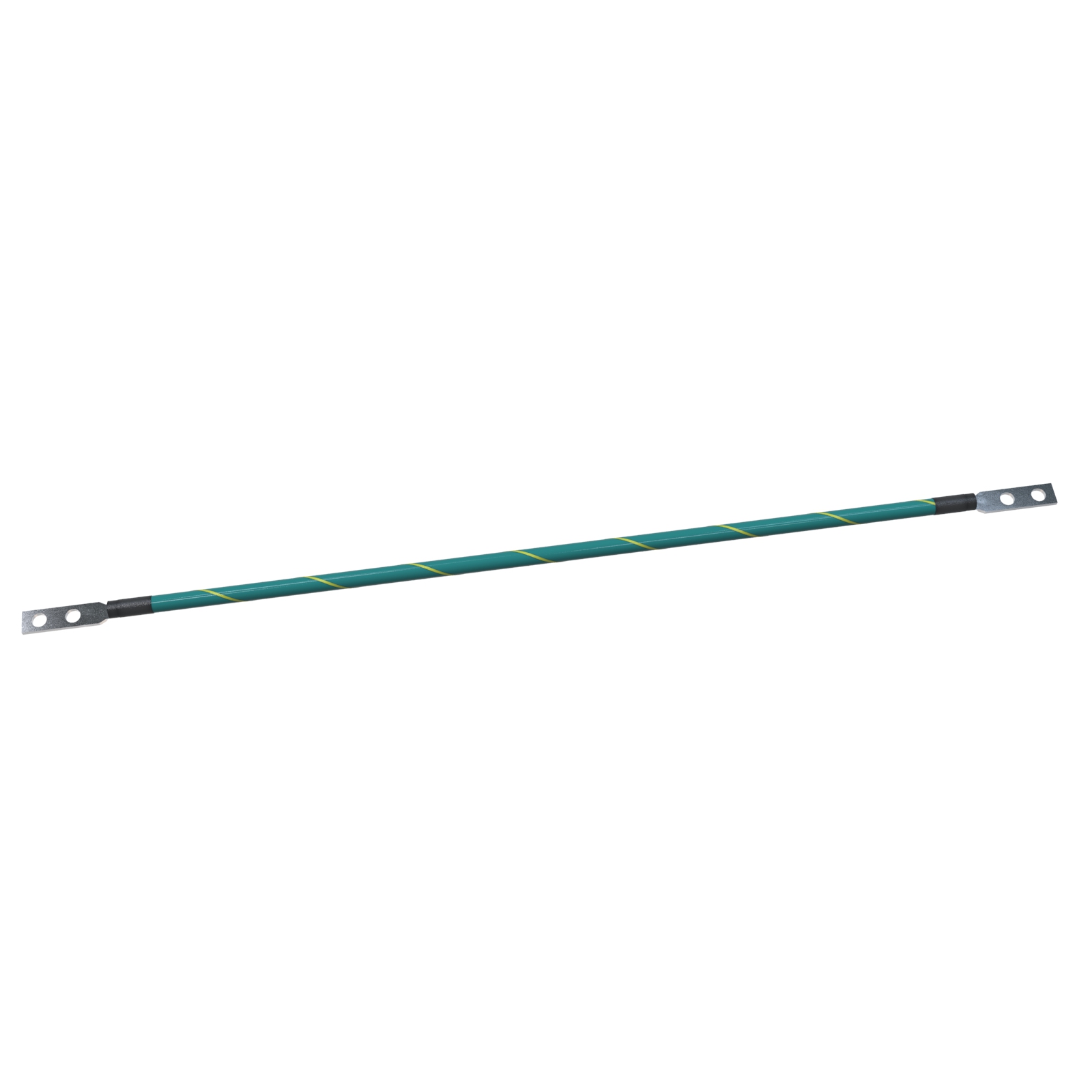

| BWK6A18 | 18.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $58.41In stock | Buy now |

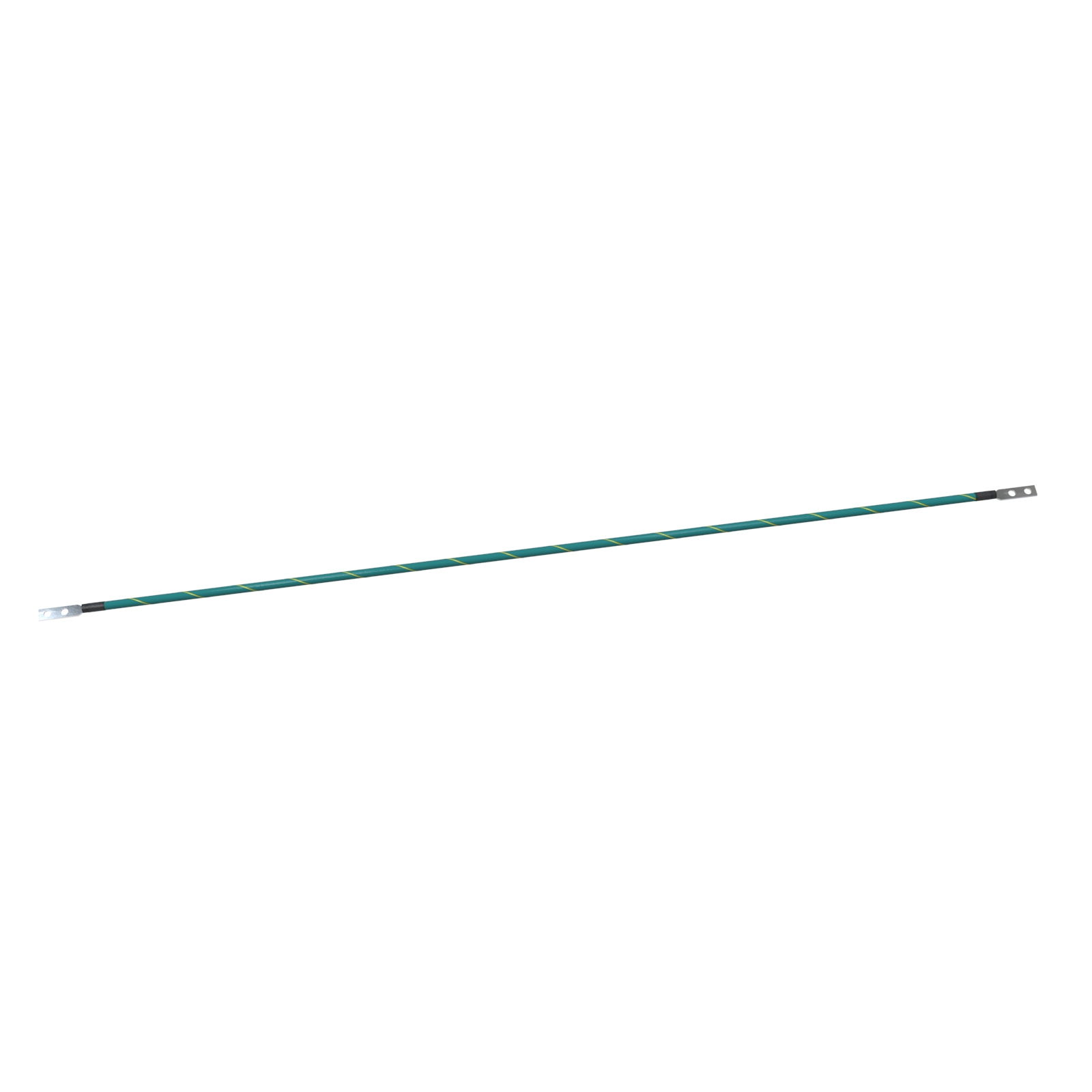

| BWK6A36 | 36.00 | 1 | Compress Lugs Both Ends | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $64.90In stock | Buy now |
10 AWG
Units shown: inch . Switch units to: mm
| Part No. | Length | Cable Qty Included | Wire Ends | Bolt Hole Qty | Bolt Hole Spacing | Bolt Hole ∅ | Wire Gauge | Hardware Included | Quick Disconnecting Terminals | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

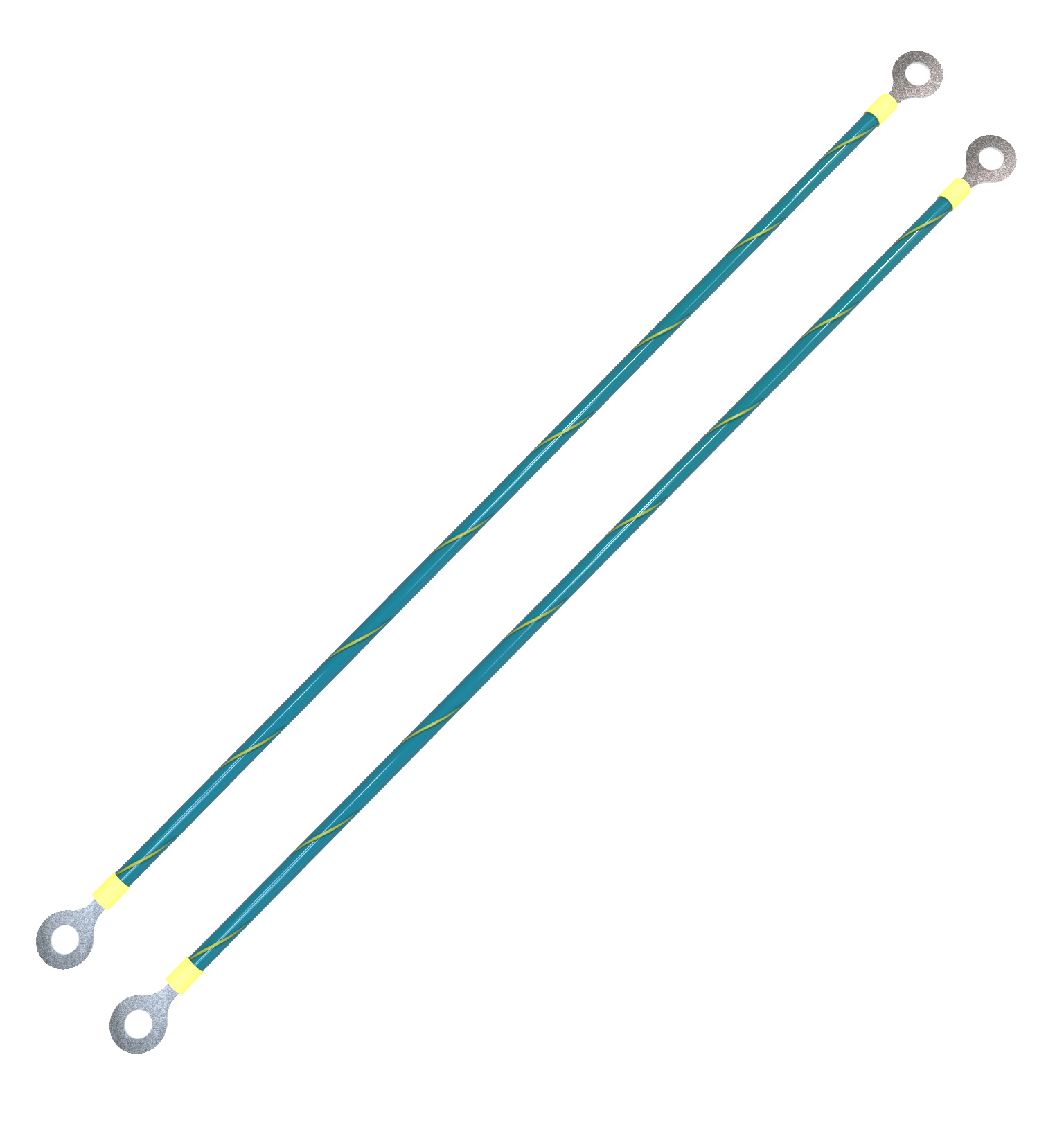

| GRDKIT01 | 12.00 | 2 | Compress Lugs Both Ends | 1 | - | 0.26 | 10 AWG | Yes | No | $25.96In stock | Buy now |

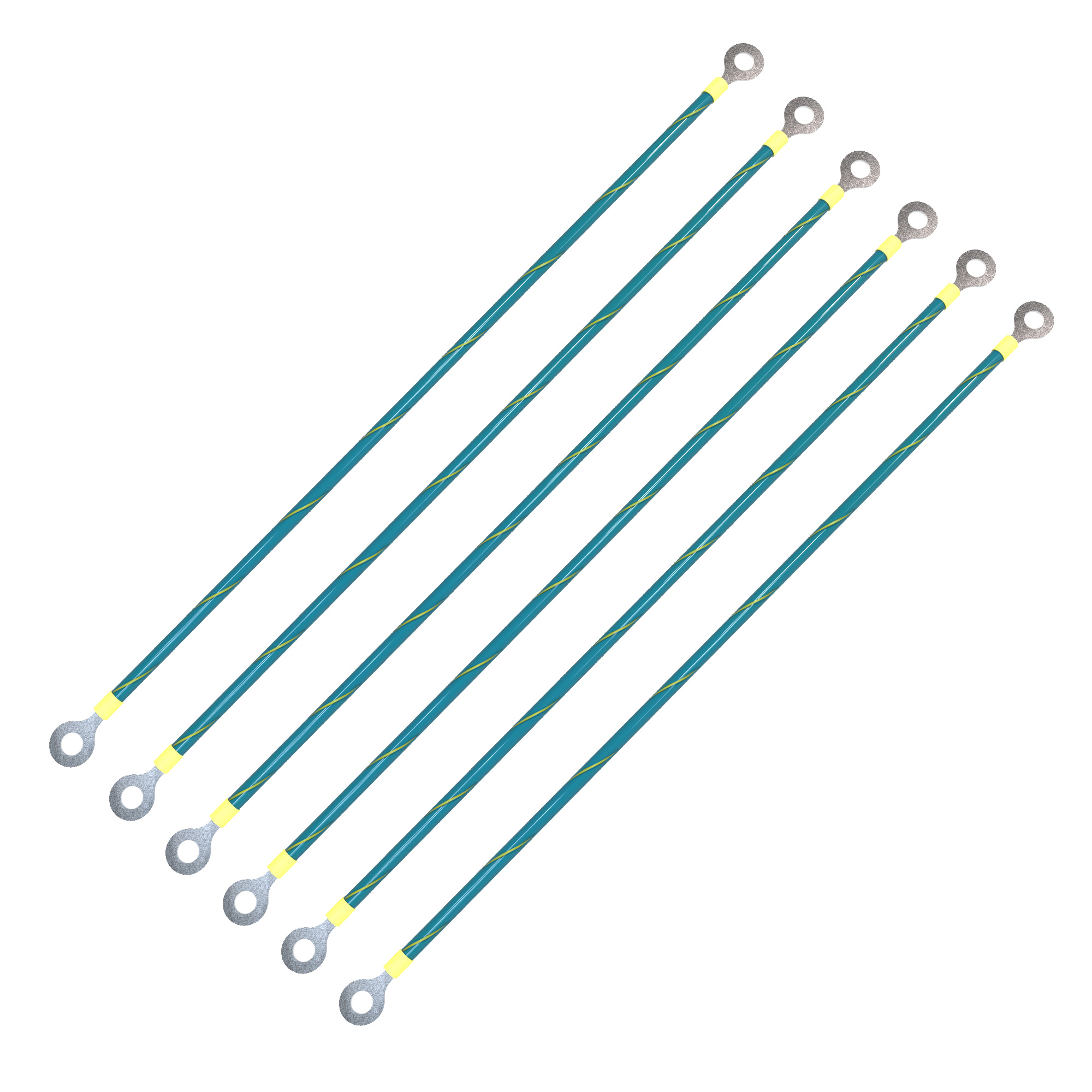

| GRDKIT02 | 16.00 | 6 | Compress Lugs Both Ends | 1 | - | 0.26 | 10 AWG | Yes | No | $51.92In stock | Buy now |
| GRDKIT03 | 12.00 | 1 | Compress Lugs Both Ends | 1 | - | 0.26 | 10 AWG | Yes | No | $12.98In stock | Buy now |

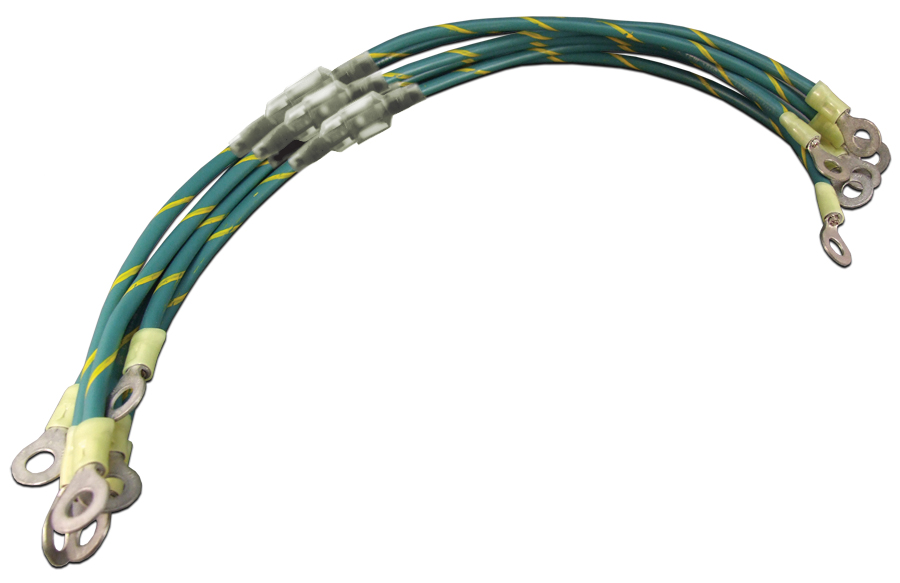

| GRDKIT04 | 12.00 | 4 | Compress Lugs Both Ends | 1 | - | 0.26 | 10 AWG | Yes | Yes | $58.41In stock | Buy now |
| GRDKIT05 | 22.00 | 1 | Compress Lugs Both Ends | 1 | - | 0.26 | 10 AWG | Yes | Yes | $25.96In stock | Buy now |
Features
- ■Constructed with UL Listed components.
- ■Mounting hardware is included for fastening to either 1/4-20 or 10-32 studs.
- ■Includes stick-on grounding symbol for compliance.
- ■TAA-compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
#6 AWG Bonding Wire Kit Features:
- ■#6 AWG 266 strand copper, MTW/TEW UL1283 type, Green-insulated with a yellow stripe.
- ■Both ends feature two (2) hole compression lugs with bolt holes that are 0.281" (7.1 mm) in diameter and spaced 5/8" (15.9 mm) apart.
#10 AWG Bonding Wire Kit Features:
- ■#10 AWG Green-insulated, stranded copper cable with a yellow stripe.
- ■One (1) 0.256" stud hole ring terminal is crimped on either end to offer a bolt-on option for grounding network equipment.
