Hammond BWK6A7 7-Inch 6 AWG Bonding Wire Kit for Racks

The BWK6A7 is a rack and cabinet ground kit built around a single 7.00 in (178 mm) #6 AWG bonding wire, intended for IT, AV, electrical and facilities teams that need to bond rack frames, side panels, doors, rails and cable management components back to a common ground point. Its short length suits frame-to-frame and component-to-frame jumpers where bays are bonded together or a panel must be tied to the rack structure.

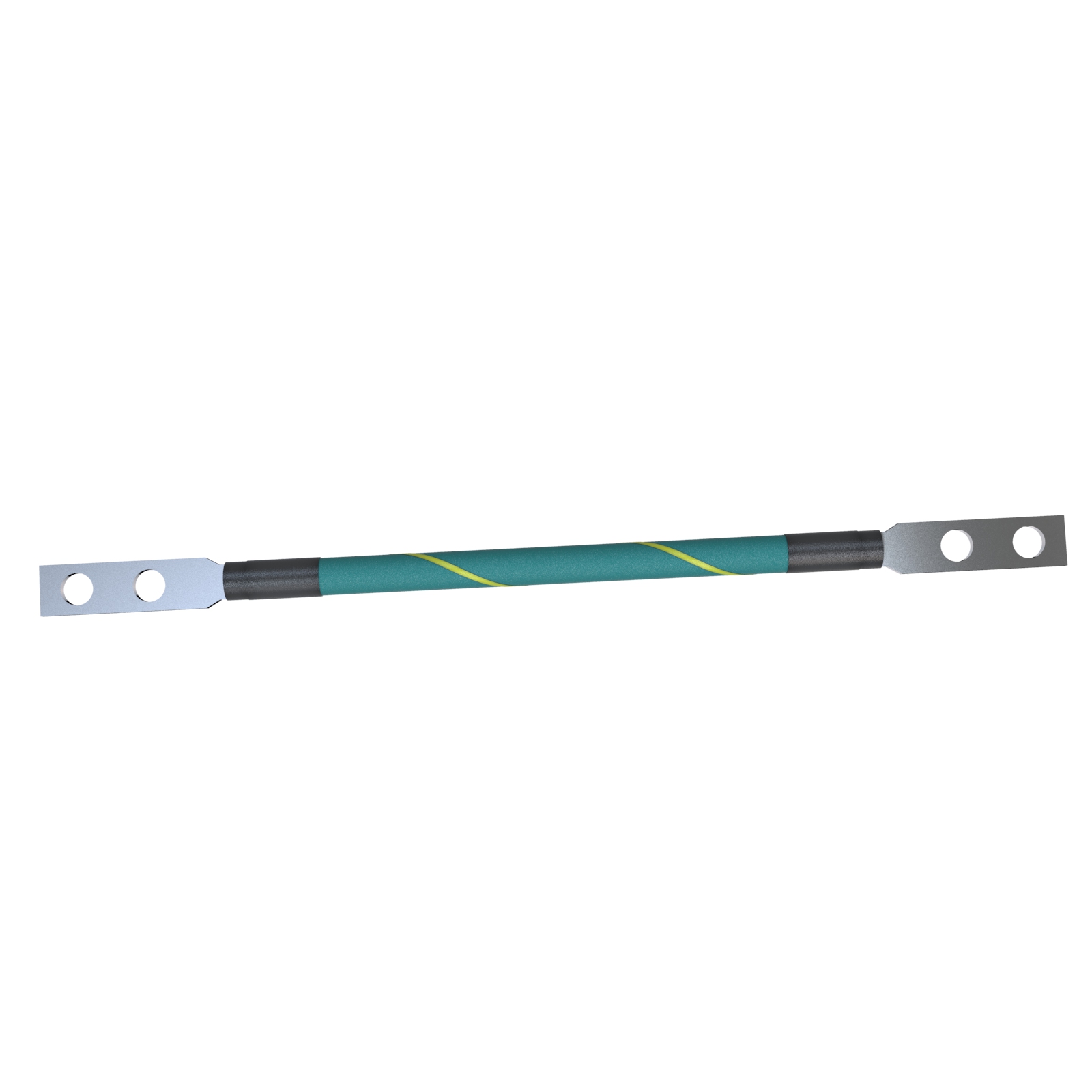

The cable is #6 AWG 266 strand copper of MTW/TEW UL1283 type, green-insulated with a yellow stripe for clear identification as a bonding conductor. Both ends are fitted with two-hole compression lugs; the bolt holes are 0.281 in (7.1 mm) in diameter and spaced 5/8 in (15.9 mm) apart, and the drawing identifies the terminals as 6 GA compression lugs for 1/4 in studs. Overall lug dimensions on the drawing are 41.45 mm (1.632 in) long with a 2.21 mm (0.087 in) thickness.

Mounting hardware is included with the BWK6A7 for fastening to either 1/4-20 or 10-32 studs, and the kit also includes a stick-on grounding symbol to help document compliance at the bonding point. Quick-disconnecting terminals are not used on this part, so connections are bolted and torqued in place.

The kit is constructed with UL Listed components and is manufactured in North America, with Canada given as the country of origin. BWK6A7 is RoHS and REACH compliant, USMCA compliant, and TAA-compliant for GSA Schedule purchases, with an ECCN of EAR99 and a tariff code of 8544.42.9090. Shipping weight is 0.24 lbs (0.11 kg).
