Hammond GRDKIT03 Single 12 in 10 AWG Rack Cabinet Ground Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- One 12 in (305 mm) 10 AWG bonding wire
- Green w/ yellow stripe TEW/MTW tinned cable
- Crimped 10 GA ring terminals both ends for 1/4" & #10 studs
- 4 sets of #10-32 screws, locking nuts and washers per drawing
- Stick-on grounding symbols included
- TAA-compliant; manufactured in North America

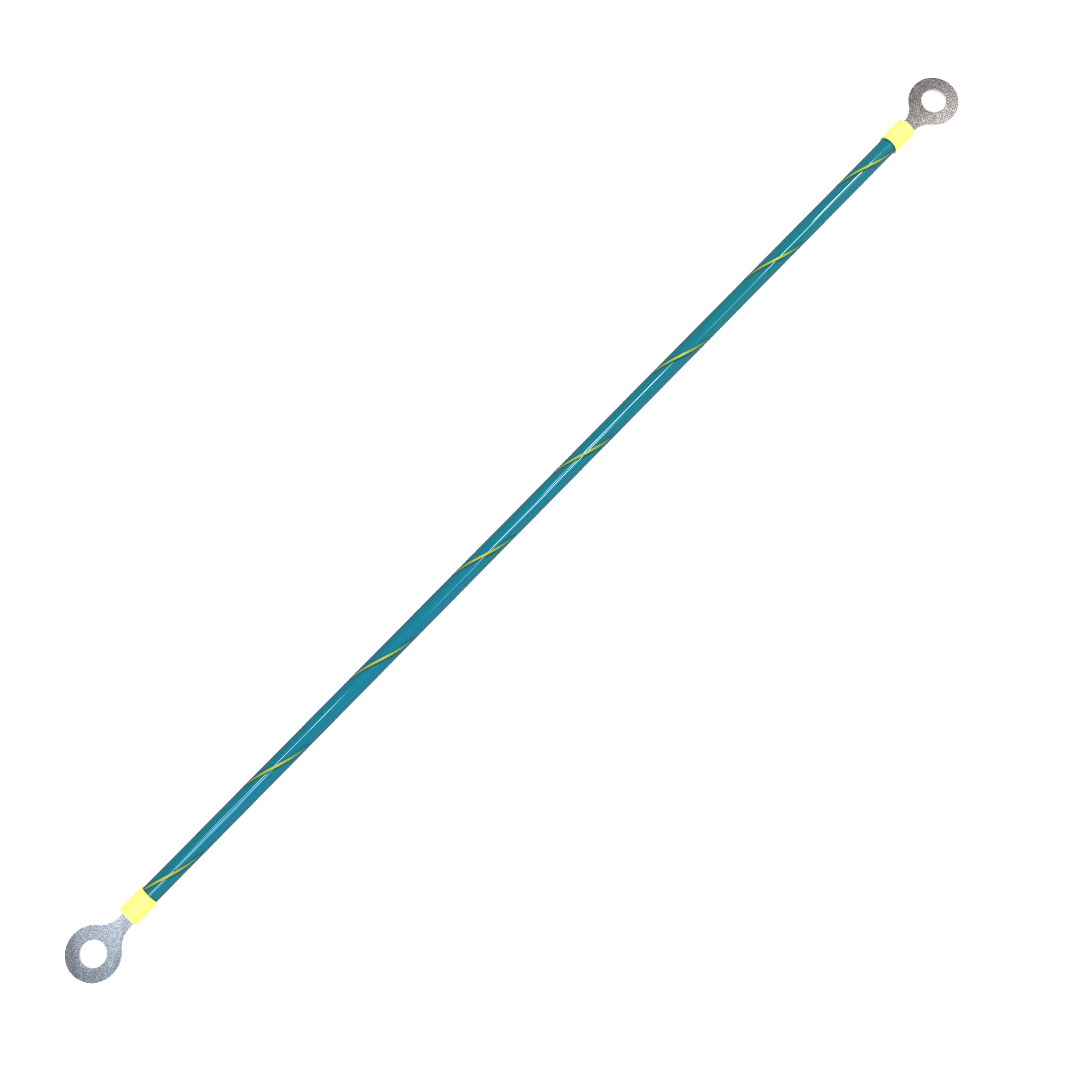

The GRDKIT03 is a rack cabinet ground kit with a single 12 in (305 mm) 10 AWG bonding wire. It is the smallest kit in the series, a simple way to add one bonding jumper between a cabinet component and ground.
The wire is Green w/ Yellow Stripe, Type 10 AWG TEW/MTW tinned cable, terminated at both ends with crimped-on 10 GA ring terminals for 1/4" and #10 studs. The terminal hole is 0.256 in diameter (0.26 in / 7 mm in the ordering table). The GRDKIT03 uses fixed ring terminals rather than quick disconnects.
The drawing lists the hardware for this part as 4 #10-32 x 3/4" screws, 4 #10-32 locking nuts, 4 #10 locktooth washers and 4 #10 flat washers. The series also provides stick-on grounding symbols, two for each jumper, to mark the bonding point.
It is a useful single jumper where only one extra bonding point is needed in a cabinet.
Like the rest of the series, it is TAA-compliant for GSA Schedule purchases and manufactured in North America. It is REACH and RoHS compliant and has a shipping weight of 0.08 lbs (0.04 kg).
Ideal For
- Adding a single bonding jumper in a rack cabinet
- Grounding an individual enclosure panel
- TAA-compliant GSA Schedule purchases
Mounting
| Hardware Included | Yes |
| Stud Compatibility | Mounting hardware for both 1/4-20 or 10-32 ground studs |
Overview
| Labels | Stick-on grounding symbols (two for each jumper) |
| Product Type | 10 AWG Bonding Wire Kit |
| Short Description | 1X 12IN BONDING WIRE KITS |
| Cable Qty Included | 1 |
| Manufacturer Description | Rack Cabinet Ground Kit |
Dimensions
| Cable Length | 12.00 in (305 mm) |
Electrical
| Cable | Green w/ Yellow Stripe, Type 10 AWG TEW/MTW tinned cable (#10 TC TEW Green/Yellow) |
| Terminals | Crimped-on 10 GA ring terminal for 1/4" & #10 stud |
| Wire Ends | Compress Lugs Both Ends |
| Wire Gauge | 10 AWG |
| Bolt Hole Qty | 1 |
| Bolt Hole Diameter | 0.26 in (7 mm) |
| Terminal Hole Diameter | 0.256 in (series); 6.60 mm [0.260 in] (drawing) |
| Terminal Radius (Drawing) | R6.73 mm [0.265 in] |
| Terminal Thickness (Drawing) | 0.91 mm [0.036 in] |
| Quick Disconnecting Terminals | No |
Identifiers
| UPC | 623980538662 |
| UNSPSC | 46182103 |
Included Hardware
| #10 Flat Washers | 4 |
| #10-32 Locking Nuts | 4 |
| #10-32 X 3/4" Screws | 4 |
| #10 Locktooth Washers | 4 |
Packaging & Shipping
| Shipping Weight | 0.08 lbs (0.04 kg) |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Country Of Manufacture | Manufactured in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many wires are in the GRDKIT03?▾
One 12 in (305 mm) bonding wire.
What hardware comes with it?▾
The drawing lists 4 #10-32 x 3/4" screws, 4 #10-32 locking nuts, 4 #10 locktooth washers and 4 #10 flat washers.
What size stud do the terminals fit?▾
The 10 GA ring terminals are for 1/4" and #10 studs, with a 0.256 in hole.
Does it have quick disconnect terminals?▾
No.
What does it weigh?▾
The shipping weight is 0.08 lbs (0.04 kg).
