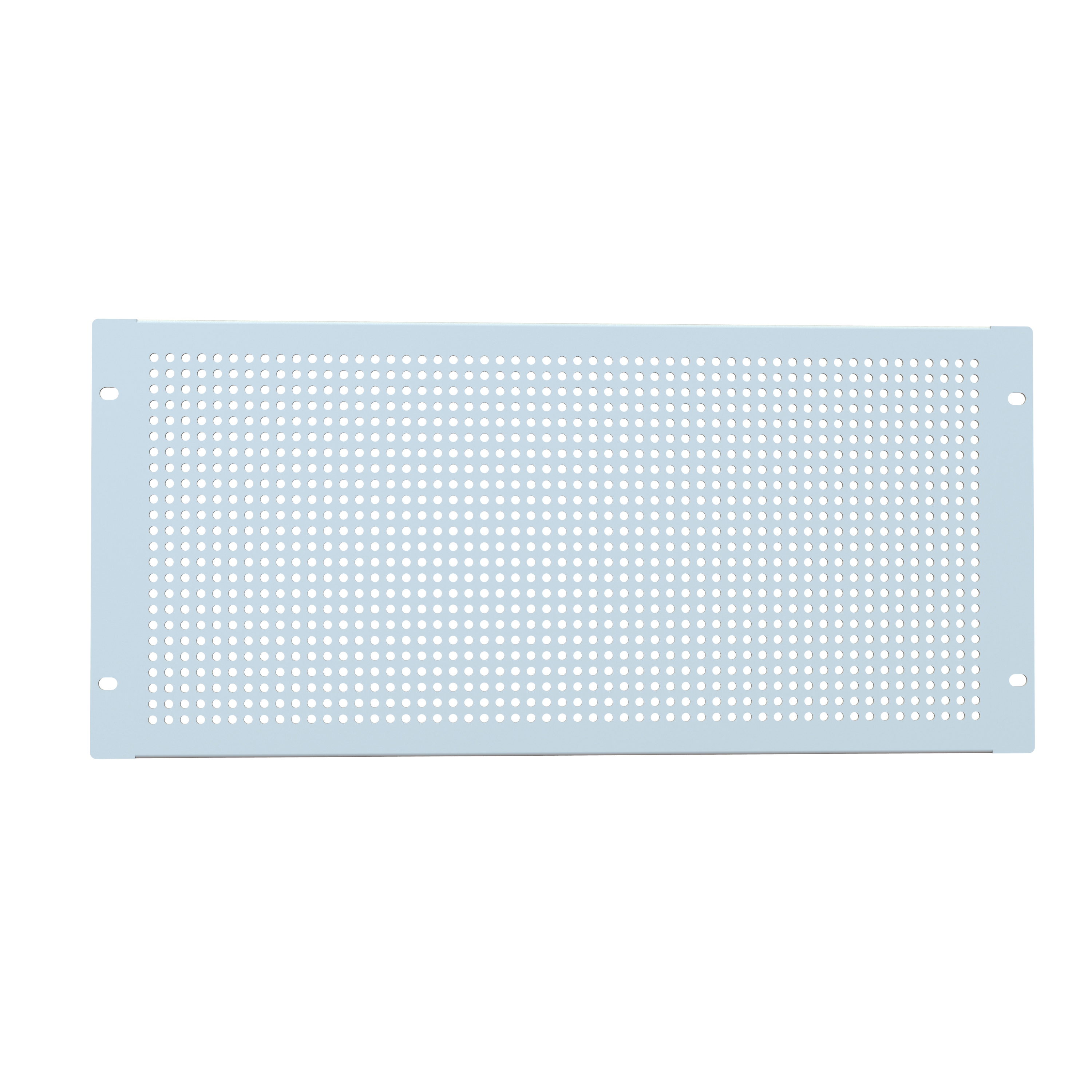

Hammond PPFS19008LG2 5U Perforated 19-Inch Vented Rack Panel, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 5U perforated rack panel with 8.75 in (222 mm) x 19.00 in (483 mm) usable mounting dimensions
- Perforated pattern allows approximately 25% airflow for cooling and ventilation in rack environments
- 16-gauge mild steel construction for durable coverage of unused rack space
- RAL7035 semi-gloss light gray smooth powder coat finish (GREENGUARD, TSCA, RoHS compliant)
- Fits standard 19 in EIA-compliant rack rails; four 0.250 x 0.375 in [6 mm x 10 mm] mounting slots
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
- Mounting hardware not included
- Also offered in RAL9005 matte black as PPFS19008BK
PPFS19008LG2 is a 5U perforated steel rack panel finished in RAL7035 semi-gloss light gray. It is designed to cover unused rack space in a standard 19 in EIA-compliant rack while still allowing air to pass through the panel, making it a practical choice for IT and AV integrators, data center technicians and facilities teams managing rack airflow and appearance.
The panel is made of 16-gauge mild steel with a smooth powder coat finish, and the perforated pattern allows approximately 25% airflow so active equipment behind and around the panel keeps breathing. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the part is REACH compliant, USMCA compliant and TAA-compliant, manufactured in North America to support government procurement requirements.
Usable mounting dimensions are 5U high at 8.75 in (222 mm), 19.00 in (483 mm) wide and 0.50 in (13 mm) deep. The drawing shows an overall panel width of 19.00 in (483 mm) and a panel height of 8.72 in (221 mm), with 0.12 in (3 mm) corner radii and four 0.250 x 0.375 in [6 mm x 10 mm] mounting slots. Shipping weight is 2.5 lbs (1.13 kg).
Installation follows normal rack panel practice: align the slotted flanges with the rack's 19 in mounting rails and secure with rack screws. Mounting hardware is not included with PPFS19008LG2, so order rack mounting hardware separately if needed. A matching matte black version, PPFS19008BK, is available in the same 5U size.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments needing airflow through unused spaces
- Installations using active cooling and containment strategies
- Covering unused rack space while maintaining ventilation
Overview
| Color | RAL7035 Semi-Gloss Light Gray |
| Series | PPFS Series Perforated Steel Rack Panels |
| Description | 5U Perforated Panel |
| Part Number | PPFS19008LG2 |
| Matching Black Version | PPFS19008BK (RAL9005 Matte Black) |
Dimensions
| Corner Radius | 0.12 in (3 mm) |
| Depth (Drawing) | 0.50 in (13 mm) |
| Panel Width (Drawing) | 19.00 in (483 mm) |
| Usable Mounting Depth | 0.50 in (13 mm) |
| Usable Mounting Width | 19.00 in (483 mm) |
| Panel Height (Drawing) | 8.72 in (221 mm) |
| Usable Mounting Height | 8.75 in (222 mm) |
| Perforation Hole Diameter | 0.18 in (4 mm) |
| Additional Width Dimension (Drawing) | 18.32 in (465 mm) |
| Additional Height Dimension (Drawing) | 5.75 in (146 mm) |
Identifiers
| UPC | 623980988559 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980988559 |
| UPC W/o Check Digit | 62398098855 |
Rack Mounting
| Rack Units | 5U |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 2.5 lbs (1.13 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16 GA steel |
| Finish | Smooth powder coat |
| Material | Mild Steel |
| Panel Type | Perforated / vented |
Environmental & Protection
| Airflow | Approximately 25% airflow through the perforated panel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | Powder coat is GREENGUARD, TSCA and RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PPFS19008LG2 cover?▾
It covers 5U, with usable mounting dimensions of 8.75 in (222 mm) high by 19.00 in (483 mm) wide and 0.50 in (13 mm) deep.
How much airflow does the perforated pattern allow?▾
The perforated design allows approximately 25% airflow, supporting cooling and ventilation while still covering unused rack space.
Does the panel include mounting hardware?▾
No. The drawing notes that mounting hardware is not included. Rack mounting hardware is listed as a separate accessory for the PPFS Series.
What is the panel made of and what is the finish?▾
It is made of 16-gauge mild steel with a smooth powder coat finish in RAL7035 semi-gloss light gray. The powder coat is GREENGUARD, TSCA and RoHS compliant.
Is this panel suitable for government or TAA-restricted projects?▾
The PPFS Series is TAA-compliant and manufactured in North America; PPFS19008LG2 has a country of origin of CA and is USMCA, RoHS and REACH compliant.
Is there a black version of this 5U panel?▾
Yes. PPFS19008BK is the same 5U perforated panel in RAL9005 matte black.
