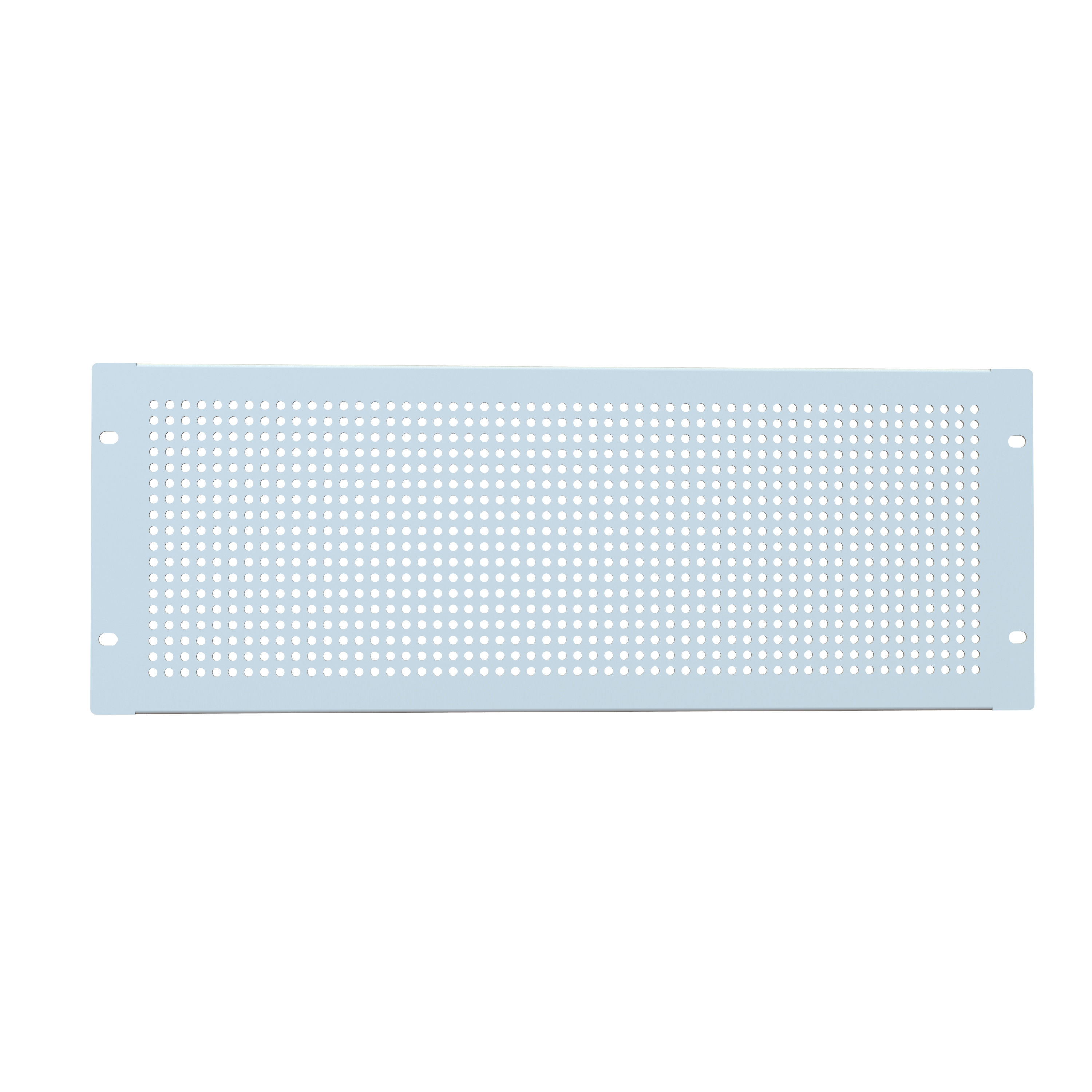

Hammond PPFS19007LG2 4U Vented 19-Inch Rack Panel, Light Gray

The PPFS19007LG2 is a 4U perforated rack panel used to cover unused rack space while still allowing air to pass through the panel. It suits data center, telecom and network installations where empty rack openings need to be closed off for organization and appearance, but airflow to and from active equipment must be maintained.

The panel is formed from 16-gauge mild steel and finished in a smooth powder coat in RAL7035 semi-gloss light gray. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the part is RoHS, REACH and USMCA compliant as well as TAA-compliant, manufactured in North America, which supports government procurement requirements.

Usable mounting dimensions are 4U: 7.00 in (178 mm) high by 19.00 in (483 mm) wide by 0.50 in (13 mm) deep. The drawing shows an overall panel height of 6.97 in (177 mm) and a width of 19.00 in (483 mm), with four 0.250 x 0.375 in (6 mm x 10 mm) mounting slots. Shipping weight is 2.07 lbs (0.94 kg).

• Perforated pattern allows approximately 25% airflow through the panel.
• Fits standard 19 in EIA-compliant rack rails for universal compatibility.
• Part of a series offered in multiple heights (1U-10U+) and in matte black or light gray.

PPFS19007LG2 mounts to standard 19 in rack rails using the four slotted holes; mounting hardware is not included and should be specified separately. Hardware for rack mounting solutions and a 23 to 19 inch rack rail reducer adapter panel are listed as accessories for the PPFS Series. Use this panel where ventilation is required without leaving open gaps in the rack face, and to help balance airflow within containment and active cooling strategies.
