Hammond 1590Z155GY 221x121x90 mm Gray RAL 7001 Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smooth gray RAL 7001 powder paint inside and out
- Deep 221 x 121 x 90 mm body with 30 mm lid
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- M6 x 45mm recessed stainless steel lid screws
- Boards up to 206.71 x 105.82 mm; 1590Z150PL panel fits
- cUL and UL listed (file #E65324); IK08 impact

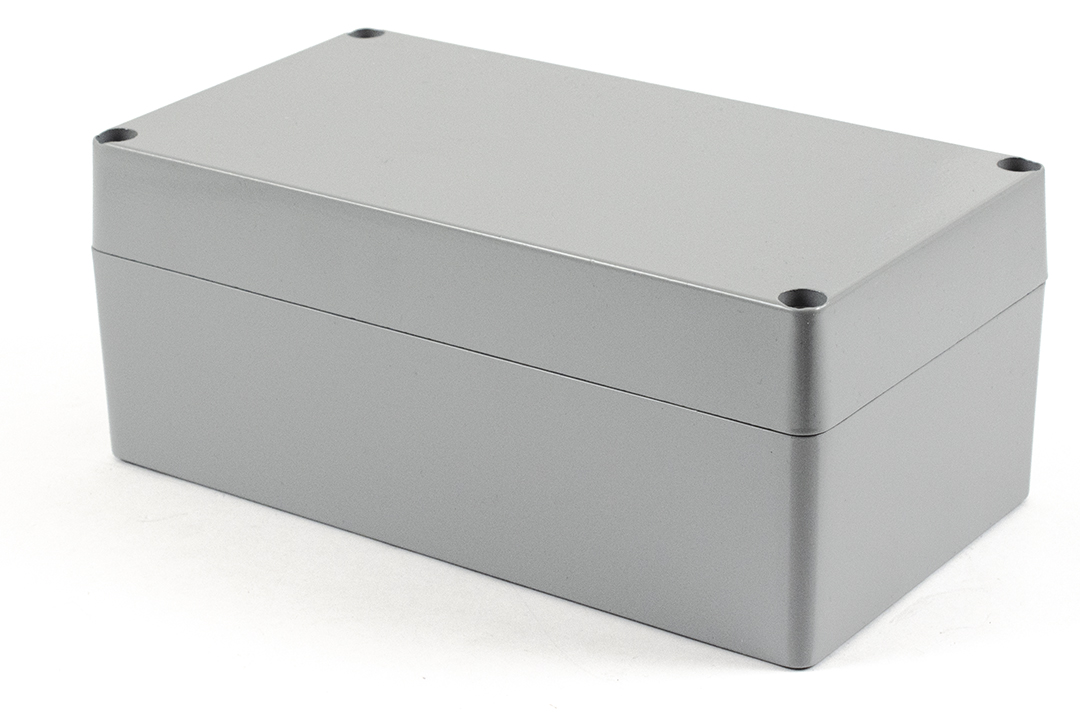

The 1590Z155GY is a deep, 221 x 121 x 90 mm diecast aluminum enclosure finished in smooth gray RAL 7001 powder paint inside and out. It is intended for integrators and equipment makers housing taller electronics in a watertight, industrial-gray enclosure.
It uses the 1590Z two piece tongue and groove diecast aluminum construction, with a 5.34 mm [.21 in] average wall thickness shown on the drawing. A replaceable one piece silicone rubber gasket rated -40C to +150C (-40F to 302F) is supplied loose. Four recessed stainless steel M6 - 1.0 x 45mm lid screws are self-captivating and thread into the lid on first installation, at a recommended 15-17 lbf.in (150-170 cN.m).
The enclosure is 221 mm (8.70 in) long, 121 mm (4.76 in) wide and 90 mm (3.54 in) deep overall, with a 30 mm (1.18 in) lid depth. The inside width is 104.74 mm and the inside depth 82.50 mm, with P.C. boards up to 206.71 x 105.82 mm. The 1590Z150PL steel inner panel fits the internal mounting shelf.
The 1590Z155GY is rated IP68, NEMA 4, 4X, 6, 6P, 12 & 13 and IK08 per IEC62262, and is cUL and UL listed (file #E65324), RoHS and REACH compliant. It ships with the box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers. Customers should conduct their own testing to determine suitability for any specific application.
Ideal For
- Deep gray industrial electronics housings
- Outdoor instrumentation with tall components
- Wall-mounted sealed control assemblies
Overview
| Type | Thick wall, water-tight |
| Color | Gray |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |

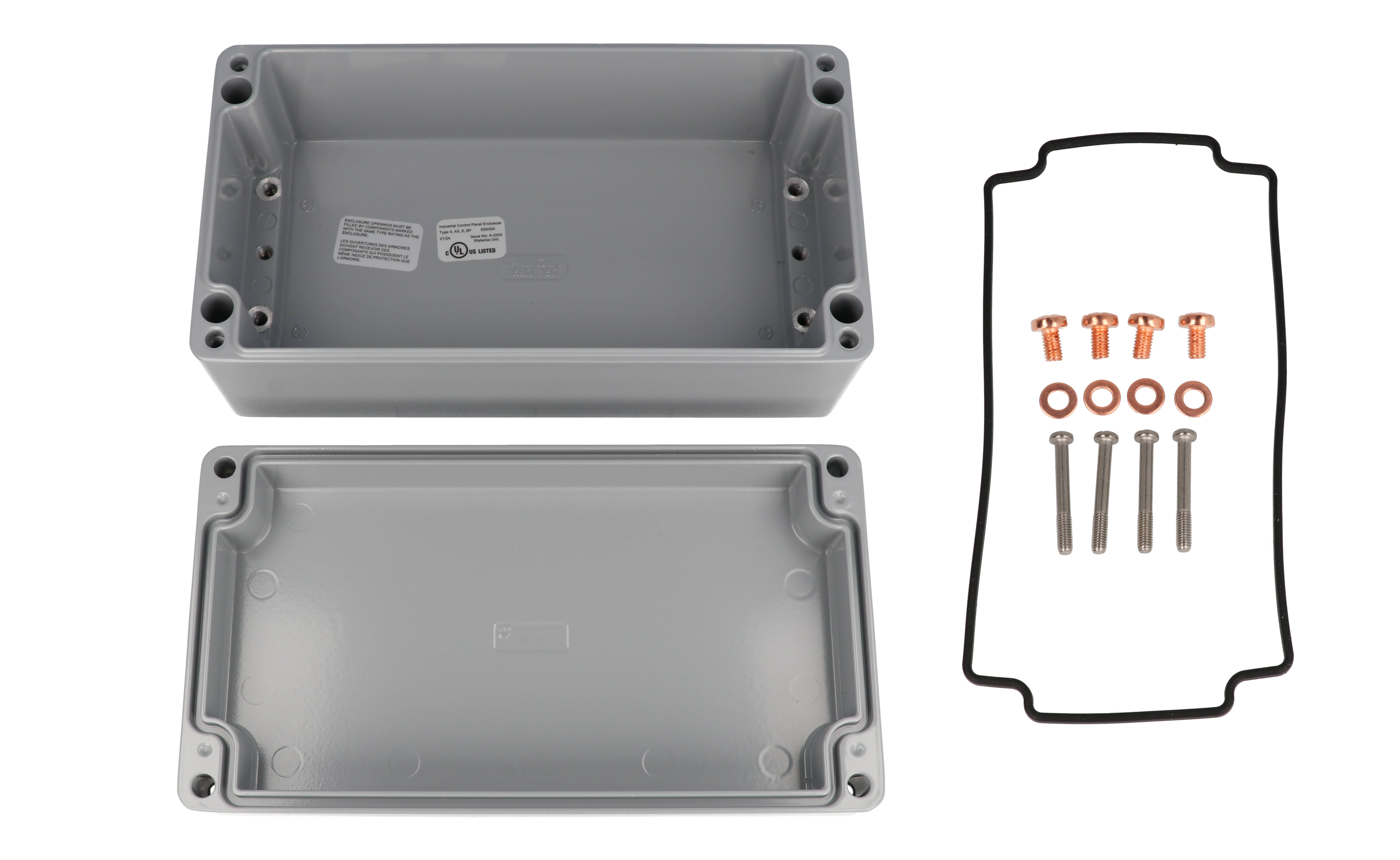

| Included | Box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers |
| CAD Models | Solid models available in STEP or IGES |
| Product Type | Enclosure - diecast |
| Short Description | 1590Z155 PAINTED RAL7001 GREY |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Dimensions
| Width | 4.76 in (121 mm) |
| Length | 8.70 in (221 mm) |
| Lid Depth | 1.18 in (30 mm) |
| Total Depth | 3.54 in (90 mm) |
| Inside Depth | 82.50 mm [3.25 in] |
| Inside Width | 104.74 mm [4.12 in] |
| Size (L X W X H) | 8.7 in x 4.74 in x 3.54 in (221 mm x 120 mm x 90 mm) |
| Max. P.C. Board Width | 206.71 mm |
| Average Wall Thickness | 5.34 mm [.21 in] |
| Max. P.C. Board Length | 105.82 mm |
Accessories
| Extra Lid Screws | SC565-12 - Stainless steel cover screws (12 pkg), M6 - 1.0 x 45mm |
| Extra Panel Screws | SCGM6-20 - Copper ground hardware (20 pack), M6 - 1.0 X 10mm / M6 washer |
| Series Accessories | Pole mount kit, pressure compensation plug, breather kit, small rainproof ventilator, liquid-tight cordgrips (nylon or nickel plated brass) |
| Colour Options In Size | 1590Z155 (natural), 1590Z155BK (black), 1590Z155GY (gray) |
| Inner Panel (Sold Separately) | 1590Z150PL steel inner panel |
| Replacement Gasket (Pack Of 2) | 1590Z150G |
Identifiers
| UPC | 623980027104 |
| UNSPSC | 39121301 |
| Part Number | 1590Z155GY |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 2.94 lbs (1.33 kg) |
Construction & Finish
| Finish | Smooth gray powder paint (RAL 7001; drawing: RAL7001 Gloss), painted inside and out |
| Gasket | Replaceable one piece silicone rubber gasket, supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Grounding | Accepts M6 machine ground screw |
| Lid Screws | Self-captivating; create threads on first installation |
| Construction | Two piece tongue and groove construction |
| Lid Fastening | Four recessed stainless steel machine screws secure lid into tapped holes |
| Wall Mounting | Blind through hole construction, located outside of gasket protection |
| Mounting Holes | Accept M6 - 1 machine screw |
| Internal Mounting Shelf | Yes |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| Recommended Cover Screw Torque | 15-17 lbf.in (150-170 cN.m) |
Environmental & Protection
| IP Rating | IP68 (part attribute); series independently tested to IP66, IP67 and IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Suitability Note | Customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| Listing | cUL and UL listed (UL file #E65324) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1590Z155GY?▾
Smooth gray RAL 7001 (listed on the drawing as RAL7001 Gloss), powder painted inside and out.
What are the overall dimensions?▾
221 mm (8.70 in) x 121 mm (4.76 in) x 90 mm (3.54 in), with a 30 mm (1.18 in) lid depth.
What torque should the lid screws get?▾
15-17 lbf.in (150-170 cN.m).
Are ground screws included?▾
Yes, 4 ground screws with washers are included; the enclosure accepts M6 machine ground screws.
Which replacement gasket fits?▾
1590Z150G, a pack of 2.
