Hammond 1590WBBFLBK 120x94x34mm IP65 Black Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured polyester powder paint with matching black screws
- Flanged lid for wall mounting with four 3.50 mm [0.138 in] holes
- Designed to meet IP65; loose silicone gasket included
- Nominal 120 x 94 x 34 mm (4.72 x 3.70 x 1.34 in), 148.00 mm across flange
- Inside 112.66 x 87.16 x 29.75 mm; max PC board 85.16 x 110.66 mm
- Diecast aluminum alloy box and lid with lap joint seam
- RoHS and REACH compliant; replacement gasket kit 1590BBGASKET

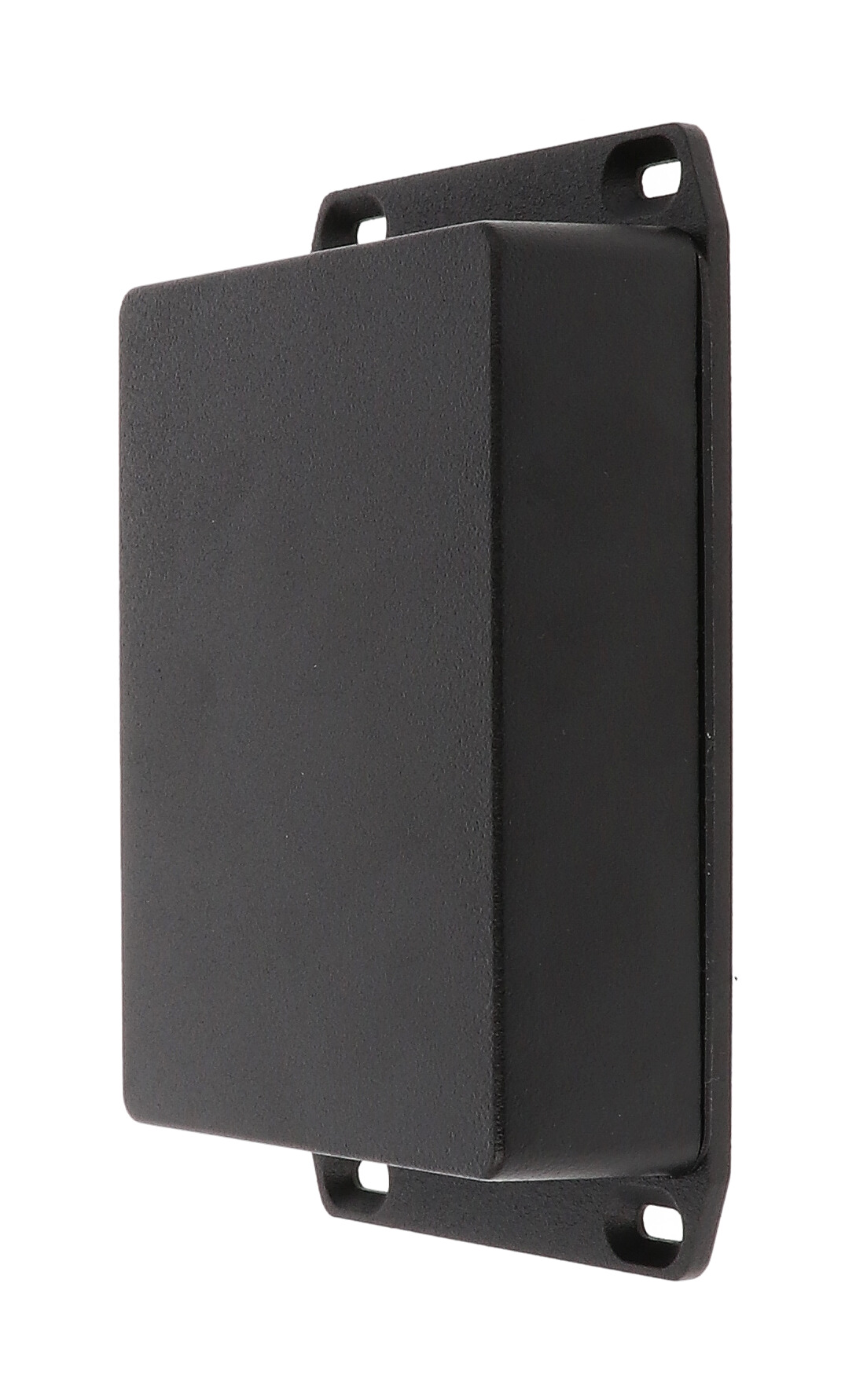

The 1590WBBFLBK is the black textured, water-tight 1590BB diecast aluminum enclosure with a flanged lid for wall mounting. Engineers, integrators and product builders use this style when they need a painted metal housing that fixes to a surface through the lid and is designed to meet IP65.
It is built from diecast aluminum alloy, which is tough yet easy to machine. The black finish is a tough polyester powder paint that remains a lasting finish after machining, and black screws are included for a matching look. The lid and box meet at a lap joint for protection against dust and splashing water. The silicone gasket is provided loose inside the enclosure rather than pre-installed.
The nominal size is 4.72 x 3.70 x 1.34 in (120 x 94 x 34 mm). Overall, the drawing shows 148.00 mm [5.827 in] across the lid flange, 94.00 mm [3.701 in] across the body and 34.00 mm [1.339 in] of height. Inside there is room for 112.66 x 87.16 x 29.75 mm [4.435 x 3.432 x 1.171 in], with a maximum PC board of 85.16 x 110.66 mm and side wall draft of 2 degrees or less.

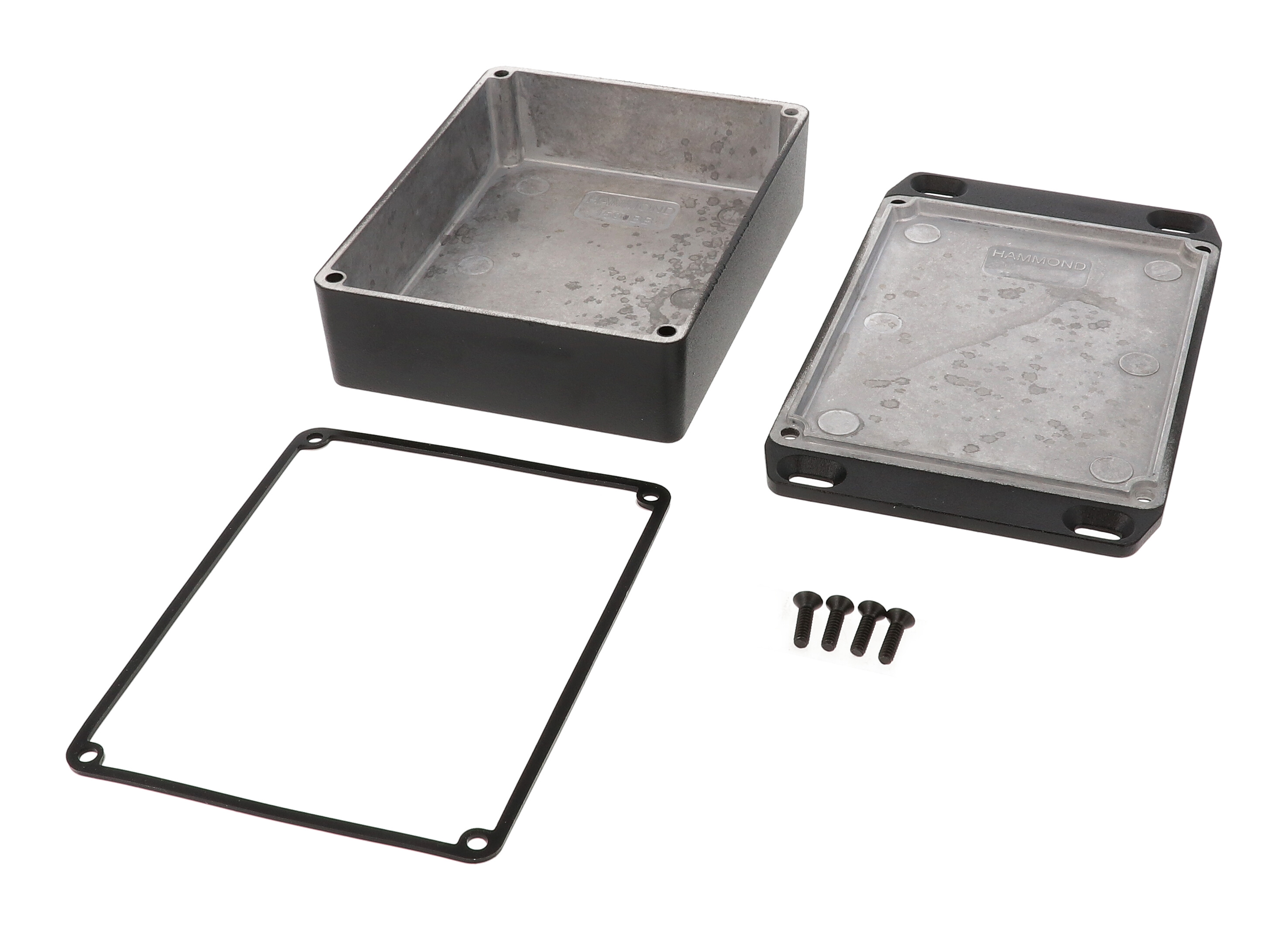

The lid flange has four 3.50 mm [0.138 in] mounting holes. In the package are the box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. Use 50-55 cN.m [71-78 ozf.in] of torque, or 25-30 cN.m [36-43 ozf.in] with the gasket. Shipping weight is 0.55 lbs (0.25 kg), and the 1590WBBFLBK is RoHS and REACH compliant.
Ideal For
- Wall-mounted instrument housings
- Electronics exposed to dust and splashing water
- Painted enclosures that will be machined
- OEM control and interface boxes
Other
| CAD Models | Solid models available in STEP or IGES |
| Drawing Reference | 1590BBFL |
| Factory Modification | Milling, drilling, printing etc. available from the factory on a quote basis |
Mounting
| Cover Screw Thread | 6-32 UNC (4 factory-tapped holes) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Lid Flange Mounting Holes | 4 x 3.50 mm [0.138 in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WBBFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590BB W-PROOF FLNGD LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.16 mm [3.432 in] |
| Inside Height | 29.75 mm [1.171 in] |
| Inside Length | 112.66 mm [4.435 in] |
| Overall Width | 94.00 mm [3.701 in] |
| Overall Height | 34.00 mm [1.339 in] |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm) |
| Max. P.C. Board Width | 110.66 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 85.16 mm |
| Nominal Size (L X W X H) | 4.72 in (120 mm) x 3.70 in (94 mm) x 1.34 in (34 mm) |
| Overall Length (Incl. Flange) | 148.00 mm [5.827 in] |
Accessories
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel, 6-32 x 1/2" with O-ring (Pkg 100) |
| Optional Replacement Gasket Kit | 1590BBGASKET (two pre-formed silicone gaskets with adhesive backing) |
Identifiers
| UPC | 623980677569 |
| UNSPSC | 39121301 |
Related Versions
| Standard Version (No Flanges) | 1590BBBK |
| Standard Version (Flanged Lid) | 1590BBFLBK |
| Water-Tight Version (No Flanges) | 1590WBBBK |
| Water-Tight Version (Flanged Lid) | 1590WBBFLBK |
| Standard Version (Flanged Bottom Plate) | 1590BBFBK |
| Water-Tight Version (Flanged Bottom Plate) | 1590WBBFBK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws; silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590WBBFLBK?▾
It is the black textured, water-tight version of the 1590BBFL diecast aluminum enclosure, with a wall-mounting flange integrated into the lid.
Is it IP65?▾
Water-tight versions are designed to meet IP65 and include a silicone gasket, which is supplied loose inside the enclosure.
How many cover screws are included?▾
Four cover screws are included; they thread into factory-tapped 6-32 UNC holes.
What are the inside dimensions?▾
112.66 mm [4.435 in] long, 87.16 mm [3.432 in] wide and 29.75 mm [1.171 in] high.
Is there a natural-finish version?▾
Yes, 1590WBBFL is the natural finish water-tight flanged-lid version.
