Hammond 1590LLBF 51x51x25mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface mounting
- Flange 78.99 x 36.88 mm; 3.96 mm holes on 67.72 x 25.40 mm centres
- Slim 51 x 51 x 25 mm (1.99 x 1.99 x 0.98 in) body
- Inside 45.63 x 45.63 x 21.00 mm; P.C. boards up to 44.83 mm square
- IP54 lap joint lid; IP65 with the 1590LBGASKET kit
- Natural vibra finished diecast aluminum
- 4 cover screws in factory-tapped 6-32 UNC holes

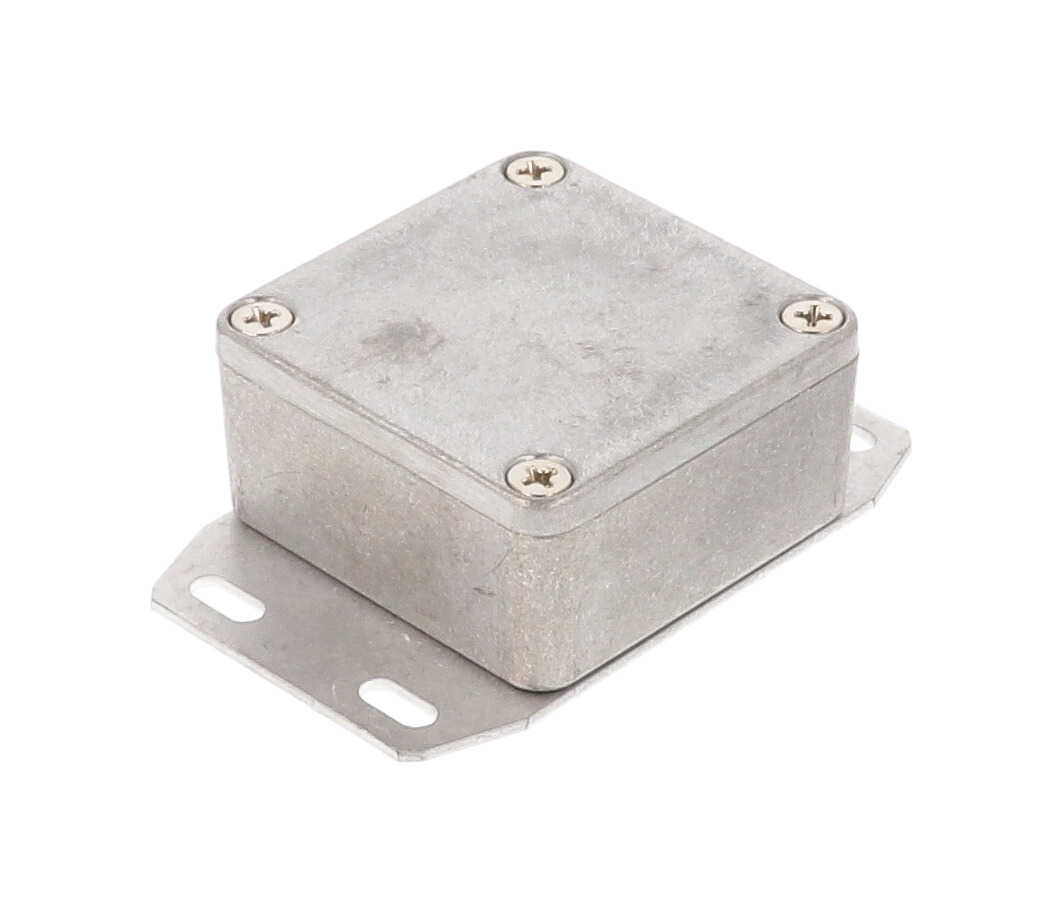

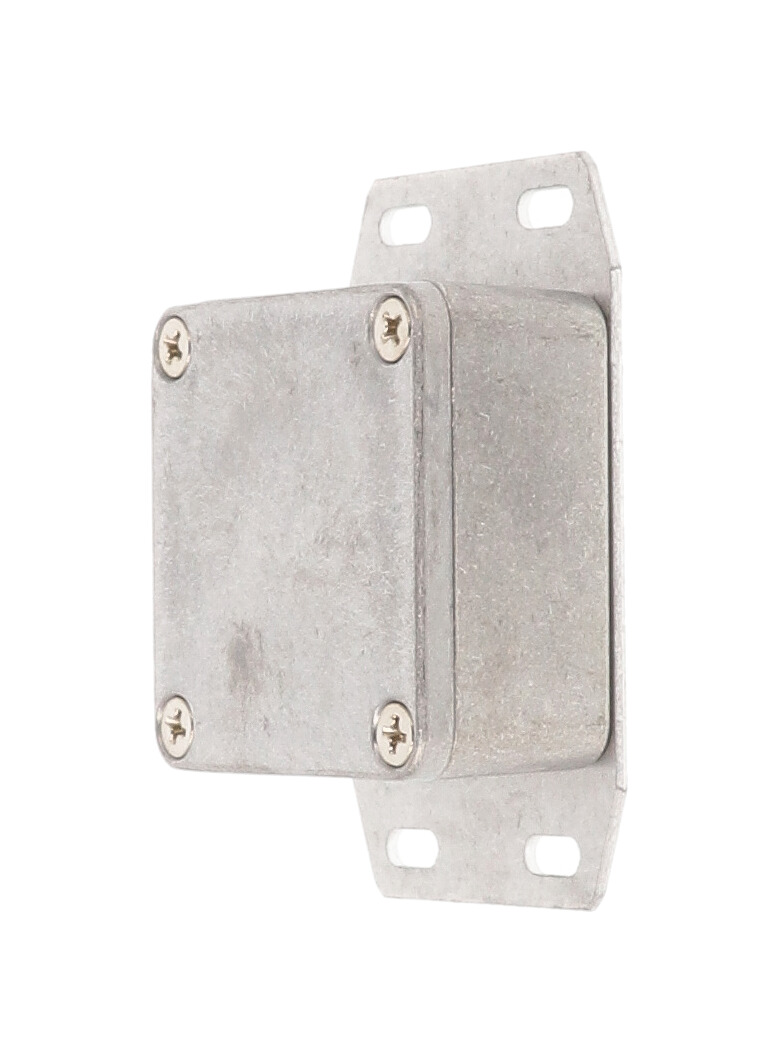

The 1590LLBF is the slim 51 mm x 51 mm x 25 mm (1.99 in x 1.99 in x 0.98 in) 1590 Series diecast aluminum box with a welded flanged bottom plate. It gives electricians, integrators and OEM designers a very compact metal housing that fastens directly to a wall, panel or machine.
The drawing shows a flange plate 78.99 mm [3.110 in] long and 36.88 mm [1.452 in] wide, with 3.96 mm [0.156 in] holes on 67.72 mm x 25.40 mm [2.666 in x 1.000 in] centres. The box is 50.50 mm [1.988 in] square and 25.00 mm [0.984 in] tall, with 45.63 mm [1.796 in] of inside length and width and 21.00 mm [0.827 in] of inside height; P.C. boards up to 44.83 mm square fit.
Box and lid are diecast aluminum alloy, tough yet easy to machine, and this natural version is vibra finished for a smooth surface without sharp edges. A lap joint lid gives protection against dust and splashing water, and the standard version is designed to meet IP54. Side walls are drafted at 2° or less for easy board mounting.

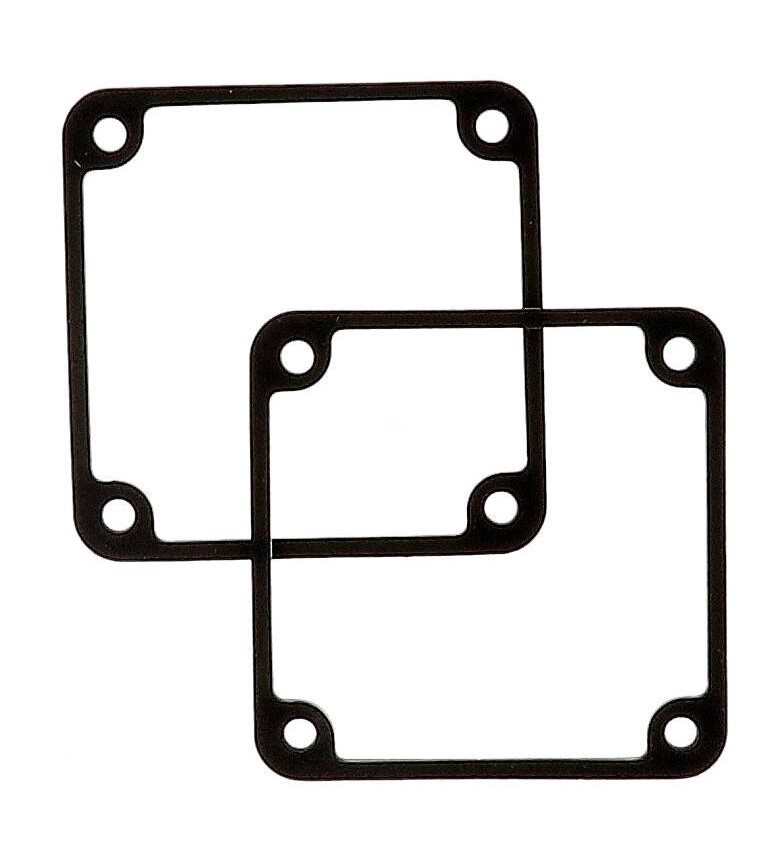

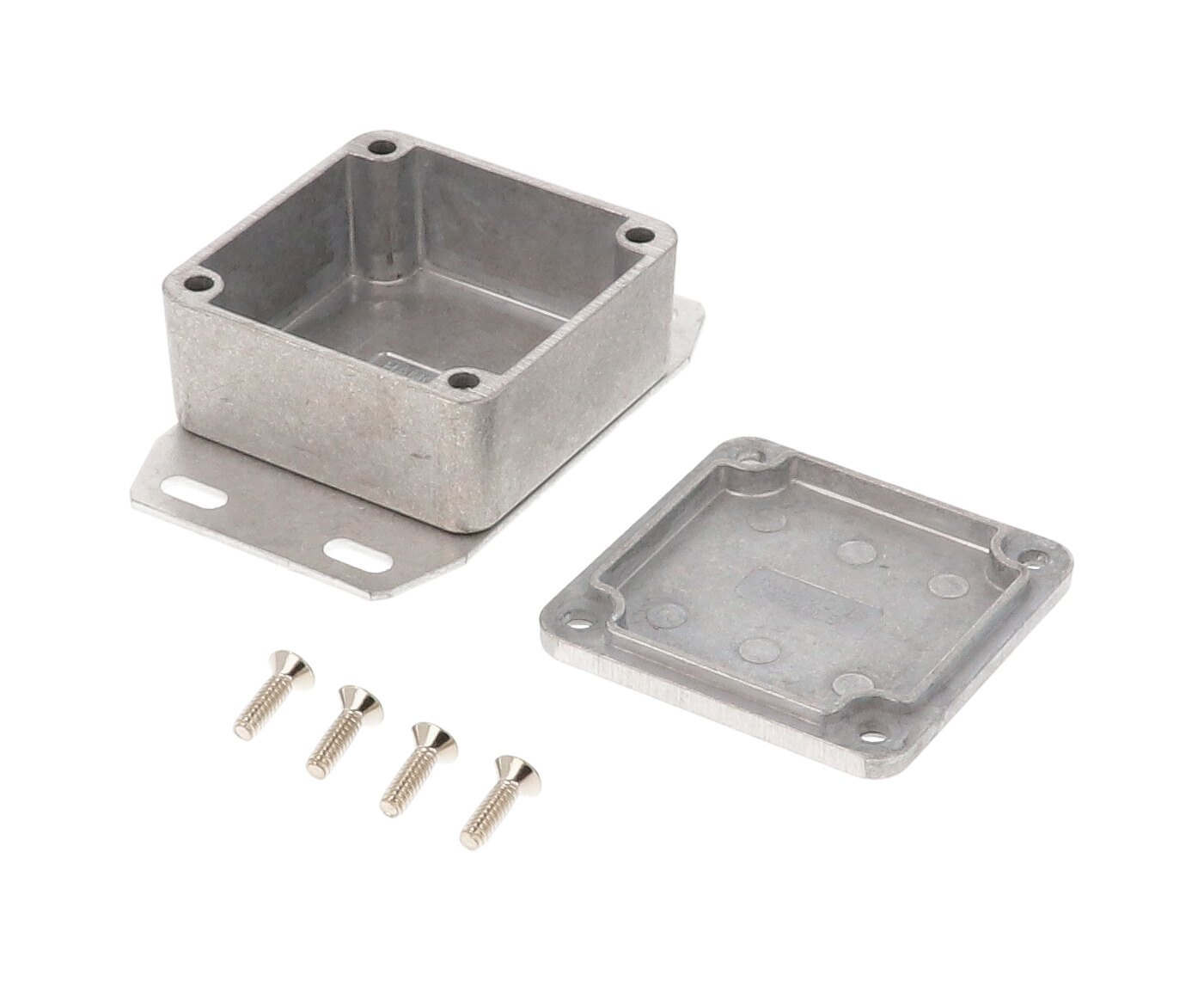

The 1590LLBF includes the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. The 1590LBGASKET kit upgrades it to IP65 at 25-30 cN.m [36-43 ozf.in], and the water-tight version is 1590WLLBF. RoHS and REACH compliant; 0.18 lbs (0.08 kg), shrink wrapped.
Ideal For
- Slim wall or panel mounted sensor housings
- Equipment-mounted mini electronics
- Compact flange-mounted interface boxes
- Dust and splash protected modules
Mounting
| Flange Type | Welded bottom flange plate |
| Flange Plate Width | 36.88 mm [1.452 in] |
| Flange Hole Spacing (Width) | 25.40 mm [1.000 in] |
| Flange Hole Spacing (Length) | 67.72 mm [2.666 in] |
| Flange Mounting Hole Diameter | 3.96 mm [0.156 in] |
| Overall Length Including Flange | 78.99 mm [3.110 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LLBF |
| Mounting Style | Flanged bottom plate |
| Short Description | 50 X 50 X 25MM FLANGED AL BOX |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [0.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.83 mm |
| Ordering Table Height | 0.98 in (25 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.83 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Overall Box Width (Drawing) | 50.50 mm [1.988 in] |
| Overall Box Height (Drawing) | 25.00 mm [0.984 in] |
| Overall Box Length (Drawing) | 50.50 mm [1.988 in] |
Accessories
| Related Versions | Black 1590LLBFBK; no-flange 1590LLB; flanged lid 1590LLBFL; water-tight 1590WLLBF |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980808802 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLLBF (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590LLBF flange dimensions?▾
The drawing shows a 78.99 mm x 36.88 mm flange plate with 3.96 mm [0.156 in] holes on 67.72 mm x 25.40 mm centres.
Is the flange welded?▾
Yes, the drawing notes that the bottom flange is welded.
What board size fits inside?▾
Maximum P.C. board size is 44.83 mm x 44.83 mm; inside height is 21.00 mm.
Can it be made IP65?▾
Yes, with the 1590LBGASKET kit and lid screws torqued to 25-30 cN.m, or order the water-tight 1590WLLBF.
How is it different from the 1590LLB?▾
Same 51 x 51 x 25 mm body; the 1590LLBF adds a welded flanged bottom plate for mounting.
