Hammond 1590LLBBK 51x51x25mm Black Diecast Aluminum Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint with black screws
- Slim 51 x 51 x 25 mm (1.99 x 1.99 x 0.98 in) diecast aluminum box
- Inside 45.63 x 45.63 x 21.00 mm; P.C. boards to 44.83 mm square
- IP54 lap joint lid against dust and splashing water
- 4 cover screws in factory-tapped 6-32 UNC holes
- IP65 with the 1590LBGASKET kit; water-tight 1590WLLBBK offered

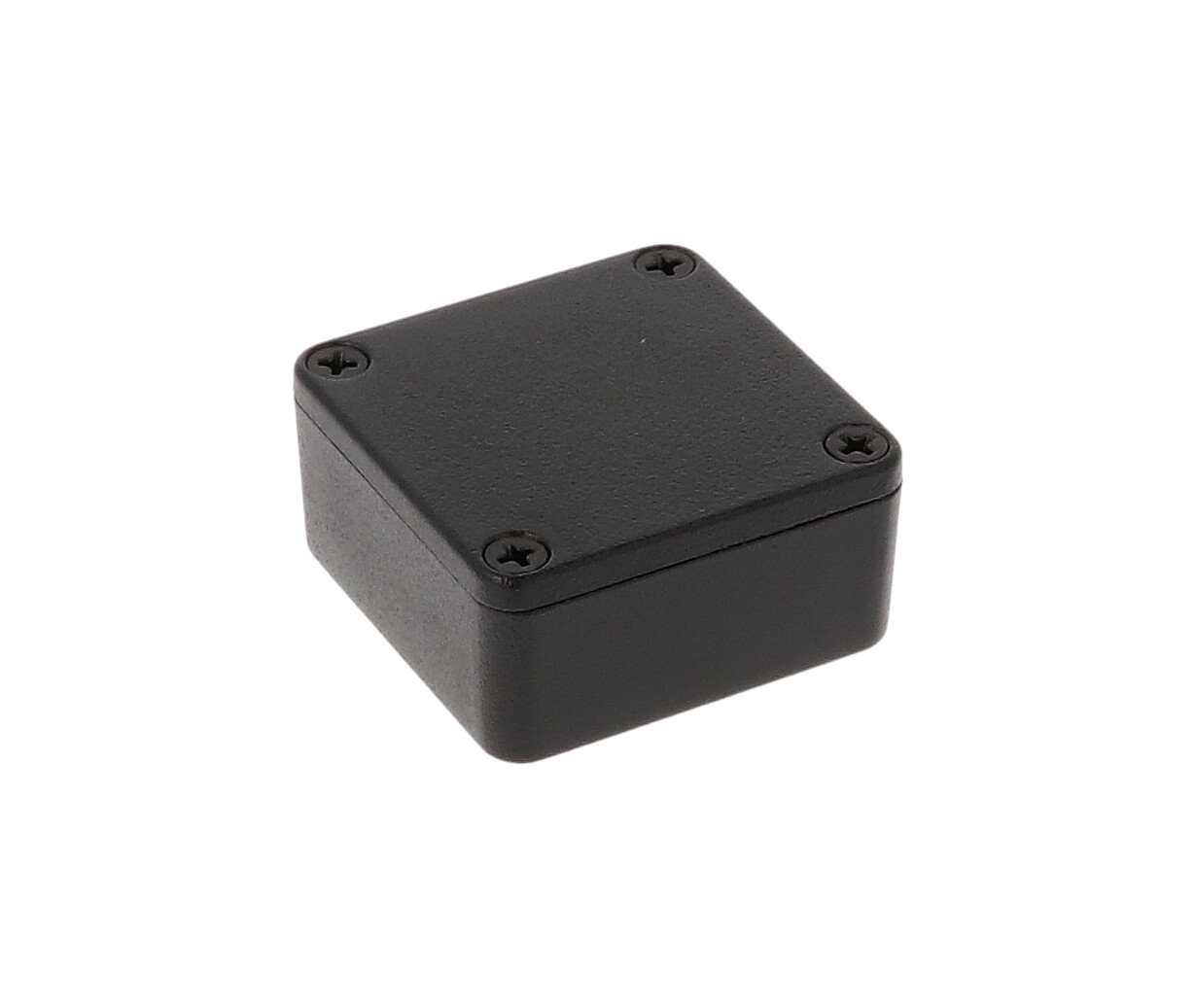

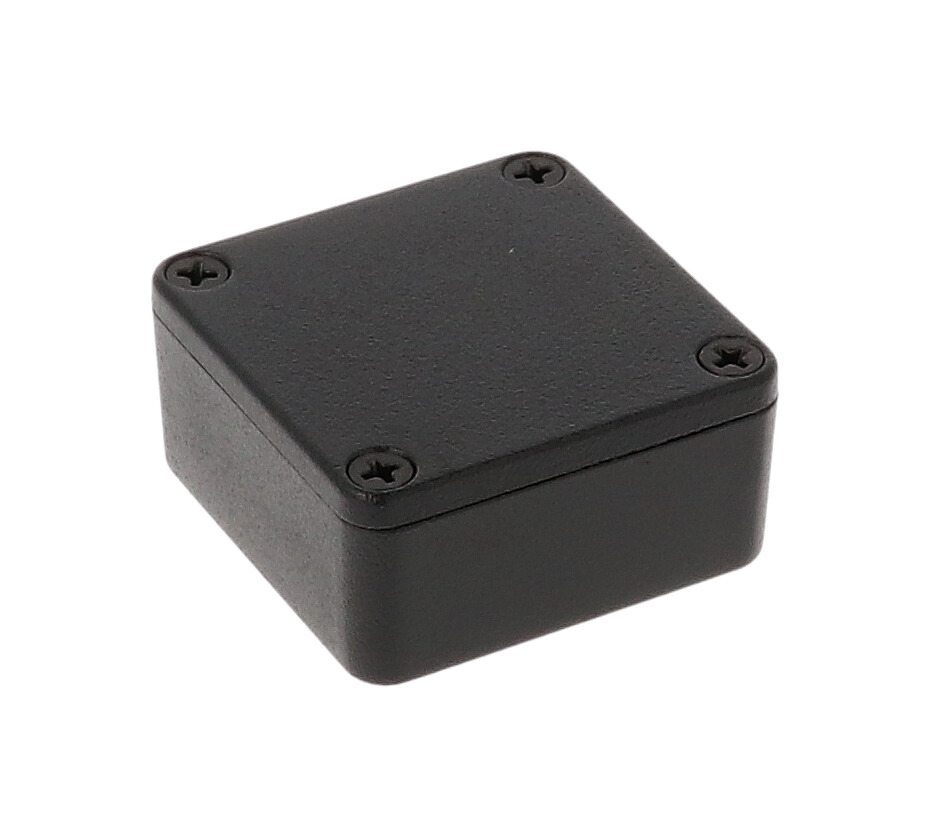

The 1590LLBBK is the black textured version of the slim 1590LLB, a small diecast aluminum enclosure of 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm). It is a neat housing for thin boards, compact sensors and small modules where a finished black look is preferred.
The diecast aluminum alloy box and lid are coated in a tough polyester powder paint that holds up even after machining, and black screws are supplied. A lap joint between lid and box protects against dust and splashing water, and the enclosure is designed to meet IP54.
The drawing shows the box at 50.50 mm [1.988 in] square and 25.00 mm [0.984 in] tall. Inside there is 45.63 mm [1.796 in] of length and width and 21.00 mm [0.827 in] of height, and P.C. boards up to 44.83 mm square fit. Side walls have a draft angle of 2° or less for easy board mounting. This version has no flanges.

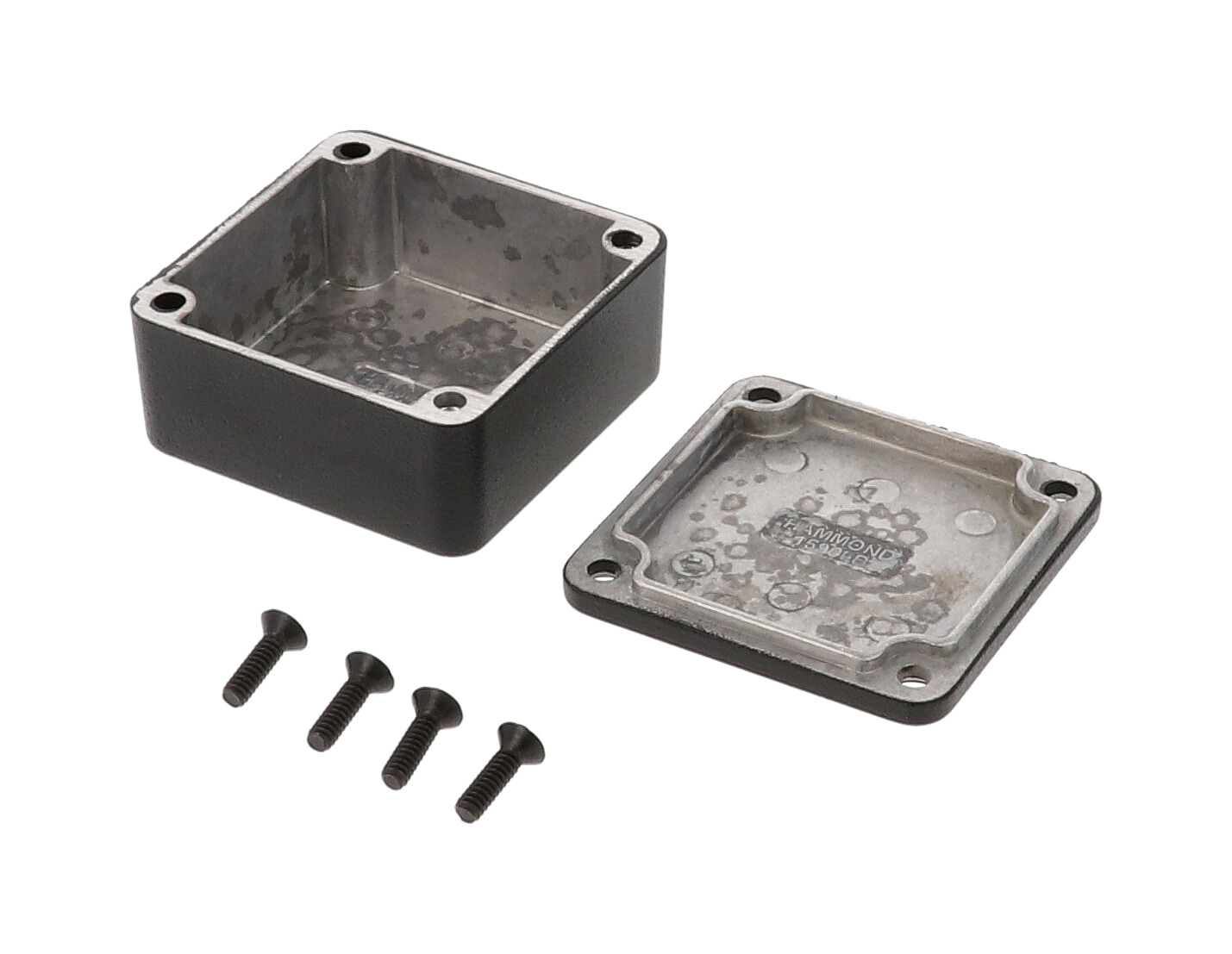

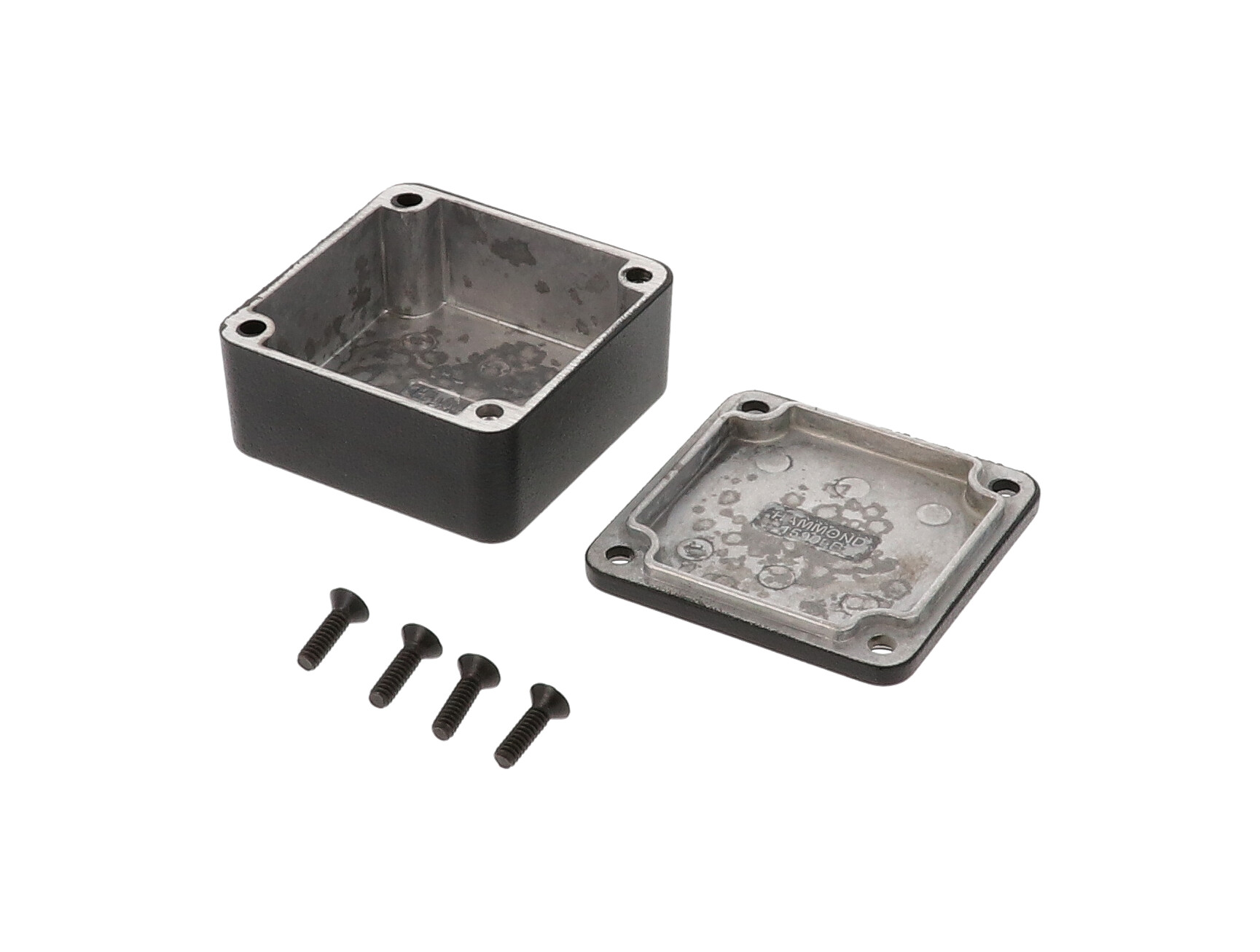

The 1590LLBBK includes the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. Fit the 1590LBGASKET kit and torque to 25-30 cN.m [36-43 ozf.in] for IP65, or order the water-tight 1590WLLBBK. RoHS and REACH compliant; 0.15 lbs (0.07 kg), shrink wrapped.
Ideal For
- Slim black sensor housings
- Compact black electronics modules
- Small enclosures with machined cut-outs
- Dust and splash protected devices
Overview
| Type | Die-cast box |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LLBBK |
| Mounting Style | No mounting flanges |
| Short Description | 50 X 50 X 25MM ALUM BOX BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [0.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.83 mm |
| Ordering Table Height | 0.98 in (25 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.83 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Overall Box Width (Drawing) | 50.50 mm [1.988 in] |
| Overall Box Height (Drawing) | 25.00 mm [0.984 in] |
| Overall Box Length (Drawing) | 50.50 mm [1.988 in] |
Accessories
| Related Versions | Natural 1590LLB; flanged bottom 1590LLBFBK; flanged lid 1590LLBFLBK; water-tight 1590WLLBBK |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980808840 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint |
| Included | Box, lid and 4 cover screws (black screws) |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLLBBK (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590LLBBK?▾
Nominal size is 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm).
What finish does it have?▾
Textured black polyester powder paint, which gives a lasting finish even after machining. Black screws are included.
What is the inside height?▾
21.00 mm [0.827 in], per the drawing.
Is it waterproof?▾
It is designed to meet IP54. The 1590LBGASKET kit upgrades it to IP65, and a water-tight 1590WLLBBK is available.
Are flanged versions available in black?▾
Yes, the ordering table lists 1590LLBFBK (flanged bottom plate) and 1590LLBFLBK (flanged lid).
