Hammond 1590LBFLBK 51x51x31mm Black Diecast Box With Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Lid flange 77.00 mm overall; holes 65.04 mm [2.561 in] apart
- Textured black powder paint with black cover screws
- Compact 51 x 51 x 31 mm diecast aluminum body
- P.C. boards up to 44.7 mm square
- IP54 lap joint; IP65 with the 1590LBGASKET kit

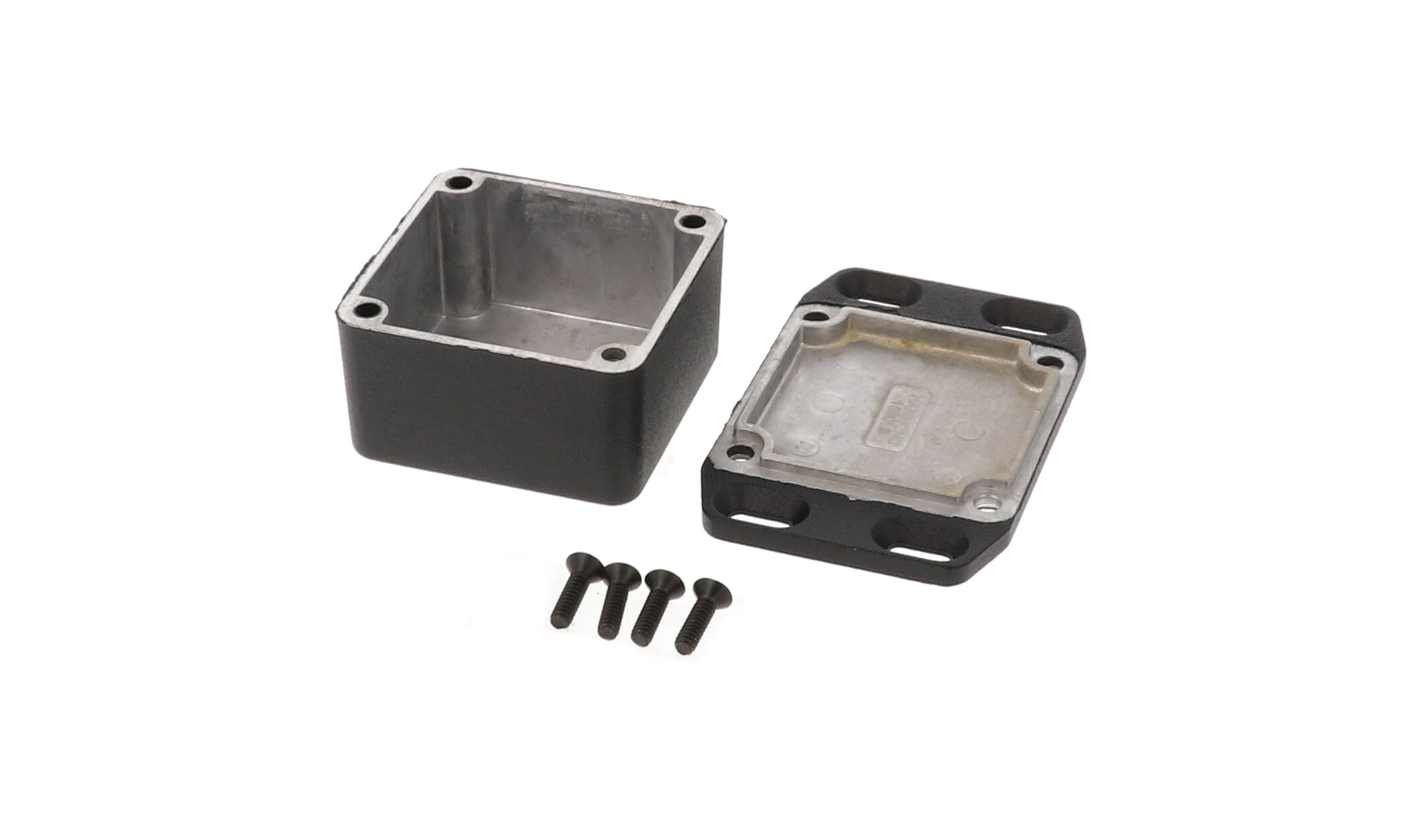

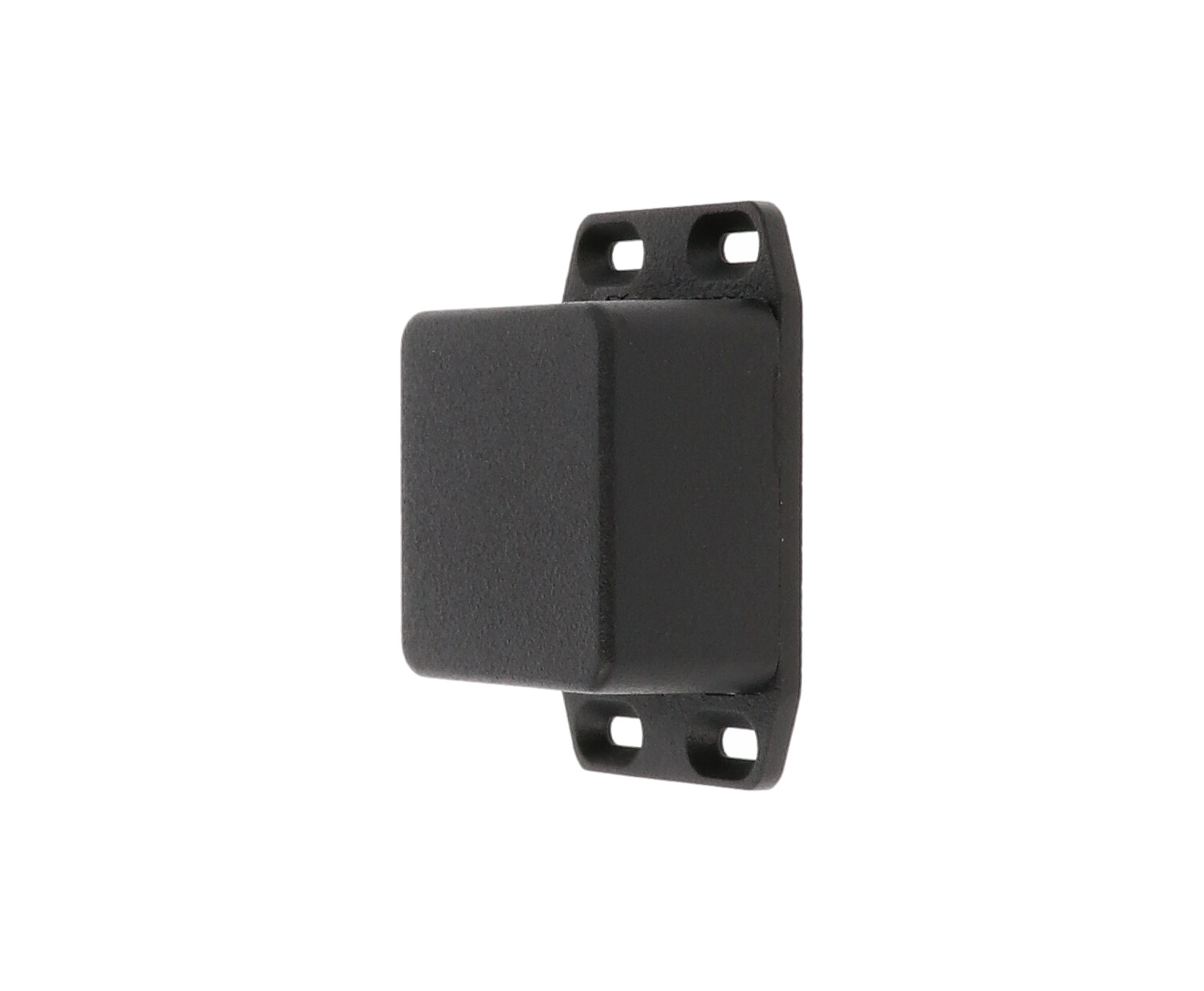

The 1590LBFLBK is a small black diecast aluminum enclosure with a wall-mounting flange integrated into its lid. Nominally 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm), it is intended for compact sensors, modules and indicators that mount through the lid and need a finished black housing.
The finish is a textured black polyester powder paint, described as lasting even after machining, and black screws are included. Box and lid are diecast aluminum alloy joined by a lap joint that protects against dust and splashing water; the enclosure is designed to meet IP54.
According to the drawing, the flanged lid is 77.00 mm [3.031 in] overall with holes 65.04 mm [2.561 in] apart. The box is 50.60 mm [1.992 in] across and 31.00 mm [1.220 in] tall, with 45.50 mm [1.791 in] of inside length and width and 27.05 mm [1.065 in] of inside height. P.C. boards up to 44.7 mm square fit, and side walls are drafted at 2° or less.
The assembly includes the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. The 1590LBGASKET kit upgrades the 1590LBFLBK to IP65 at 25-30 cN.m [36-43 ozf.in]; the water-tight equivalent is 1590WLBFLBK. RoHS and REACH compliant; 0.17 lbs (0.08 kg), packaged in a bag.
Ideal For
- Black lid-mounted sensor housings
- Small wall-mounted indicator enclosures
- Compact equipment-mounted modules
- Dust and splash protected installations
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Flange Hole Spacing (Length) | 65.04 mm [2.561 in] |
| Overall Lid Length Including Flange | 77.00 mm [3.031 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LBFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590LB FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.7 mm |
| Ordering Table Height | 1.22 in (31 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.7 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Overall Box Width (Drawing) | 50.60 mm [1.992 in] |
| Overall Box Height (Drawing) | 31.00 mm [1.220 in] |
Accessories
| Related Versions | Natural 1590LBFL; no-flange 1590LBBK; flanged bottom 1590LBFBK; water-tight 1590WLBFLBK |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980676234 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint |
| Included | Box, lid and 4 cover screws (black screws) |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLBFLBK (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590LBFLBK mount?▾
Through the wall-mounting flange integrated into its lid; the drawing shows holes 65.04 mm apart on a 77.00 mm flange.
What finish is it?▾
Textured black polyester powder paint with black screws included.
What size is it?▾
Nominal size is 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm).
Is a water-tight version available?▾
Yes, the 1590WLBFLBK. The 1590LBGASKET kit can also upgrade this enclosure to IP65.
How is it packaged?▾
It is packaged in a bag, with a shipping weight of 0.17 lbs (0.08 kg).
