Hammond 1590CEGASKET IP65 Silicone Gasket 2-Pack for 120x100mm Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets for 1590CE-size enclosures
- Upgrades IP54 1590CE / 1590CEBK boxes toward IP65
- Adhesive backing; gasket is applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Gasket after machining or painting
- RoHS and REACH compliant

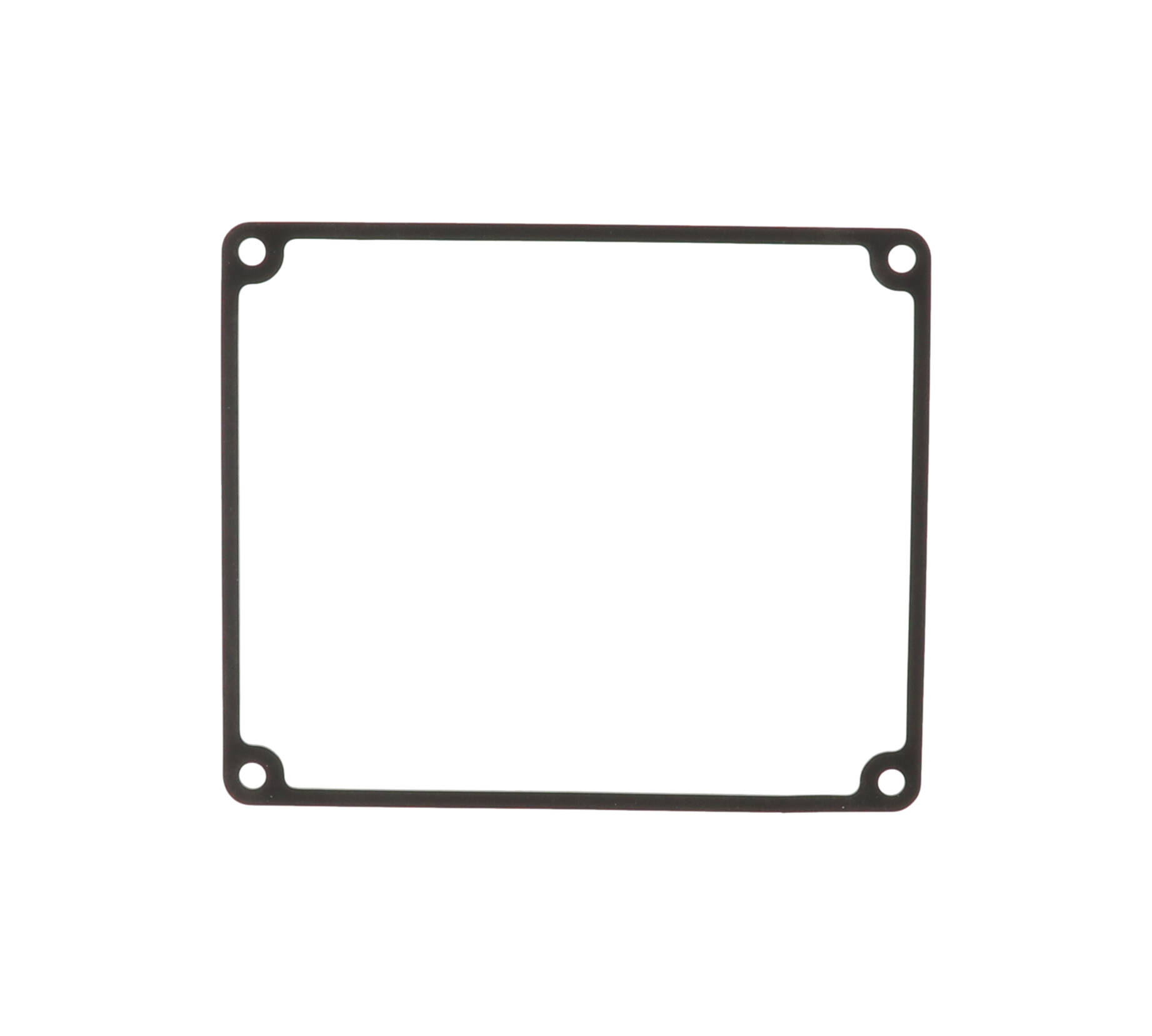

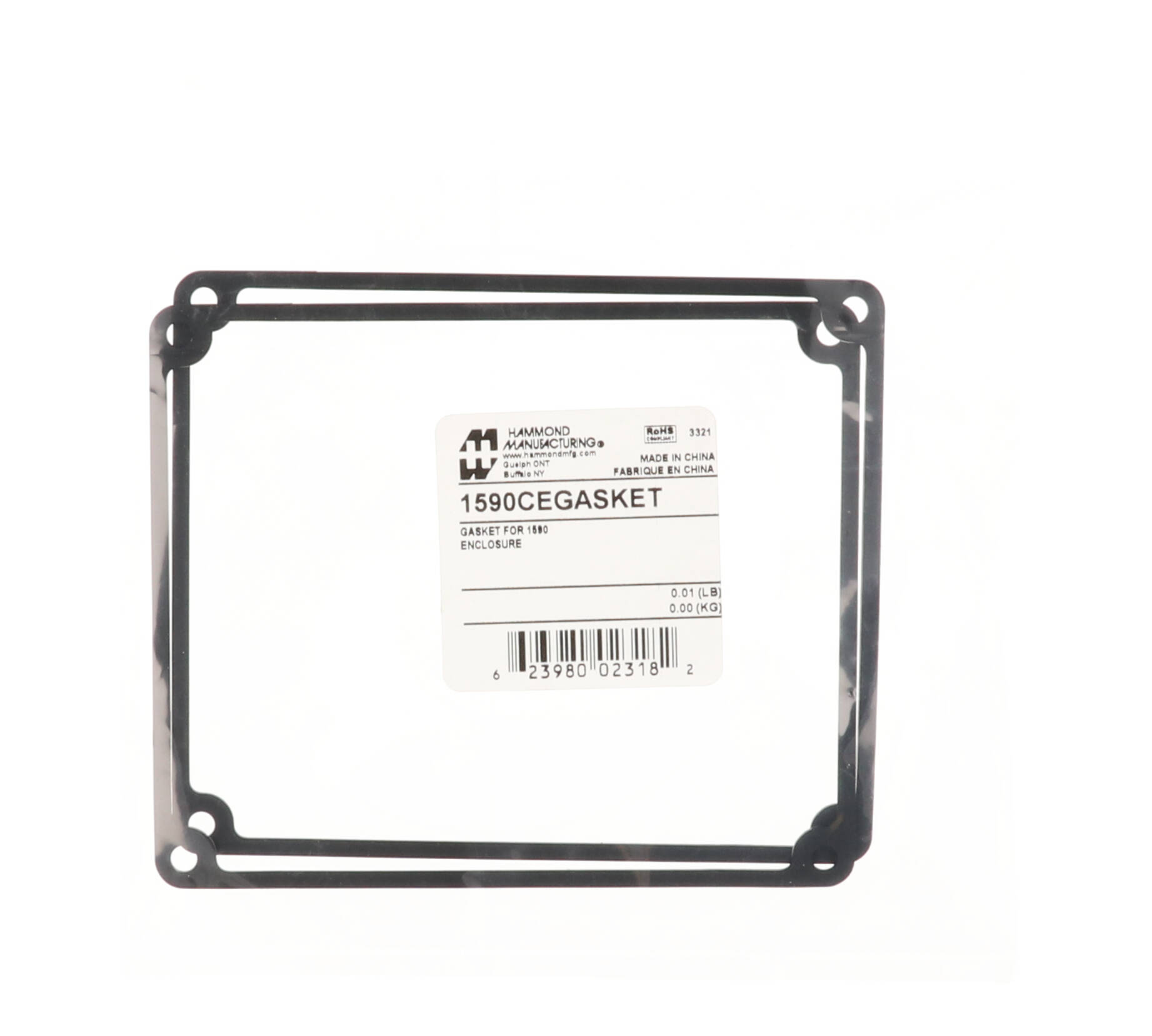

The 1590CEGASKET is a two-pack of pre-formed silicone gaskets made for the 1590CE diecast aluminum enclosure, 120 x 100 x 65 mm (4.72 x 3.94 x 2.56 in in the series table), in both natural (1590CE) and black (1590CEBK) finishes. Use it to upgrade a standard IP54 enclosure to IP65, or to replace the gasket in a water-tight 1590WCE or 1590WCEBK.
Each gasket has adhesive backing for easy installation and is applied to the lid. Because it goes on last, the enclosure can be machined and/or painted first and gasketed later. The silicone is rated for -40°C to 150°C (-40°F to 302°F).
- Two pre-formed silicone gaskets per kit
- Designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in)
- Fits the 1590CE and 1590CEBK standard enclosures and 1590WCE / 1590WCEBK water-tight versions
- Packed in a bag; shipping weight 0.01 lbs
When converting a standard 1590CE to a water-tight box, pair the gasket with M3.5 x 12mm stainless steel cover screws with o-ring (1550WMS100, or black 1550WMS100BK). The 1590CEGASKET is RoHS and REACH compliant, UPC 623980023182.
Ideal For
- Upgrading a 1590CE enclosure from IP54 to IP65
- Replacing a gasket on 1590WCE water-tight enclosures
- Sealing enclosures after machining or painting
- Liquid-resistant electronics housings
Overview
| Description | Silicone gasket for 1590CE enclosures, 2-pack |
| Pack Quantity | 2 pre-formed silicone gaskets |
| Type (As Listed) | Die-cast box |
| Short Description | SILICONE GASKET- 2 PACK |
Identifiers
| UPC | 623980023182 |
| UNSPSC | 39121301 |
| Part Number | 1590CEGASKET |
Compatibility
| Enclosure Size Covered | 4.72 in (120 mm) x 3.94 in (100 mm) x 2.56 in (65 mm) |
| Compatible Enclosures (Standard) | 1590CE, 1590CEBK |
| Water-Tight Versions Using This Gasket | 1590WCE, 1590WCEBK |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Application Point | Gasket is applied to the lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590CEGASKET fit?▾
The 1590CE and 1590CEBK, and their water-tight versions 1590WCE and 1590WCEBK.
What does the kit contain?▾
Two pre-formed silicone gaskets with adhesive backing.
Does it make the enclosure IP65?▾
It is designed to meet IP65 when properly installed with lid screws torqued to 25-30 cN.m (36-43 ozf.in).
Can I paint the enclosure before fitting the gasket?▾
Yes. The kit allows the enclosure to be machined and/or painted first and gasketed later.
What temperatures can the gasket handle?▾
It is rated -40°C to 150°C (-40°F to 302°F).
