Hammond 1590C 119x94x56mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in) diecast aluminum box
- Inside space of 111.27 x 85.77 x 52.25 mm
- Unpainted, vibra finished for a smooth surface with no sharp edges
- Lap joint construction designed to meet IP54
- Four 6-32 UNC cover screws in factory-tapped holes included
- IP65 upgrade with the 1590BBGASKET kit; water-tight version 1590WC
- RoHS and REACH compliant

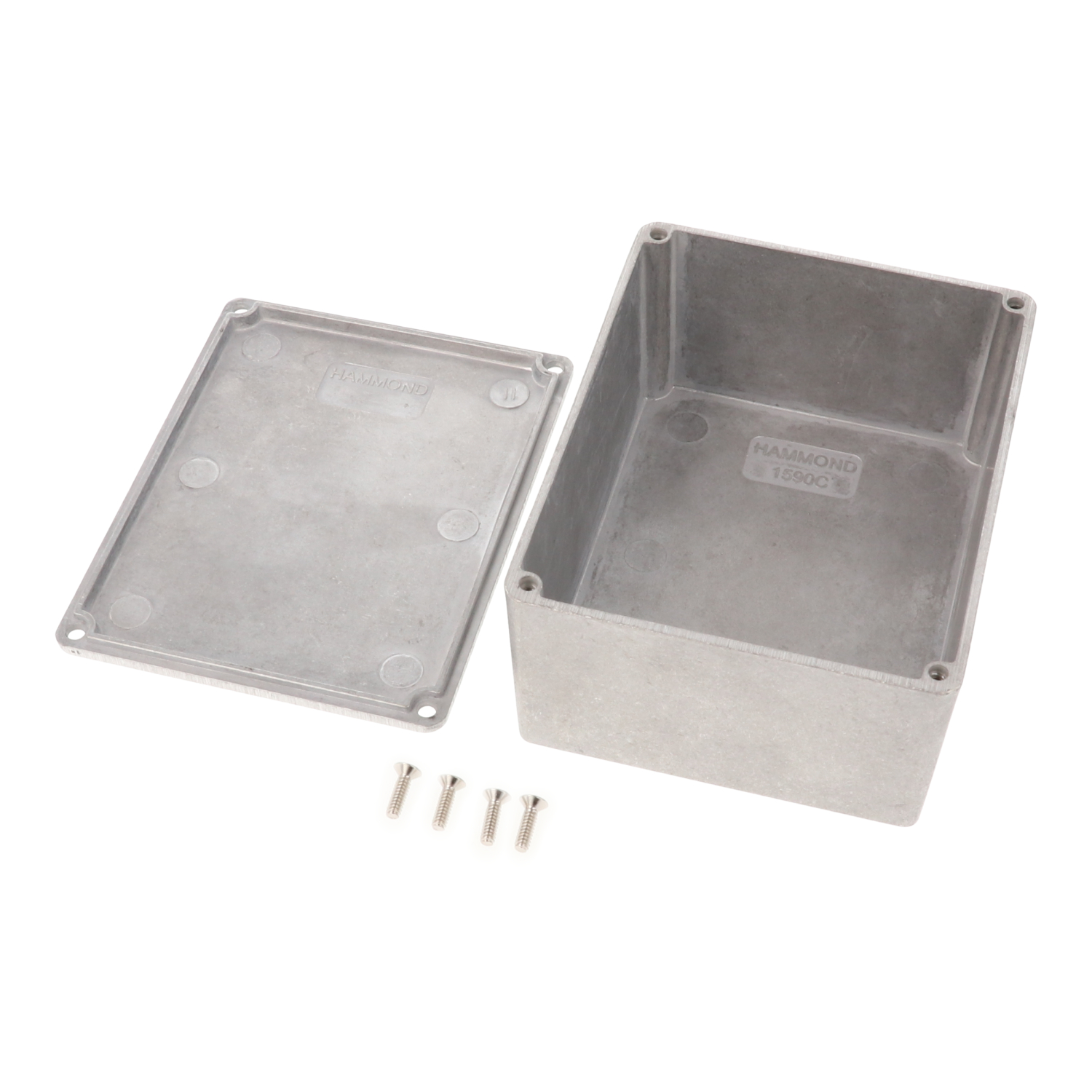

The 1590C is a general purpose diecast aluminum electronic instrument enclosure measuring a nominal 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in). It has no mounting flanges and an unpainted natural finish, making it a clean starting point for electronics designers, hobbyists and OEMs who plan to drill, mill or paint the box for their own project.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The natural version is vibra finished for a smooth surface with no sharp edges. A lap joint where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.
- Drawing outside dimensions: 119.50 x 94.00 x 56.50 mm
- Inside length 111.27 mm, inside width 85.77 mm, inside height 52.25 mm
- Listed maximum PC board dimensions: 109.27 mm and 83.77 mm
- Side wall draft angle of 2° or less for easy PC board mounting
The 1590C ships with its box, lid and four 6-32 UNC cover screws in factory-tapped holes. Recommended torque is 50-55 cN.m (71-78 ozf.in), dropping to 25-30 cN.m (36-43 ozf.in) with a gasket. The series table lists 1590BBGASKET as the replacement gasket kit for an IP65 upgrade, and 1590WC as the factory water-tight version. It weighs 0.61 lbs (0.28 kg) shipped and is RoHS and REACH compliant.
Ideal For
- General purpose electronic instrument enclosures
- Custom machined project boxes
- Dust- and splash-protected electronics
- Prototype and OEM PC board housings
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST BOX 4.6X3.6X2.2 C90 |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Overall Width (Drawing) | 94.00 mm [3.701 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 56.50 mm [2.224 in] |
| Overall Length (Drawing) | 119.50 mm [4.705 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
Identifiers
| UPC | 623980539904 |
| UNSPSC | 39121301 |
| Part Number | 1590C |
Related Parts
| No Flange, Standard | 1590C |
| Flanged Lid, Standard | 1590CFL |
| No Flange, Water-Tight | 1590WC |
| Flanged Lid, Water-Tight | 1590WCFL |
| Flanged Bottom Plate, Standard | 1590CF |
| Flanged Bottom Plate, Water-Tight | 1590WCF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.61 lbs (0.28 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WC |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590C?▾
Inside length 111.27 mm (4.381 in), inside width 85.77 mm (3.377 in) and inside height 52.25 mm (2.057 in).
Does the 1590C have mounting flanges?▾
No. Flanged versions are available as 1590CFL (flanged lid) and 1590CF (flanged bottom plate).
Which gasket kit fits the 1590C?▾
The series ordering table lists 1590BBGASKET as the optional replacement gasket kit for the 1590C.
How many cover screws are included?▾
Four 6-32 UNC cover screws, together with the box and lid.
Is the 1590C painted?▾
No, it is the natural (unpainted) version. The textured black version is 1590CBK.
