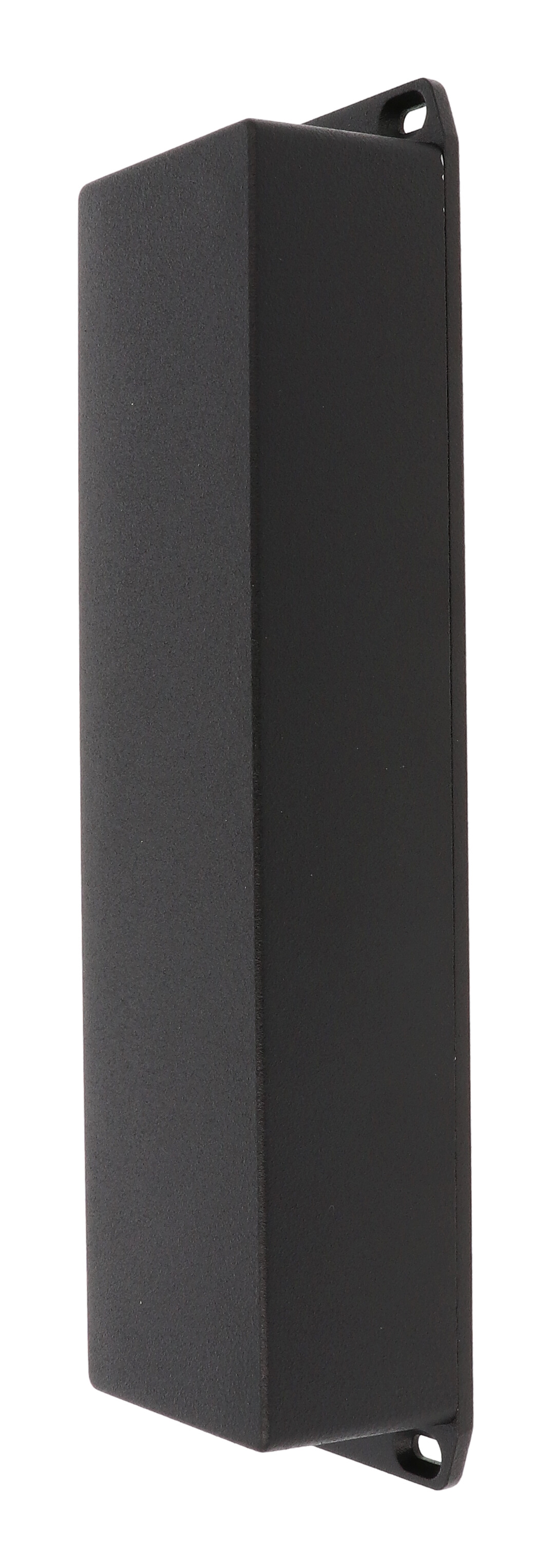

Hammond 1590BXFLBK 254x70x50mm Black Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder finish with matching black screws
- Wall-mounting flange integrated into the lid; 283.00 mm overall length
- 254 x 70 x 50 mm nominal size with 247.68 x 63.68 x 44.70 mm inside
- Diecast aluminum alloy, tough yet easy to machine
- Designed to meet IP54; IP65 with the 1590BXGASKET gasket kit
- Six 6-32 UNC cover screws included
The 1590BXFLBK pairs a long, slim 254 x 70 x 50 mm (10 x 2.76 x 1.95 in) diecast aluminum box with a lid that has its own wall-mounting flange, in a textured black finish. Mount the lid to a wall or panel and the box closes onto it, which suits OEM, AV and industrial builders who want a finished-looking metal housing for elongated boards.
The powder finish is a tough polyester paint that keeps a lasting finish even after machining, and black screws are included so the hardware matches. Underneath, box and lid are diecast aluminum alloy with lap joint construction that protects against dust and splashing water; the standard version is designed to meet IP54.
- 283.00 mm (11.142 in) overall length across the flanged lid
- Inside dimensions 247.68 x 63.68 x 44.70 mm
- Listed maximum PC board dimensions: 245.68 mm and 61.68 mm
- Low side wall draft angle (2° or less) for easy board mounting
Six 6-32 UNC cover screws thread into factory-tapped holes; recommended torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, fit the 1590BXGASKET kit or specify the water-tight 1590WBXFLBK. Shipping weight is 0.9 lbs (0.41 kg), shrink wrapped, and the part is RoHS and REACH compliant.
Ideal For
- Wall-mounted control and sensor electronics
- Long, narrow PC board housings
- Visible installations needing a black finished enclosure
- OEM instrument cases requiring machining
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590BX FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 63.68 mm [2.507 in] |
| Inside Height | 44.70 mm [1.760 in] |
| Inside Length | 247.68 mm [9.751 in] |
| Series Table Width | 2.76 in (70 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Series Table Height | 1.97 in (50 mm) |
| Series Table Length | 10.00 in (254 mm) |
| Nominal Size (L X W X H) | 10 in x 2.76 in x 1.95 in (254 mm x 70 mm x 50 mm) |
| Overall Height (Drawing) | 49.50 mm [1.949 in] |
| Max. P.C. Board Width (Listed) | 245.68 mm |
| Max. P.C. Board Length (Listed) | 61.68 mm |
| Overall Length Incl. Flanged Lid (Drawing) | 283.00 mm [11.142 in] |
Identifiers
| UPC | 623980405391 |
| UNSPSC | 39121301 |
| Part Number | 1590BXFLBK |
Related Parts
| No Flange, Standard | 1590BXBK |
| Flanged Lid, Standard | 1590BXFLBK |
| No Flange, Water-Tight | 1590WBXBK |
| Flanged Lid, Water-Tight | 1590WBXFLBK |
| Flanged Bottom Plate, Standard | 1590BXFBK |
| Flanged Bottom Plate, Water-Tight | 1590WBXFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

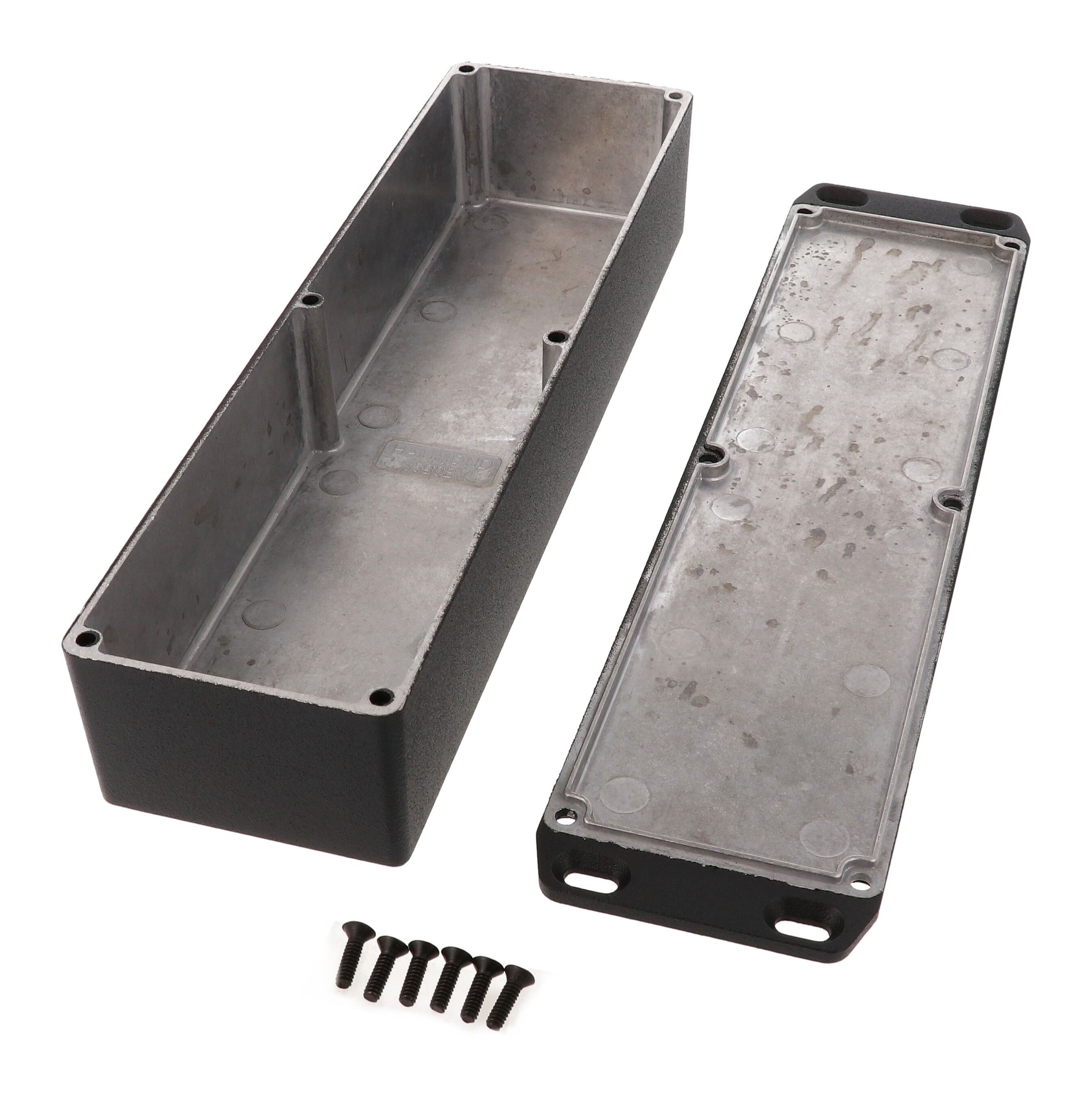

| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BXGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WBXFLBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does machining damage the black finish on the 1590BXFLBK?▾
The black version is coated with tough polyester powder paint described as providing a lasting finish even after machining.
How do I mount the 1590BXFLBK?▾
Through the wall-mounting flange integrated into the lid, which gives an overall length of 283.00 mm (11.142 in).
What are the internal dimensions?▾
Inside length 247.68 mm, inside width 63.68 mm and inside height 44.70 mm, per the drawing.
Can the 1590BXFLBK be made IP65?▾
Yes. The 1590BXGASKET silicone gasket kit is designed to meet IP65 when installed with lid screws torqued to 25-30 cN.m. The factory water-tight version is 1590WBXFLBK.
What screws are used?▾
Six 6-32 UNC cover screws, included in black for the black version. Replacement packs such as 1590MS100BK (6-32 x 1/2") are listed as accessories.
