Hammond 1583T6A1BKRA 1U 6-Outlet Rack PDU, Rotated 5-15R, 15A
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Six rear-facing NEMA 5-15R outlets, rotated for extra spacing to clear most plug-in transformers
- 1U horizontal 19-inch rack mount installation; 1.72 x 19.00 x 2.66 in (44 x 483 x 68 mm)
- Rated 15 A, 125 VAC, 60 Hz with a resettable 15 A / 125 VAC circuit breaker
- Red power indicator (pilot) light instead of an on/off switch
- 6 ft heavy-duty 14/3 SJT cord with integral moulded NEMA 5-15P straight-blade plug
- Black painted steel front and back, RAL9005 black powder coat, Greenguard indoor air quality guidelines
- cRUus, UL Recognized UL1363 (File E166039), CSA C22.2 certified, RoHS/REACH and TAA-compliant
- Manufactured in North America; USMCA compliant

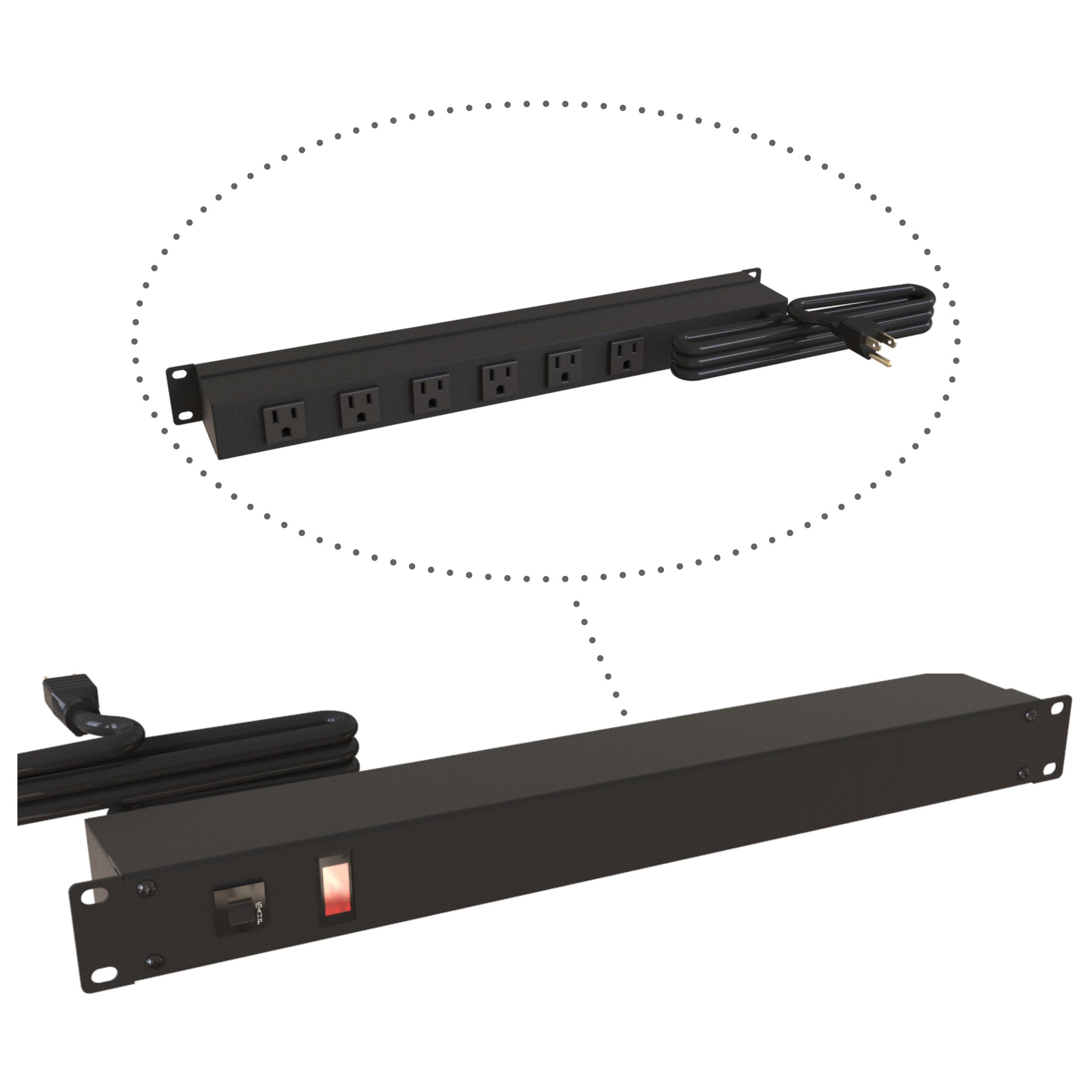

The 1583T6A1BKRA is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) with six rear-facing NEMA 5-15R receptacles, rated 15 A at 120/125 VAC single phase. It is designed for power distribution from the rear of the unit, making it suited to IT, AV and industrial racks where equipment cords land at the back of the enclosure. This version uses a red power indicator (pilot) light rather than an illuminated on/off rocker switch, so the strip is always live when plugged in.
Outlets on this model are rotated, giving extra spacing for clearance of most plug-in transformers - useful when powering wall-wart style supplies for network gear, AV converters or small appliances. All six outlets face the rear; there are no front-facing outlets on this part number.
Construction is painted steel, front and back, in a black finish (RAL9005 black powder coat), which complies with the Greenguard guidelines for indoor air quality. A resettable 15 A, 125 VAC circuit breaker is built in to prevent accidental overload. The 1583T6A1BKRA ships with an integral moulded NEMA 5-15P straight-blade plug on a heavy-duty 6 ft, 14 gauge 14/3 SJT cord rated for extreme temperature ranges.
- Overall size: 1.72 in (44 mm) high x 19.00 in (483 mm) wide x 2.66 in (68 mm) deep
- Shipping weight: 4 lbs (1.81 kg)
The unit mounts in a standard 19-inch rack in a single rack unit of space. It is cRUus recognized, UL Recognized to Standard UL1363 (UL File # E166039), CSA Certified to C22.2 No. 21-95 and 42-99, RoHS and REACH compliant, USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America. This model does not include surge protection, an ammeter or a shielded cord.
Ideal For
- Rear-of-rack power distribution in 19-inch server and network racks
- Powering plug-in transformers and wall-wart supplies needing extra outlet clearance
- AV and broadcast equipment racks requiring 1U 15A power strips
- Federal GSA schedule projects needing TAA-compliant rack PDUs
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Metered | No |
| Part Number | 1583T6A1BKRA |
| Switch Type | No Switch. Power Indicator Light |
| Shielded Cord | No |
| Hospital Grade | No |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 6 Outlets, 6 ft cord, Black |
| Surge Protection | No |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, 90 DEG RECEP |
Dimensions
| Depth | 2.66 in (68 mm) |
| Width | 19.00 in (483 mm) |
| Height | 1.72 in (44 mm) |
| Depth (Drawing) | 67.58 mm [2.661 in] |
| Width (Drawing) | 482.60 mm [19.000 in] |
| Height (Drawing) | 43.64 mm [1.718 in] |
Electrical
| Indicator | Pilot light (red power indicator) |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Outlet Type | NEMA 5-15R |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Total Outlets | 6 |
| Outlets (Rear) | 6 |
| Outlets (Front) | 0 |
| Plug Blade Type | Straight |
| Rotated Outlets | Yes |
| Rating (Drawing) | 125 VAC, 60 Hz, 15 Amps |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type for extreme temperature ranges, integral moulded plug |
| Overcurrent Protection | Resettable 15 Amp, 125 VAC circuit breaker |
Identifiers
| UPC | 623980195490 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980195490 |
| UPC W/o Check Digit | 62398019549 |
Rack Mounting
| Mounting Format | 1U horizontal 19" rackmount installation |
| Mounting Hole Centers (Drawing) | 444.50 mm [17.500 in] |
Packaging & Shipping
| Tariff Code | 8537.10.9170 |
| Shipping Weight | 4 lbs (1.81 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Color | Black |
| Powder Coat | RAL9005 black powder coat |
| Material / Finish (Back) | Black painted steel |
| Material / Finish (Front) | Black painted steel |
Environmental & Protection
| Indoor Air Quality | Complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| UL | UL Recognized Standard UL1363 |
| ECCN | EAR99 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| CSA (Series) | CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| CSA (Drawing) | CSA Certified Standards C22.2 (No. 21-95, 42-99) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1583T6A1BKRA have an on/off switch?▾
No. This version uses a red power indicator (pilot) light only. The equivalent model with an illuminated on/off rocker switch is 1583H6A1BKRA.
What does "rotated outlets" mean on this model?▾
The receptacles are rotated and spaced to provide extra clearance for most plug-in transformers, so bulky wall-wart supplies do not block adjacent outlets.
Are any outlets on the front of the unit?▾
No. All six 5-15R outlets face the rear; the front-facing outlet count is 0. The unit is designed for power distribution from the rear.
Is the 1583T6A1BKRA surge protected or metered?▾
No. This part number has no surge protection, no ammeter and an unshielded cord. Other 1583 Series models offer surge, amp meter and shielded cord options.
What plug and cord does it come with?▾
It includes a 6 ft heavy-duty 14 gauge 14/3 SJT cord with an integral moulded NEMA 5-15P straight-blade plug.
How much rack space does it take, and is it TAA compliant?▾
It occupies 1U in a 19-inch rack (1.72 in / 44 mm high) and is TAA-compliant for federal GSA schedule purchases within the USA.
