Hammond 1554Y2GYSL 300x240x95mm Smoked Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked UL94V-0 polycarbonate lid on a light gray UL94-5VA polycarbonate box
- 300 x 240 x 95 mm size; PC boards up to 285 x 225 mm
- IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 & 13 tested
- cUL and UL 508A listed, file E65324
- UV stabilized for outdoor use; rated -40°C to +110°C (-40°F to +230°F)
- Six self-captivating M4 stainless screws into corrosion resistant inserts
- IK08 impact rating per IEC 62262:2021

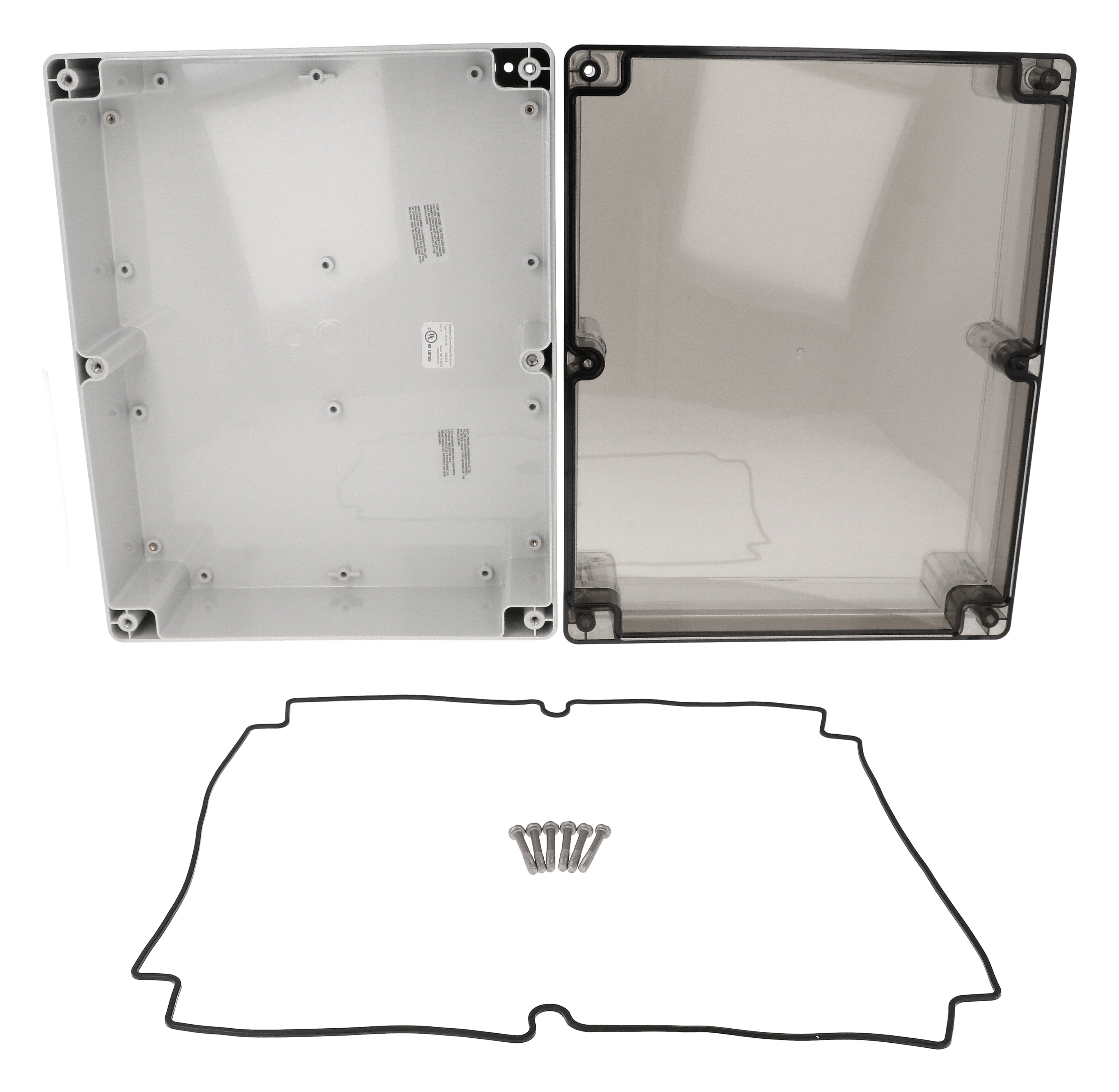

The 1554Y2GYSL is the smoked-lid version of the 300 x 240 x 95 mm 1554Y polycarbonate enclosure. A tinted polycarbonate lid on a light gray RAL 7035 box lets indicators and displays show through, and is for OEMs and system integrators who want a watertight, UL 508A listed housing for PC boards or DIN rail components.
The box is UV stabilized polycarbonate rated UL94-5VA, and the smoked lid is rated UL94V-0. The polycarbonate versions are cUL and UL 508A listed under file E65324 and have been independently tested to IP66, IP67 and IP68 and to NEMA Type 4, 4X, 6, 6P, 12 and 13. Impact rating is IK08 per IEC 62262:2021, and the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
A two-piece tongue and groove joint and a one-piece silicone gasket (high temperature, UL listed, supplied loose) seal the lid. Six self-captivating M4 stainless steel machine screws go into corrosion resistant inserts and should be torqued to 8-9 lbf-in (90-100 cN-m).
The enclosure accepts boards up to 285 x 225 mm. Mounting provisions shown on the drawing include 4 M3 brass inserts and 10 bosses for #8 self-tapping screws, and card guides for 1.5mm boards and DIN rail tabs are molded in. The 1554YPL steel inner panel and 1554FT-XY foot kit are available separately. The part page lists the size as 11.82 x 9.45 x 3.74 in (300 x 240 x 95 mm), and shipping weight is 2.81 lbs (1.27 kg).
Ideal For
- Outdoor housings with visible status LEDs
- Sealed control and instrumentation enclosures
- UL 508A industrial control assemblies
- Washdown and wet-location electronics
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in (series: all sizes except C and D) |
| Wall Mounting | 4 mounting holes located outside of the gasket channel |
| PC Card Guides | Vertical PC card guides molded in, for 1.5mm thick PC boards |
| Internal Mounting | 4 x M3 brass inserts; 10 x bosses accepting #8 self-tapping screws |
| Foot Kit (Accessory) | 1554FT-XY |
| Inner Panel (Accessory) | 1554YPL steel inner panel, order separately |
Overview
| Type | Water-tight |
| Series | 1554 Series (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Version | Polycarbonate box with smoked lid |
| Lid Style | Flat screw-cover lid |
| Long Description | Polycarbonate encl w/ smoked lid - |
| Short Description | 300X240X95MM P/C NEMA SMK LID |
Dimensions
| Width | 9.45 in (240 mm) |
| Length | 11.81 in (300 mm) |
| Total Height | 3.74 in (95 mm) |
| Size (L X W X H) | 11.82 in x 9.45 in x 3.74 in (300 mm x 240 mm x 95 mm) |
| Max. P.C. Board Width | 225 mm |
| Max. P.C. Board Length | 285 mm |
| Inside Height (Drawing) | 86.80 mm [3.42 in] |
| Inside Length (Drawing) | 289.09 mm [11.38 in] |
| Overall Width (Drawing) | 239.46 mm [9.43 in] |
| Overall Height (Drawing) | 94.79 mm [3.73 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554YGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing available from the factory on quote |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm plated, pkg 100) |
| Replacement Cover Screws | SC583-50 (stainless steel M4-0.7 x 25mm, pkg 50) |
| Panel / P.C. Board Self-Tapping Screw | SC554-100 (#8 x 5/16" (6.4mm)) |
Identifiers
| UPC | 623980406657 |
| UNSPSC | 39121301 |
| Part Number | 1554Y2GYSL |
| Drawing Revision | 29.10.2024 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.81 lbs (1.27 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554YGY |
| Polycarbonate Gray Lid Version | 1554Y2GY |
| Polycarbonate Clear Lid Version | 1554Y2GYCL |
| Polycarbonate Smoked Lid Version | 1554Y2GYSL |
Construction & Finish
| Lid | Smoked polycarbonate |
| Color | Light Gray (RAL 7035) |
| Gasket | One-piece replaceable gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate box / smoked polycarbonate lid |
| Lid Screws | 6 x M4 stainless steel machine screws (M4-0.7 x 25mm), self-captivating |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction |
| Lid Screw Inserts | 6 x M4 corrosion resistant inserts; lid holes are threaded with the first installation of lid screws |
| Included In Assembly | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (gray box); smoked lid UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1554Y2GYSL differ from the 1554Y2GY?▾
Both use the same 300 x 240 x 95 mm polycarbonate box; the 1554Y2GYSL has a smoked polycarbonate lid (UL94V-0) instead of the solid gray lid.
Is the smoked-lid version still watertight?▾
Yes. The part data lists IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 for the 1554Y2GYSL.
What board size fits?▾
Maximum P.C. board size is 285 x 225 mm.
Which accessories fit this enclosure?▾
1554YPL steel inner panel, 1554FT-XY foot kit, 1554YGASKET replacement gasket (pkg 2), SC583-50 stainless cover screws (pkg 50), 1591MM100 M3 panel screws and SC554-100 #8 self-tapping screws.
What is the recommended operating temperature?▾
-40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for a specific application.
