Hammond 1554X2GYSL 300x200x90 mm Smoke Lid Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoke-tinted polycarbonate lid on a light gray polycarbonate box
- 300 x 200 x 90 mm; interior 289.09 x 189.31 x 81.82 mm
- IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; IK08 impact
- PC boards to 285 x 174 mm; M3 brass inserts and card guides
- Six self-captivating M4 stainless steel lid screws
- Shipping weight 2.39 lb (1.08 kg), shrink wrapped

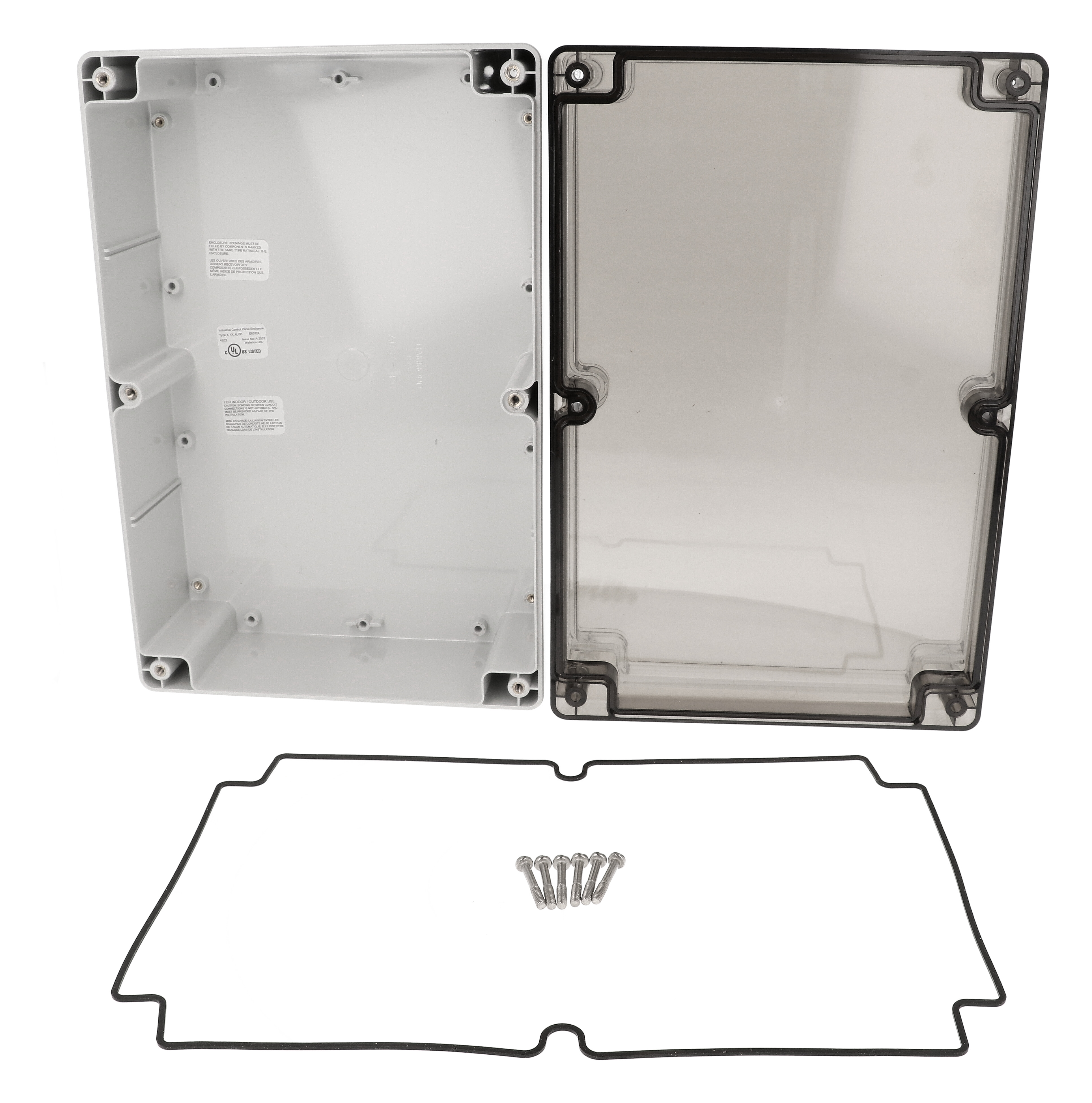

The 1554X2GYSL is a smoked-lid polycarbonate enclosure measuring 300 x 200 x 90 mm, part of the 1554 Series of screw-cover watertight housings. A light gray (RAL 7035) polycarbonate box carries a smoke-tinted polycarbonate lid, suited to OEM and field projects that mount PC boards or DIN rail components outdoors and want a darkened view of the contents.
The part page size reads 11.82 x 7.87 x 3.54 in (300 x 200 x 90 mm), and the ordering table lists 11.81 x 7.87 x 3.54 in. On the drawing the box is 299.33 x 199.55 x 89.80 mm overall, with an interior of 289.09 x 189.31 x 81.82 mm. It accepts PC boards up to 285 x 174 mm, mounted on four M3 brass inserts, ten #8 self-tapping screw positions, molded card guides for 1.5 mm boards or DIN rail tabs, with a 1554XPL inner panel available separately.
Six M4 stainless steel screws, self-captivating and threaded into corrosion resistant inserts, clamp the two piece tongue and groove lid onto a replaceable one-piece silicone gasket supplied loose inside. Recommended torque is 8-9 lbf-in (90-100 cN-m); replacement screws are SC583-50.
Being polycarbonate, the 1554X2GYSL is UV stabilized for outdoor use, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, IK08 impact rated and cUL and UL 508A listed (E65324). The part page lists UL94 5VA; series data rates smoked lids UL94V-0. Recommended operating temperature is -40°C to +110°C (-40°F to +230°F). Wall mount through four 4.39 mm holes outside the gasket, or add the 1554FT-XY foot kit.
Ideal For
- Outdoor electronics with a tinted cover
- DIN rail control assemblies in wet locations
- UL 508A listed panel builds
- Corrosive or wash-down environments
Mounting
| Foot Kit | 1554FT-XY (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.39 mm, located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | Polycarbonate box / smoke polycarbonate lid |
| Lid Style | Screw cover, flat gasketed lid |
| Short Description | 300X200X90MM P/C NEMA SMK LID |
| Enclosure Size Family | 1554X |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 189.31 mm [7.45 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 81.82 mm [3.22 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size L X W X H | 11.82 in x 7.87 in x 3.54 in (300 mm x 200 mm x 90 mm) |
| Max. P.C. Board Width | 174 mm |
| Max. P.C. Board Length | 285 mm |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 89.80 mm [3.54 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| Steel Inner Panel | 1554XPL (order separately) |
| Replacement Gasket | 1554XGASKET |
| Replacement Screws (50-pk) | SC583-50 |
| Related Versions (Same Size) | ABS gray lid 1554XGY; polycarbonate gray lid 1554X2GY; clear lid 1554X2GYCL; smoked lid 1554X2GYSL |
| Stainless Steel Cover Screws | SC583-50 — M4-0.7 x 25 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554XGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 — #8 x 5/16" (6.4 mm) |
Identifiers
| UPC | 623980406374 |
| UNSPSC | 39121301 |
| Part Number | 1554X2GYSL |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | 4X M3 brass inserts; standoffs accept #8 self-tapping screws |
| Self-Tapping Positions (Drawing) | 10X #8 self-tapping screw positions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.39 lbs (1.08 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 6 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | 6X M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Purchased Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| UV / Outdoor | UV stabilized for outdoor use |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed, cULus Listed Type 4, 4X, 6, 6P |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flame Ratings (Series Data) | Solid gray polycarbonate UL94-5VA (@ 3 mm); clear and smoked lids UL94V-0 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1554X2GYSL and 1554X2GY?▾
Both are 300 x 200 x 90 mm polycarbonate enclosures; 1554X2GYSL has a smoked lid and 1554X2GY has a solid gray lid.
What is the operating temperature range?▾
The recommended range for polycarbonate versions is -40°C to +110°C (-40°F to +230°F).
Can it be mounted on a wall?▾
Yes, through four 4.39 mm mounting holes located outside the gasket channel. Foot kit 1554FT-XY is listed for this size.
What does the assembly include?▾
Box, lid, 6 cover screws and a preformed silicone gasket.
Are chemicals a concern?▾
Some chemicals can damage plastic; avoid acetone, ketones, thread locking compounds, cutting fluid and strong solvents, among others listed in the chemical resistance statement.
