Hammond 1554VB2GYCL 240x160x120mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94 V-0) on a deep 120 mm polycarbonate body
- Inside 230.24 x 146.24 x 113.30 mm for taller DIN rail devices
- cUL and UL 508A listed under E65324
- IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13 tested
- Six self-captivating stainless steel M4 lid screws
- PC boards to 145.5 x 226.82 mm; molded card guides and brass inserts
- UV stabilized for outdoor use; IK08 impact rating

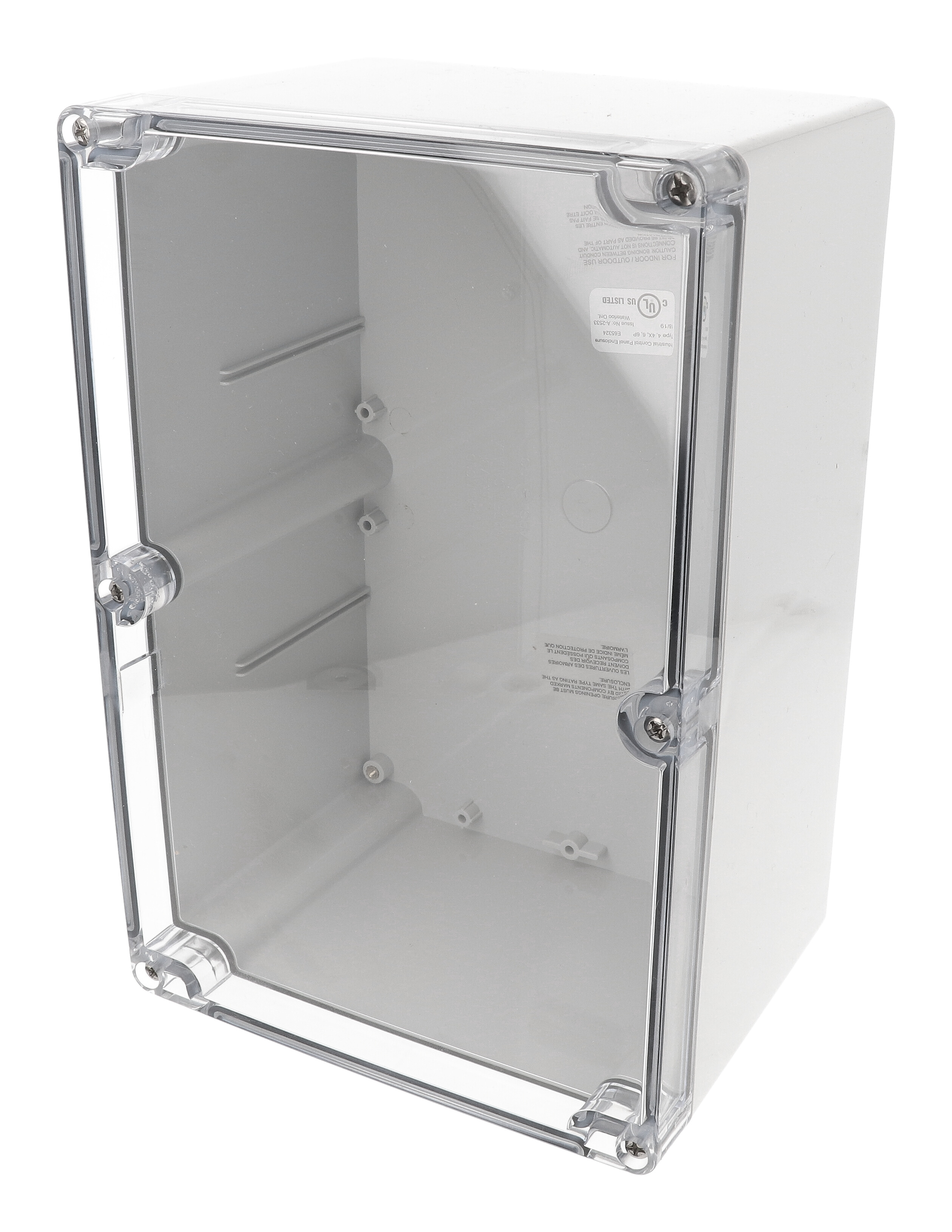

The 1554VB2GYCL combines the deep 240 x 160 x 120 mm polycarbonate body with a clear polycarbonate lid, letting technicians see displays or status lights on taller internal equipment without breaking the seal. It is designed for OEM engineers and integrators working outdoors or in wet locations.
The ordering table gives 9.45 x 6.30 x 4.72 in (240 x 160 x 120 mm); the part page lists a nominal 239 x 160 x 119 mm (9.4 x 6.3 x 4.7 in), and the part attribute colour is Clear. Inside, the drawing shows 230.24 x 146.24 x 113.30 mm. PC boards up to 145.5 x 226.82 mm mount on molded card guides, M3 brass inserts or #6 self-tapping standoffs, and DIN rail tabs are molded in.
- Clear lid rated UL94 V-0
- cUL and UL 508A listed, file E65324; drawing mark UL Listed Type 4, 4X, 6, 6P
- Series testing to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13
- IK08 impact, UV stabilized, -40°C to +110°C (-40°F to +230°F)
Six included stainless steel M4 cover screws are self-captivating and thread into corrosion resistant inserts; the recommended torque is 71-85 ozf-in (50-60 cN-m). The one piece, high temperature UL listed silicone gasket is replaceable (1554VAGASKET) and ships loose inside the enclosure.
Wall mounting uses four 4.50 mm holes outside the gasket channel, which also accept the 1554FT foot kit. The 1554VB2GYCL ships shrink wrapped at 1.35 lbs (0.61 kg) and is RoHS and REACH compliant.
Ideal For
- Outdoor electronics viewed through a clear lid
- Deep DIN rail control assemblies
- Wet-location instrumentation
- UL 508A listed control panels
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / clear polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 240X160X120MM P/C NEMA CLR LID |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 9.45 in (240 mm) |
| Inside Width | 146.24 mm [5.76 in] |
| Total Height | 4.72 in (120 mm) |
| Inside Height | 113.30 mm [4.46 in] |
| Inside Length | 230.24 mm [9.06 in] |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 4.7 in (239 mm x 160 mm x 119 mm) |
| Overall Height (Drawing) | 120.00 mm [4.72 in] |
Identifiers
| UPC | 623980401461 |
| UNSPSC | 39121301 |
| Part Number | 1554VB2GYCL |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 6 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC583-50 (stainless steel, M4-0.7 x 25 mm, pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping

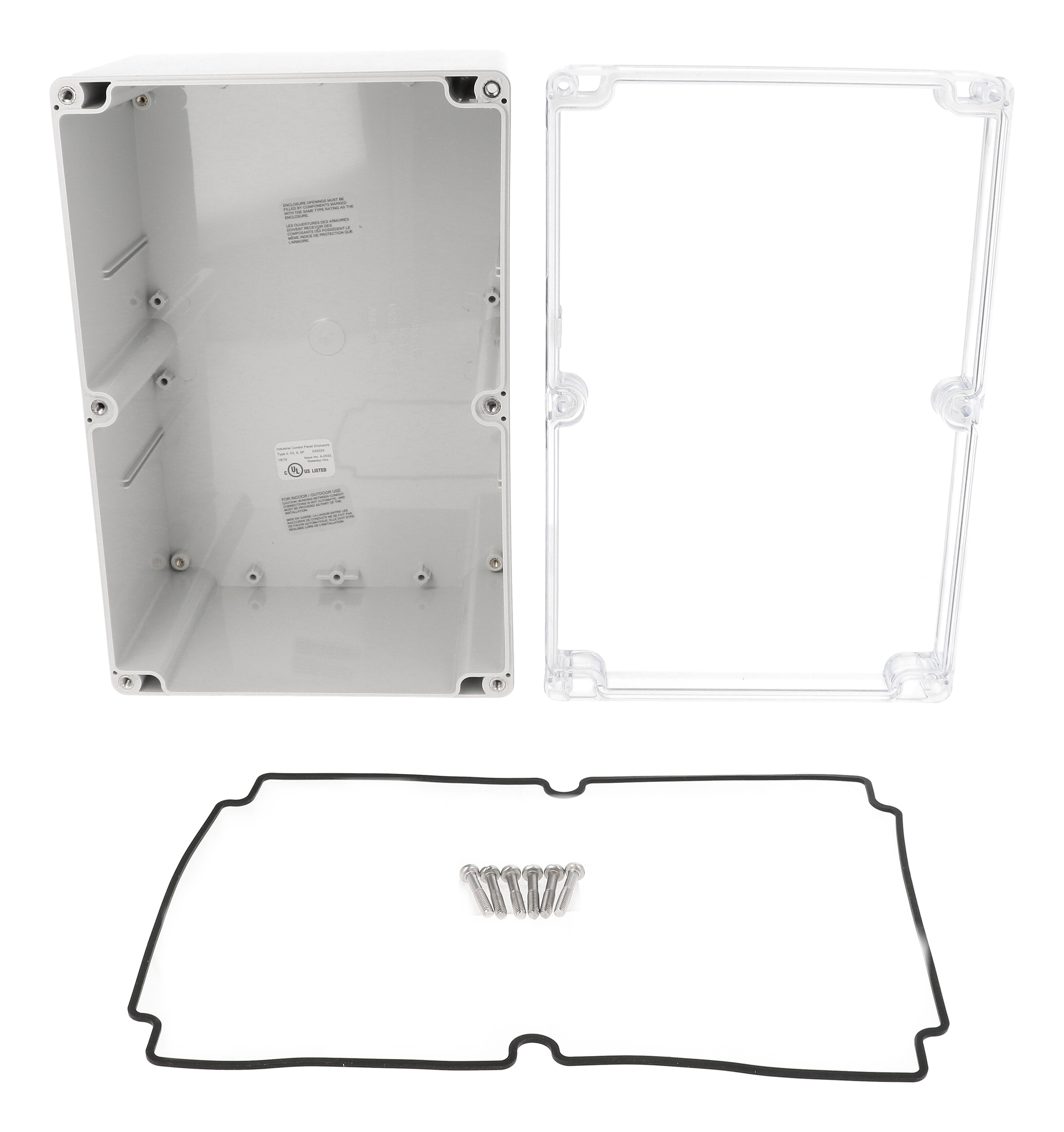

| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.35 lbs (0.61 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554VBGY |
| Polycarbonate Gray Lid Version | 1554VB2GY |
| Polycarbonate Smoked Lid Version | 1554VB2GYSL |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Clear |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Flame Rating | UL94 V-0 |
| UV Stabilized | Yes, for outdoor use |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Material Flammability (Drawing) | Polycarbonate: UL94 - 5VA @ 3 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and incompatible greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listed Mark (Drawing) | c UL US Listed, Type 4, 4X, 6, 6P |
Mounting & Internal Features
| Standoffs | Accept #6 self-tapping screws for PC board or inner panel mounting |
| Inner Panel | 1554VAPL steel inner panel (order separately) |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | Threaded M3 integral brass inserts (inside box) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4 x 4.50 mm [0.18 in], located outside of the gasket channel |
| Foot Kit (Accessory) | 1554FT, installs using the wall mounting holes |
