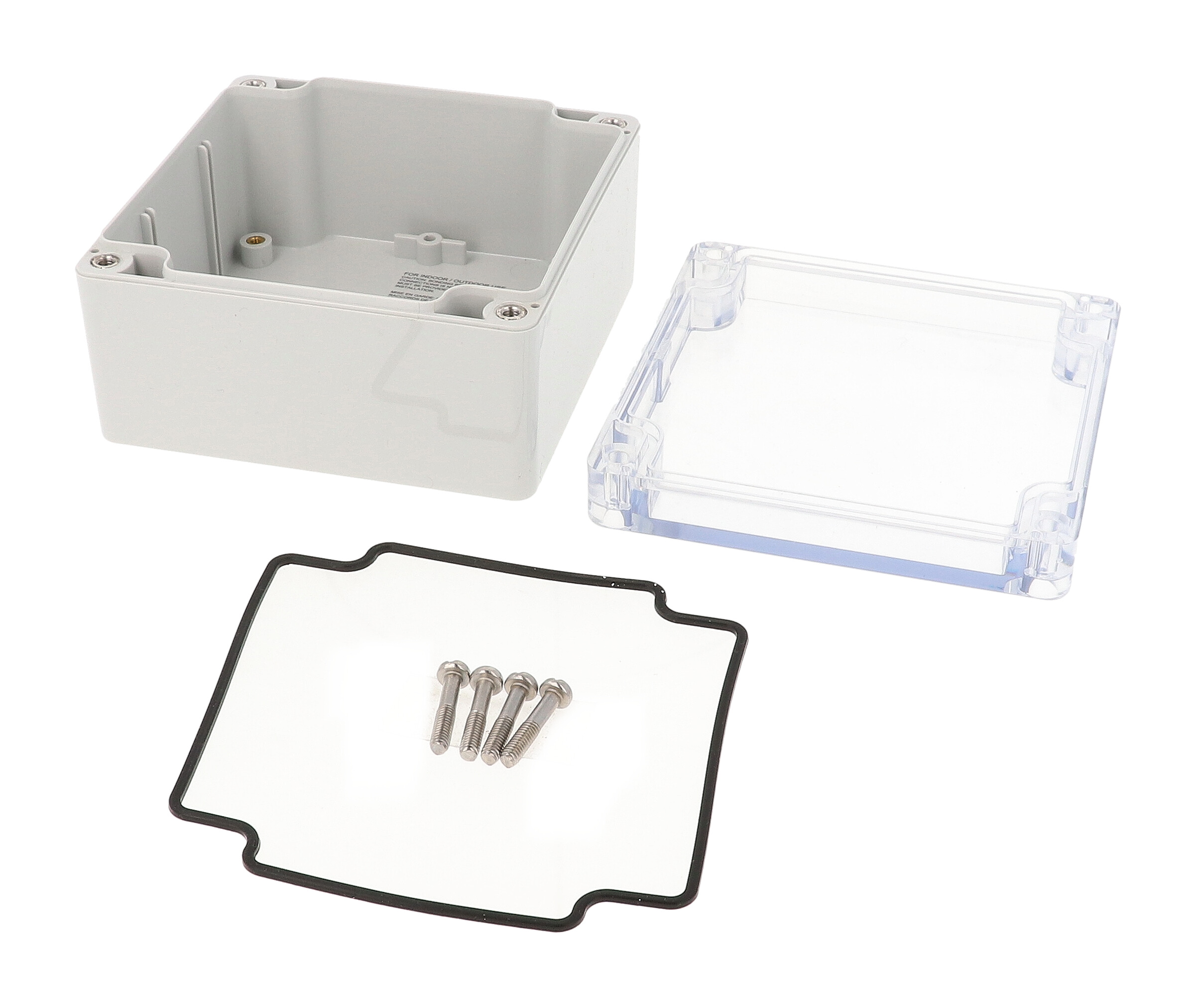

Hammond 1554L2GYCL 105x105x60 mm Clear Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a square 105 x 105 x 60 mm (4.13 x 4.13 x 2.36 in) box
- IP68 listed; NEMA 4, 4X, 6, 6P, 12 & 13
- UL94 V-0 lid; cUL and UL 508A listed under file E65324
- UV stabilized for outdoor use, -40°C to +110°C recommended range
- IK08 impact rating per IEC 62262:2021
- Molded DIN rail tabs, 1.5 mm card guides and M3 brass inserts
- Four self-captivating M4 stainless steel lid screws included
The 1554L2GYCL combines a square gray RAL 7035 polycarbonate box with a clear polycarbonate lid, sized 4.13 x 4.13 x 2.36 in (105 x 105 x 60 mm). The see-through cover lets technicians check LEDs, gauges or labels without breaking the seal, making it a practical choice for field electronics and small control points.
The clear lid is rated UL94 V-0. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, and independently tested to IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13; the part page lists IP68. The impact rating is IK08 per IEC 62262:2021, with a recommended range of -40°C to +110°C (-40°F to +230°F).
The lid seals through a two piece tongue and groove joint and a replaceable one piece silicone gasket shipped loose inside. Four included M4 stainless steel screws are self-captivating and thread into corrosion resistant bushings; torque them to 43-57 ozf-in (30-40 cN-m).
Inside, the 1554L2GYCL offers 97.36 x 93.35 x 53.70 mm of space, molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that accept #6 self-tapping screws. Boards up to 92.57 x 93 mm fit, or add the 1554LPL steel inner panel. Shipping weight is 0.44 lbs (0.20 kg); RoHS and REACH compliant.
Ideal For
- Housings with visible indicators or displays
- Outdoor sensor and monitoring points
- Small PCB assemblies needing inspection
- DIN rail components in wet locations
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Lid Inserts | M4 corrosion resistant inserts inside lid |
| PC Card Guides | Vertical PC card guides for 1.5 mm thick PC boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| Internal Box Mounting | M3 brass inserts; accepts #6 self-tapping screws |
Overview
| Lid | Clear polycarbonate lid |
| Type | Water-tight |
| Series | 1554 |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554L2GYCL |
| Recommended Use | Outdoor use (UV stabilized) |
| Short Description | 105X105X60MM P/C NEMA CLR LID |
Dimensions
| Width | 4.13 in (105 mm) |
| Length | 4.13 in (105 mm) |
| Inside Width | 93.35 mm [3.68 in] |
| Inside Height | 53.70 mm [2.11 in] |
| Inside Length | 97.36 mm [3.83 in] |
| Max. P.C. Board Width | 93 mm |
| Max. P.C. Board Length | 92.57 mm |
| Nominal Size (L X W X H) | 4.13 in x 4.13 in x 2.36 in (105 mm x 105 mm x 60 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Foot Kit | 1554FT |
| Steel Inner Panel (Order Separately) | 1554LPL |
| Replacement Gasket (Silicone, Black, Pkg 2) | 1554LGASKET |
| Panel / P.C. Board Screw (M3-0.5 X 8 Mm Plated, Pkg 100) | 1591MM100 |
| Replacement Cover Screws (M4-0.7 X 20 Mm Stainless, Pkg 50) | SC576-50 |
| Panel / P.C. Board Self Tapping Screw (#6 X 1/4" (6.4 Mm) Plated, Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980781495 |
| UNSPSC | 39121301 |
| Drawing Revision | 15.06.2026 |
| Enclosure Family | 1554L |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two piece tongue and groove construction |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), self-captivating, threaded into corrosion resistant bushings |
| Construction | Polycarbonate box / clear polycarbonate lid |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Series IP Testing | Independently tested to meet IP66, IP67 and IP68 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| IP Rating (Part Page) | IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1554L2GYCL different from the 1554L2GY?▾
It has a clear polycarbonate lid instead of the solid gray lid; size and NEMA ratings are the same.
What flame rating does the 1554L2GYCL carry?▾
The part page lists UL94 V-0, the rating for clear and smoked lids.
Can it be used outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use.
What is the largest P.C. board that fits?▾
The listed maximum P.C. board size is 92.57 x 93 mm.
Does it come with the gasket installed?▾
The silicone gasket is included but supplied loose inside the enclosure, not pre-installed.
