Hammond 1455T1601 160 x 165 mm Clear Anodized Aluminum Enclosure, IP54

The 1455T1601 is a 1455 series extruded aluminum PC board enclosure in clear anodize, sized 6.3 in x 6.5 in x 2.05 in (160 mm x 165 mm x 52 mm). It is the clear anodized version, which shows the natural aluminum tone and ships with natural-finish screws. Designed to house PC boards or for equipment interfacing, it suits electronics engineers, OEMs and integrators building instruments, controllers and interface units.

The body is extruded aluminum with a minimum thickness of 0.06" (1.5 mm) and carries an IP54 rating on the part page. PC boards mount horizontally by sliding into internal slots extruded into the body; maximum board size is 159.5 mm long by 159 mm wide, and the drawing notes the extrusion is designed for a 160 mm wide PC board. It is one of the enclosures with a removable sliding plate.

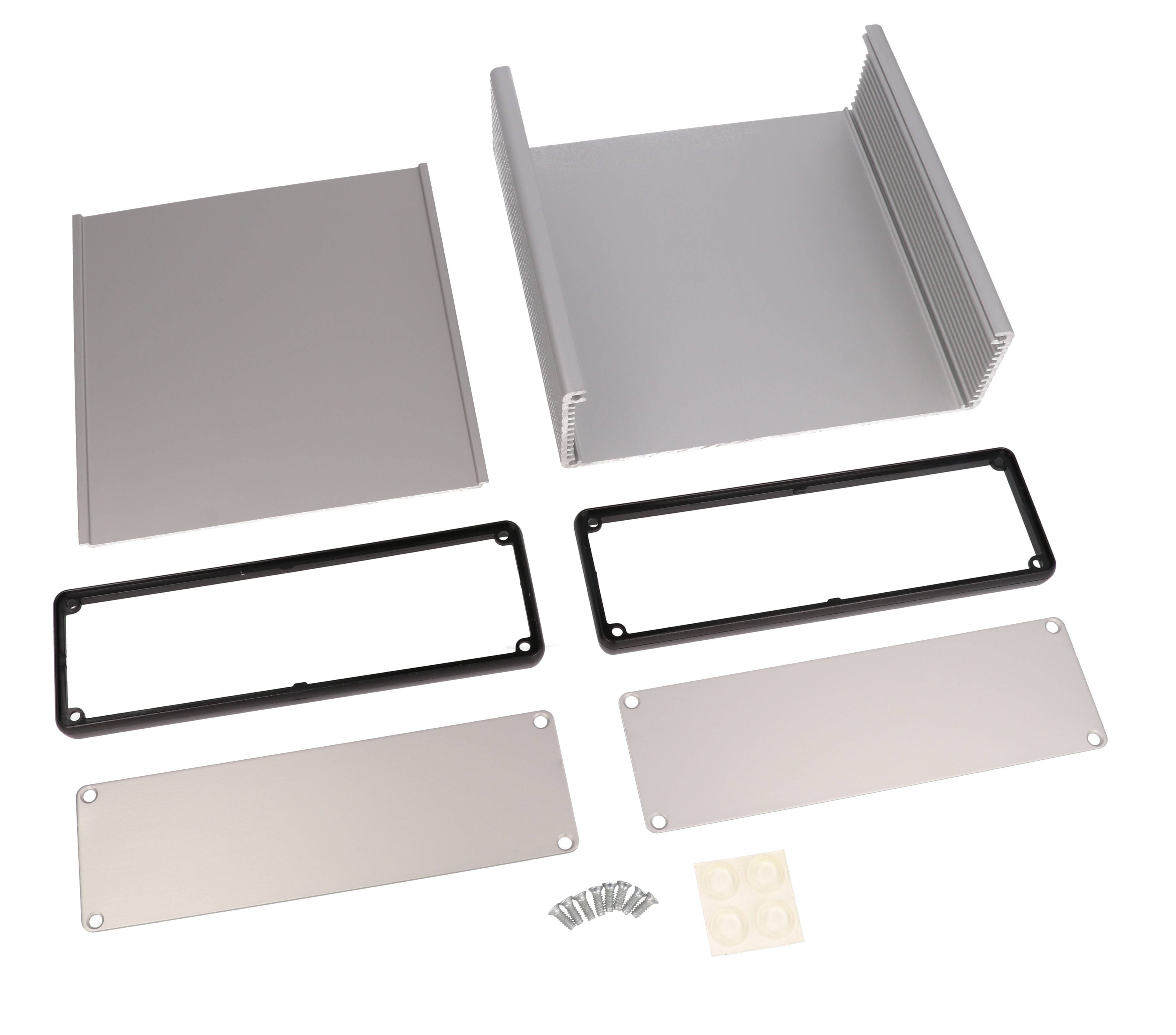

As the metal end panel version it includes two flat aluminum end panels colour matched to the housing, two black open plastic bezels, four adhesive rubber feet and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head phillips drive in a natural finish (replacement pack: 1455MS100, quantity 100). Recommended screw torque is 5 lbf-in. The drawing shows a 160.00 ± 0.50 mm extrusion length and 169.50 mm [6.673 in] x 55.63 mm [2.190 in] overall width and height at the end plates. A plastic end panel version of this colour is available as 1455T1602.

Optional flange end panels (1455TF) allow surface mounting, and factory modification (milling, drilling, printing) plus STEP or IGES solid models are available. The 1455T1601 ships shrink wrapped at 1.24 lbs (0.56 kg) and is REACH and RoHS compliant.
