Class 2 TX 5VA 120V
- VA 5
- Pri. (Input) VAC 120
- Pri. (Output) Curr 0.5
- Sec. (Output) VAC 10
$11.45In stock
Buy now
Class 2 Energy Limiting Small Box Mount · BA-C-D-E Series
Brand: Hammond Manufacturing · 16 part numbers
- ■Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Rugged, low noise, cool running design, indoor use only.
- ■Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).

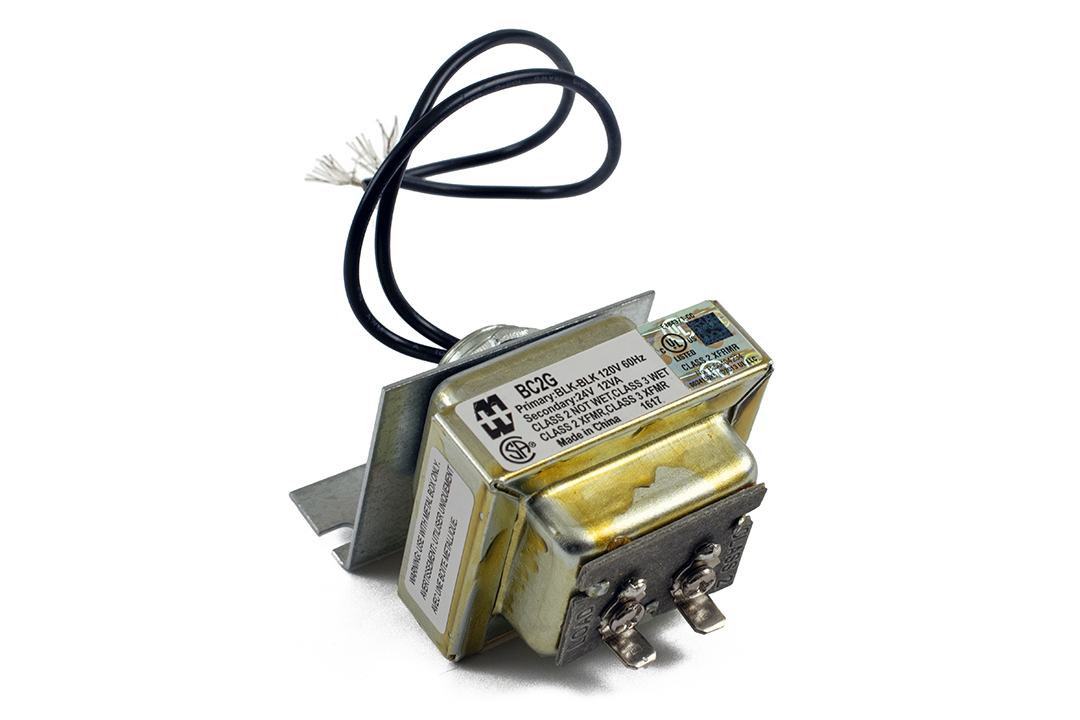

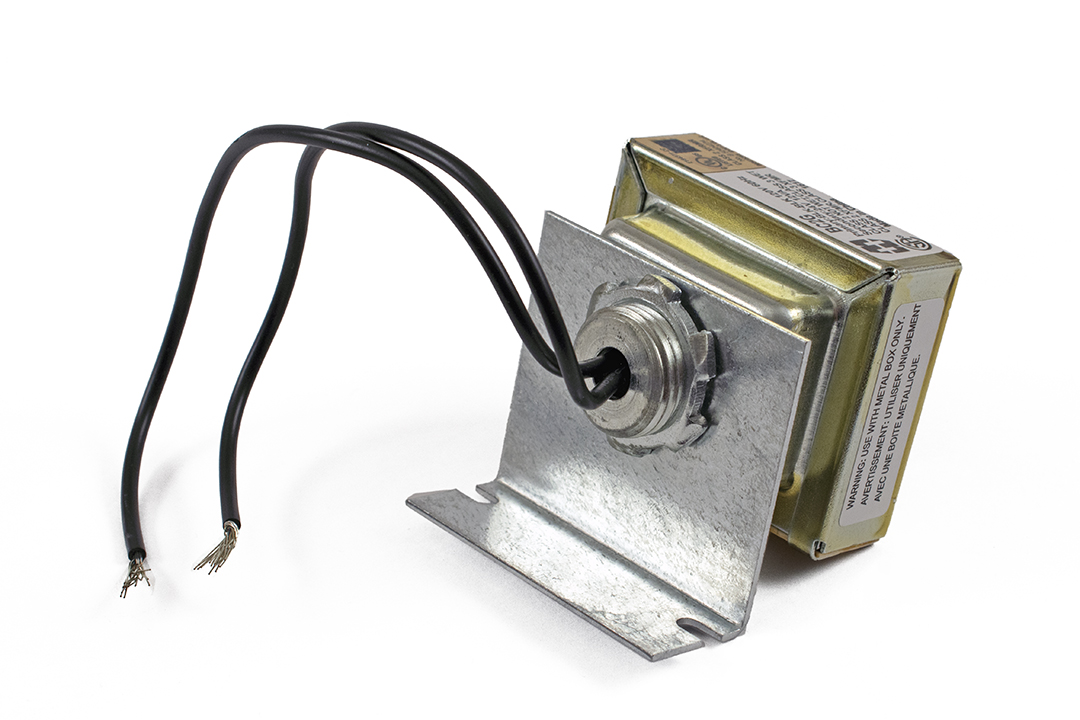

- ■Nipple locknut mount for box installation, complete with locknut and mounting bracket (as shown below).

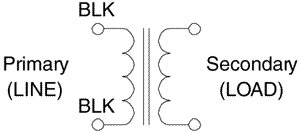

- ■Input leads are black, on 240V models 240V lead is red. All models are 60 Hz.- inherently limited - no fuses or circuit breakers.
- ■UL listed #E184371 - EXCEPT for part numbers BE2F & BE7G.
from $10.71
16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BA-C-D-E Series part number
Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
16 of 16 part numbers · 16 priced online
Class 2 TX 12VA 120V
- VA 12
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.2
- Sec. (Output) VAC 10
$11.45In stock
Buy nowClass 2 TX 12VA 120V
- VA 12
- Pri. (Input) VAC 120
- Pri. (Output) Curr 0.75
- Sec. (Output) VAC 16
$11.45In stock
Buy now
Class 2 TX 12VA 120V
- VA 12
- Pri. (Input) VAC 120
- Pri. (Output) Curr 0.5
- Sec. (Output) VAC 24
$11.45In stock
Buy nowClass 2 TX 20VA 120V
- VA 20
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 12
$11.80In stock
Buy nowClass 2 TX 20VA 120V
- VA 20
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.43
- Sec. (Output) VAC 14
$10.71In stock
Buy nowClass 2 TX 20VA 120V
- VA 20
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.25
- Sec. (Output) VAC 16
$11.80In stock
Buy nowClass 2 TX 20VA 120V
- VA 20
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.11
- Sec. (Output) VAC 18
$11.80In stock
Buy nowClass 2 TX 20VA 120V
- VA 20
- Pri. (Input) VAC 120
- Pri. (Output) Curr 0.833
- Sec. (Output) VAC 24
$11.80In stock
Buy nowClass 2 TX 20VA 240V
- VA 20
- Pri. (Input) VAC 240
- Pri. (Output) Curr 1.25
- Sec. (Output) VAC 16
$11.80In stock
Buy nowClass 2 TX 20VA 240V
- VA 20
- Pri. (Input) VAC 240
- Pri. (Output) Curr 0.83
- Sec. (Output) VAC 24
$11.80In stock
Buy nowClass 2 TX 40VA 120V
- VA 40
- Pri. (Input) VAC 120
- Pri. (Output) Curr 2.42
- Sec. (Output) VAC 16.5
$12.95In stock
Buy now
Class 2 TX 40VA 120V
- VA 40
- Pri. (Input) VAC 120
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 24
$12.95In stock
Buy nowClass 2 TX 40VA 208/240V
- VA 40
- Pri. (Input) VAC 208/240
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 24
$12.95In stock
Buy nowClass 2 TX 40VA 240V
- VA 40
- Pri. (Input) VAC 240
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 24
$23.24In stock
Buy nowClass 2 TX 40VA 347V
- VA 40
- Pri. (Input) VAC 347
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 24
$12.95In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | A.C. Input · (Primary) · V (RMS) | A.C. Output · Secondary (RMS) · V | A.C. Output · Secondary (RMS) · A | Power · Rating · VA | Note | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| BA2DA | 120 | 10 | 0.5 | 5 | * | 2.33 | 2.22 | 1.98 | $11.45In stock | Buy now |
| BC2DA | 120 | 10 | 1.2 | 12 | * | 2.33 | 2.22 | 1.98 | $11.45In stock | Buy now |
| BC2F | 120 | 16 | 0.75 | 12 | * | 2.33 | 2.22 | 1.98 | $11.45In stock | Buy now |
| BC2G | 120 | 24 | 0.5 | 12 | * | 2.33 | 2.22 | 1.98 | $11.45In stock | Buy now |
| BD2E | 120 | 12 | 1.67 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BD2EE | 120 | 14 | 1.43 | 20 | * | 2.33 | 2.34 | 1.98 | $10.71In stock | Buy now |
| BD2F | 120 | 16 | 1.25 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BD2FF | 120 | 18 | 1.11 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BD2G | 120 | 24 | 0.833 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BE2F | 120 | 16.5 | 2.42 | 40 | * | 2.33 | 2.60 | 1.98 | $12.95In stock | Buy now |

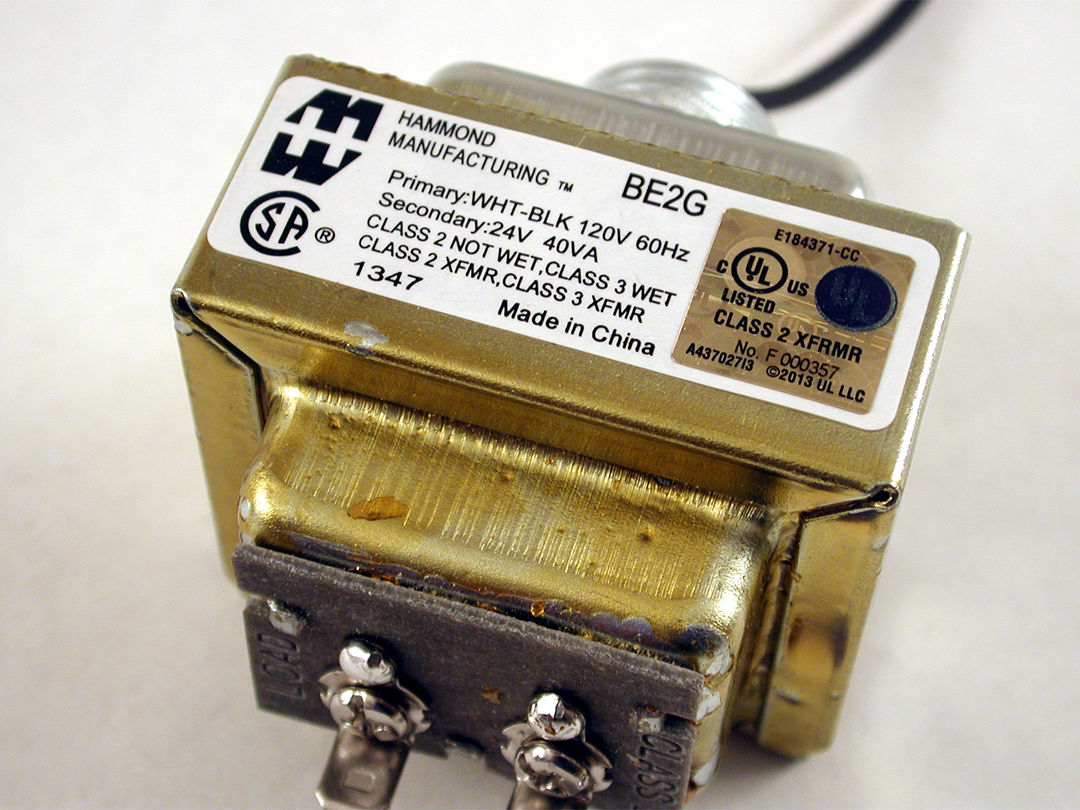

| BE2G | 120 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 | $12.95In stock | Buy now |
| BD5F | 240 | 16 | 1.25 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BD5G | 240 | 24 | 0.83 | 20 | * | 2.33 | 2.34 | 1.98 | $11.80In stock | Buy now |
| BE5G | 240 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 | $23.24In stock | Buy now |
| BE5DG | 208/240 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 | $12.95In stock | Buy now |
| BE7G | 347 | 24 | 1.67 | 40 | - | 2.33 | 2.60 | 1.98 | $12.95In stock | Buy now |
Features
- ■Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Rugged, low noise, cool running design, indoor use only.
- ■Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).
- ■Nipple locknut mount for box installation, complete with locknut and mounting bracket (as shown below).
- ■Input leads are black, on 240V models 240V lead is red. All models are 60 Hz.- inherently limited - no fuses or circuit breakers.
- ■UL listed #E184371 - EXCEPT for part numbers BE2F & BE7G.
- ■CSA certified (209651)
Documents
Additional information
Part Details
| Part No. | A.C. Input · (Primary) · V (RMS) | A.C. Output · Secondary (RMS) · V | A.C. Output · Secondary (RMS) · A | Power · Rating · VA | Note | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C |
|---|---|---|---|---|---|---|---|---|
| BA2DA | 120 | 10 | 0.5 | 5 | * | 2.33 | 2.22 | 1.98 |
| BC2DA | 120 | 10 | 1.2 | 12 | * | 2.33 | 2.22 | 1.98 |
| BC2F | 120 | 16 | 0.75 | 12 | * | 2.33 | 2.22 | 1.98 |
| BC2G | 120 | 24 | 0.5 | 12 | * | 2.33 | 2.22 | 1.98 |
| BD2E | 120 | 12 | 1.67 | 20 | * | 2.33 | 2.34 | 1.98 |
| BD2EE | 120 | 14 | 1.43 | 20 | * | 2.33 | 2.34 | 1.98 |
| BD2F | 120 | 16 | 1.25 | 20 | * | 2.33 | 2.34 | 1.98 |
| BD2FF | 120 | 18 | 1.11 | 20 | * | 2.33 | 2.34 | 1.98 |
| BD2G | 120 | 24 | 0.833 | 20 | * | 2.33 | 2.34 | 1.98 |
| BE2F | 120 | 16.5 | 2.42 | 40 | * | 2.33 | 2.60 | 1.98 |
| BE2G | 120 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 |
| BD5F | 240 | 16 | 1.25 | 20 | * | 2.33 | 2.34 | 1.98 |
| BD5G | 240 | 24 | 0.83 | 20 | * | 2.33 | 2.34 | 1.98 |
| BE5G | 240 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 |
| BE5DG | 208/240 | 24 | 1.67 | 40 | * | 2.33 | 2.60 | 1.98 |
| BE7G | 347 | 24 | 1.67 | 40 | - | 2.33 | 2.60 | 1.98 |
