Class 2 TX 75VA 120V
- Pri. (Input) VAC 120
- Pri. (Output) Curr 4.68
- Sec. (Output) VAC 16
$49.13In stock
Buy now
Class 2 Energy Limiting Box Mount · BF Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Rugged, low noise design, indoor use only.
- ■Stripped wire input (primary) leads, screw terminal output (secondary).
- ■Mounted on box plate for easy installation.
- ■Input leads are black 6” minimum, on 240V models 240V lead is red.
- ■All models are designed for 50/60 Hz. operation - limited by built in circuit breaker.
from $44.63
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BF Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Class 2 TX 75VA 120V
- Pri. (Input) VAC 120
- Pri. (Output) Curr 3.13
- Sec. (Output) VAC 24
$49.13In stock
Buy nowClass 2 TX 75VA 240V
- Pri. (Input) VAC 240
- Pri. (Output) Curr 4.68
- Sec. (Output) VAC 16
$44.63In stock
Buy nowClass 2 TX 75VA 240V
- Pri. (Input) VAC 240
- Pri. (Output) Curr 3.13
- Sec. (Output) VAC 24
$44.63In stock

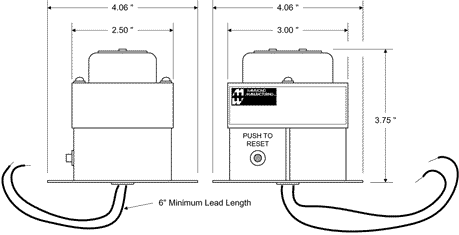

Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | A.C. Input · (Primary) · V (RMS) | A.C. Output · Secondary (RMS) · V | A.C. Output · Secondary (RMS) · A | Power · Rating · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| BF2F | 120 | 16 | 4.68 | 75 | 3.00 | 2.50 | 3.75 | $49.13In stock | Buy now |
| BF5F | 240 | 16 | 4.68 | 75 | 3.00 | 2.50 | 3.75 | $44.63In stock | Buy now |
| BF2G | 120 | 24 | 3.13 | 75 | 3.00 | 2.50 | 3.75 | $49.13In stock | Buy now |
| BF5G | 240 | 24 | 3.13 | 75 | 3.00 | 2.50 | 3.75 | $44.63In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Rugged, low noise design, indoor use only.
- ■Stripped wire input (primary) leads, screw terminal output (secondary).
- ■Mounted on box plate for easy installation.
- ■Input leads are black 6” minimum, on 240V models 240V lead is red.

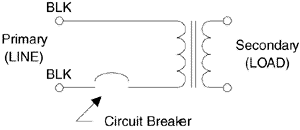

- ■All models are designed for 50/60 Hz. operation - limited by built in circuit breaker.
- ■c UL us listed #E184371 - Class 2 Not inherently limited
- ■CSA certified (209651)
Documents
Additional information
Part Details
| Part No. | A.C. Input · (Primary) · V (RMS) | A.C. Output · Secondary (RMS) · V | A.C. Output · Secondary (RMS) · A | Power · Rating · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C |
|---|---|---|---|---|---|---|---|
| BF2F | 120 | 16 | 4.68 | 75 | 3.00 | 2.50 | 3.75 |
| BF5F | 240 | 16 | 4.68 | 75 | 3.00 | 2.50 | 3.75 |
| BF2G | 120 | 24 | 3.13 | 75 | 3.00 | 2.50 | 3.75 |
| BF5G | 240 | 24 | 3.13 | 75 | 3.00 | 2.50 | 3.75 |
