Class 2 TX Plug-In 20VA 120V
- VA 20
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 12
$12.29In stock
Buy now

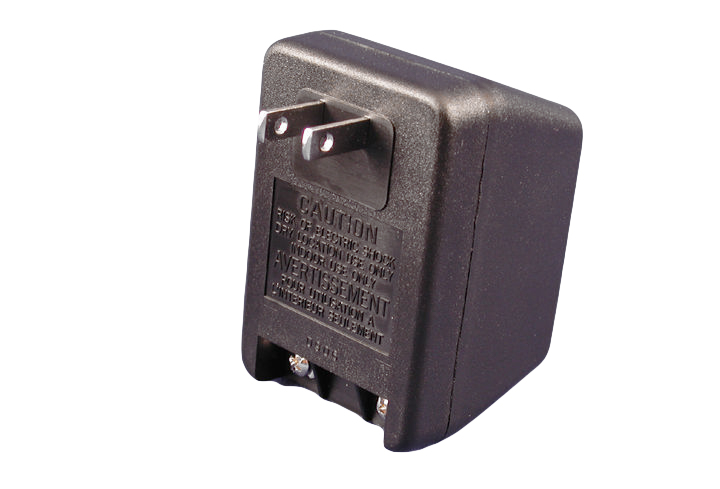

Class 2 Energy Limiting Plug-in · BP Series
Brand: Hammond Manufacturing · 10 part numbers
- ■Used in AC powered chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Enclosed in an attractive plug-in black plastic case.
- ■For indoor use only.
- ■Input 120VAC - 20 VA units are inherently limited - no fuses or circuit breakers, 40 VA units use an internal slow blow fuse.
- ■Secondary - 2 recessed slot head screw terminals (on plug side).
- ■All models - 60 Hz.
from $12.29
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BP Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
Class 2 TX Plug-In 20VA 120V
- VA 20
- Pri. (Output) Curr 1.43
- Sec. (Output) VAC 14
$12.29In stock
Buy nowClass 2 TX Plug-In 20VA 120V
- VA 20
- Pri. (Output) Curr 1.25
- Sec. (Output) VAC 16
$12.29In stock
Buy nowClass 2 TX Plug-In 20VA 120V
- VA 20
- Pri. (Output) Curr 1.11
- Sec. (Output) VAC 18
$12.29In stock
Buy nowClass 2 TX Plug-In 20VA 120V
- VA 20
- Pri. (Output) Curr 0.83
- Sec. (Output) VAC 24
$12.29Backorder
Buy nowClass 2 TX Plug-In 40VA 120V
- VA 40
- Pri. (Output) Curr 3.33
- Sec. (Output) VAC 12
$17.85In stock
Buy nowClass 2 TX Plug-In 40VA 120V
- VA 40
- Pri. (Output) Curr 2.86
- Sec. (Output) VAC 14
$17.85In stock
Buy nowClass 2 TX Plug-In 40VA 120V
- VA 40
- Pri. (Output) Curr 2.5
- Sec. (Output) VAC 16
$17.85In stock
Buy nowClass 2 TX Plug-In 40VA 120V
- VA 40
- Pri. (Output) Curr 2.22
- Sec. (Output) VAC 18
$17.85In stock
Buy nowClass 2 TX Plug-In 40VA 120V
- VA 40
- Pri. (Output) Curr 1.67
- Sec. (Output) VAC 24
$17.85Backorder
Buy nowDimension tables (inches / mm)
| Cat. No. (Part No.) | A.C. Input · (Primary) · V (RMS) | A.C. Output Secondary (RMS) · V | A.C. Output Secondary (RMS) · A | Power Rating · VA | Price | Order |
|---|---|---|---|---|---|---|
| BPD2E | 120 | 12 | 1.67 | 20 | $12.29In stock | Buy now |
| BPD2EE | 120 | 14 | 1.43 | 20 | $12.29In stock | Buy now |
| BPD2F | 120 | 16 | 1.25 | 20 | $12.29In stock | Buy now |
| BPD2FF | 120 | 18 | 1.11 | 20 | $12.29In stock | Buy now |

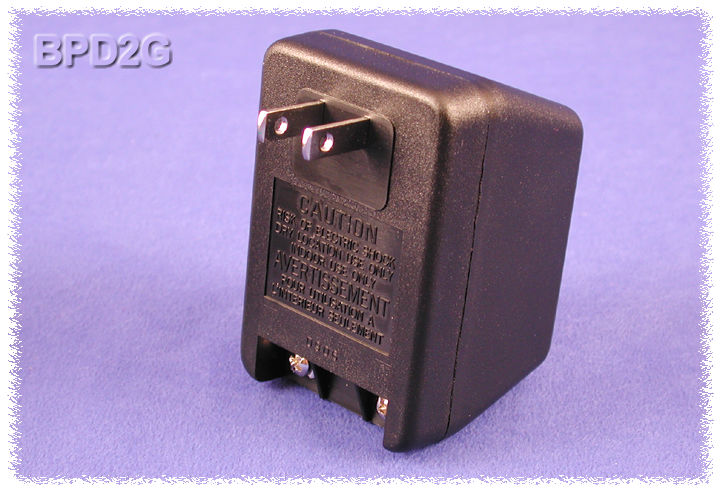

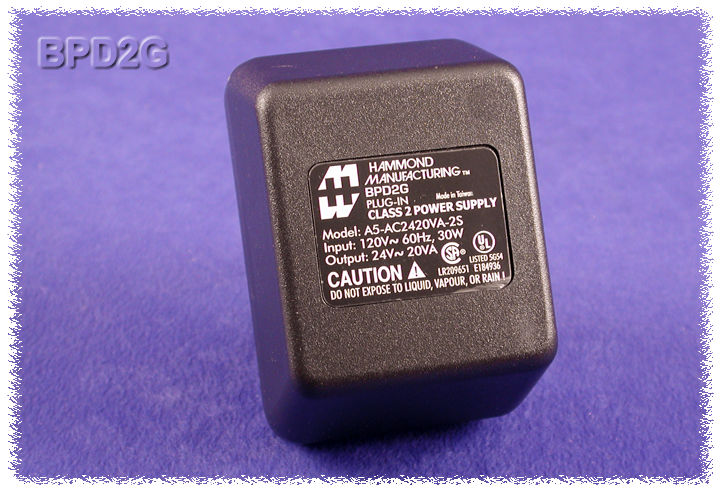

| BPD2G | 120 | 24 | 0.83 | 20 | $12.29Backorder | Buy now |
| BPE2E | 120 | 12 | 3.33 | 40 | $17.85In stock | Buy now |
| BPE2EE | 120 | 14 | 2.86 | 40 | $17.85In stock | Buy now |

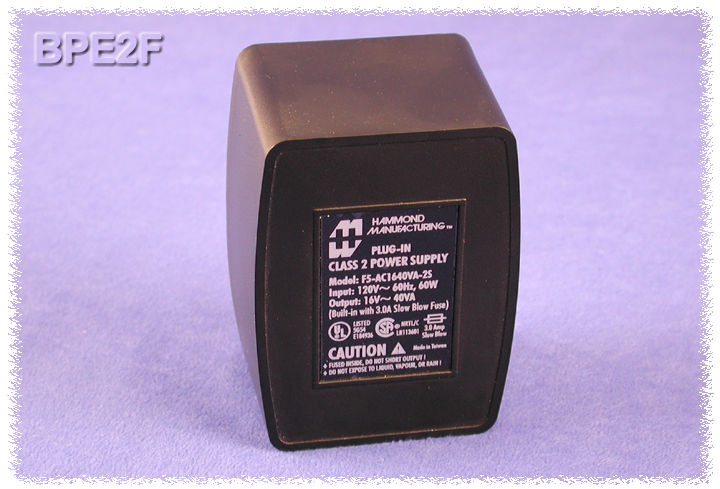

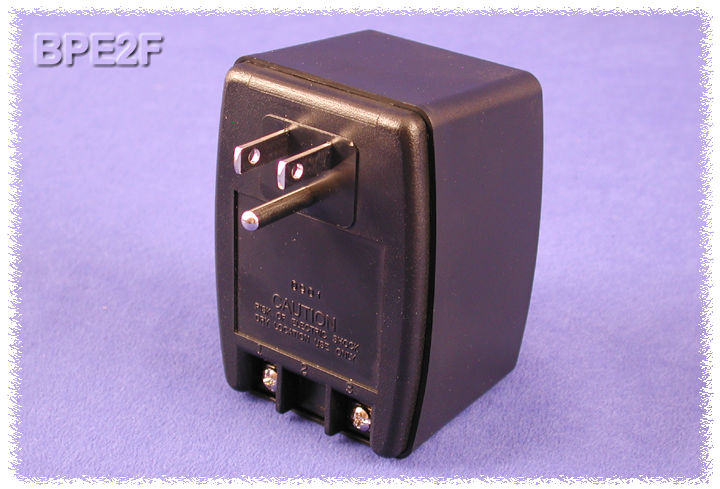

| BPE2F | 120 | 16 | 2.5 | 40 | $17.85In stock | Buy now |
| BPE2FF | 120 | 18 | 2.22 | 40 | $17.85In stock | Buy now |
| BPE2G | 120 | 24 | 1.67 | 40 | $17.85Backorder | Buy now |
Features
- ■Used in AC powered chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
- ■Enclosed in an attractive plug-in black plastic case.
- ■For indoor use only.
- ■Input 120VAC - 20 VA units are inherently limited - no fuses or circuit breakers, 40 VA units use an internal slow blow fuse.
- ■Secondary - 2 recessed slot head screw terminals (on plug side).
- ■All models - 60 Hz.
- ■CSA certified (#LR 113601) and UL listed (#E 184936)
Documents
Additional information
Part Details
| Cat. No. | A.C. Input · (Primary) · V (RMS) | A.C. Output Secondary (RMS) · V | A.C. Output Secondary (RMS) · A | Power Rating · VA |
|---|---|---|---|---|
| BPD2E | 120 | 12 | 1.67 | 20 |
| BPD2EE | 120 | 14 | 1.43 | 20 |
| BPD2F | 120 | 16 | 1.25 | 20 |
| BPD2FF | 120 | 18 | 1.11 | 20 |
| BPD2G | 120 | 24 | 0.83 | 20 |
| BPE2E | 120 | 12 | 3.33 | 40 |
| BPE2EE | 120 | 14 | 2.86 | 40 |
| BPE2F | 120 | 16 | 2.5 | 40 |
| BPE2FF | 120 | 18 | 2.22 | 40 |
| BPE2G | 120 | 24 | 1.67 | 40 |
