Inst. Case 4WX4DPX3H
- Color Black
$34.98In stock
Buy now

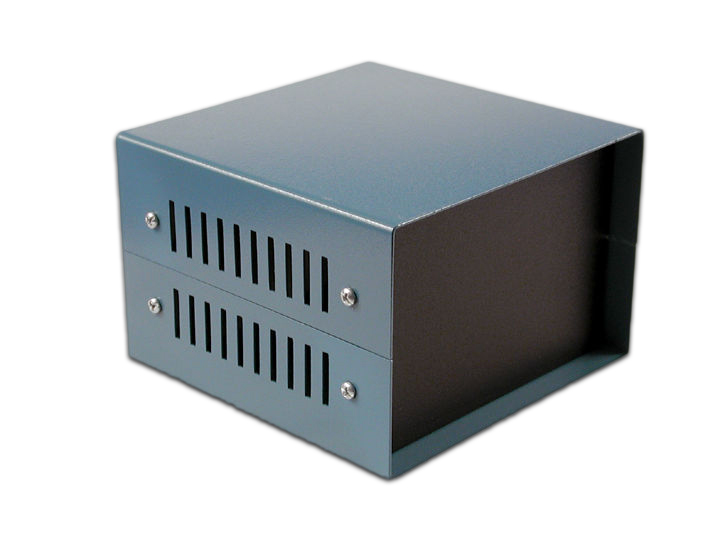

Steel Instrument · 1458 Series
Brand: Hammond Manufacturing · 52 part numbers
- ■Heavy duty, 18 gauge steel - top & bottom case in satin black or gulf blue powder coat.
- ■Available with either solid or vented tops and bottoms.
- ■Easy to machine 0.064” thick aluminum front and rear panels (one satin black and one contempra grey for each enclosure).
- ■Symmetrical design so either end panel can be used as a front or rear panel.
- ■6-32 Philips nickel plated screws and self-adhesive rubber feet included.
- ■Replacement screws 1421J8 (Pkg. of 6, 6-32 Philips head screws).
from $34.98
52 of 52 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1458 Series part number
Filter 52 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
52 of 52 part numbers · 52 priced online
Inst. Case 4WX4DPX3H
- Color Blue
$34.98In stock
Buy nowInst. Case 6WX4DPX4H
- Color Black
$38.79In stock
Buy nowInst. Case 6WX4DPX4H
- Color Blue
$38.79In stock
Buy nowInst. Case 6WX6DPX3H
- Color Black
$34.98In stock
Buy nowInst. Case 6WX6DPX3H
- Color Blue
$34.98In stock
Buy nowInst. Case 6WX6DPX4H
- Color Black
$36.16In stock
Buy nowInst. Case 6WX6DPX4H
- Color Blue
$36.16In stock
Buy nowInstrument Case 8X8X3
- Color Black
$42.30In stock
Buy nowInstrument Case 8X8X3
- Color Blue
$42.30In stock
Buy nowInstrument Case 8X8X4
- Color Black
$44.61In stock
Buy nowInstrument Case 8X8X4
- Color Blue
$44.61In stock
Buy nowInstrument Case 8X8X5
- Color Black
$48.10In stock
Buy nowInstrument Case 8X8X5
- Color Blue
$48.10In stock
Buy nowInstrument Case 8X10X3
- Color Black
$45.77In stock
Buy nowInstrument Case 8X10X3
- Color Blue
$45.77In stock
Buy nowInstrument Case 8X10X4
- Color Black
$48.39Backorder
Buy nowInstrument Case 8X10X4
- Color Blue
$48.39In stock
Buy nowInstrument Case 8X10X5
- Color Black
$51.03In stock
Buy nowInstrument Case 8X10X5
- Color Blue
$51.03Backorder
Buy nowInstrument Case 10X8X3
- Color Black
$48.39In stock
Buy nowInstrument Case 10X8X3
- Color Blue
$48.39In stock
Buy nowInstrument Case 10X8X4
- Color Black
$52.48In stock
Buy nowInstrument Case 10X8X4
- Color Blue
$52.48In stock
Buy nowInstrument Case 10X8X5
- Color Black
$49.54In stock
Buy nowInstrument Case 10X8X5
- Color Blue
$49.54In stock
Buy nowMetal Inst Case 4X4X3
- Color Black
$37.42In stock
Buy nowMetal Inst Case 4X4X3
- Color Blue
$37.42In stock
Buy nowMetal Inst Case 6X4X4
- Color Black
$41.49In stock
Buy nowMetal Inst Case 6X4X4
- Color Blue
$41.49In stock
Buy nowMetal Inst Case 6X6X3
- Color Black
$37.42In stock
Buy nowMetal Inst Case 6X6X3
- Color Blue
$37.42Backorder
Buy nowMetal Inst Case 6X6X4
- Color Black
$38.68In stock
Buy nowMetal Inst Case 6X6X4
- Color Blue
$38.68In stock
Buy nowMetal Inst Case 8X8X3
- Color Black
$45.23In stock
Buy nowMetal Inst Case 8X8X3
- Color Blue
$45.23In stock
Buy nowMetal Inst Case 8X8X4
- Color Black
$47.74In stock
Buy nowMetal Inst Case 8X8X4
- Color Blue
$47.74In stock
Buy nowMetal Inst Case 8X8X5
- Color Black
$51.49In stock
Buy nowMetal Inst Case 8X8X5
- Color Blue
$51.49In stock
Buy nowMetal Inst Case 8X10X3
- Color Black
$48.98In stock
Buy nowMetal Inst Case 8X10X3
- Color Blue
$48.98In stock
Buy nowMetal Inst Case 8X10X4
- Color Black
$51.79In stock
Buy nowMetal Inst Case 8X10X4
- Color Blue
$51.79In stock
Buy nowMetal Inst Case 8X10X5
- Color Black
$54.59In stock
Buy nowMetal Inst Case 8X10X5
- Color Blue
$54.59In stock
Buy nowMetal Inst Case 10X8X3
- Color Black
$51.79In stock
Buy nowMetal Inst Case 10X8X3
- Color Blue
$51.79Backorder
Buy nowDimension tables (inches / mm)
Enclosures
Units shown: inch . Switch units to: mm
| Solid Top & Bottom · Satin Black (Part No.) | Solid Top & Bottom · Satin Blue (Part No.) | Vented Top & Bottom · Satin Black (Part No.) | Vented Top & Bottom · Satin Blue (Part No.) | Width | Depth | Height | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 1458A3 | 1458A3B | 1458VA3 | 1458VA3B | 4.00 | 4.00 | 3.00 | $34.98In stock1458A3 | Buy now |
| 1458B4 | 1458B4B | 1458VB4 | 1458VB4B | 6.00 | 4.00 | 4.00 | $38.79In stock1458B4 | Buy now |
| 1458C3 | 1458C3B | 1458VC3 | 1458VC3B | 6.00 | 6.00 | 3.00 | $34.98In stock1458C3 | Buy now |
| 1458C4 | 1458C4B | 1458VC4 | 1458VC4B | 6.00 | 6.00 | 4.00 | $36.16In stock1458C4 | Buy now |
| 1458D3 | 1458D3B | 1458VD3 | 1458VD3B | 8.00 | 8.00 | 3.00 | $42.30In stock1458D3 | Buy now |
| 1458D4 | 1458D4B | 1458VD4 | 1458VD4B | 8.00 | 8.00 | 4.00 | $44.61In stock1458D4 | Buy now |
| 1458D5 | 1458D5B | 1458VD5 | 1458VD5B | 8.00 | 8.00 | 5.00 | $48.10In stock1458D5 | Buy now |
| 1458E3 | 1458E3B | 1458VE3 | 1458VE3B | 8.00 | 10.00 | 3.00 | $45.77In stock1458E3 | Buy now |
| 1458E4 | 1458E4B | 1458VE4 | 1458VE4B | 8.00 | 10.00 | 4.00 | $48.39Backorder1458E4 | Buy now |
| 1458E5 | 1458E5B | 1458VE5 | 1458VE5B | 8.00 | 10.00 | 5.00 | $51.03In stock1458E5 | Buy now |
| 1458G3 | 1458G3B | 1458VG3 | 1458VG3B | 10.00 | 8.00 | 3.00 | $48.39In stock1458G3 | Buy now |
| 1458G4 | 1458G4B | 1458VG4 | 1458VG4B | 10.00 | 8.00 | 4.00 | $52.48In stock1458G4 | Buy now |
| 1458G5 | 1458G5B | 1458VG5 | 1458VG5B | 10.00 | 8.00 | 5.00 | $49.54In stock1458G5 | Buy now |
Key Features:
- ■Heavy duty, 18 gauge steel - top & bottom case in satin black or gulf blue powder coat.
- ■Available with either solid or vented tops and bottoms.
- ■Easy to machine 0.064” thick aluminum front and rear panels (one satin black and one contempra grey for each enclosure).
- ■Symmetrical design so either end panel can be used as a front or rear panel.
- ■6-32 Philips nickel plated screws and self-adhesive rubber feet included.
- ■Replacement screws 1421J8 (Pkg. of 6, 6-32 Philips head screws).
