Aluminum Diecast Enclosure
$53.55In stock
Buy now
Water-Tight, Modern Thick Wall Diecast Aluminum · R196 Series
Brand: Hammond Manufacturing · 8 part numbers
aluPLUS
- ■Material is diecast aluminum GD SI 12 / DIN 1725

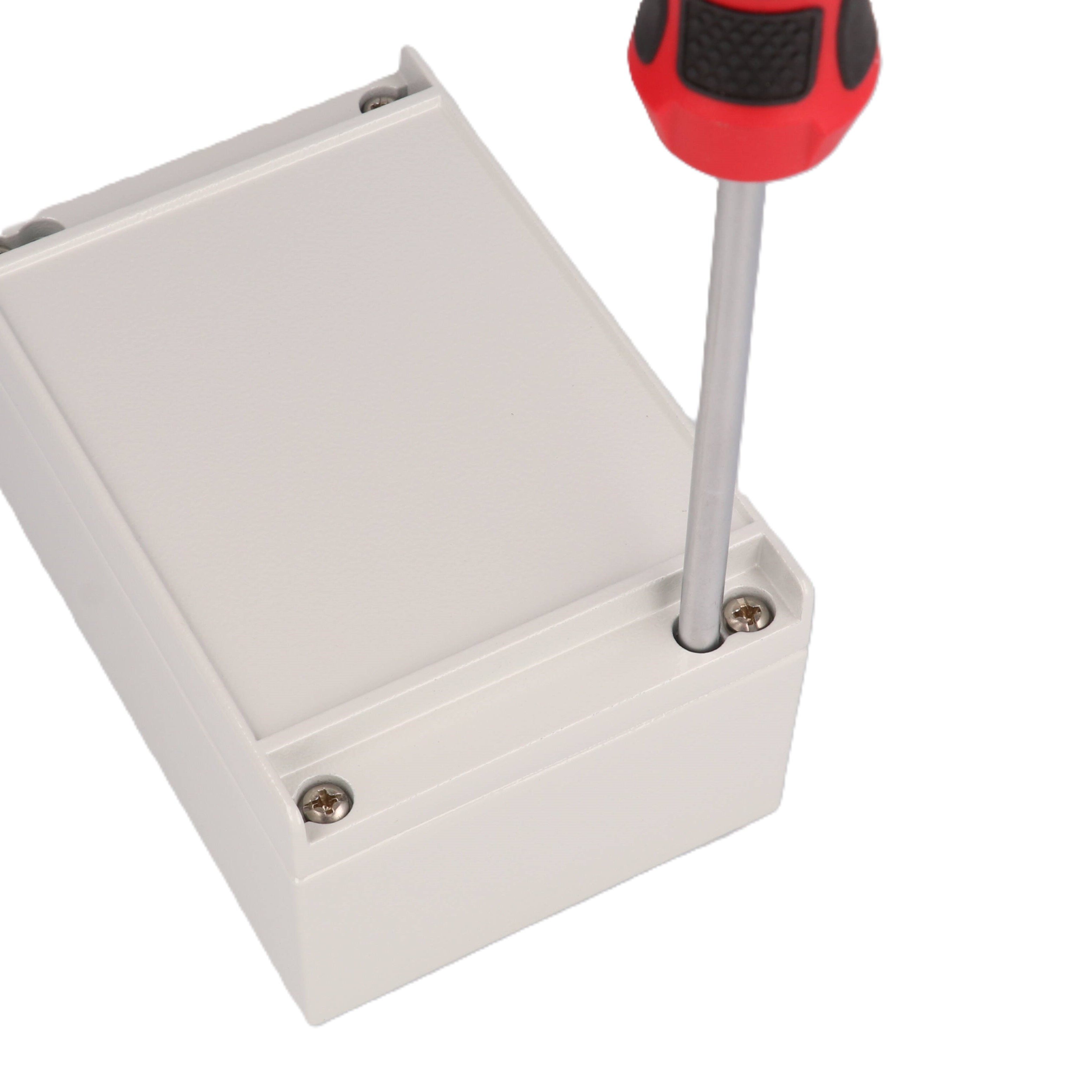

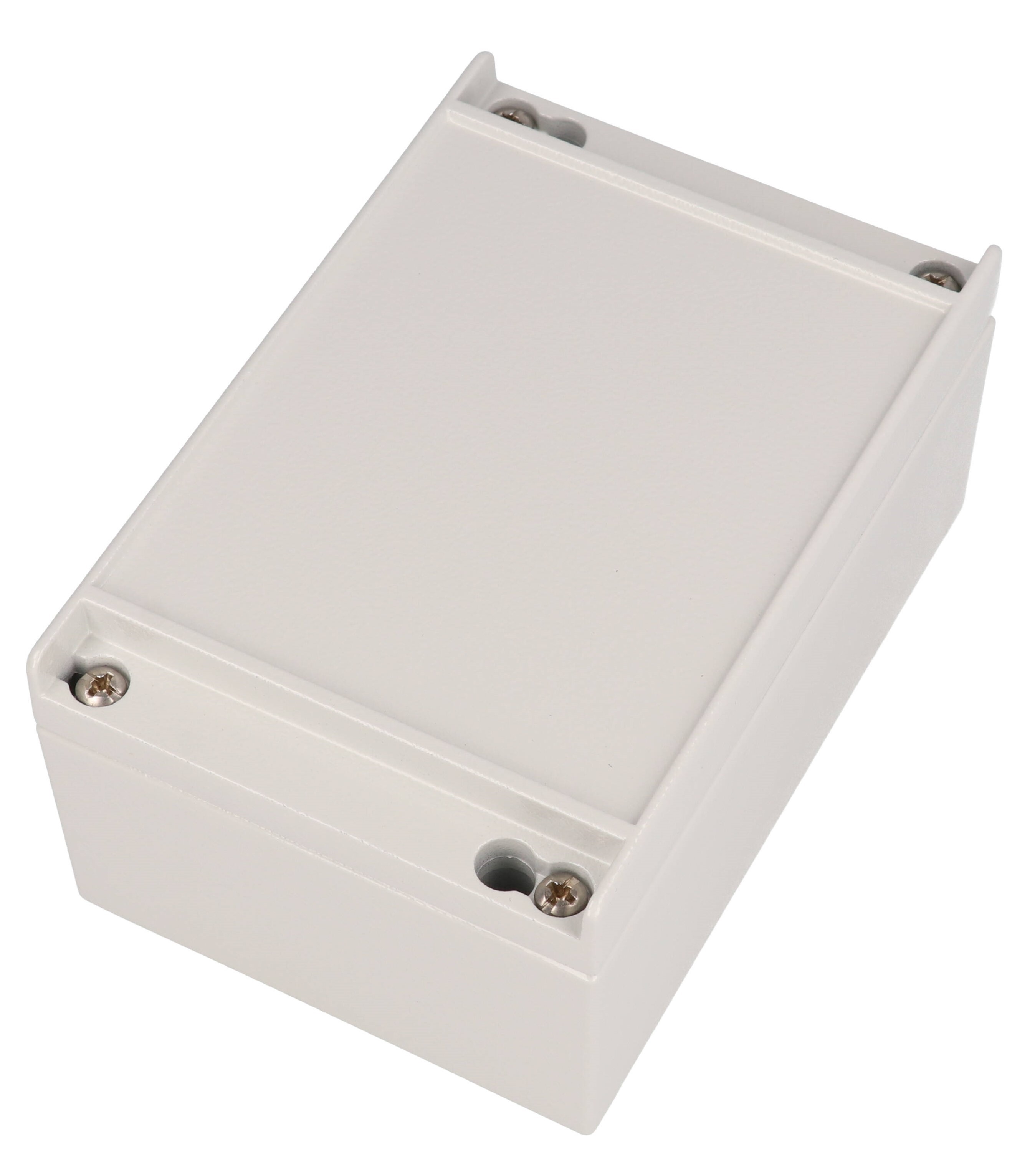

- ■Captive stainless steel lid screws included.

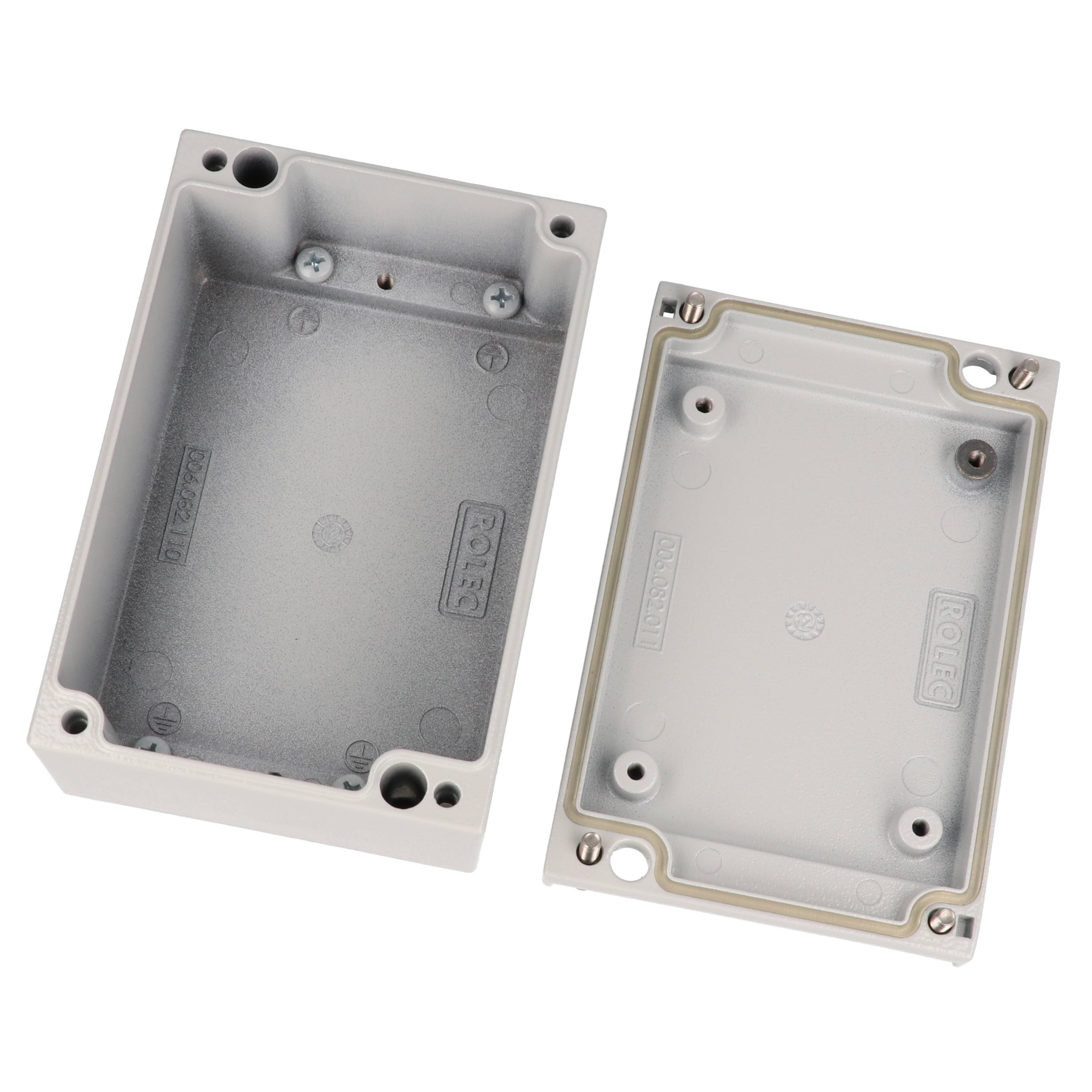

- ■Enclosure can be mounted to a wall or shelf after closing the lid by using internal mounting channels.

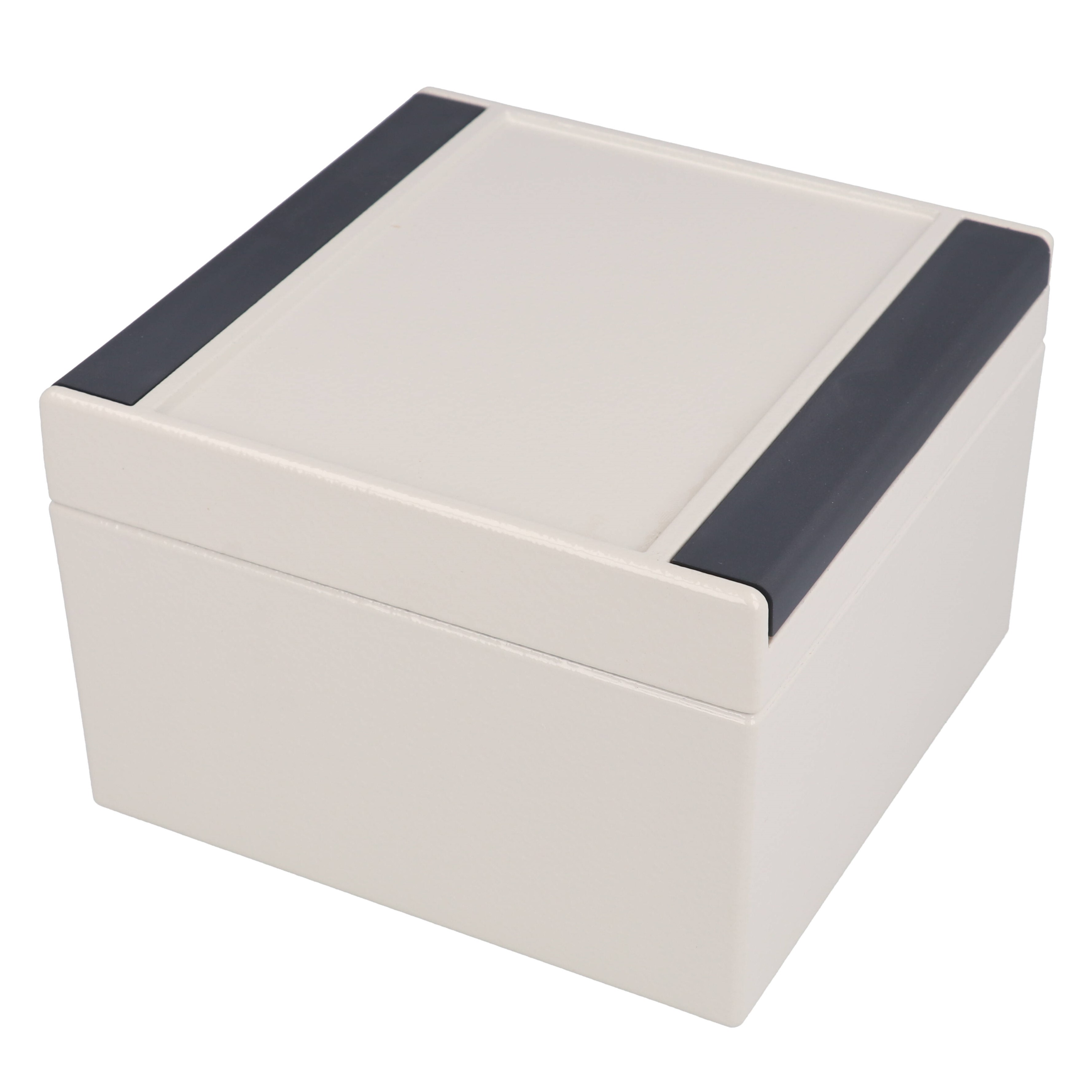

- ■Integrated 1.7mm recess in lid for membrane keypads and front panels.

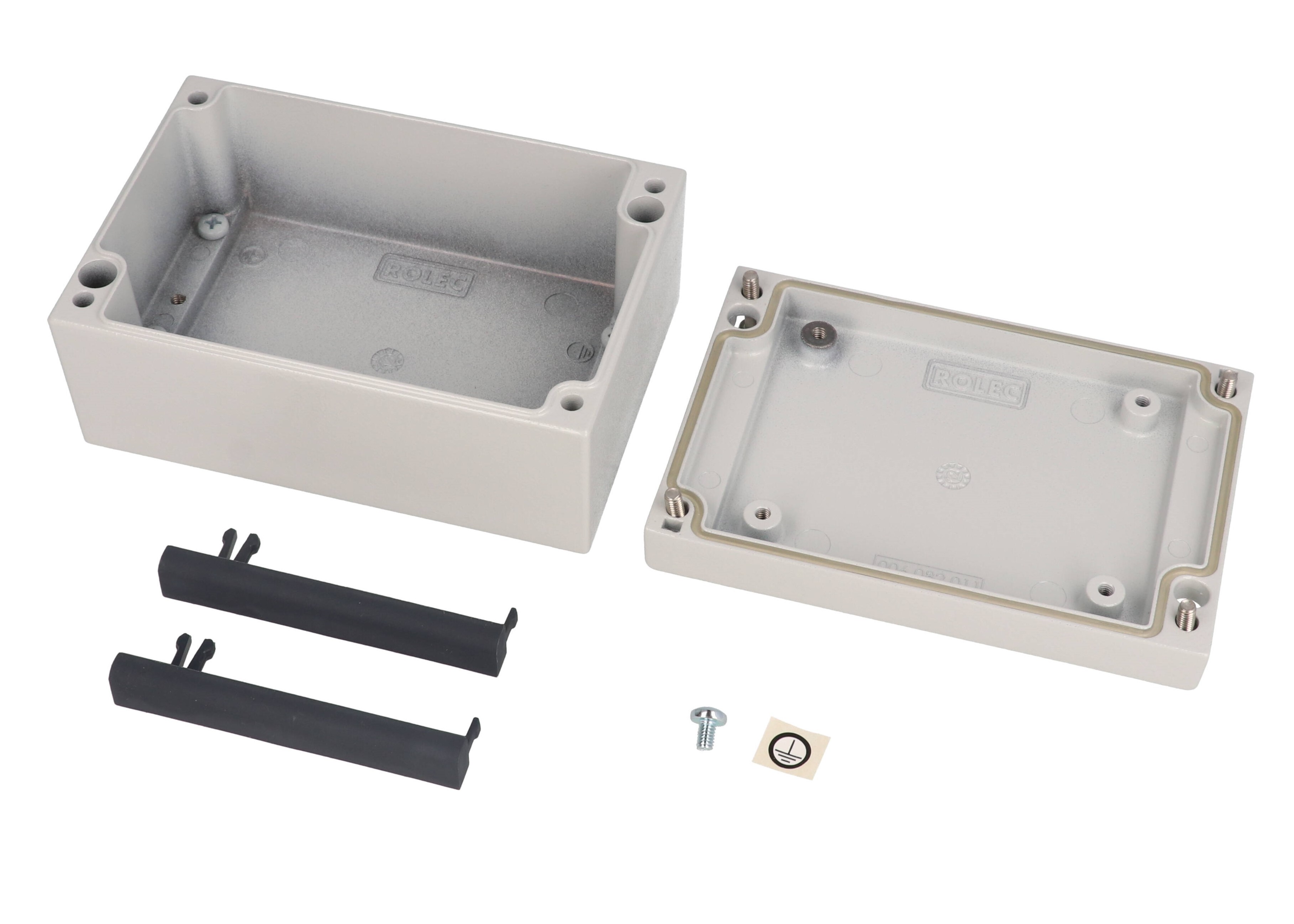

- ■Comes with installed silicone gasket with recommended operating temperature of -50ºC up to +140ºC (-58ºF to 284ºF).

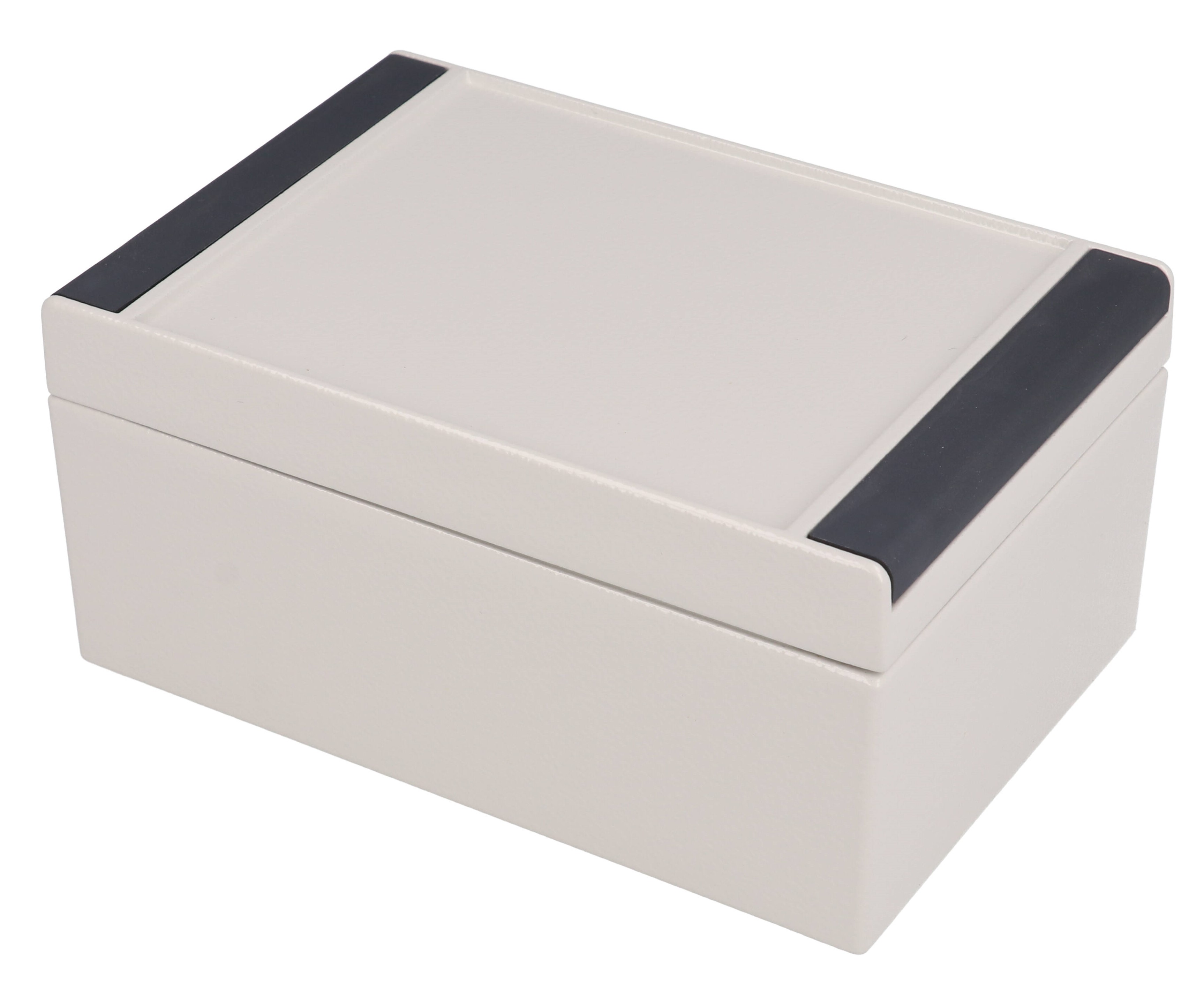

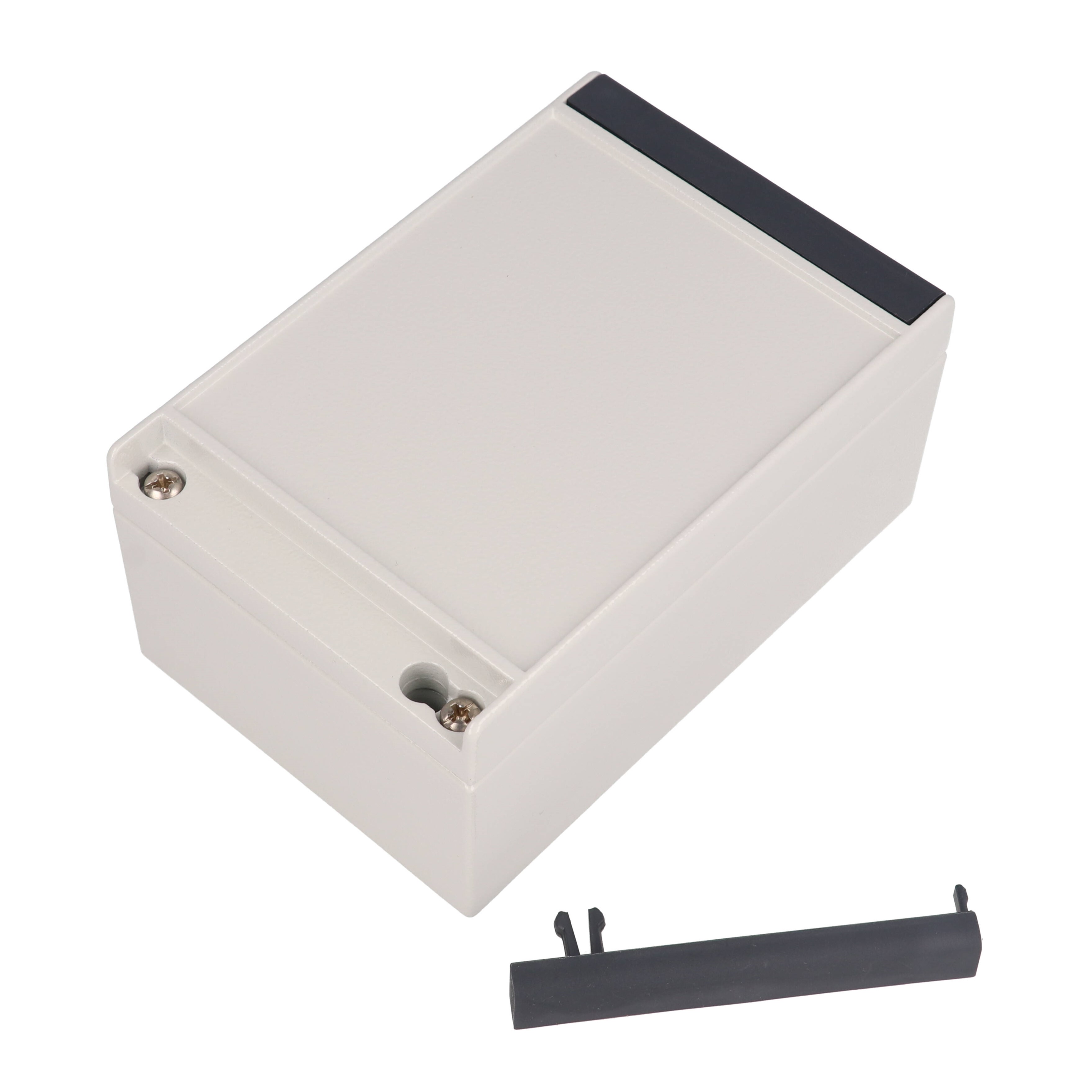

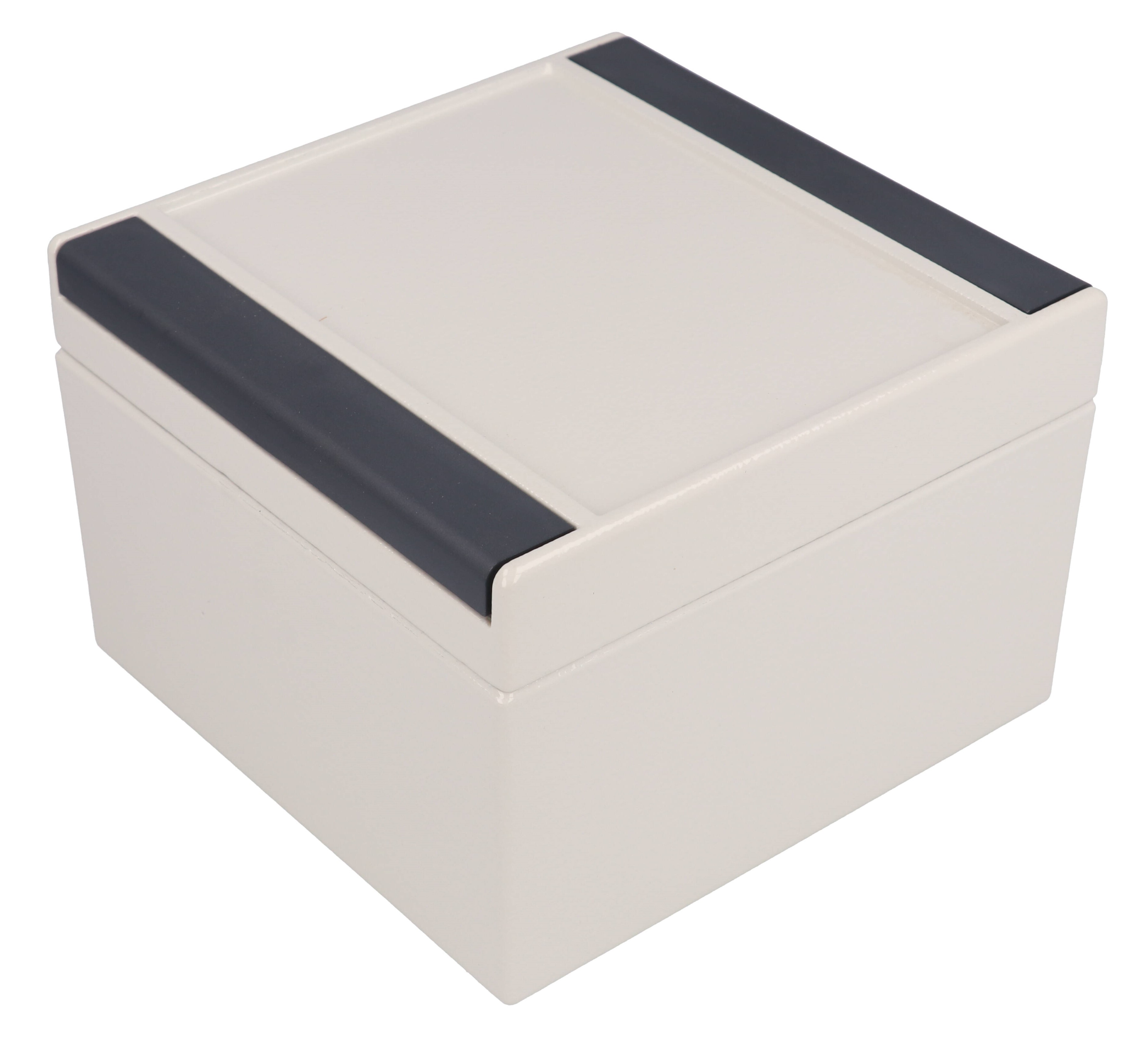

- ■Comes with dark grey (RAL 9017) POM plastic clip-on covers to hide appearance of screws.
from $53.55
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R196 Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Aluminum Diecast Enclosure
$63.07In stock
Buy nowAluminum Diecast Enclosure
$68.09In stock
Buy nowAluminum Diecast Enclosure
$81.96In stock
Buy now
Aluminum Diecast Enclosure
$107.77In stock
Buy now
Aluminum Diecast Enclosure
$131.03Backorder
Buy now
Aluminum Diecast Enclosure
$144.82In stock
Buy now
Aluminum Diecast Enclosure
$178.71Backorder
Buy nowDimension tables (inches / mm)
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R196-100-000 | 100 | 100 | 82 | $68.09In stock | Buy now |

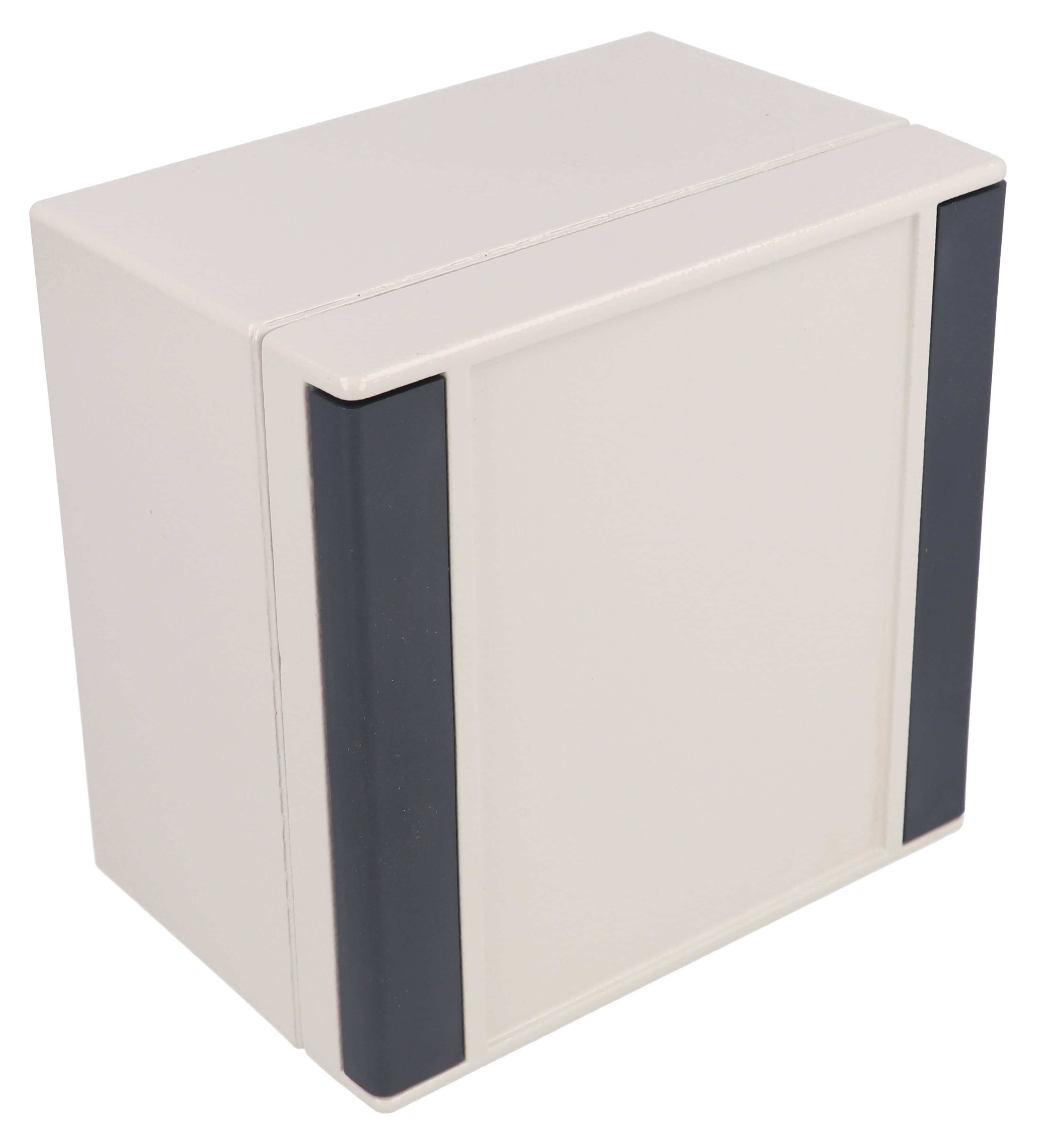

| R196-120-000 | 122 | 120 | 82 | $107.77In stock | Buy now |
| R196-082-000 | 125 | 84 | 59 | $53.55In stock | Buy now |
| R196-102-000 | 160 | 100 | 82 | $81.96In stock | Buy now |

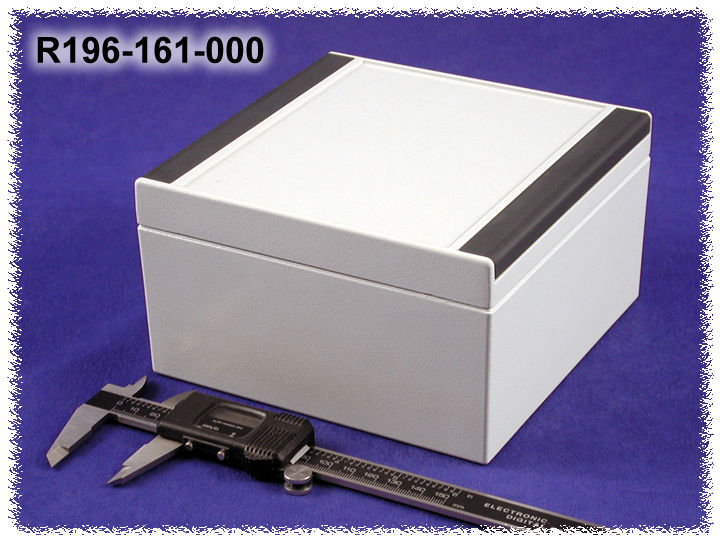

| R196-161-000 | 160 | 160 | 90 | $144.82In stock | Buy now |
| R196-083-000 | 175 | 84 | 59 | $63.07In stock | Buy now |

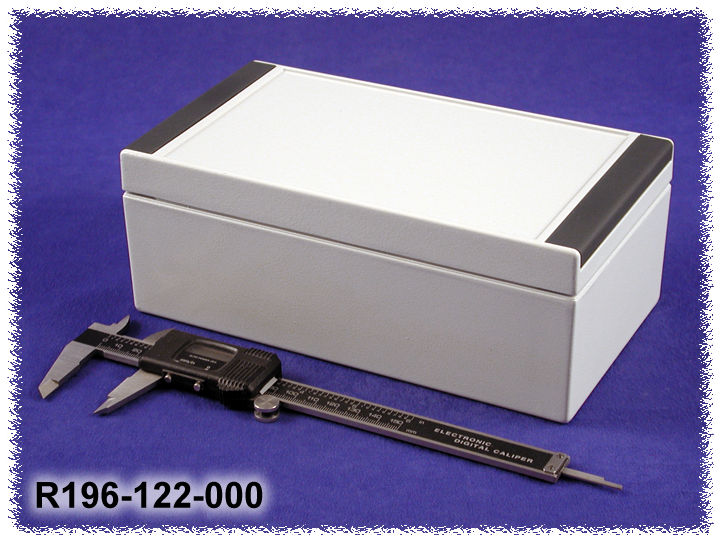

| R196-122-000 | 220 | 120 | 82 | $131.03Backorder | Buy now |

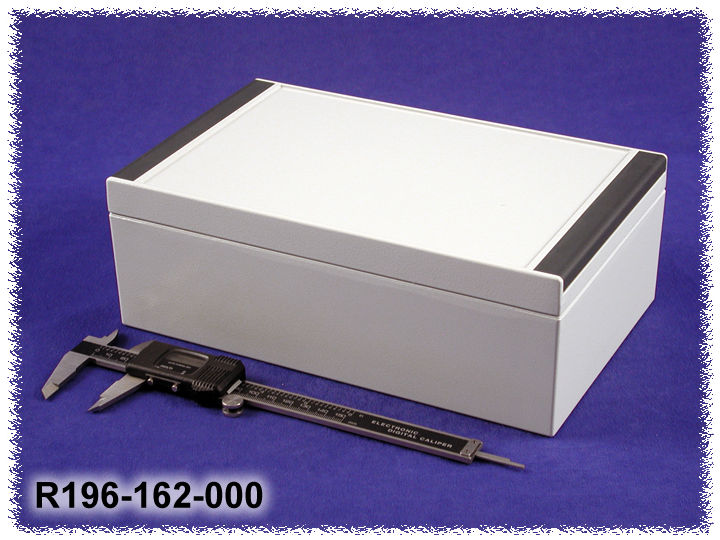

| R196-162-000 | 260 | 160 | 90 | $178.71Backorder | Buy now |
Key Features:
- ■Material is diecast aluminum GD SI 12 / DIN 1725
- ■Captive stainless steel lid screws included.
- ■Enclosure can be mounted to a wall or shelf after closing the lid by using internal mounting channels.
- ■Integrated 1.7mm recess in lid for membrane keypads and front panels.
- ■Comes with installed silicone gasket with recommended operating temperature of -50ºC up to +140ºC (-58ºF to 284ºF).
- ■Comes with dark grey (RAL 9017) POM plastic clip-on covers to hide appearance of screws.
- ■Degree of protection: NEMA 4X, IP66.
- ■UL Listed.
- ■Finished in light grey (RAL 7035) textured polyester powder coat. Can be supplied unpainted on special order.
- ■Can be supplied unpainted on special order.
Photo Features (click to enlarge)
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Documents
Additional information
Part Details
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) |
|---|---|---|---|
| R196-100-000 | 100 | 100 | 82 |
| R196-120-000 | 122 | 120 | 82 |
| R196-082-000 | 125 | 84 | 59 |
| R196-102-000 | 160 | 100 | 82 |
| R196-161-000 | 160 | 160 | 90 |
| R196-083-000 | 175 | 84 | 59 |
| R196-122-000 | 220 | 120 | 82 |
| R196-162-000 | 260 | 160 | 90 |
