Watertight - Thick Wall Diecast Aluminum · R190-R191 Series
Brand: Hammond Manufacturing · 22 part numbers
aluCASE
- ■Modern, high quality instrument enclosure.
- ■Made of diecast aluminum material (GD Al Si 12/DIN 1725).
- ■Includes captive stainless steel lid screws.
- ■Internal mounting channels can be accessed after lid is closed.
- ■1.7mm recess is integrated in lid for membrane keypads and front panels.
- ■Comes with preformed TPE gasket installed.
from $39.68
22 of 22 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R190-R191 Series part number
Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
22 of 22 part numbers · 22 priced online
Rolec Alucase Enclosure
$128.39In stock
Buy nowRolec Alucase Enclosure
$144.84In stock
Buy nowRolec Alucase Enclosure
$161.34In stock
Buy nowRolec Alucase Enclosure
$151.43Backorder
Buy nowRolec Alucase Enclosure
$161.34In stock
Buy nowRolec Alucase Enclosure
$164.59Backorder
Buy nowRolec Alucase Enclosure
$184.35Backorder
Buy now
Rolec Alucase Enclosure
$39.68In stock
Buy nowRolec Alucase Enclosure
$52.29In stock
Buy nowRolec Alucase Enclosure
$66.70In stock
Buy nowRolec Alucase Enclosure
$81.72Backorder
Buy nowRolec Alucase Enclosure
$89.03In stock
Buy nowRolec Alucase Enclosure
$80.01In stock
Buy nowRolec Alucase Enclosure
$95.83In stock
Buy nowRolec Alucase Enclosure
$130.19Backorder
Buy nowRolec Alucase Enclosure
$158.02In stock
Buy now
Rolec Alucase Enclosure
$167.89In stock
Buy nowRolec Alucase Enclosure
$174.48Backorder
Buy nowRolec Alucase Enclosure
$190.93In stock
Buy nowRolec Alucase Enclosure
$309.82In stock
Buy nowRolec Alucase Enclosure
$380.08In stock
Buy nowDimension tables (inches / mm)
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R191-052-000 | 50 | 75 | 33 | $39.68In stock | Buy now |
| R191-054-000 | 50 | 100 | 33 | $52.29In stock | Buy now |
| R191-070-000 | 70 | 100 | 50 | $66.70In stock | Buy now |
| R191-090-000 | 90 | 120 | 60 | $80.01In stock | Buy now |
| R191-072-000 | 70 | 140 | 50 | $81.72Backorder | Buy now |
| R190-110-000 | 110 | 140 | 60 | $118.53Backorder | Buy now |
| R191-092-000 | 90 | 160 | 60 | $95.83In stock | Buy now |
| R190-130-000 | 130 | 160 | 70 | $144.84In stock | Buy now |
| R191-074-000 | 70 | 180 | 50 | $89.03In stock | Buy now |
| R190-150-000 | 150 | 180 | 60 | $151.43Backorder | Buy now |
| R191-150-000 | 150 | 180 | 90 | $158.02In stock | Buy now |
| R190-112-000 | 110 | 200 | 60 | $128.39In stock | Buy now |
| R190-170-000 | 170 | 200 | 60 | $164.59Backorder | Buy now |
| R191-170-000 | 170 | 200 | 90 | $174.48Backorder | Buy now |
| R190-132-000 | 130 | 220 | 70 | $161.34In stock | Buy now |
| R191-200-100 | 200 | 230 | 120 | $309.82In stock | Buy now |
| R191-094-000 | 90 | 250 | 60 | $130.19Backorder | Buy now |
| R190-152-000 | 150 | 260 | 60 | $161.34In stock | Buy now |
| R191-152-000 | 150 | 260 | 90 | $167.89In stock | Buy now |
| R190-172-000 | 170 | 280 | 60 | $184.35Backorder | Buy now |
| R191-172-000 | 170 | 280 | 90 | $190.93In stock | Buy now |
| R191-202-100 | 200 | 330 | 120 | $380.08In stock | Buy now |
Key Features:
- ■Modern, high quality instrument enclosure.
- ■Made of diecast aluminum material (GD Al Si 12/DIN 1725).
- ■Includes captive stainless steel lid screws.
- ■Internal mounting channels can be accessed after lid is closed.
- ■1.7mm recess is integrated in lid for membrane keypads and front panels.
- ■Comes with preformed TPE gasket installed.
- ■Clip-on screw covers hide mounting and lid screws. Screw covers are made of RAL 7040 grey PMO plastic.
- ■Screw covers are made of RAL 7040 grey PMO plastic.
- ■Degree of protection: NEMA 4X, IP67.
- ■CSA and UL listed to Type 4.
- ■Finished in textured RAL 7040 gray polyester powder coat, RAL 7040 grey. Can be supplied unpainted on special order.
- ■Can be supplied unpainted on special order.
Features (click to enlarge)

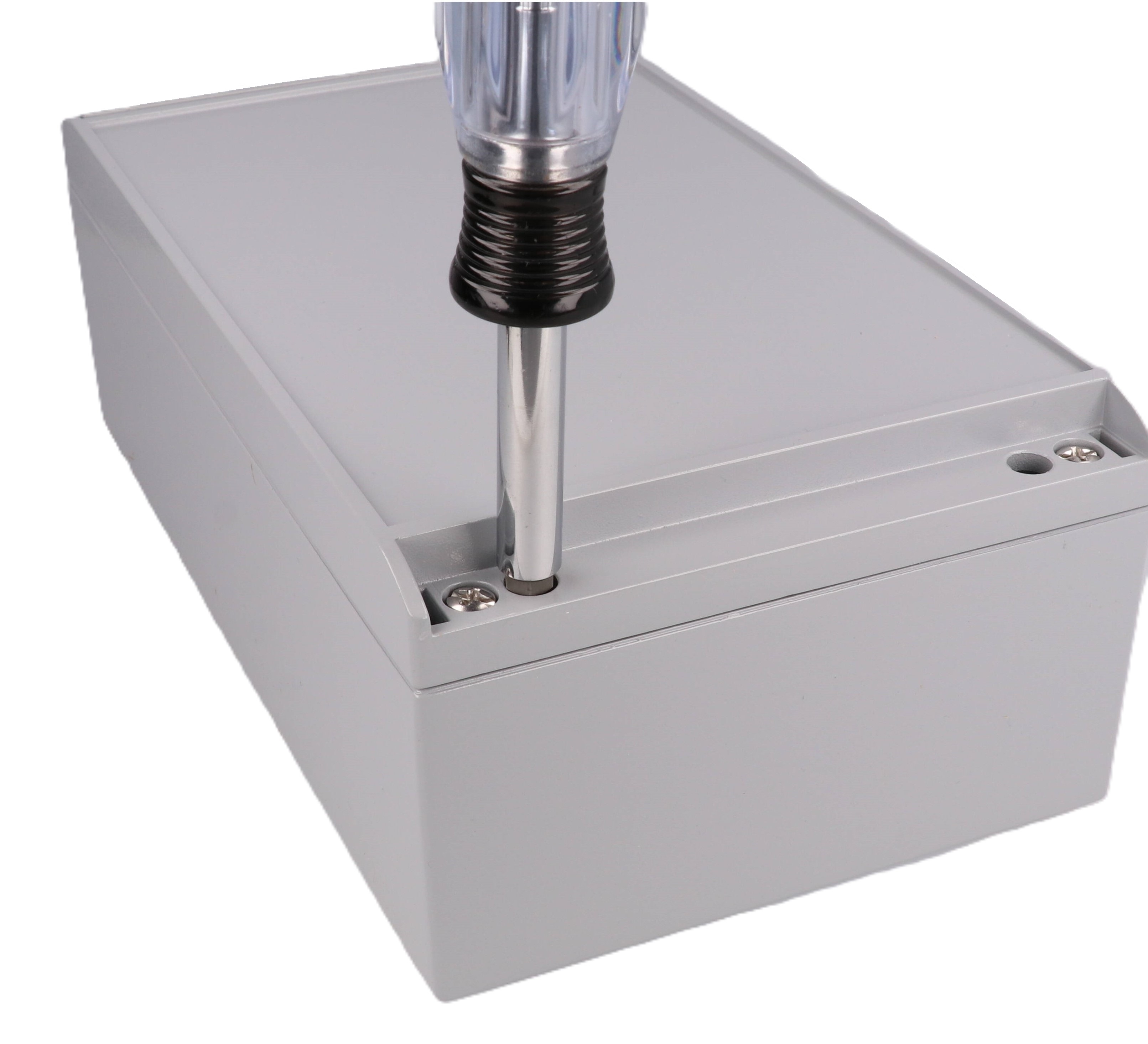

Enclosure can be installed after closing lid.

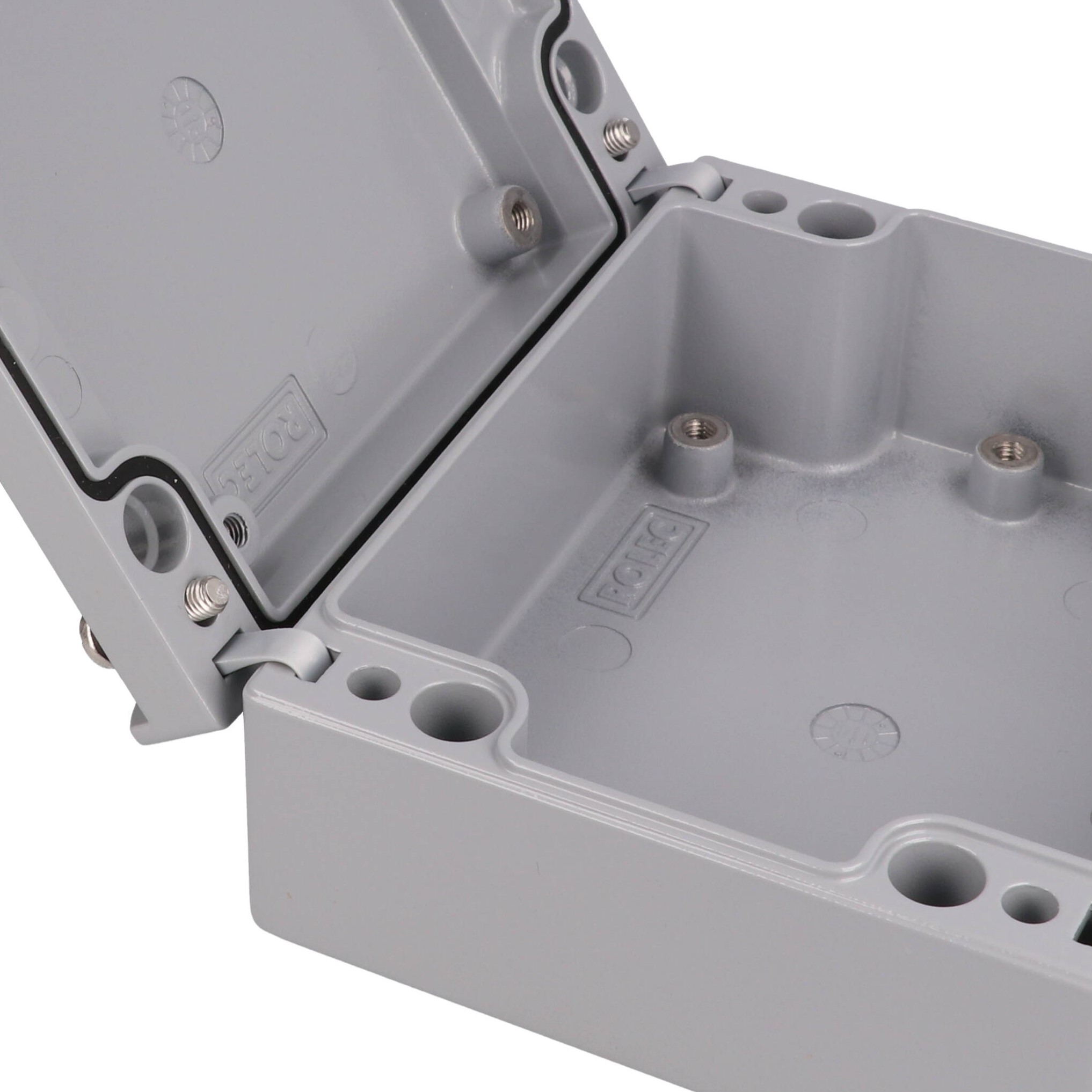

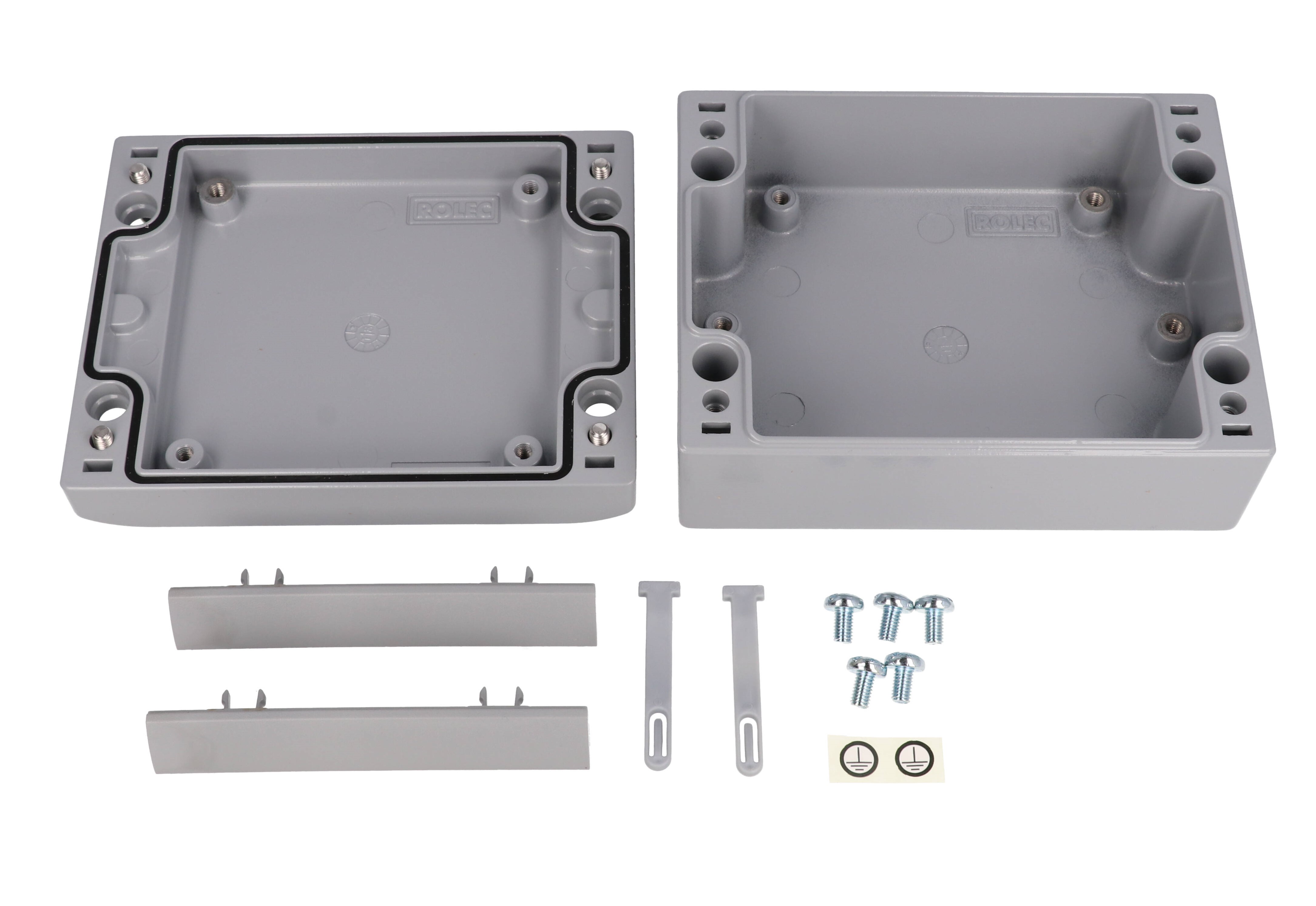

Includes optional-use lid captivation straps.

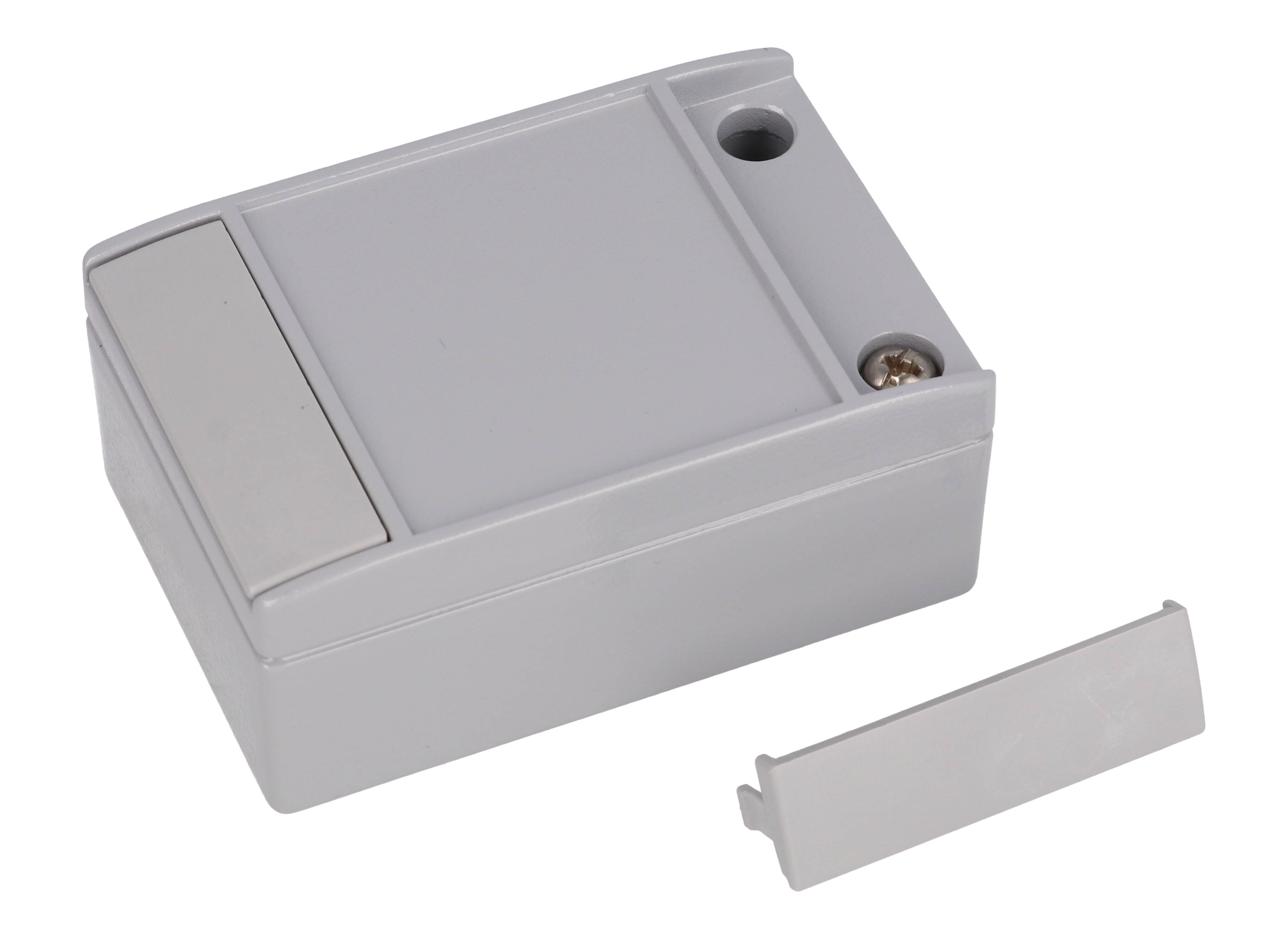

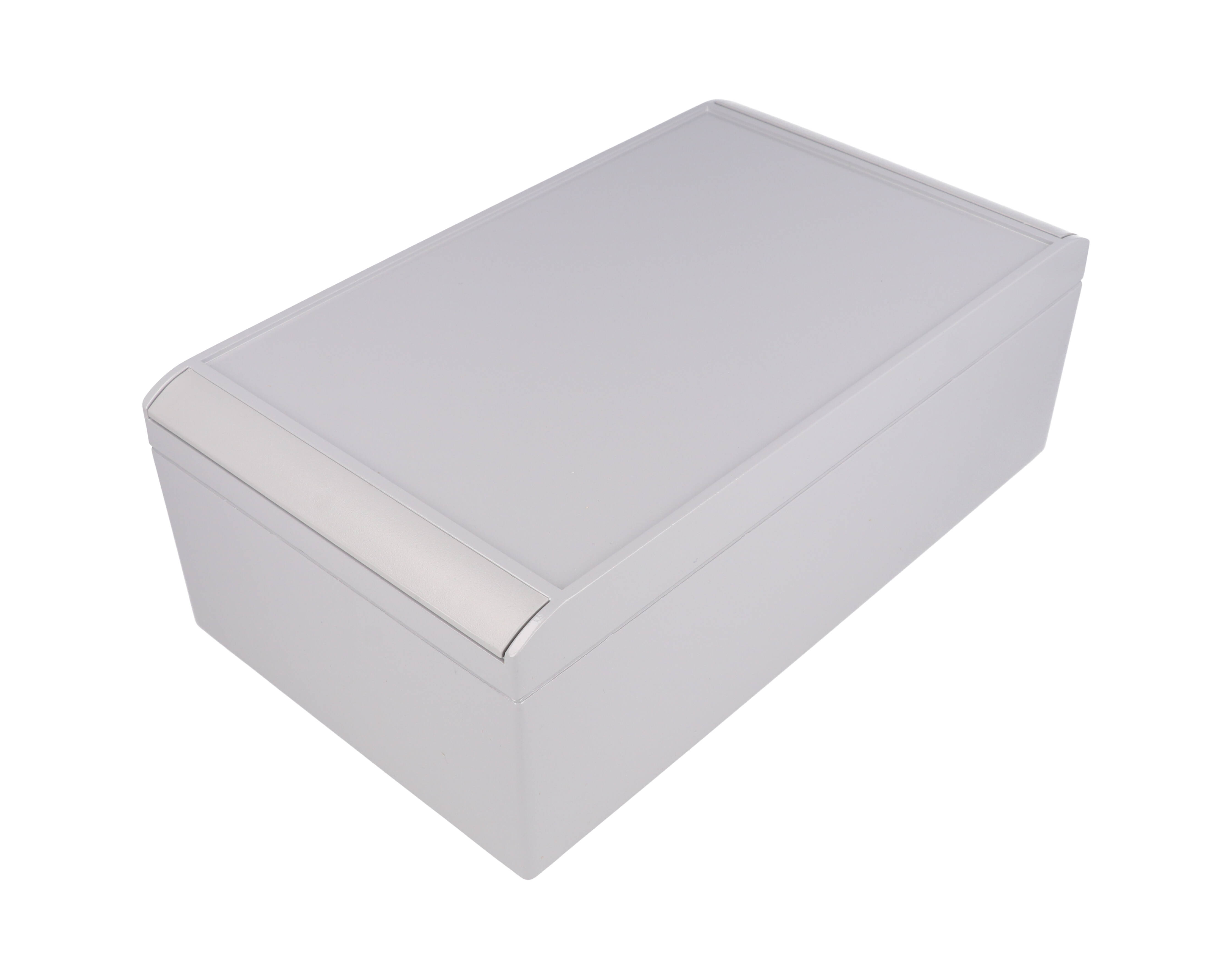

Snap-in design covers hide both lid screws and installation holes.

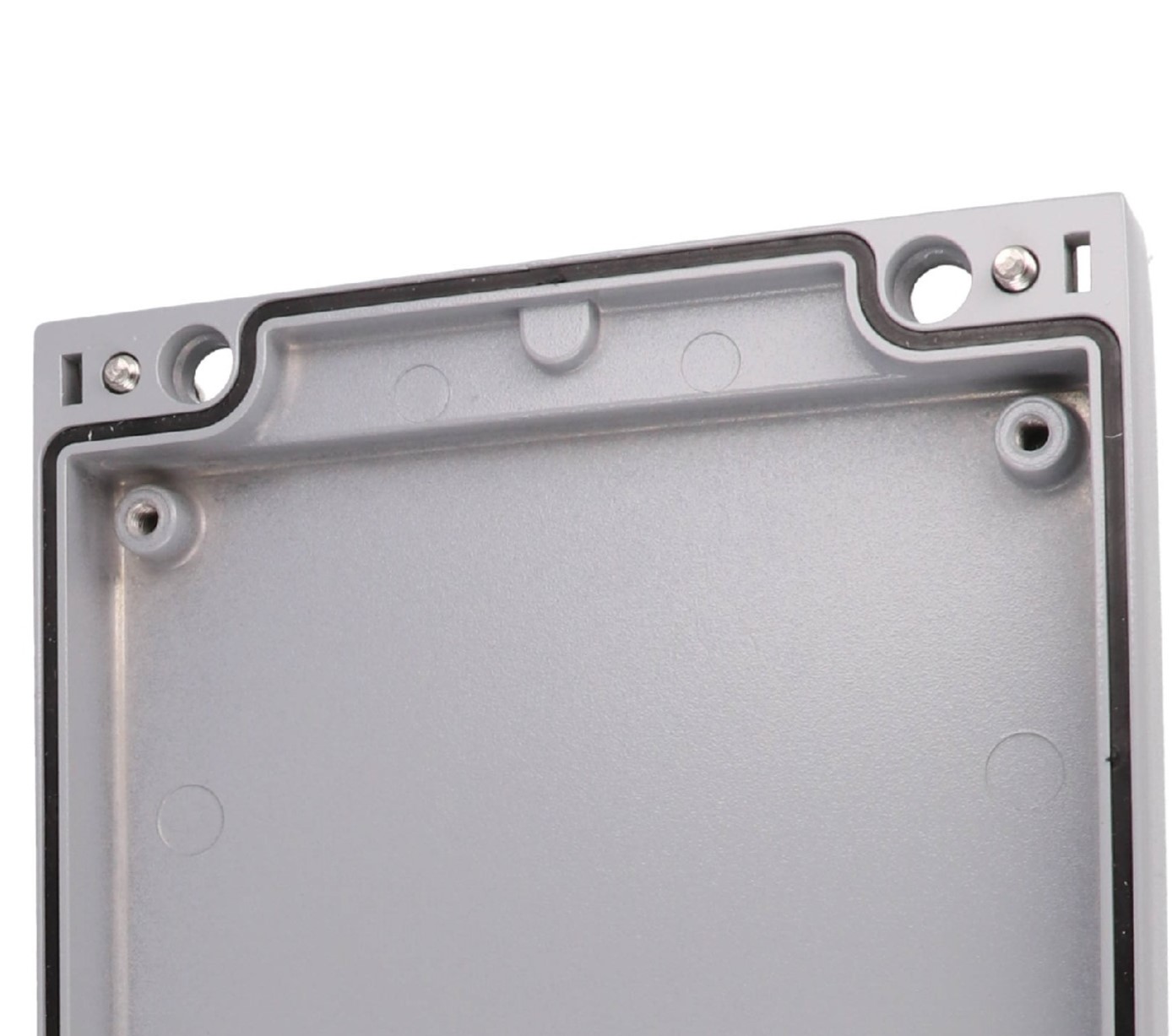

All holes are outside of gasket seal.
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Documents
Additional information
Part Details
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) |
|---|---|---|---|
| R191-052-000 | 50 | 75 | 33 |
| R191-054-000 | 50 | 100 | 33 |
| R191-070-000 | 70 | 100 | 50 |
| R191-090-000 | 90 | 120 | 60 |
| R191-072-000 | 70 | 140 | 50 |
| R190-110-000 | 110 | 140 | 60 |
| R191-092-000 | 90 | 160 | 60 |
| R190-130-000 | 130 | 160 | 70 |
| R191-074-000 | 70 | 180 | 50 |
| R190-150-000 | 150 | 180 | 60 |
| R191-150-000 | 150 | 180 | 90 |
| R190-112-000 | 110 | 200 | 60 |
| R190-170-000 | 170 | 200 | 60 |
| R191-170-000 | 170 | 200 | 90 |
| R190-132-000 | 130 | 220 | 70 |
| R191-200-100 | 200 | 230 | 120 |
| R191-094-000 | 90 | 250 | 60 |
| R190-152-000 | 150 | 260 | 60 |
| R191-152-000 | 150 | 260 | 90 |
| R190-172-000 | 170 | 280 | 60 |
| R191-172-000 | 170 | 280 | 90 |
| R191-202-100 | 200 | 330 | 120 |
