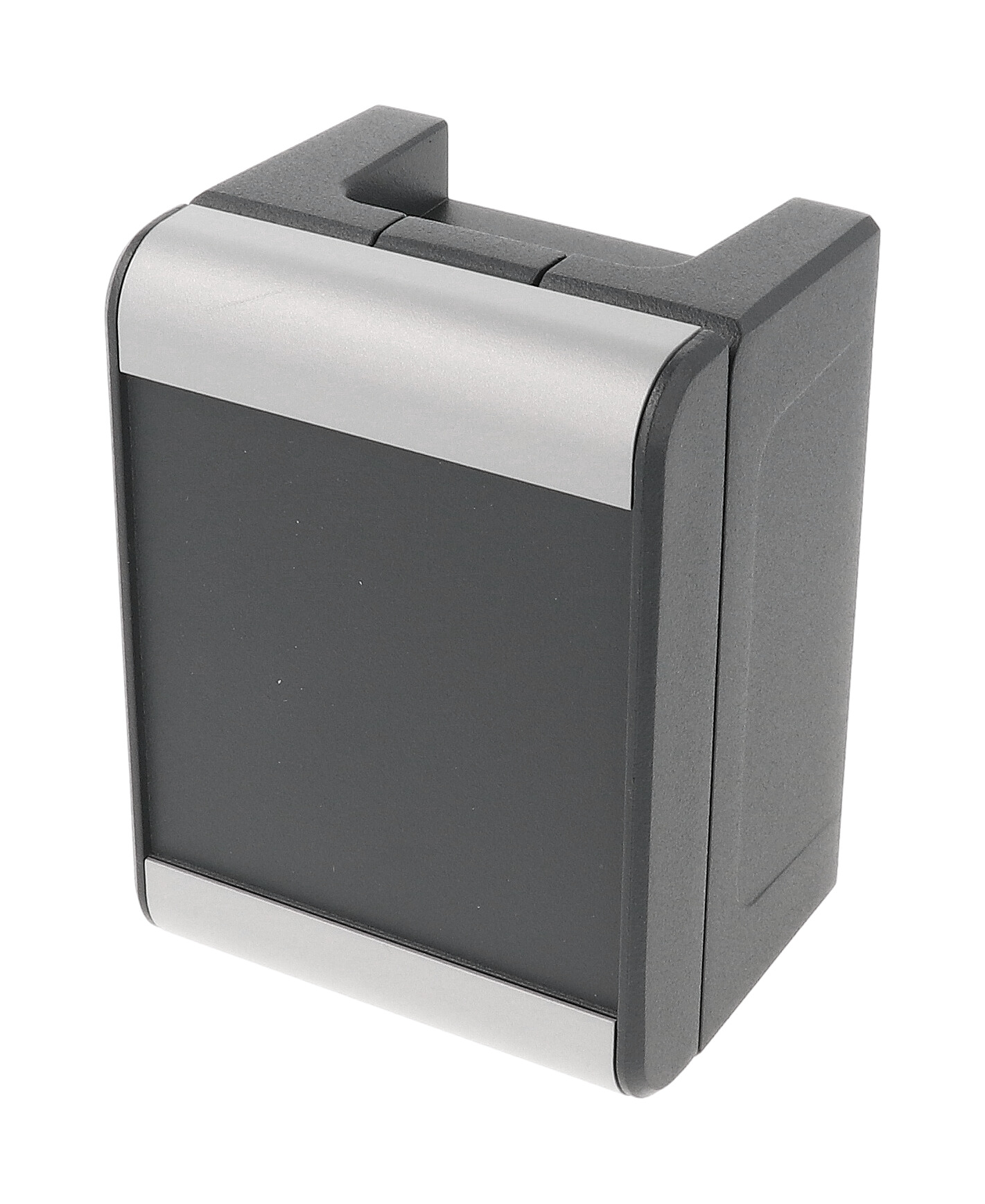

Aludoor Hinged Lid-Recess
$119.11In stock
Buy now
Watertight with Integrated Hinge · R133-134 Series
Brand: Hammond Manufacturing · 20 part numbers
aluDOOR
- ■Modern, premium enclosures with integrated door
- ■Constructed of diecast aluminum
- ■Structurally integrated lid hinges
- ■Hinges provide 100° opening angle
- ■Stainless steel lid screws and threaded inserts
- ■Available with a flat lid or recessed lid for membranes, keypads, and labels
from $119.11
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R133-134 Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
Aludoor Hinged Lid-Recess
$138.14In stock
Buy now
Aludoor Hinged Lid-Recess
$167.64In stock
Buy now
Aludoor Hinged Lid-Recess
$179.21In stock
Buy now
Aludoor Hinged Lid-Recess
$200.49In stock
Buy now
Aludoor Hinged Lid-Recess
$221.76In stock
Buy now
Aludoor Hinged Lid-Recess
$218.77Backorder
Buy now
Aludoor Hinged Lid-Recess
$232.21In stock
Buy now
Aludoor Hinged Lid-Recess
$239.67In stock
Buy now
Aludoor Hinged Lid-Recess
$259.82In stock
Buy now
Aludoor Hinged Lid-Flat
$119.11In stock
Buy now
Aludoor Hinged Lid-Flat
$138.14In stock
Buy now
Aludoor Hinged Lid-Flat
$167.64In stock
Buy now
Aludoor Hinged Lid-Flat
$179.17In stock
Buy now
Aludoor Hinged Lid-Flat
$200.49In stock
Buy now
Aludoor Hinged Lid-Flat
$221.76In stock
Buy now
Aludoor Hinged Lid-Flat
$218.77In stock
Buy now
Aludoor Hinged Lid-Flat
$232.21In stock
Buy now
Aludoor Hinged Lid-Flat
$239.67In stock
Buy now
Aludoor Hinged Lid-Flat
$259.82In stock
Buy nowDimension tables (inches / mm)
Enclosures With Recessed Lid
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R133-090-000 | 120 | 90 | 70 | $119.11In stock | Buy now |

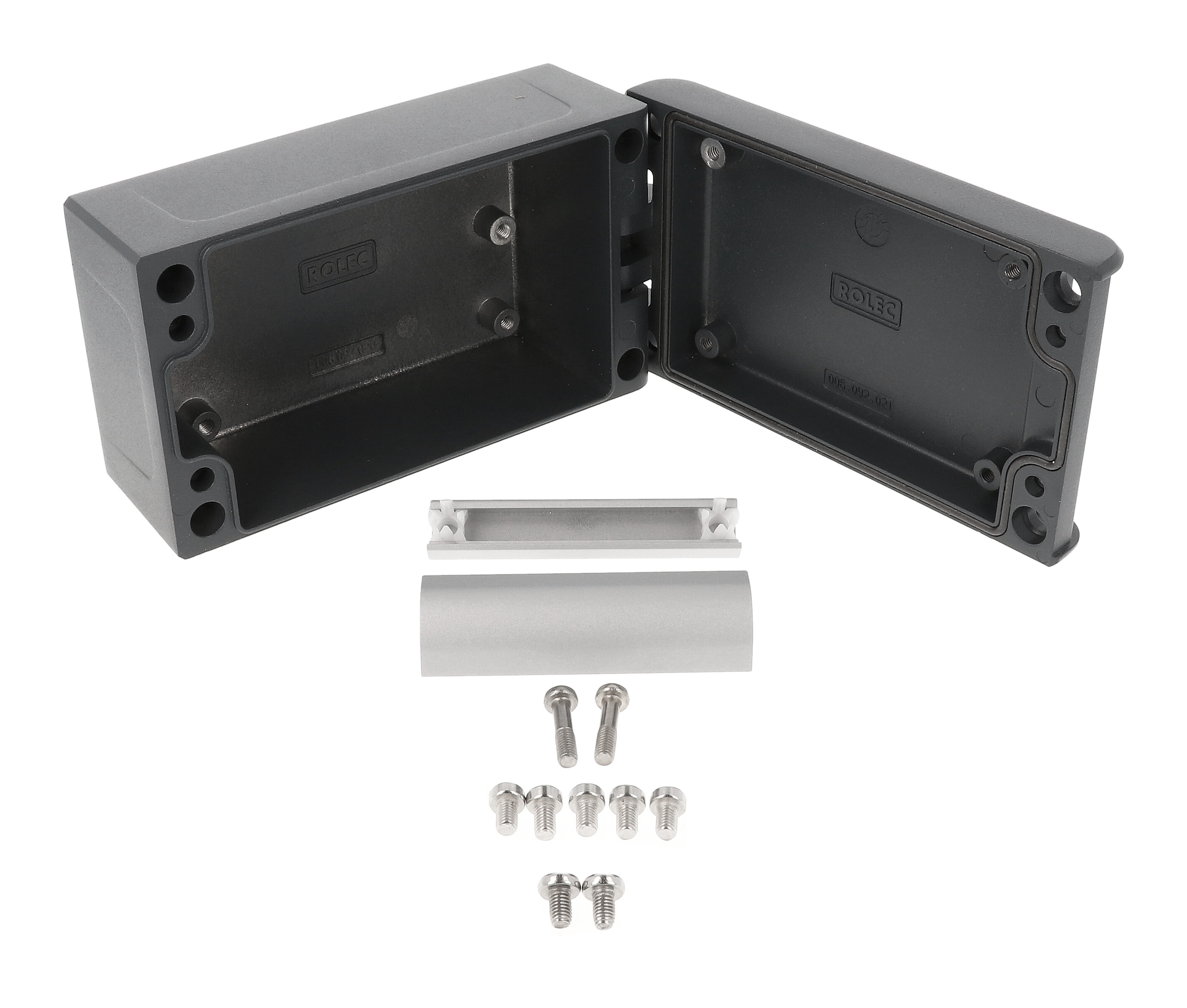

| R133-092-000 | 160 | 90 | 70 | $138.14In stock | Buy now |

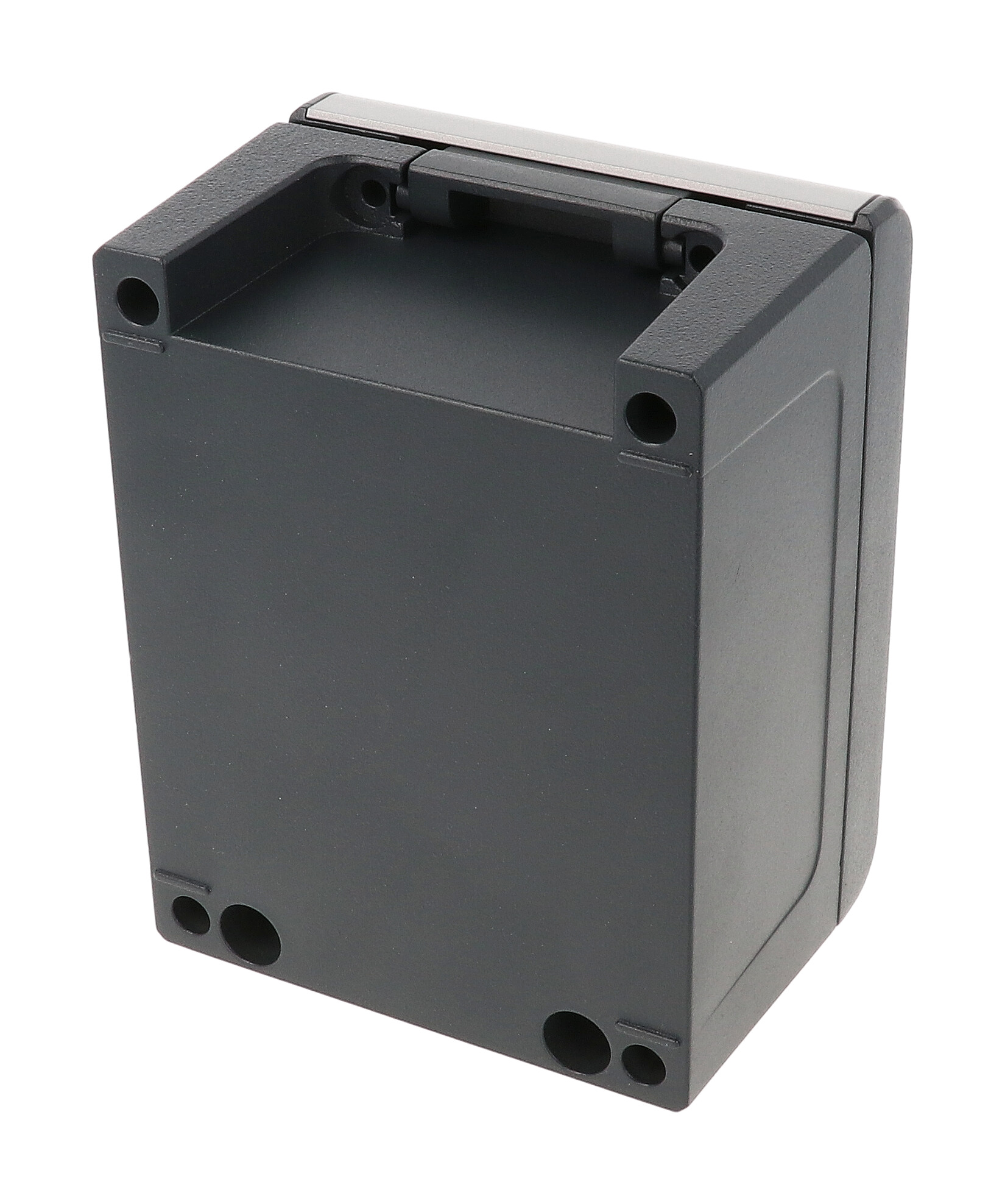

| R133-110-000 | 140 | 110 | 80 | $167.64In stock | Buy now |
| R133-112-000 | 200 | 110 | 80 | $179.21In stock | Buy now |

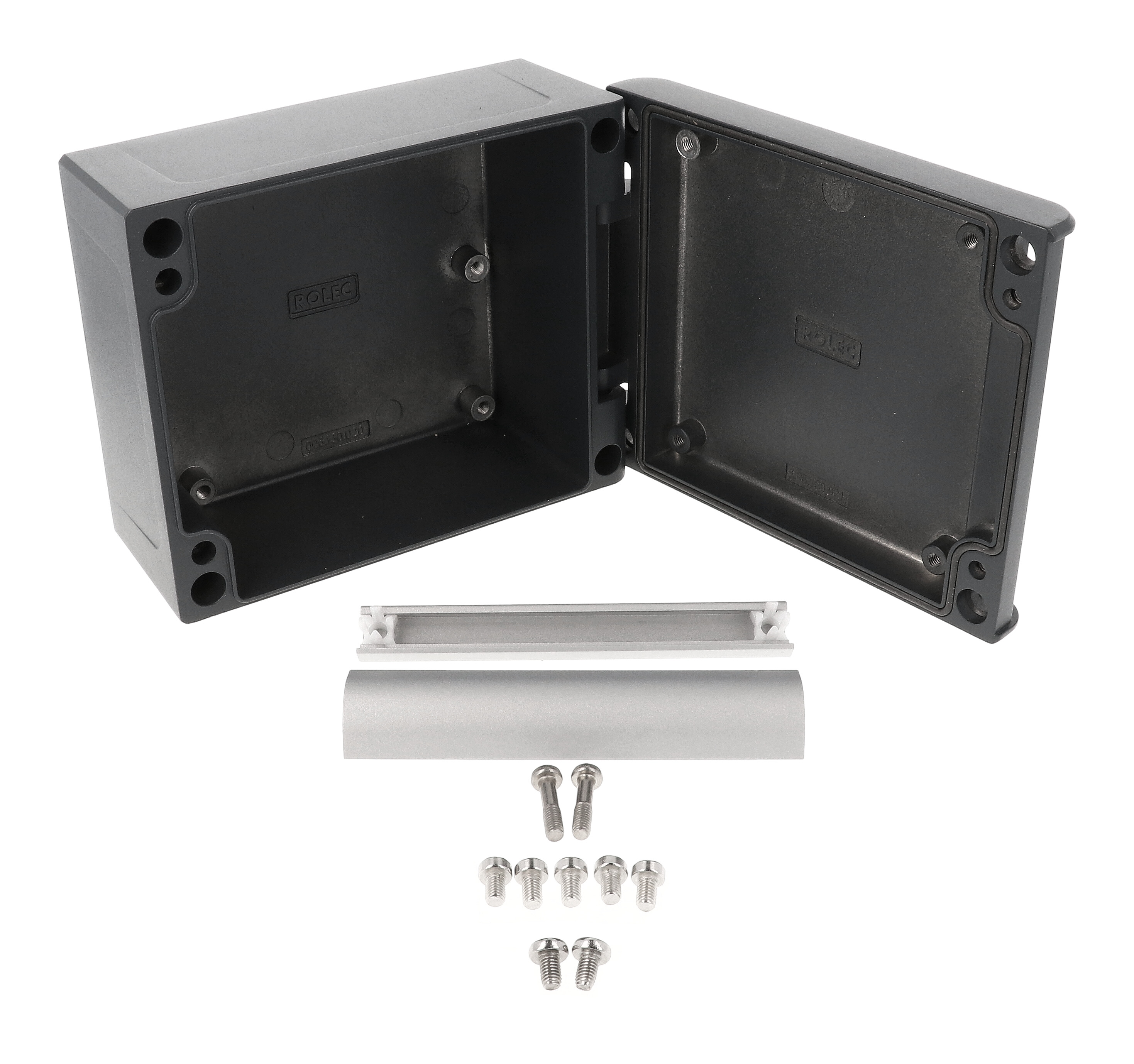

| R133-130-000 | 160 | 130 | 80 | $200.49In stock | Buy now |

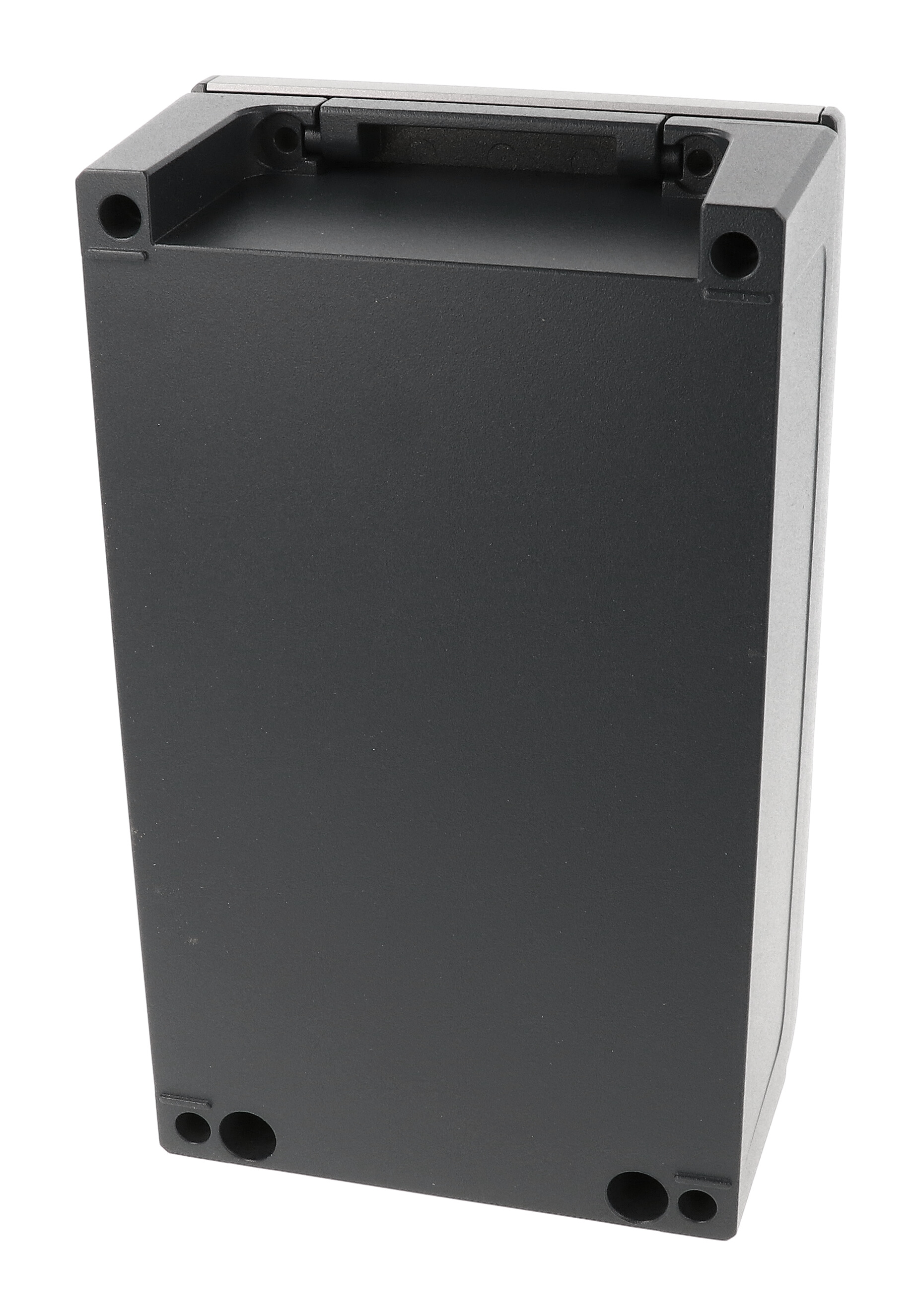

| R133-132-000 | 220 | 130 | 80 | $221.76In stock | Buy now |

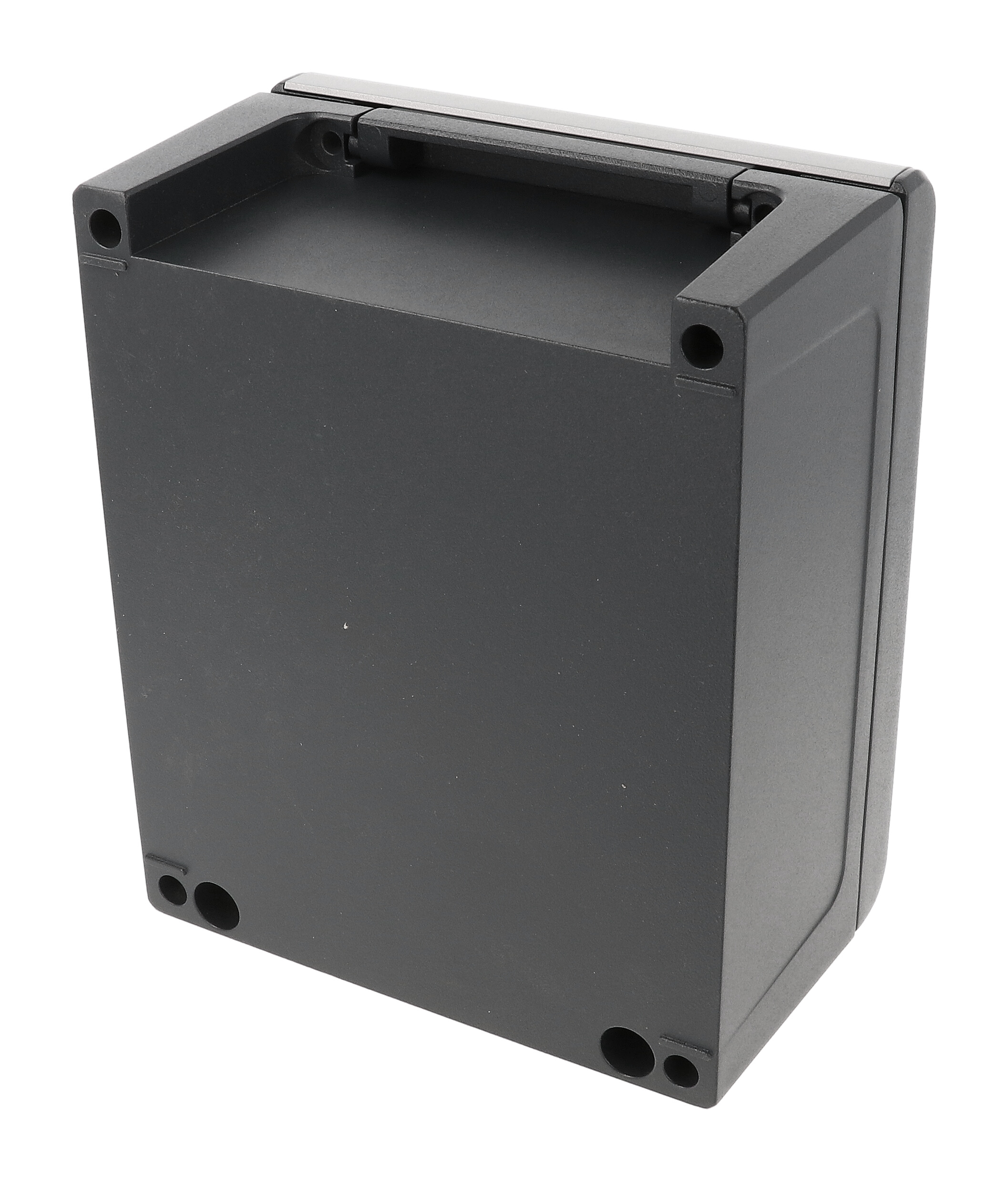

| R133-150-000 | 180 | 150 | 90 | $218.77Backorder | Buy now |

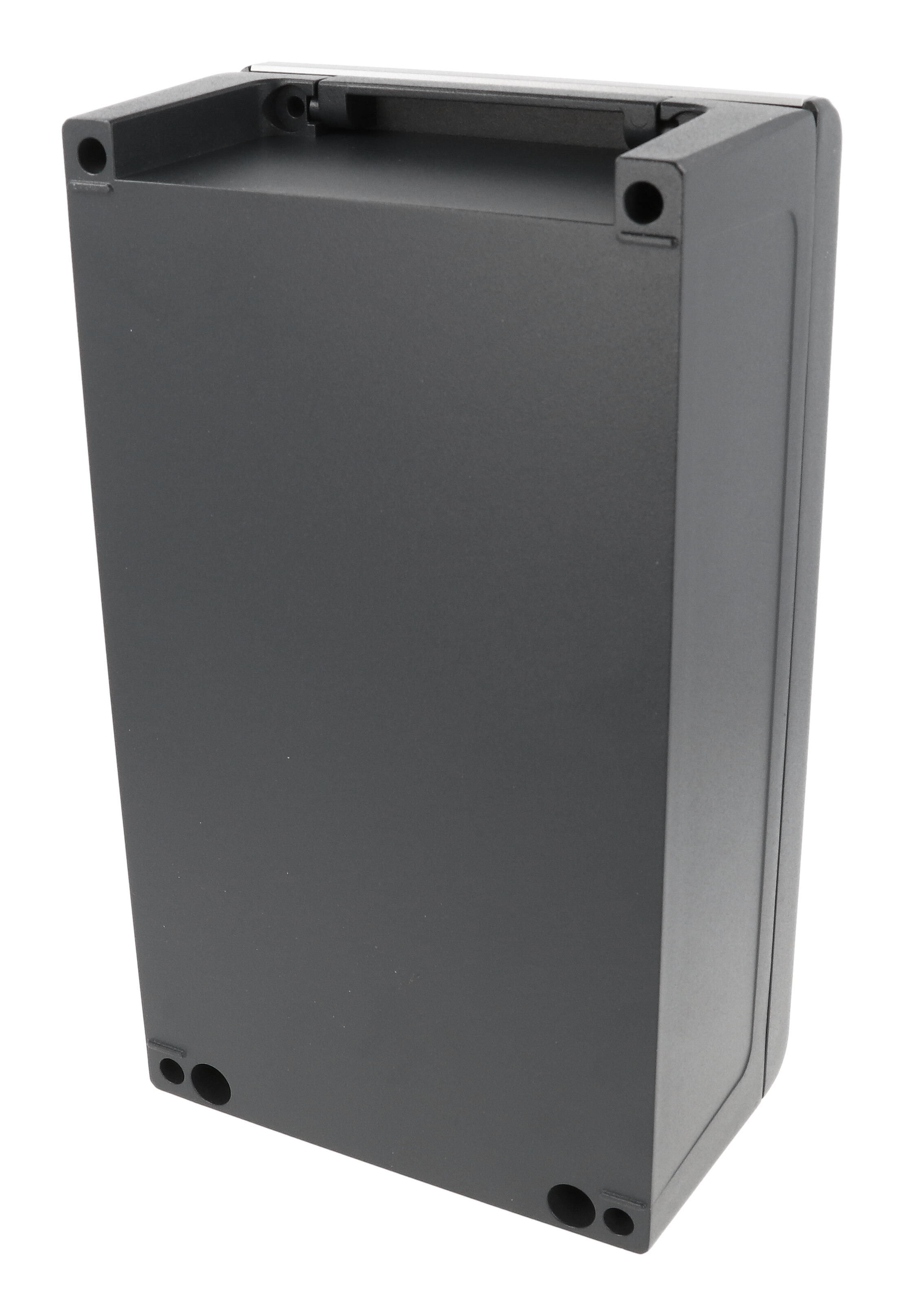

| R133-152-000 | 260 | 150 | 90 | $232.21In stock | Buy now |

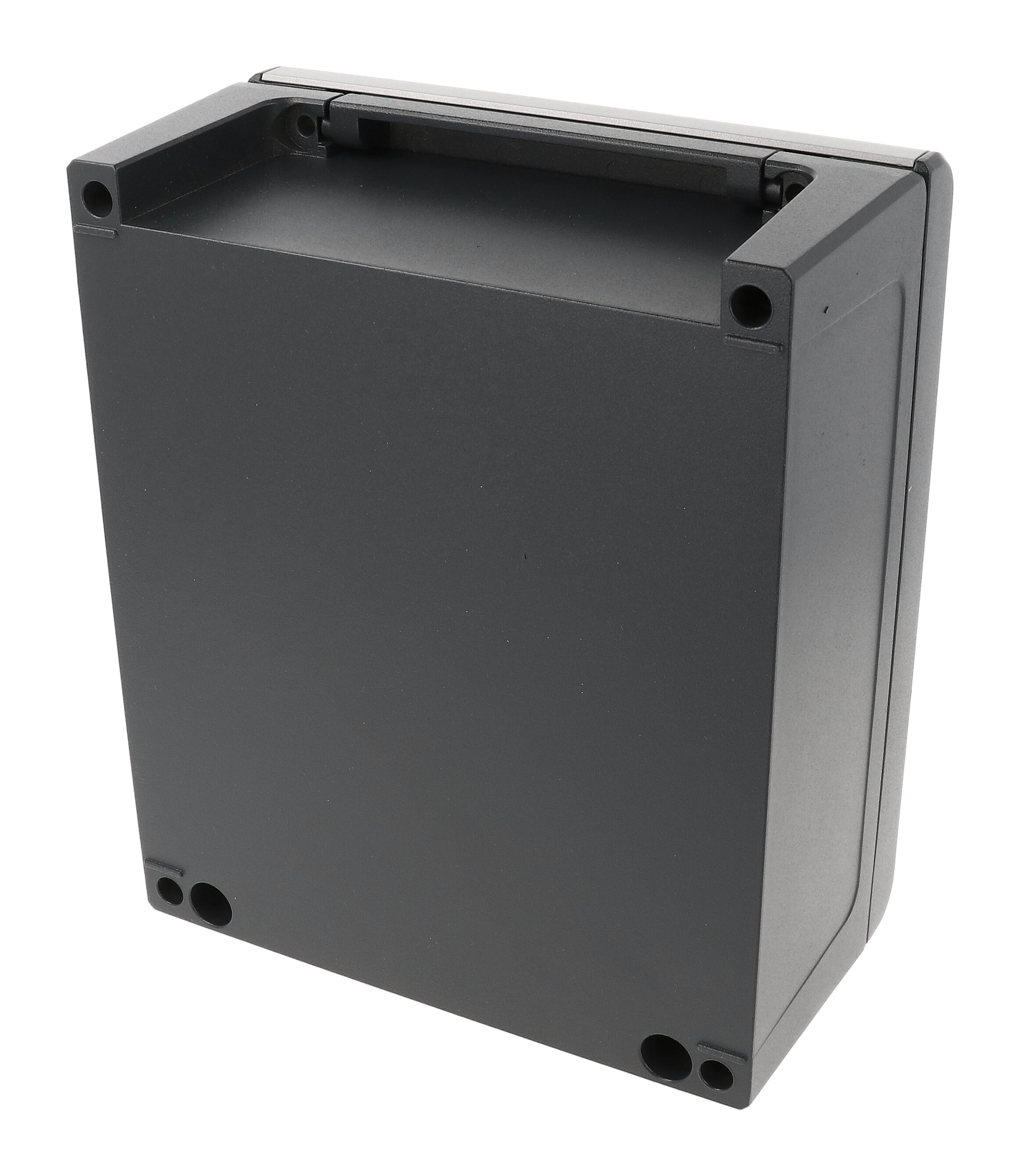

| R133-170-000 | 200 | 170 | 90 | $239.67In stock | Buy now |
| R133-172-000 | 280 | 170 | 90 | $259.82In stock | Buy now |
Enclosures With Flat Lid
| Part Number | Length (mm) | Width (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R134-090-000 | 120 | 90 | 70 | $119.11In stock | Buy now |

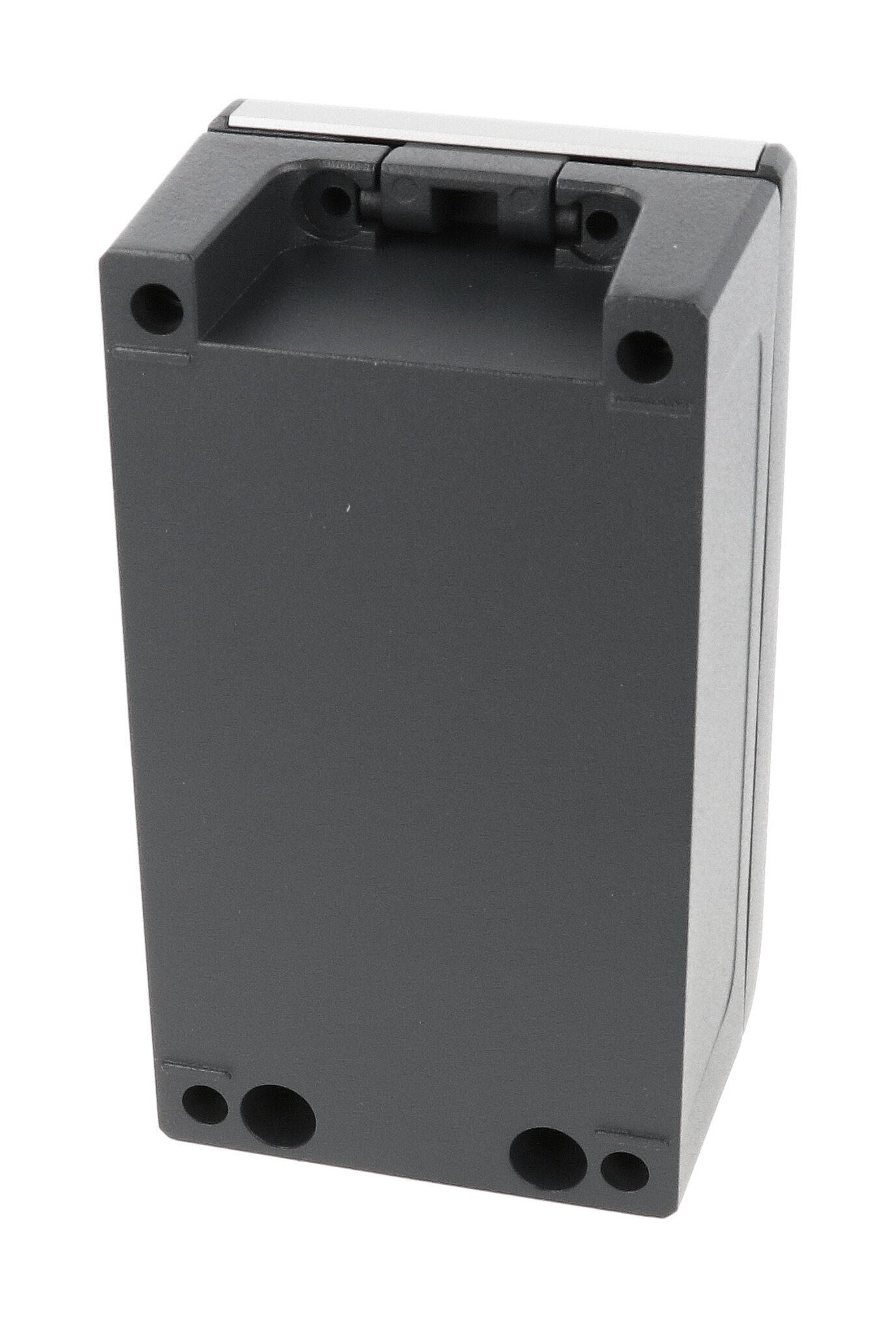

| R134-092-000 | 160 | 90 | 70 | $138.14In stock | Buy now |

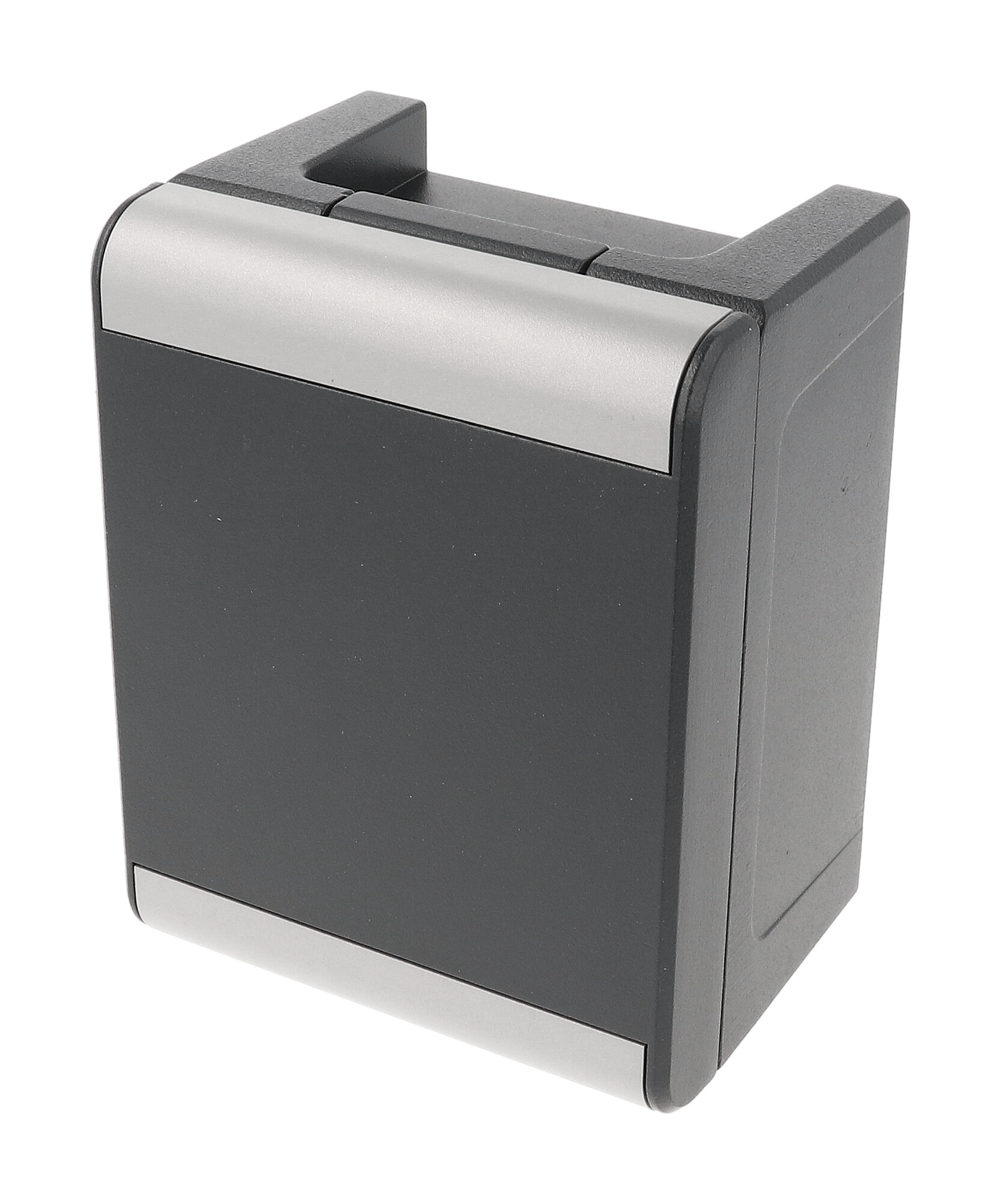

| R134-110-000 | 140 | 110 | 80 | $167.64In stock | Buy now |

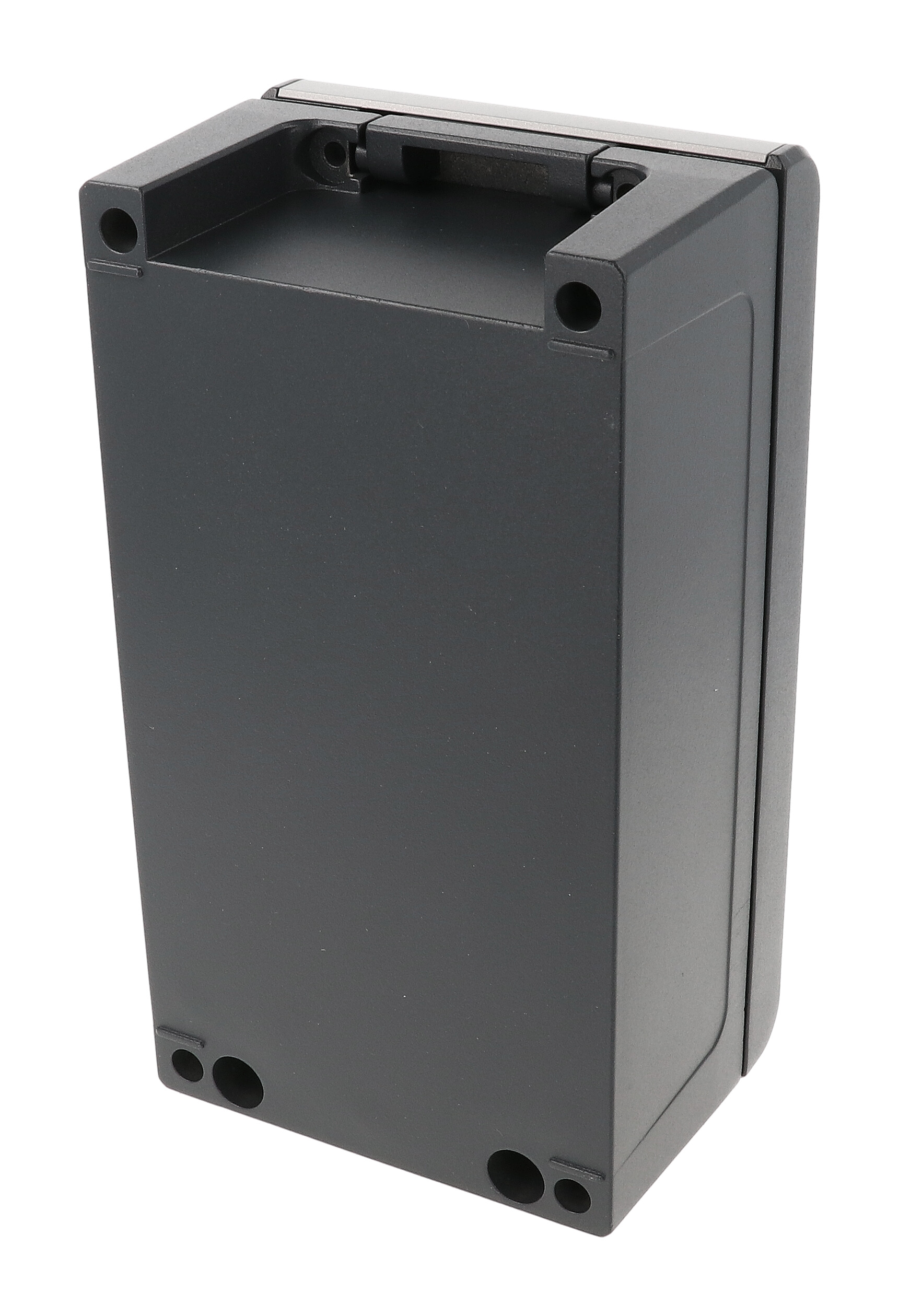

| R134-112-000 | 200 | 110 | 80 | $179.17In stock | Buy now |
| R134-130-000 | 160 | 130 | 80 | $200.49In stock | Buy now |
| R134-132-000 | 220 | 130 | 80 | $221.76In stock | Buy now |
| R134-150-000 | 180 | 150 | 90 | $218.77In stock | Buy now |

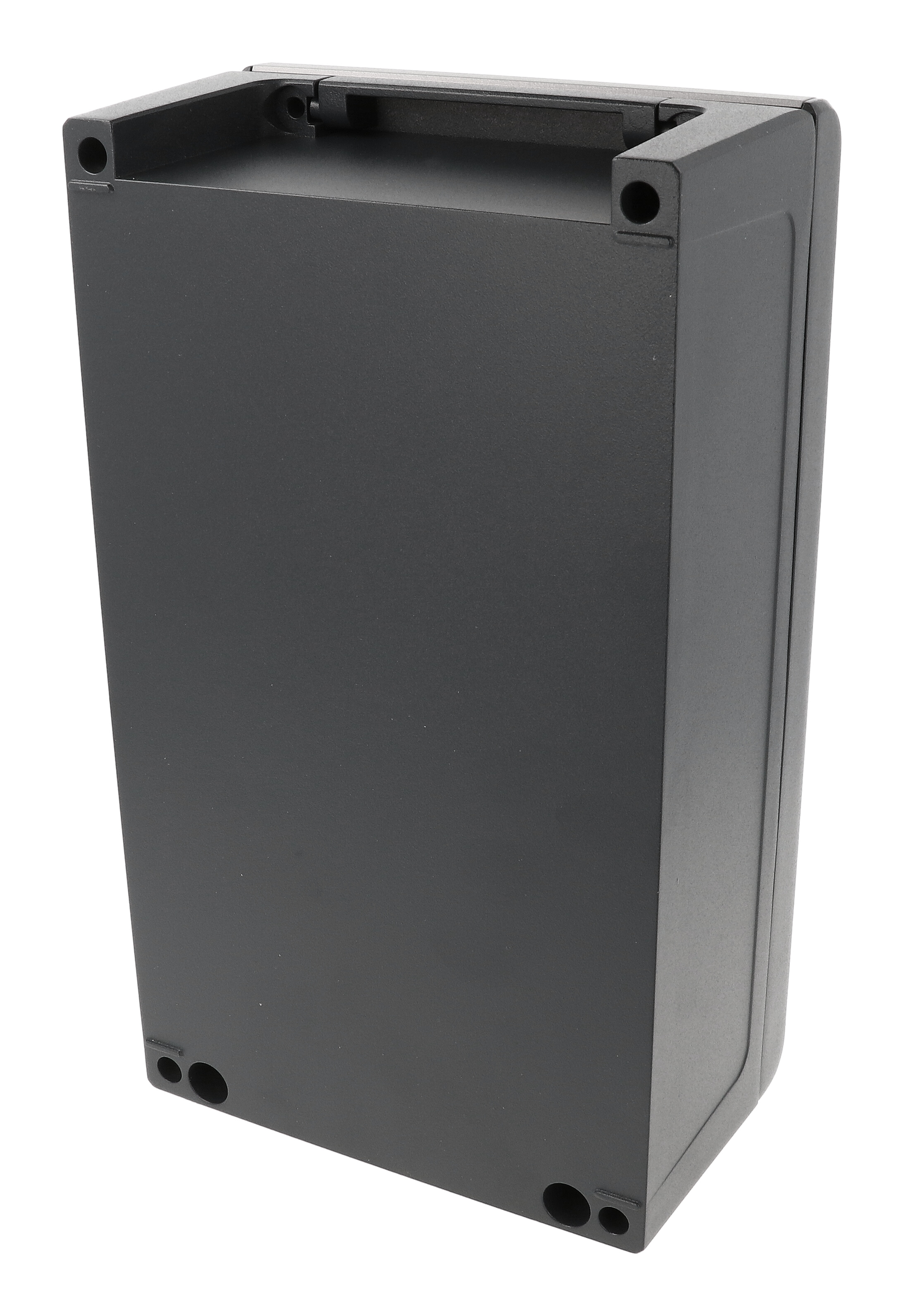

| R134-152-000 | 260 | 150 | 90 | $232.21In stock | Buy now |

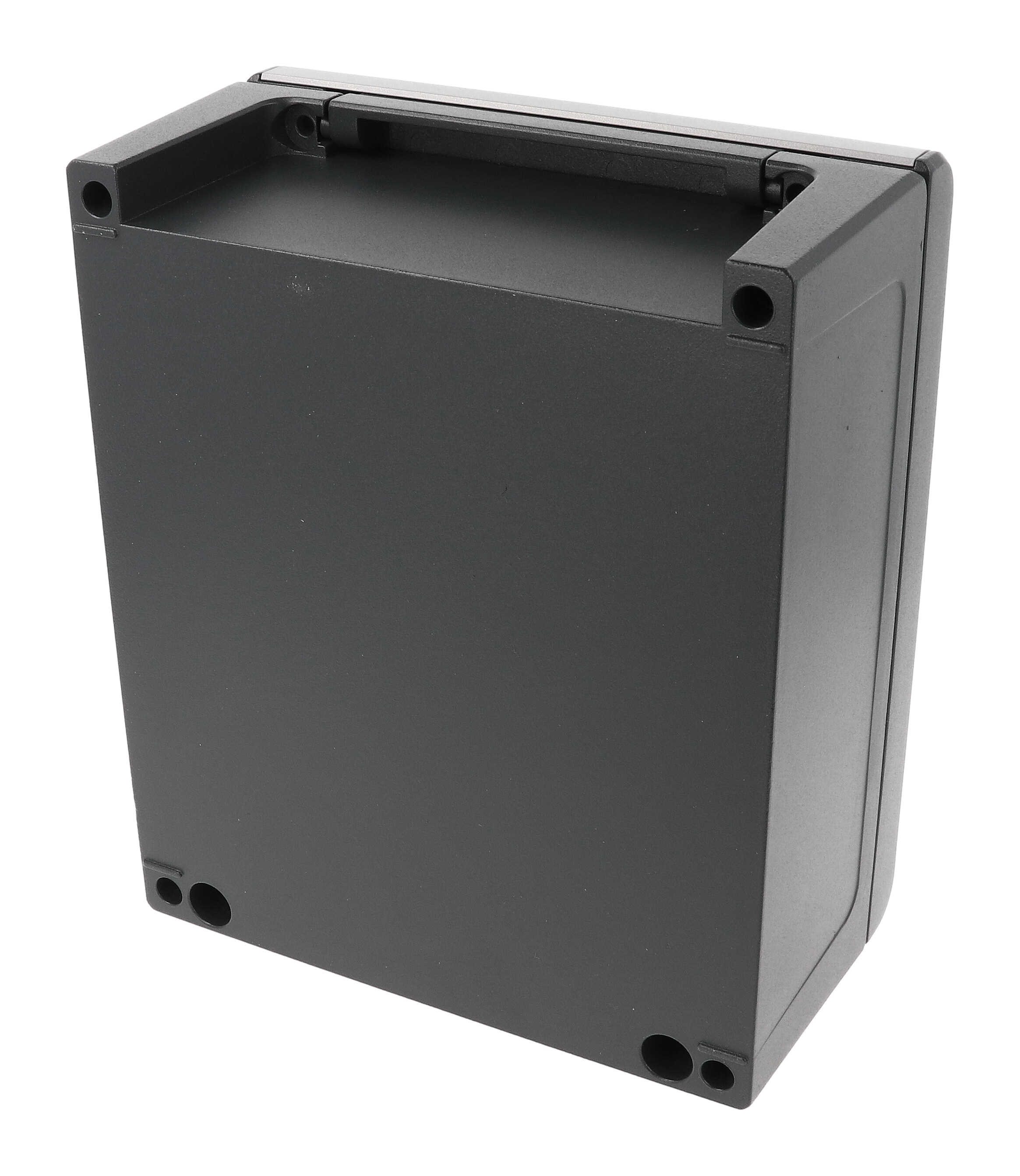

| R134-170-000 | 200 | 170 | 90 | $239.67In stock | Buy now |
| R134-172-000 | 280 | 170 | 90 | $259.82In stock | Buy now |
Key Features:
- ■Modern, premium enclosures with integrated door
- ■Constructed of diecast aluminum
- ■Structurally integrated lid hinges
- ■Hinges provide 100° opening angle
- ■Stainless steel lid screws and threaded inserts
- ■Available with a flat lid or recessed lid for membranes, keypads, and labels
- ■Rated IP66 / IP67 / IP68, IP69K with included PUR gasket
- ■Clip-on design covers to hide appearance of lid screws
- ■Tough RAL 7016 gray powder coat finish
