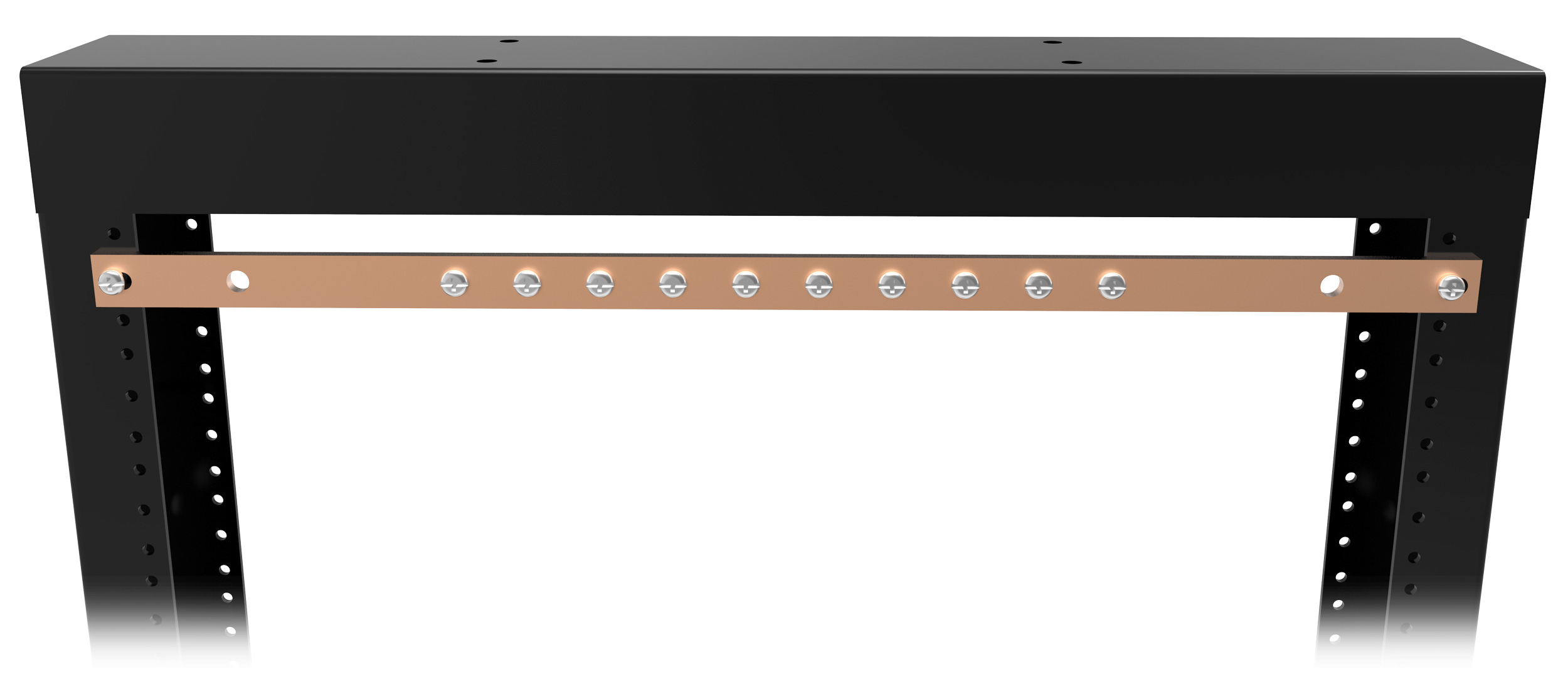

19IN Rack Mount Busbar
$64.90In stock
Buy now
Copper Bonding Busbar · GRDBAR Series
Brand: Hammond Manufacturing · 9 part numbers
- ■The GRDBAR Series comes in vertical, horizontal mounting as well as horizontal rack mounting.
- ■The grounding bar is made from heavy-gauge copper that attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds.
- ■Ground points have been drilled and tapped to accommodate a #10-32 screw (included).
- ■Use with our Bonding Wire Kits to bond your equipment to the busbar.
- ■Constructed of Solid 0.125” Copper with 10-32 drilled and tapped holes and
- ■1-0.312 main ground point.
from $64.90
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your GRDBAR Series part number
Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
9 of 9 part numbers · 9 priced online

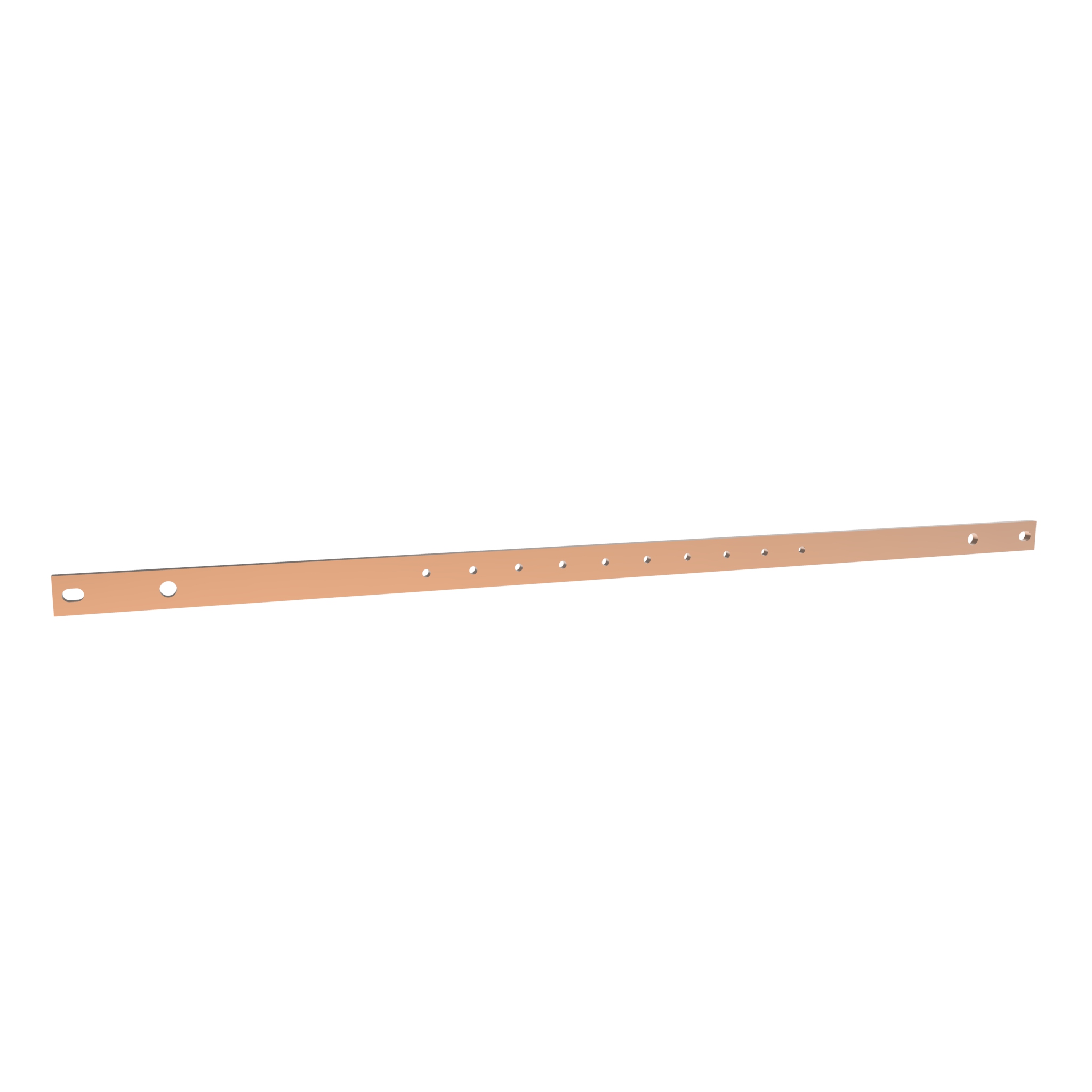

Horizontal Grnd Bar (23")
$71.39In stock
Buy now

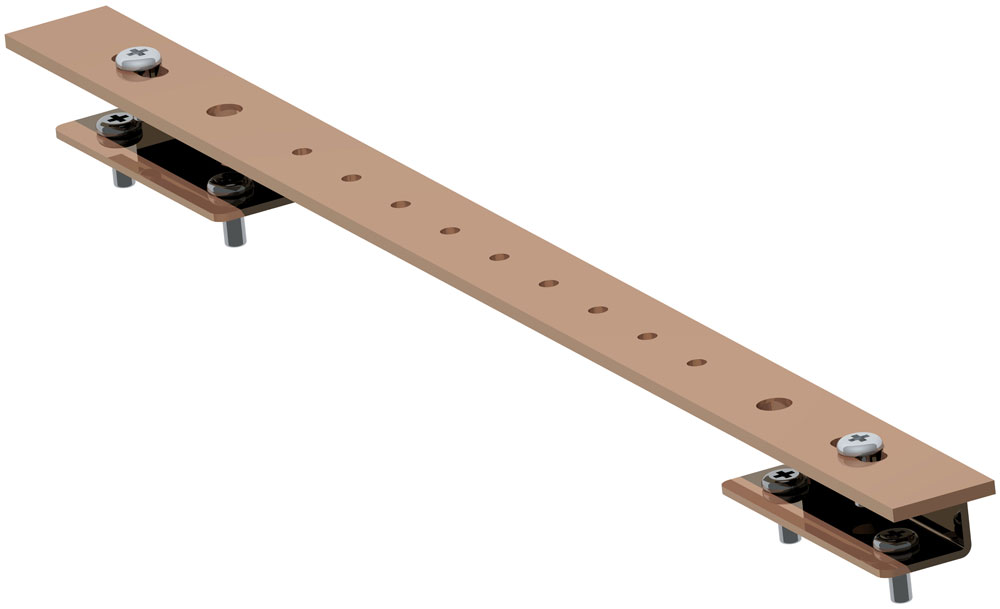

Hme-Ground Bar For 600MM Wide
- Number of Ground P Qty 9 - 10-32
$89.75In stock
Buy nowHme-Ground Bar For 800MM Wide
- Number of Ground P Qty 18 - 10-32
$109.93In stock
Buy nowVertical Grn Bar Fits 1400
- Number of Ground P Qty 8 - 10-32
$89.75In stock
Buy nowVertical Grn Bar Fits 1600
- Number of Ground P Qty 10 - 10-32
$89.75In stock
Buy nowVertical Grn Bar Fits 1800
- Number of Ground P Qty 12 - 10-32
$89.75Backorder
Buy nowVertical Grn Bar Fits 2000
- Number of Ground P Qty 12 - 10-32
$89.75Backorder
Buy nowVertical Grn Bar Fits 2200
- Number of Ground P Qty 14 - 10-32
$89.75Backorder
Buy nowDimension tables (inches / mm)
Horizontal HME Copper Busbar

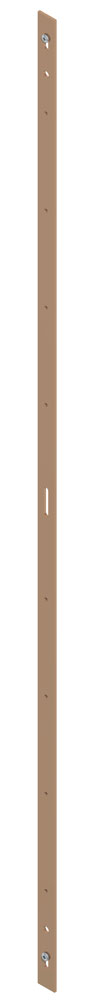

Vertical HME Copper Busbar
Units shown: mm . Switch units to: inch
| Part Number | Height | For Enclosure Height | Number of Ground Points | Series Compatibility | Price | Order |
|---|---|---|---|---|---|---|
| GRDBARV14 | 50.00 | 55.12 | Qty 8 - 10-32 | HME | $89.75In stock | Buy now |
| GRDBARV16 | 57.99 | 62.99 | Qty 10 - 10-32 | HME | $89.75In stock | Buy now |
| GRDBARV18 | 65.98 | 70.87 | Qty 12 - 10-32 | HME | $89.75Backorder | Buy now |
| GRDBARV20 | 74.02 | 78.74 | Qty 12 - 10-32 | HME | $89.75Backorder | Buy now |
| GRDBARV22 | 82.01 | 86.61 | Qty 14 - 10-32 | HME | $89.75Backorder | Buy now |
Horizontal Rack Mount Copper Busbar
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Mounting Dimensions · Height | Mounting Dimensions · Width | Number of · Ground Points | Ground · Lug Holes | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| GRDBAR19 | 0.75 | 19.00 | 0.19 | 0.75 | 19.00 | Qty 10 - 10-32 | Qty 2 Ø 0.31 | $64.90In stock | Buy now |
| GRDBAR23 | 0.75 | 23.00 | 0.19 | 0.75 | 23.00 | Qty 10 - 10-32 | Qty 2 Ø 0.31 | $71.39In stock | Buy now |
Details
- ■The GRDBAR Series comes in vertical, horizontal mounting as well as horizontal rack mounting.
- ■The grounding bar is made from heavy-gauge copper that attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds.
- ■Ground points have been drilled and tapped to accommodate a #10-32 screw (included).
- ■Use with our Bonding Wire Kits to bond your equipment to the busbar.
HME Busbar Specifications:
- ■Constructed of Solid 0.125” Copper with 10-32 drilled and tapped holes and
- ■1-0.312 main ground point.
- ■Mounts directly to grid straps or frame mounting surface.
- ■Busbar kit includes (quantities depend on product) 1x Copper Busbar 10-32 x 0.5 Screws Flat Washers
- ■1x Copper Busbar
- ■10-32 x 0.5 Screws
- ■Flat Washers
Rack Mount Busbar Specifications:
- ■Available in both 19 and 23 inch rack mounting widths.
- ■Constructed of Solid 0.188” Copper Bar
- ■Includes ten (10) 10-32 drilled and tapped holes spaced at one (1) inch.
- ■Includes two (2) Ø 0.31 ground lug holes.
- ■Mounts directly to EIA mounting rails.
- ■Busbar kit includes: 1x Copper Busbar 10x 10-32 x 0.375" Screws 2x 10-32 x 0.625" Screws 2x 12-24 x 0.625" Screws 2x 0.25" Flat Washers 12x #10 Flat Washers 1x Instruction bulletin
- ■1x Copper Busbar
- ■10x 10-32 x 0.375" Screws
- ■2x 10-32 x 0.625" Screws
- ■2x 12-24 x 0.625" Screws
- ■2x 0.25" Flat Washers
- ■12x #10 Flat Washers
- ■1x Instruction bulletin
