Hammond GRDBAR19 19 in Horizontal Rack Mount Copper Ground Busbar
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Horizontal copper busbar for 19 in racks, 19.00 in (483 mm) overall width
- Solid 0.188 in copper bar, 0.75 in high
- Ten 10-32 drilled and tapped ground points spaced at 1 in
- Two Ø0.31 in (8 mm) ground lug holes
- Mounts directly to EIA mounting rails via two 0.25 x 0.38 in slots
- Kit includes 10-32 and 12-24 mounting screws, bonding screws, washers and instructions
- REACH and RoHS compliant

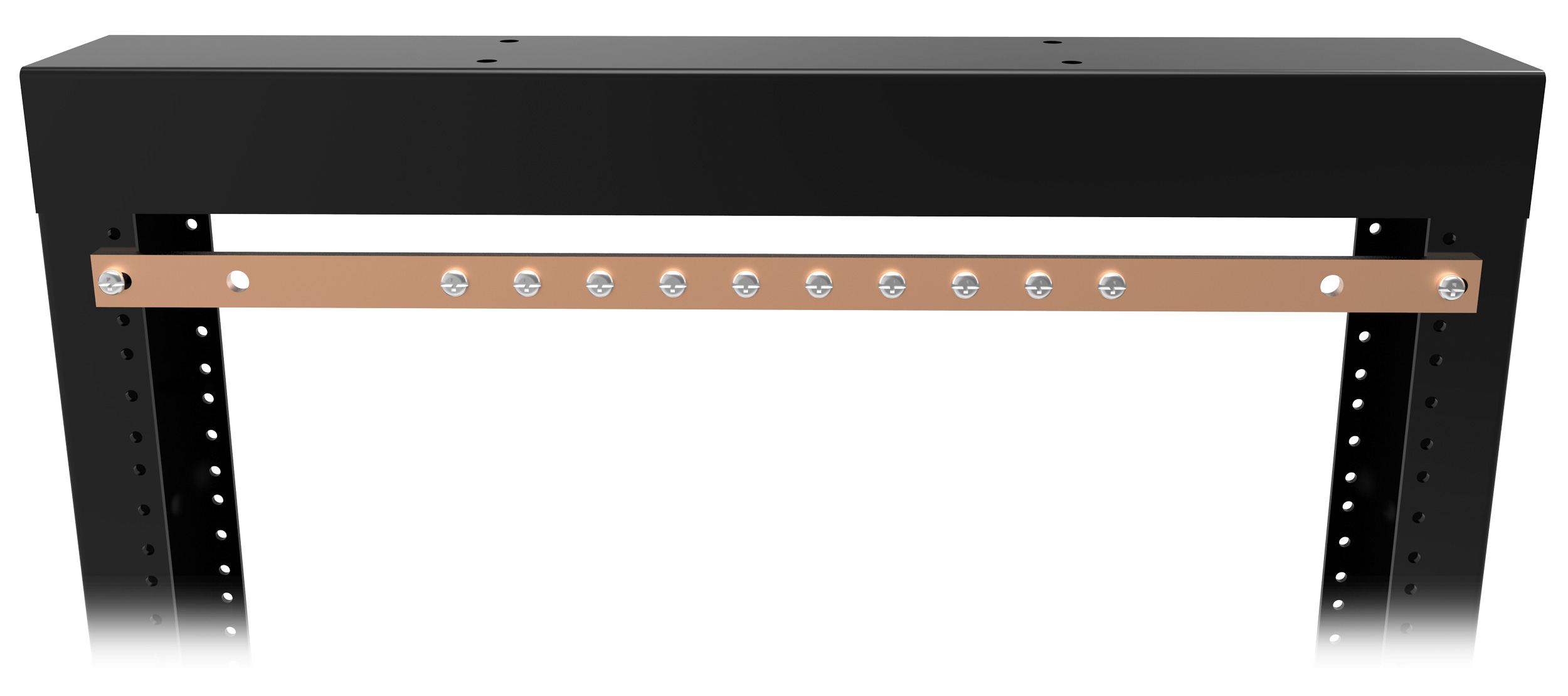

The GRDBAR19 is a 19 in horizontal rack mount copper busbar from the GRDBAR Series. It fastens across a 19 in rack to give integrators, electricians and facilities teams a single, consolidated grounding point for the equipment installed in an enclosure, cabinet or open frame rack.
The bar is solid 0.188 in copper, 0.75 in high, 19.00 in (483 mm) wide and 0.19 in (5 mm) deep. Ten ground points are drilled and tapped for 10-32 screws and spaced at 1 in, and two Ø0.31 in (8 mm) ground lug holes accept a main ground lug connection. Equipment can be bonded to the bar using Hammond Bonding Wire Kits.
Installation is direct to EIA mounting rails: the drawing shows two 0.25 x 0.38 in mounting slots spaced 18.31 in (465mm) apart, and the mounting dimensions match the overall size at 0.75 in x 19 in. The kit includes the copper busbar, ten 10-32 x 0.375 in screws for bonding, two 10-32 x 0.625 in and two 12-24 x 0.625 in screws for mounting, two 0.25 in flat washers, twelve #10 flat washers and an instruction bulletin.
The GRDBAR19 is REACH and RoHS compliant and has a shipping weight of 1.1 lbs (0.50 kg). For 23 in racks, the same design is offered as the GRDBAR23.
Ideal For
- Consolidated equipment grounding in 19 in racks
- Grounding inside enclosures and cabinets
- Open frame rack grounding
- Bonding equipment with bonding wire kits
Overview
| Type | Horizontal Rack Mount Copper Busbar |
| Series | GRDBAR Series - Copper Bonding Busbar |
| Bonding | Use with Hammond Bonding Wire Kits to bond equipment to the busbar |
| Purpose | Attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds |
| Rack Width | 19 in |
| Description | 19IN RACK MOUNT BUSBAR |
Dimensions
| Bar Size | 0.75" x 0.188" copper bar |
| Overall Depth | 0.19 in (5 mm) |
| Overall Width | 19.00 in (483 mm) |
| Overall Height | 0.75 in (19 mm) |
Electrical
| Ground Points | Qty 10 - 10-32 |
| Ground Lug Holes | Qty 2 Ø 0.31 in (8 mm) |
| Ground Point Spacing | 1 in (25 mm) |
Accessories
| Related Accessories | Rack Isolation Kit, Busbars |
Identifiers
| UPC | 623980935003 |
| UNSPSC | 39121117 |
| Part Number | GRDBAR19 |
Rack Mounting
| Mounting | Mounts directly to EIA mounting rails |
| Mounting Slots (Drawing) | 2X Ø0.25 x 0.38 in slot |
| Mounting Dimensions (Width) | 19.00 in (483 mm) |
| Mounting Dimensions (Height) | 0.75 in (19 mm) |
| Mounting Slot Spacing (Drawing) | 18.31in (465mm) |
Packaging & Shipping
| Kit Contents | 1x Copper Busbar; 10x 10-32 x 0.375" Screws; 2x 10-32 x 0.625" Screws; 2x 12-24 x 0.625" Screws; 2x 0.25" Flat Washers; 12x #10 Flat Washers; 1x Instruction bulletin |
| Shipping Weight | 1.1 lbs (0.50 kg) |
| Hardware Note (Drawing) | Includes 10-32 and 12-24 mounting hardware and (10) 10-32 screws for bonding to ground bar |
Construction & Finish
| Material | Solid 0.188" copper bar |
| Ground Point Threads | Drilled and tapped 10-32 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What rack width does the GRDBAR19 fit?▾
The GRDBAR19 is the 19 in version of the GRDBAR rack mount busbar, with an overall width of 19.00 in (483 mm), and mounts directly to EIA mounting rails. A 23 in version, GRDBAR23, is also offered.
How many ground points does it have?▾
It has ten 10-32 drilled and tapped ground points spaced at 1 in, plus two Ø0.31 in ground lug holes.
What hardware is included?▾
1x copper busbar, 10x 10-32 x 0.375 in screws, 2x 10-32 x 0.625 in screws, 2x 12-24 x 0.625 in screws, 2x 0.25 in flat washers, 12x #10 flat washers and 1x instruction bulletin.
What is the busbar made of?▾
Solid copper bar, 0.75 in x 0.188 in.
How much does the GRDBAR19 weigh?▾
The shipping weight is 1.1 lbs (0.50 kg).
