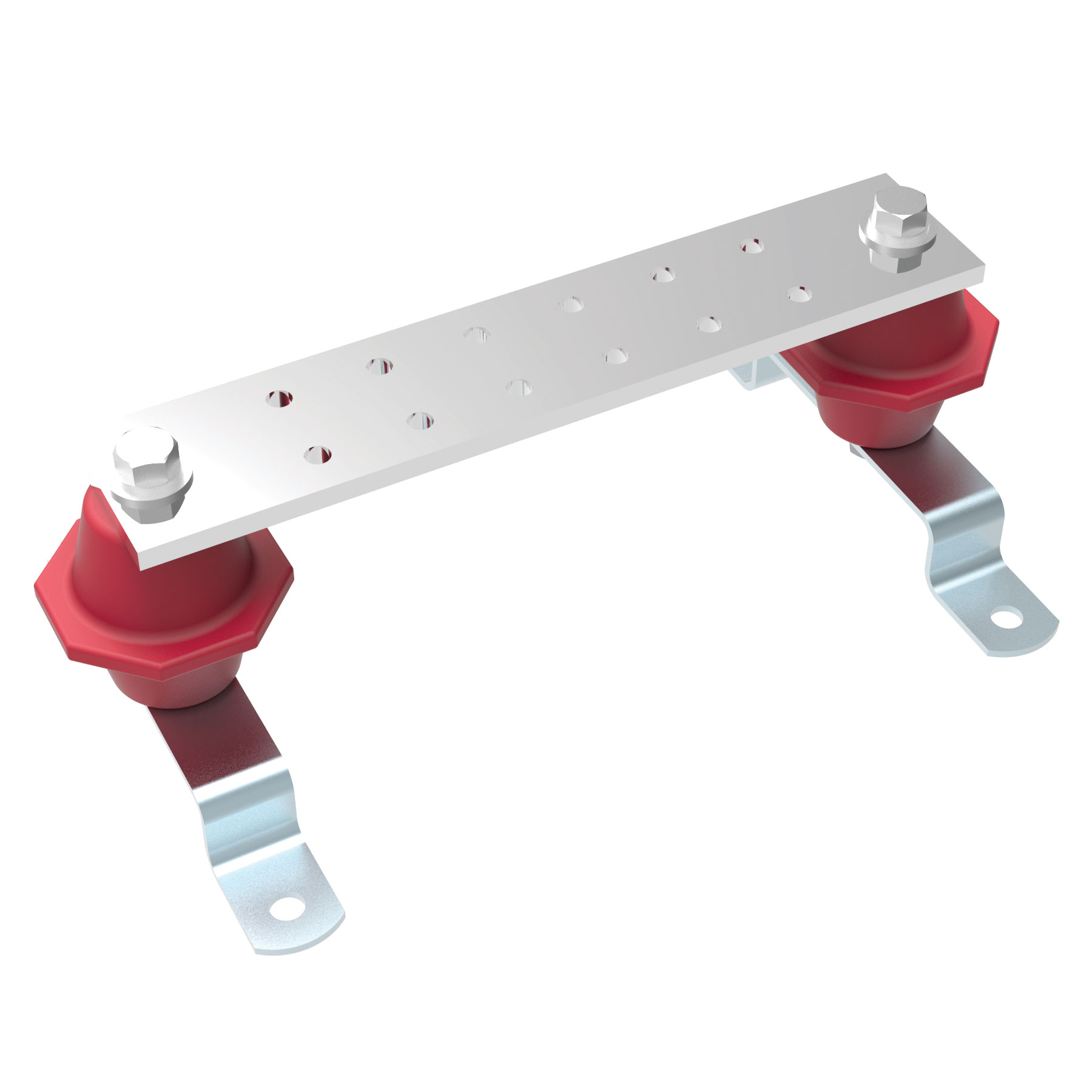

2X10IN Copper Ground Bus Bar
- Ground Lug Hole Qu 6 (1” on centers)
$149.27In stock
Buy now
Most Popular
Busbars · BUSBAR Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Constructed with UL Listed components.
- ■Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating. The thin tin coating acts as a shield, inhibiting copper oxidization. Copper oxidization causes poor electrical contact which then gets hot and increases the copper oxidization rate. Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
- ■The thin tin coating acts as a shield, inhibiting copper oxidization.
- ■Copper oxidization causes poor electrical contact which then gets hot and increases the copper oxidization rate.
- ■Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
- ■3200 Volt-rated Glass-Reinforced Thermoset Polyester insulators 180+ seconds of arc resistance UL 94 V0 flame resistance Ampacity and temp rise as follows (at 60 Hz), indoors at a 40°C ambient; 710 amps (at a 30°C rise) 940 amps (at a 50°C rise) 1100 amps (at a 65°C rise)
from $64.90
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BUSBAR Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
2 of 2 part numbers · 2 priced online

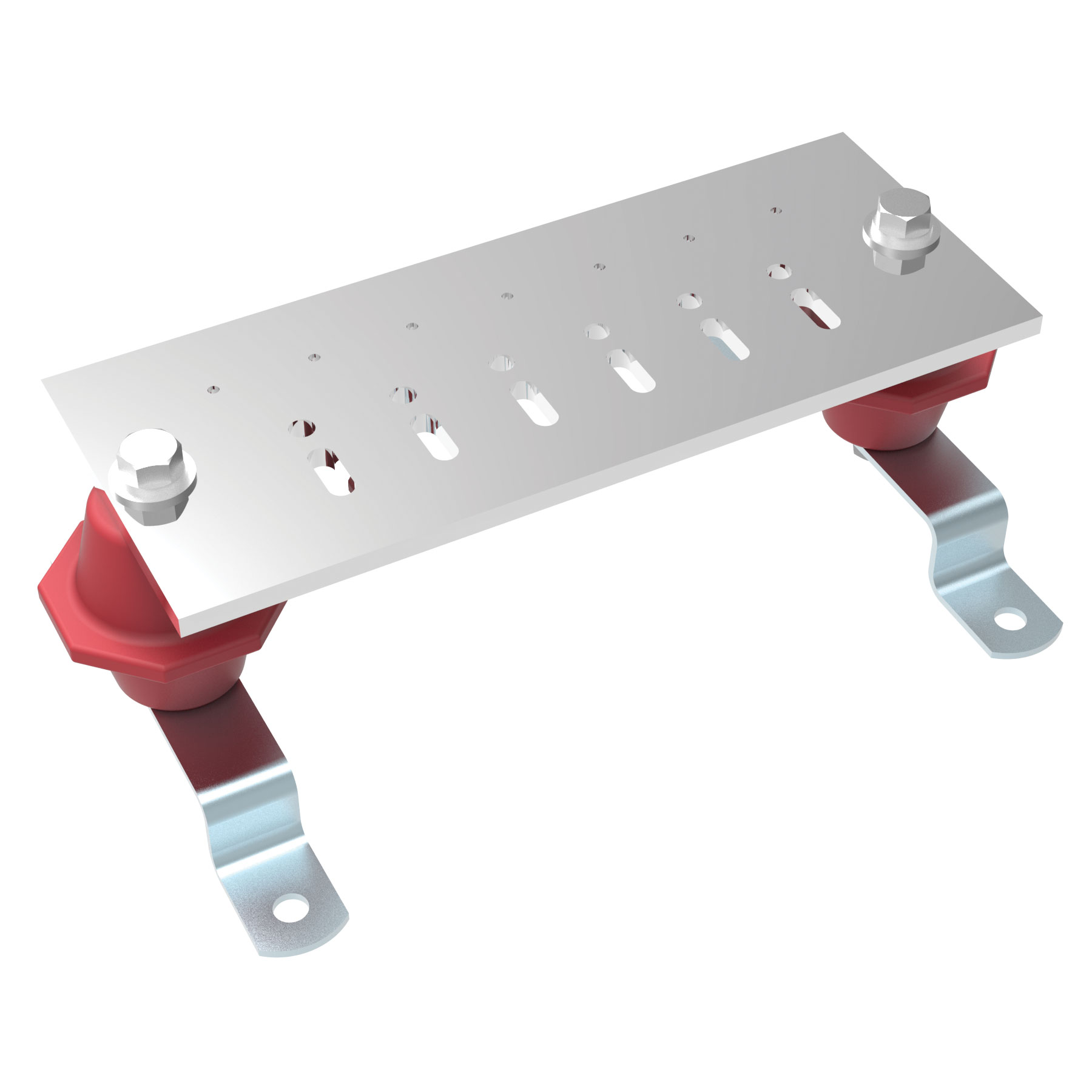

Copper Ground Bar, 4 X 10
- Ground Lug Hole Qu 6 (0.50” to 1” on centers)
$227.15In stock
Buy nowDimension tables (inches / mm)
Modular Busbar
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Length | Busbar Dimensions · Thickness | Busbar Dimensions · Width | Busbar Dimensions · Length | Ground Point Quantity · 9/32" · Diameter | Ground Point Quantity · 1/8" · Diameter | Ground Lug Hole Quantity · 1/4" · Single Hole | Ground Lug Hole Quantity · 1/4" · Double Hole | Insulators/ · Brackets · Included | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUSBAR2X10 | 4.15 | 6.63 | 11.50 | 0.25 | 2.00 | 10.00 | 12 | 0 | 12 | 6 (1” on centers) | 2 | $149.27In stock | Buy now |
| BUSBAR4X10 | 4.15 | 6.63 | 11.50 | 0.25 | 4.00 | 10.00 | 12 | 7 | 12 | 6 (0.50” to 1” on centers) | 2 | $227.15In stock | Buy now |
Horizontal Rack Mount Copper Busbar
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Mounting Dimensions · Height | Mounting Dimensions · Width | Number of · Ground Points | Ground · Lug Holes | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| GRDBAR19 | 0.75 | 19.00 | 0.19 | 0.75 | 19.00 | Qty 10 - 10-32 | Qty 2 Ø 0.31 | $64.90In stock | Buy now |
| GRDBAR23 | 0.75 | 23.00 | 0.19 | 0.75 | 23.00 | Qty 10 - 10-32 | Qty 2 Ø 0.31 | $71.39In stock | Buy now |
Features
- ■Constructed with UL Listed components.
- ■Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating. The thin tin coating acts as a shield, inhibiting copper oxidization. Copper oxidization causes poor electrical contact which then gets hot and increases the copper oxidization rate. Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
- ■The thin tin coating acts as a shield, inhibiting copper oxidization.
- ■Copper oxidization causes poor electrical contact which then gets hot and increases the copper oxidization rate.
- ■Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
- ■3200 Volt-rated Glass-Reinforced Thermoset Polyester insulators 180+ seconds of arc resistance UL 94 V0 flame resistance Ampacity and temp rise as follows (at 60 Hz), indoors at a 40°C ambient; 710 amps (at a 30°C rise) 940 amps (at a 50°C rise) 1100 amps (at a 65°C rise)
- ■180+ seconds of arc resistance
- ■UL 94 V0 flame resistance
- ■Ampacity and temp rise as follows (at 60 Hz), indoors at a 40°C ambient; 710 amps (at a 30°C rise) 940 amps (at a 50°C rise) 1100 amps (at a 65°C rise)
- ■710 amps (at a 30°C rise)
- ■940 amps (at a 50°C rise)
- ■1100 amps (at a 65°C rise)
- ■Mounting bracket holes 0.375” diameter
- ■Busbar available in 2” or 4” widths 10” in length 0.25” in thickness
- ■10” in length
- ■0.25” in thickness
- ■Hardware: ¼-20 x 0.75” length stainless steel Phillips machine screw (12 pcs.) ¼ stainless steel lock washer (12 pcs.) ¼-20 stainless steel hex nut (12 pcs.)
- ■¼-20 x 0.75” length stainless steel Phillips machine screw (12 pcs.)
- ■¼ stainless steel lock washer (12 pcs.)
- ■¼-20 stainless steel hex nut (12 pcs.)
- ■TAA compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
