Hammond BUSBAR2X10 2 x 10 in Tin-Plated Copper Ground Busbar
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Tin-plated copper bar 2.00 in (51 mm) wide x 10.00 in (254 mm) long x 0.25 in (6 mm) thick for central equipment grounding
- Electro tin plating, 100/300 micro inches, inhibits copper oxidization that causes hot joints and contact arcing
- 12 ground points at 9/32 in diameter: 12 single-hole or 6 double-hole 1/4 in lugs on 1 in centers
- Two factory-installed insulators/brackets included; 3200 V glass-reinforced thermoset polyester, UL 94 V0, 180+ sec arc resistance
- Includes 12 x 1/4-20 x 3/4 in stainless screws, 12 x 1/4 in lock washers and 12 x 1/4-20 hex nuts
- 12 GA stainless steel mounting brackets with 0.375 in diameter mounting holes
- Constructed with UL Listed components; RoHS, REACH and USMCA compliant; TAA compliant for GSA Schedule purchases
- Manufactured in North America; 3.5 lbs (1.59 kg) shipping weight

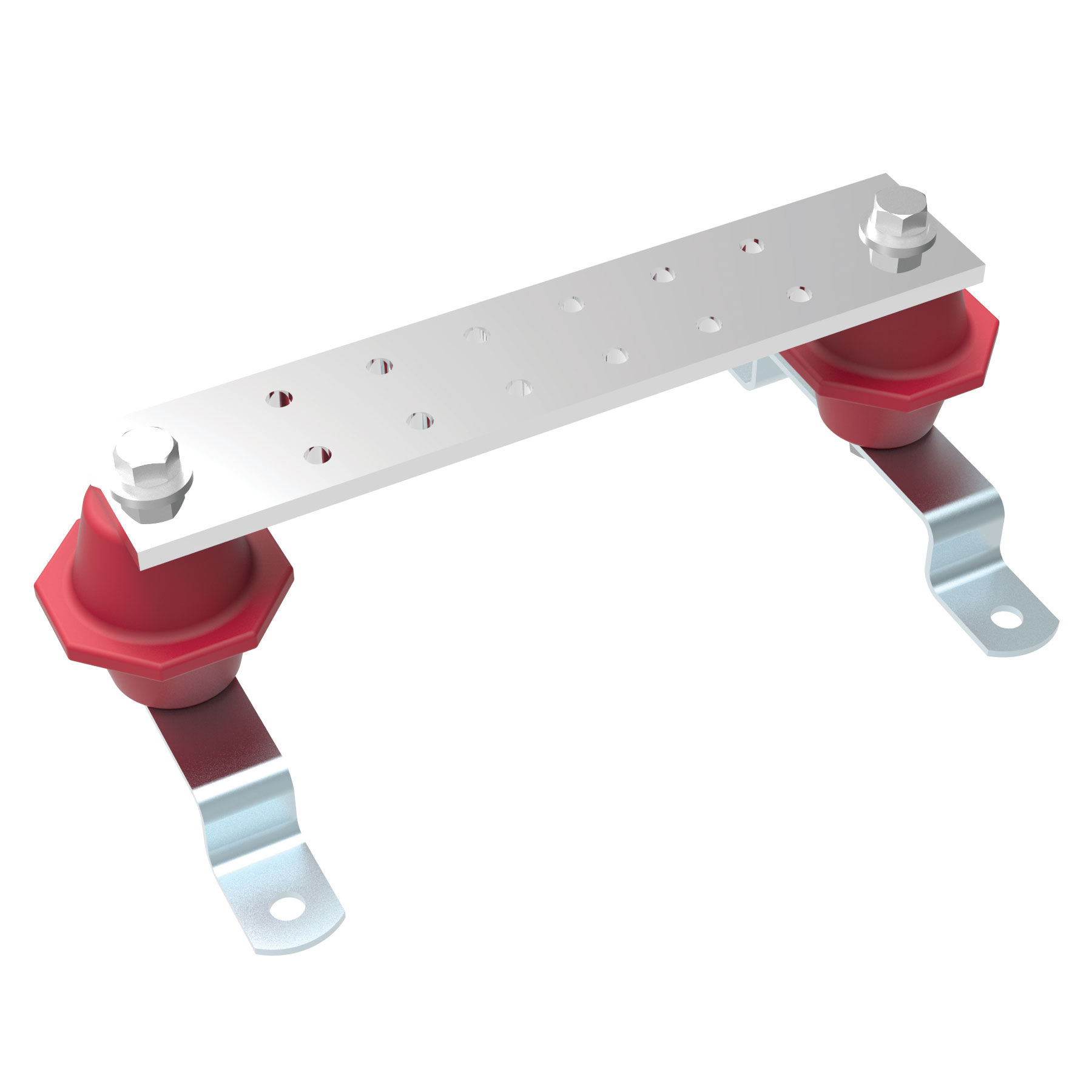

BUSBAR2X10 is a modular ground busbar that serves as a central grounding point for equipment, giving electricians, telecom technicians and data centre teams a single, low-impedance bonding point for racks, cabinets, cable shields and chassis grounds. It ships with factory-installed insulators and mounting brackets plus the stainless steel hardware needed to attach lugs.
The bar itself is electro tin plated copper with 100/300 micro inches of plating. The thin tin coating acts as a shield, inhibiting copper oxidization, which otherwise causes poor electrical contact that gets hot and increases the oxidization rate; oxides also cause arcing at the electrical contacts, eroding the copper. Insulators are glass-reinforced thermoset polyester (Polyglas-polyester with fiberglass) rated 3200 volts, with 180+ seconds of arc resistance and UL 94 V0 flame resistance. Mounting brackets are 12 GA stainless steel, and the assembly is constructed with UL Listed components.
The copper bar measures 2.00 in (51 mm) wide, 10.00 in (254 mm) long and 0.25 in (6 mm) thick. Overall assembly dimensions are 4.15 in (105 mm) high, 6.63 in (168 mm) wide and 11.50 in (292 mm) long, and shipping weight is 3.5 lbs (1.59 kg).
Hole provisions on BUSBAR2X10 include 12 ground points at 9/32 in (0.281 in / 7.14 mm) diameter, supporting 12 single-hole 1/4 in ground lugs or 6 double-hole 1/4 in lugs on 1 in centers. Two insulators/brackets are included, with 0.375 in diameter mounting bracket holes for fastening to a wall, rack or other structure. Supplied hardware comprises 12 each of 1/4-20 x 3/4 in stainless steel Phillips machine screws, 1/4 in stainless steel lock washers and 1/4-20 stainless steel hex nuts.
This part is RoHS and REACH compliant, USMCA compliant, TAA compliant for GSA Schedule purchases, and manufactured in North America.
Ideal For
- Central grounding point for equipment racks and cabinets
- Telecommunications ground bar and bonding systems
- Data centre and network room bonding terminations
- Wall- or structure-mounted bonding bar for shield and chassis grounds
- TAA/GSA Schedule government and federal grounding projects
Overview
| Type | Modular busbar / central grounding point |
| Series | BUSBAR Series (Modular Busbar) |
| Description | 2X10IN COPPER GROUND BUS BAR |
| Part Number | BUSBAR2X10 |
Dimensions
| Busbar Width | 2.00 in (51 mm) |
| Nominal Size | 2 in x 10 in |
| Busbar Length | 10.00 in (254 mm) |
| Overall Width | 6.63 in (168 mm) |
| Overall Height | 4.15 in (105 mm) |
| Overall Length | 11.50 in (292 mm) |
| Busbar Thickness | 0.25 in (6 mm) |
Electrical
| Insulator Voltage Rating | 3200 V |
| Ampacity (60 Hz, Indoors, 40°C Ambient) | 710 amps at 30°C rise; 940 amps at 50°C rise; 1100 amps at 65°C rise |
Identifiers
| UPC | 623980031569 |
| UNSPSC | 39121117 |
| GTIN-14 | 00623980031569 |
| UPC W/o Check Digit | 62398003156 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 3.5 lbs (1.59 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Bar Material | Electro tin plated copper, 100/300 micro inches of plating |
| Included Hardware | 12 x 1/4-20 x 0.75 in stainless steel Phillips machine screws; 12 x 1/4 in stainless steel lock washers; 12 x 1/4-20 stainless steel hex nuts |
| Insulator Material | Glass-reinforced thermoset polyester (Polyglas-polyester with fiberglass) |
| Mounting Bracket Material | 12 GA stainless steel |
Hole Pattern & Mounting
| Mounting Bracket Holes | 4 x 9.53 mm (0.375 in) diameter |
| Insulators/Brackets Included | 2 |
| Ground Lug Holes, 1/4 In Double Hole | 6 (1 in on centers) |
| Ground Lug Holes, 1/4 In Single Hole | 12 |
| Ground Point Quantity (1/8 In Diameter) | 0 |
| Ground Point Quantity (9/32 In Diameter) | 12 |
Environmental & Protection
| Arc Resistance (Insulators) | 180+ seconds |
| Flame Resistance (Insulators) | UL 94 V0 |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant for GSA Schedule purchases |
| Components | Constructed with UL Listed components |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the copper bar on BUSBAR2X10?▾
The bar measures 2.00 in (51 mm) wide, 10.00 in (254 mm) long and 0.25 in (6 mm) thick. With the insulators and brackets installed, the overall assembly is 4.15 in (105 mm) high, 6.63 in (168 mm) wide and 11.50 in (292 mm) long.
How many ground lugs can it accept?▾
BUSBAR2X10 has 12 ground points at 9/32 in diameter, which accommodate 12 single-hole 1/4 in lugs or 6 double-hole 1/4 in lugs on 1 in centers. There are no 1/8 in diameter ground points on this model.
Are insulators and mounting hardware included?▾
Yes. Two insulators/brackets are factory-installed, and the assembly includes 12 stainless steel 1/4-20 x 3/4 in Phillips machine screws, 12 stainless steel 1/4 in lock washers and 12 stainless steel 1/4-20 hex nuts.
What is the current-carrying capability?▾
Ampacity and temperature rise at 60 Hz, indoors at a 40°C ambient are 710 amps at a 30°C rise, 940 amps at a 50°C rise and 1100 amps at a 65°C rise. The insulators are rated 3200 volts.
Why is the copper tin plated?▾
The electro tin plating (100/300 micro inches) acts as a shield that inhibits copper oxidization. Oxidization causes poor electrical contact that gets hot and accelerates further oxidization, and oxides also cause arcing at electrical contacts, eroding the copper.
Is BUSBAR2X10 suitable for government purchases?▾
It is TAA compliant for GSA Schedule purchases, USMCA compliant, RoHS and REACH compliant, and manufactured in North America.
How is the busbar mounted?▾
The stainless steel mounting brackets have four 0.375 in (9.53 mm) diameter holes for fastening the insulated assembly to the supporting structure.
