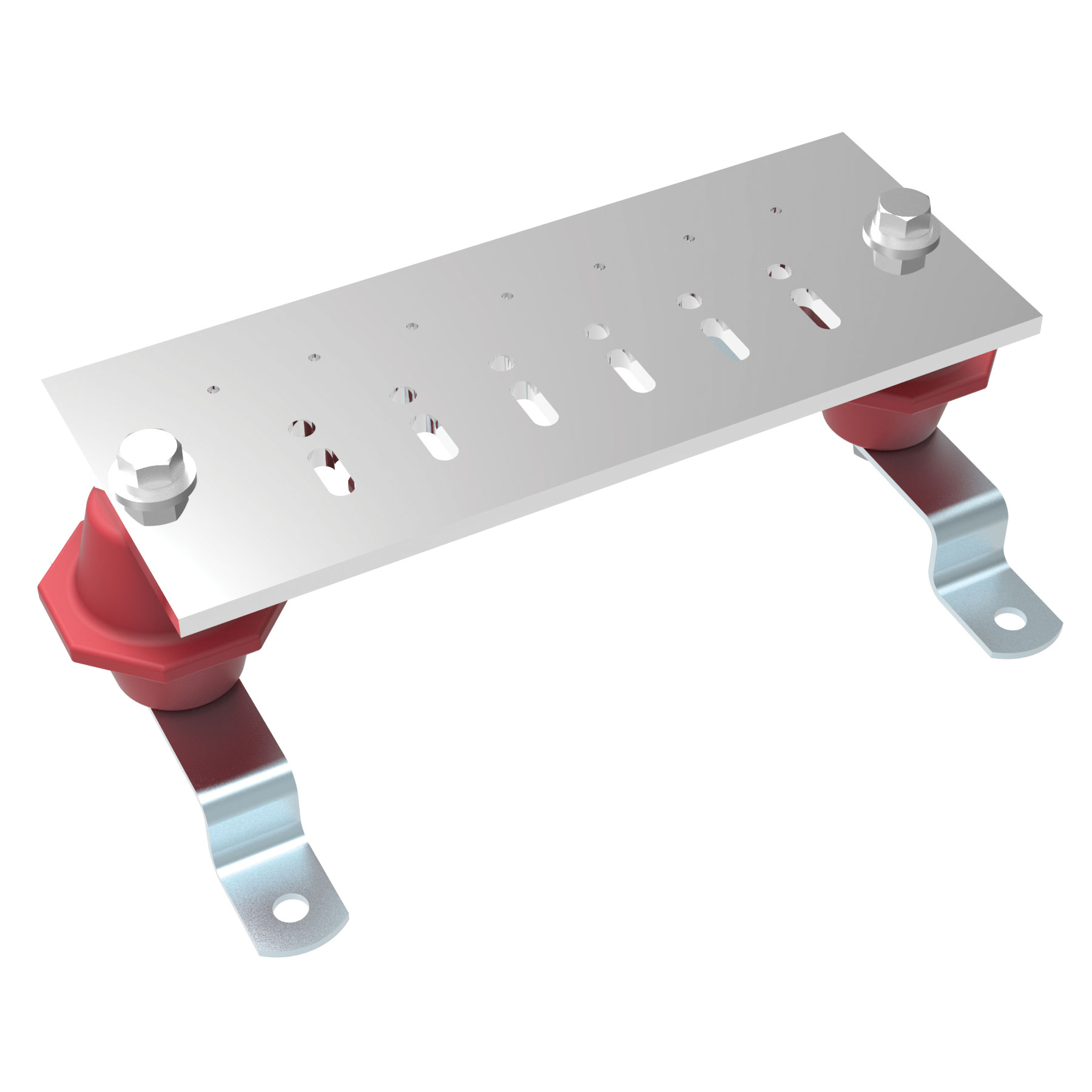

Hammond BUSBAR4X10 4 x 10 in Tin-Plated Copper Ground Busbar
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.00 in (102 mm) x 10.00 in (254 mm) x 0.25 in (6 mm) electro tin plated copper bar for central equipment grounding
- 12 ground points at 9/32 in diameter plus 7 at 1/8 in diameter for varied lug and conductor sizes
- 12 single 1/4 in ground lug holes and 6 double 1/4 in lug holes at 0.50 in to 1 in on centers
- Two factory-installed insulators and 12 GA. stainless steel mounting brackets included; bracket holes 0.375 in diameter
- 3200 V-rated glass-reinforced thermoset polyester insulators, 180+ seconds arc resistance, UL 94 V0 flame resistance
- Hardware included: 12 x 1/4-20 x 3/4 in stainless screws, 12 stainless lock washers, 12 stainless 1/4-20 hex nuts
- Built with UL Listed components; RoHS, REACH and USMCA compliant and TAA compliant for GSA Schedule purchases
- Manufactured in North America; 5 lbs (2.27 kg) shipping weight
BUSBAR4X10 is a tin-plated copper ground bar assembly that serves as a central grounding point for equipment in a bonding system. It suits IT and telecom installers, electricians, AV integrators and facilities teams who need a single, low-impedance point to terminate equipment grounding and bonding conductors. The bar itself measures 4.00 in (102 mm) wide, 10.00 in (254 mm) long and 0.25 in (6 mm) thick, making this the wider of the two 10 in modular busbars in the series.
Construction is electro tin plated copper with 100/300 micro inches of plating. The thin tin coating acts as a shield, inhibiting copper oxidization — oxidization causes poor electrical contact that then gets hot and increases the oxidization rate, while oxides, because of their poor conductivity, also cause arcing at the electrical contacts and erode the copper. The assembly ships with two factory-installed insulators and mounting brackets: the isolators are Polyglas-polyester with fiberglass, and the 12 GA. stainless steel brackets have 0.375 in diameter mounting holes.
Hole patterns on BUSBAR4X10 include 12 ground points at 9/32 in diameter, 7 ground points at 1/8 in diameter, 12 single 1/4 in ground lug holes and 6 double 1/4 in lug holes (0.50 in to 1 in on centers). Overall assembly dimensions are 4.15 in (105 mm) high, 6.63 in (168 mm) wide and 11.50 in (292 mm) long, with a shipping weight of 5 lbs (2.27 kg).
The 3200 volt-rated glass-reinforced thermoset polyester insulators offer 180+ seconds of arc resistance and UL 94 V0 flame resistance. The assembly is built with UL Listed components, is RoHS, REACH and USMCA compliant, TAA compliant for GSA Schedule purchases, and is manufactured in North America. Mounting hardware is included: 12 stainless steel 1/4-20 x 3/4 in Phillips machine screws, 12 stainless steel 1/4 in lock washers and 12 stainless steel 1/4-20 hex nuts.
Ideal For
- Central grounding point for equipment in a bonding system
- Telecommunications ground bar for telco and network rooms
- Bonding bar for data center and IT equipment grounding
- Terminating multiple ground lugs and bonding conductors
- TAA/GSA Schedule grounding infrastructure projects
Overview
| Type | Modular busbar / central grounding point for equipment |
| Series | BUSBAR Series (Modular Busbar) |
| Description | Copper Ground Bar, 4 x 10 |
| Part Number | BUSBAR4X10 |
Dimensions
| Busbar Width | 4.00 in (102 mm) / 101.60 mm |
| Busbar Length | 10.00 in (254 mm) / 254.00 mm |
| Overall Width | 6.63 in (168 mm) |
| Overall Height | 4.15 in (105 mm) |
| Overall Length | 11.50 in (292 mm) / 292.10 mm |
| Busbar Thickness | 0.25 in (6 mm) / 6.35 mm |
| Assembly Height (Drawing) | 105.44 mm [4.151 in] |
| Insulator Spacing (Drawing) | 146.05 mm [5.750 in] |
| Mounting Hole Spacing (Drawing) | 228.60 mm [9.000 in] |
Electrical
| Ampacity At 30°C Rise | 710 amps (at 60 Hz, indoors, 40°C ambient) |
| Ampacity At 50°C Rise | 940 amps (at 60 Hz, indoors, 40°C ambient) |
| Ampacity At 65°C Rise | 1100 amps (at 60 Hz, indoors, 40°C ambient) |
| Insulator Voltage Rating | 3200 V |
Identifiers
| UPC | 623980031576 |
| UNSPSC | 39121117 |
| GTIN-14 | 00623980031576 |
| UPC W/o Check Digit | 62398003157 |
Hole Patterns
| Drawing Hole Call-Outs | 6 x ⌀7.14 mm [⌀0.281 in]; 7 x ⌀3.18 mm [⌀0.125 in] |
| Mounting Bracket Holes | 0.375 in diameter (4 x ⌀9.53 mm) |
| Ground Points, 1/8 In Diameter | 7 |
| Ground Points, 9/32 In Diameter | 12 |
| Ground Lug Holes, 1/4 In Double Hole | 6 (0.50 in to 1 in on centers) |
| Ground Lug Holes, 1/4 In Single Hole | 12 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 5 lbs (2.27 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Bar Material | Electro tin plated copper, 100/300 micro inches of plating |
| Included Hardware | 12 x 1/4-20 x 3/4 in stainless steel Phillips machine screws; 12 x 1/4 in stainless steel lock washers; 12 x 1/4-20 stainless steel hex nuts |
| Mounting Brackets | 12 GA. stainless steel |
| Insulator Material | Glass-reinforced thermoset polyester (Polyglas-polyester with fiberglass) |
| Insulators / Brackets Included | 2 |
Environmental & Protection
| Arc Resistance (Insulators) | 180+ seconds |
| Flame Resistance (Insulators) | UL 94 V0 |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant (for GSA Schedule purchases) |
| Components | Constructed with UL Listed components |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the copper bar on BUSBAR4X10?▾
The bar is 4.00 in (102 mm) wide, 10.00 in (254 mm) long and 0.25 in (6 mm) thick. Overall assembly dimensions with insulators and brackets are 4.15 in (105 mm) high, 6.63 in (168 mm) wide and 11.50 in (292 mm) long.
Are insulators and mounting hardware included?▾
Yes. BUSBAR4X10 includes two factory-installed insulators with 12 GA. stainless steel mounting brackets, plus 12 stainless steel 1/4-20 x 3/4 in Phillips machine screws, 12 stainless steel 1/4 in lock washers and 12 stainless steel 1/4-20 hex nuts.
What hole patterns does it have?▾
It provides 12 ground points at 9/32 in diameter, 7 ground points at 1/8 in diameter, 12 single 1/4 in ground lug holes and 6 double 1/4 in lug holes spaced 0.50 in to 1 in on centers. Mounting bracket holes are 0.375 in diameter.
What ampacity do the insulators support?▾
With the 3200 V-rated glass-reinforced thermoset polyester insulators, ampacity and temperature rise at 60 Hz indoors at 40°C ambient are 710 amps at a 30°C rise, 940 amps at a 50°C rise and 1100 amps at a 65°C rise.
Why is the copper tin plated?▾
The bar is electro tin plated with 100/300 micro inches of plating. The thin tin coating inhibits copper oxidization, which otherwise causes poor electrical contact, heating, and arcing at contacts that erodes the copper.
Is BUSBAR4X10 suitable for government purchases?▾
It is TAA compliant for GSA Schedule purchases, and is RoHS, REACH and USMCA compliant. Country of origin is CA and it is manufactured in North America.
How does BUSBAR4X10 differ from BUSBAR2X10?▾
Both share the same 10.00 in length, 0.25 in thickness and overall dimensions, but BUSBAR4X10 uses a 4.00 in wide bar and adds 7 ground points at 1/8 in diameter, with double 1/4 in lug holes at 0.50 in to 1 in on centers.
