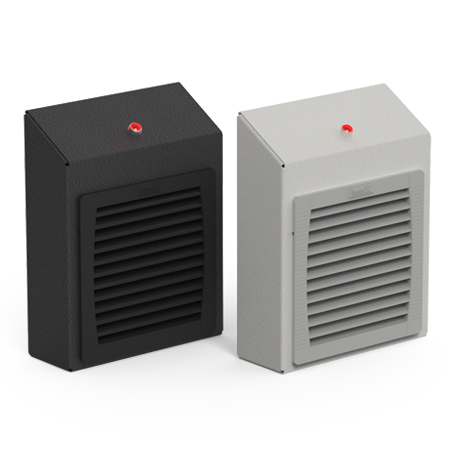

Datawind Filterfans DPF Series

Datawind Filterfans · DPF Series

Brand: Hammond Manufacturing · 18 part numbers

Type 12

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure

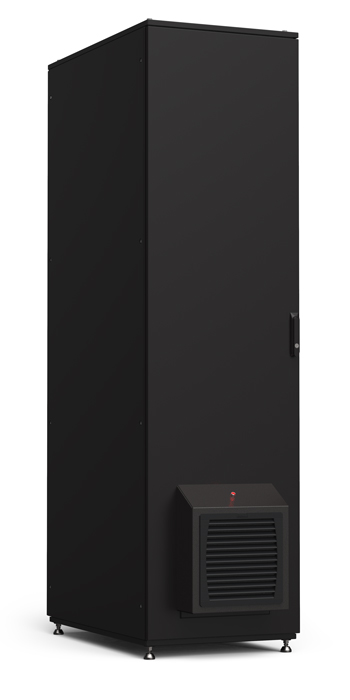

  • ■Externally mounted for space restricted installations such as control panels and IT equipment racks
  • ■30 degree slope top housing to avoid dust collection
  • ■IEC power connector 6 foot long cable - NEMA 5-15P (115V) and IEC C14 (230V)
  • ■Thermostat with 13 foot long cable allows for placement near heat sensitive locations
  • ■Maintenance LED indication light shows filter status

from $44.32

18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your DPF Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 12 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part Number · White RAL9003Part Number · Black RAL9004VoltageFree Flow · CFMHWDExhaust Filter · Light Gray RAL7035 (Part No.)Exhaust Filter · Black RAL9011 (Part No.)PriceOrder
DPF22000A115WHDPF22000A115BK115 VAC389.406.802.76PFA20000LGPFA20000BK$488.41BackorderDPF22000A115WHBuy now
DPF22000A230WHDPF22000A230BK230 VAC389.406.802.76PFA20000LGPFA20000BK$515.75BackorderDPF22000A230WHBuy now
DPF33000A115WHDPF33000A115BK115 VAC15211.909.303.30PFA30000LGPFA30000BK$646.38BackorderDPF33000A115WHBuy now
DPF33000A230WHDPF33000A230BK230 VAC15211.909.303.30PFA30000LGPFA30000BK$678.83BackorderDPF33000A230WHBuy now
DPF67000A115WHDPF67000A115BK115 VAC56017.5014.905.50PFA60000LGPFA60000BK$981.10BackorderDPF67000A115WHBuy now
DPF67000A230WHDPF67000A230BK230 VAC56017.5014.905.50PFA60000LGPFA60000BK$1,027.21BackorderDPF67000A230WHBuy now

Features

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■Externally mounted for space restricted installations such as control panels and IT equipment racks
  • ■30 degree slope top housing to avoid dust collection
  • ■IEC power connector 6 foot long cable - NEMA 5-15P (115V) and IEC C14 (230V)
  • ■Thermostat with 13 foot long cable allows for placement near heat sensitive locations
  • ■Maintenance LED indication light shows filter status
  • ■Plastic components made from strong, heat resistant (ABS-FR), UL94-V0 fire approved material
  • ■Fluted filter-mat provides longer service life, holding more dust before impeding airflow extending the mean time between maintenance; especially critical for those located in less accessible areas
  • ■Metal housing offered in White (RAL 9003) and Black (RAL 9004) with complementary plastic fan grill
  • ■NOTE - Datawind fan packages pressurize cabinets (push air in) so an exhaust location is needed as a path for heat to escape the cabinet. See table below for exhaust filter options

Documents

Specification SheetDatawind Manual

Additional information

Part Details

Part Number · White RAL9003Part Number · Black RAL9004VoltageFree Flow · CFMHWDExhaust Filter · Light Gray RAL7035Exhaust Filter · Black RAL9011
DPF22000A115WHDPF22000A115BK115 VAC389.406.802.76PFA20000LGPFA20000BK
DPF22000A230WHDPF22000A230BK230 VAC389.406.802.76PFA20000LGPFA20000BK
DPF33000A115WHDPF33000A115BK115 VAC15211.909.303.30PFA30000LGPFA30000BK
DPF33000A230WHDPF33000A230BK230 VAC15211.909.303.30PFA30000LGPFA30000BK
DPF67000A115WHDPF67000A115BK115 VAC56017.5014.905.50PFA60000LGPFA60000BK
DPF67000A230WHDPF67000A230BK230 VAC56017.5014.905.50PFA60000LGPFA60000BK
