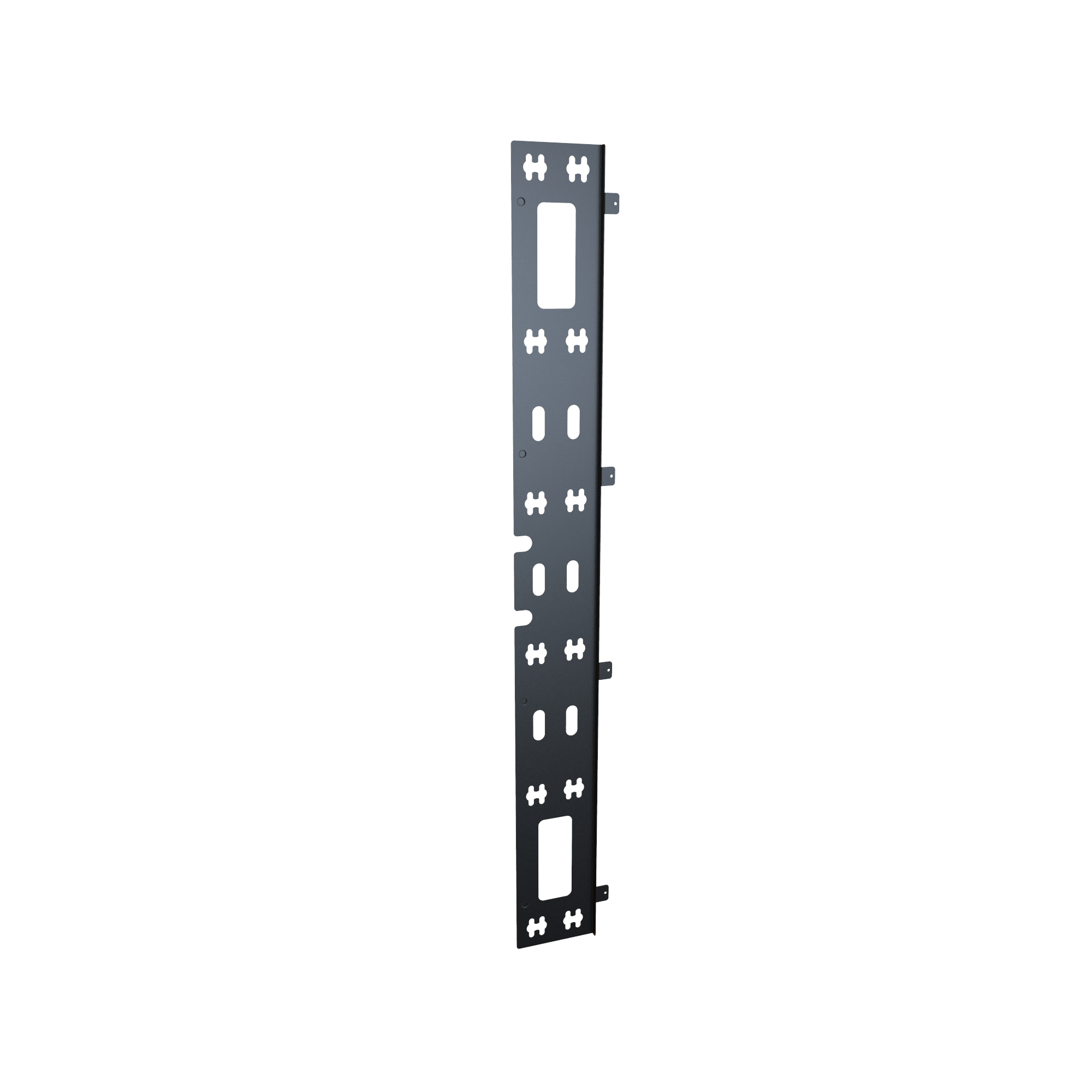

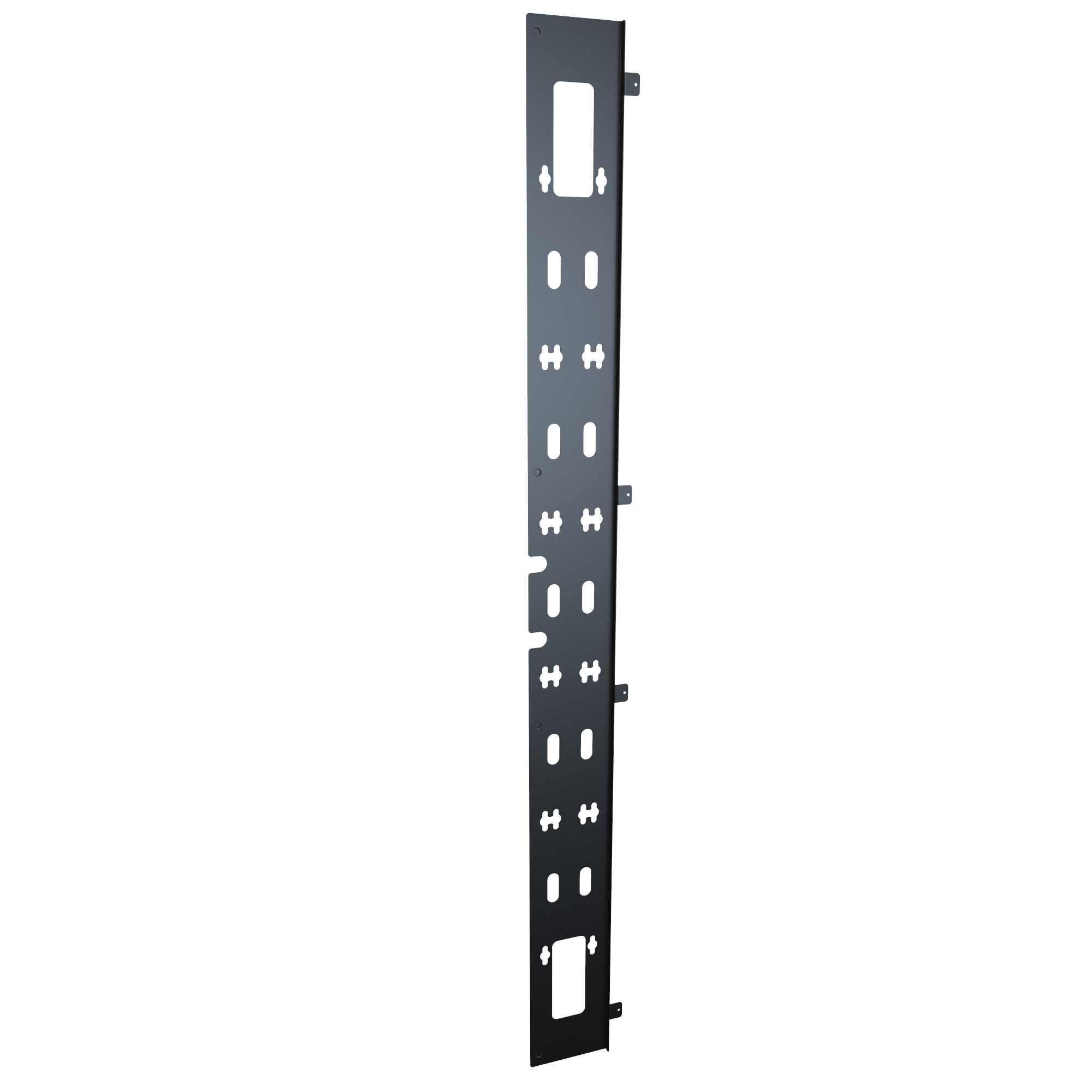

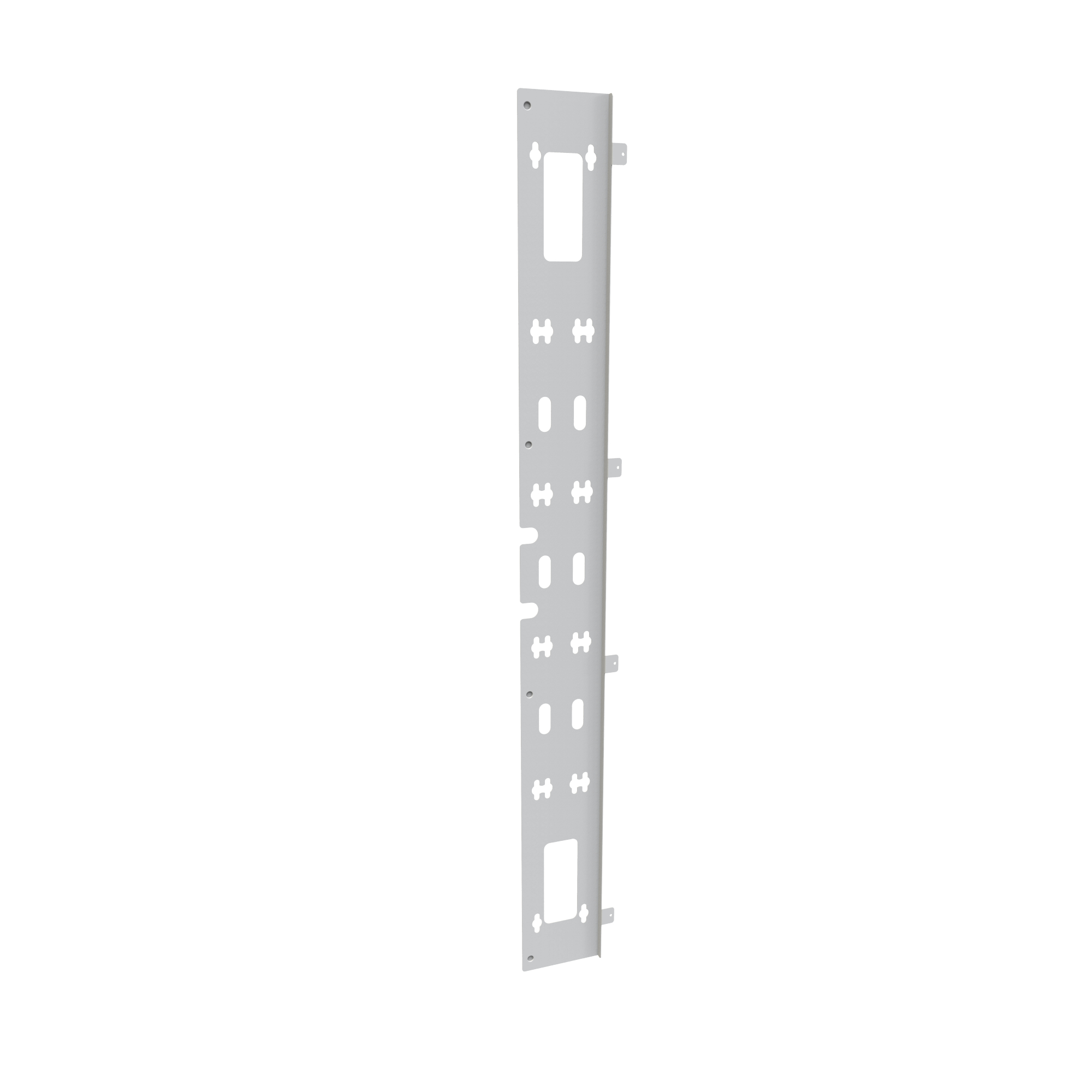

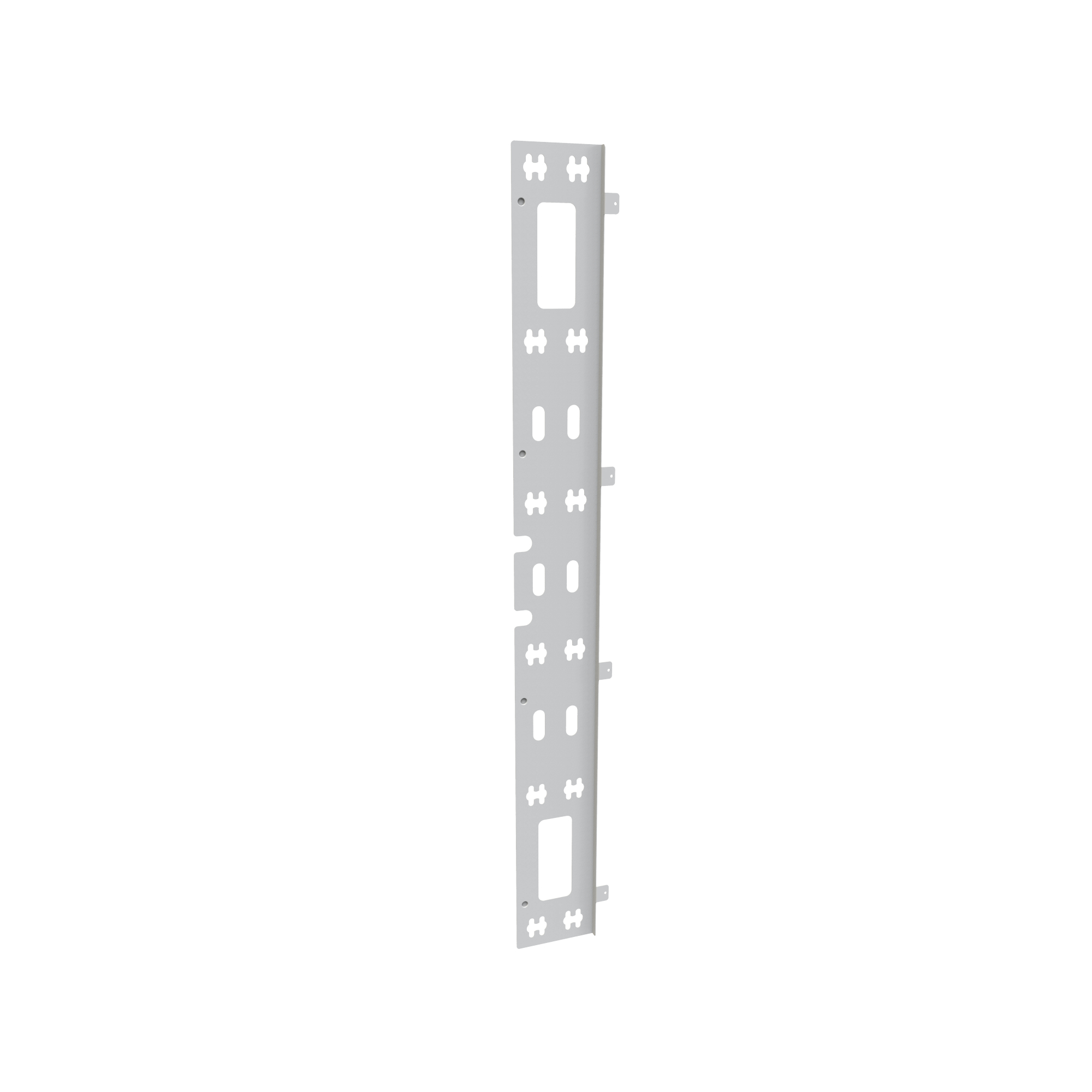

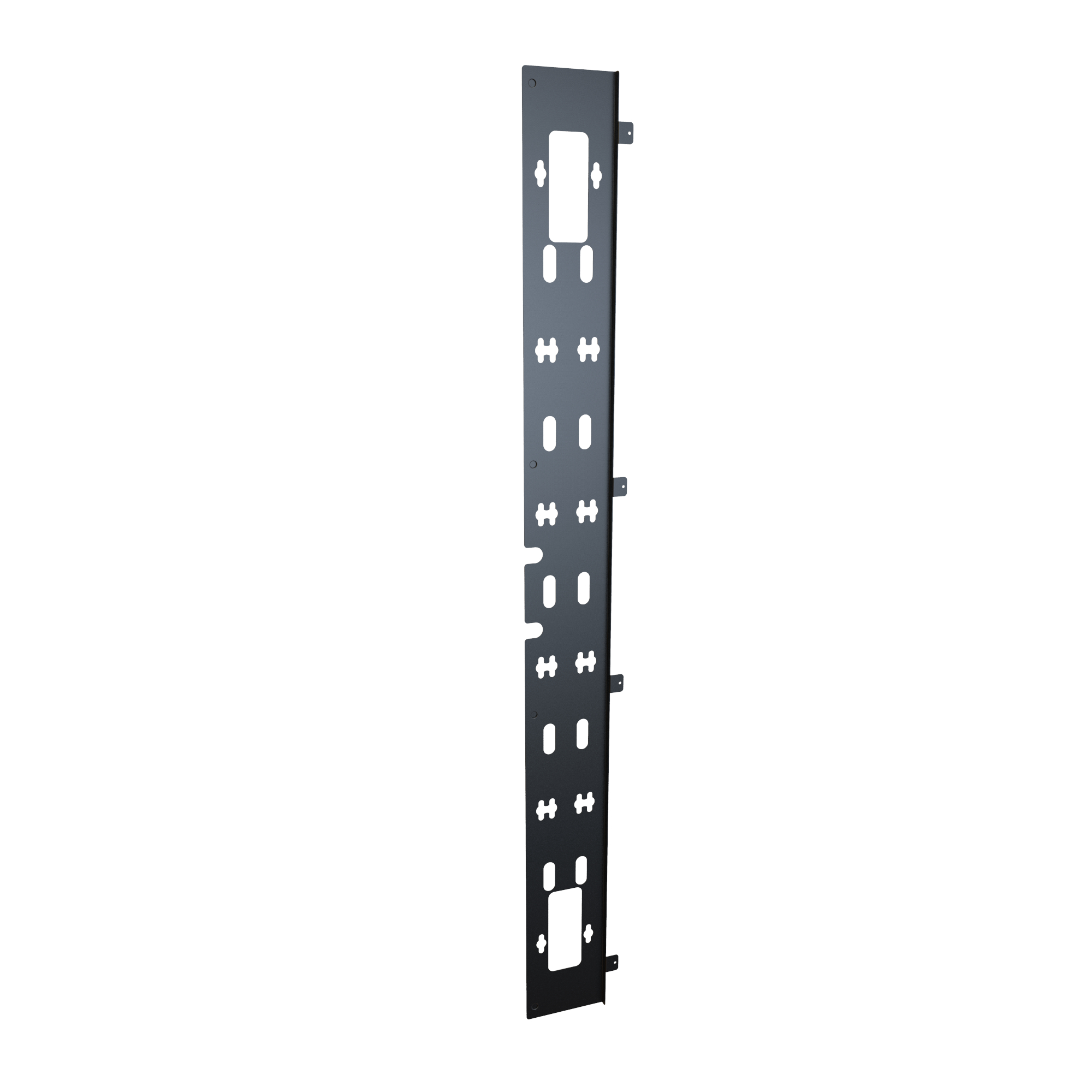

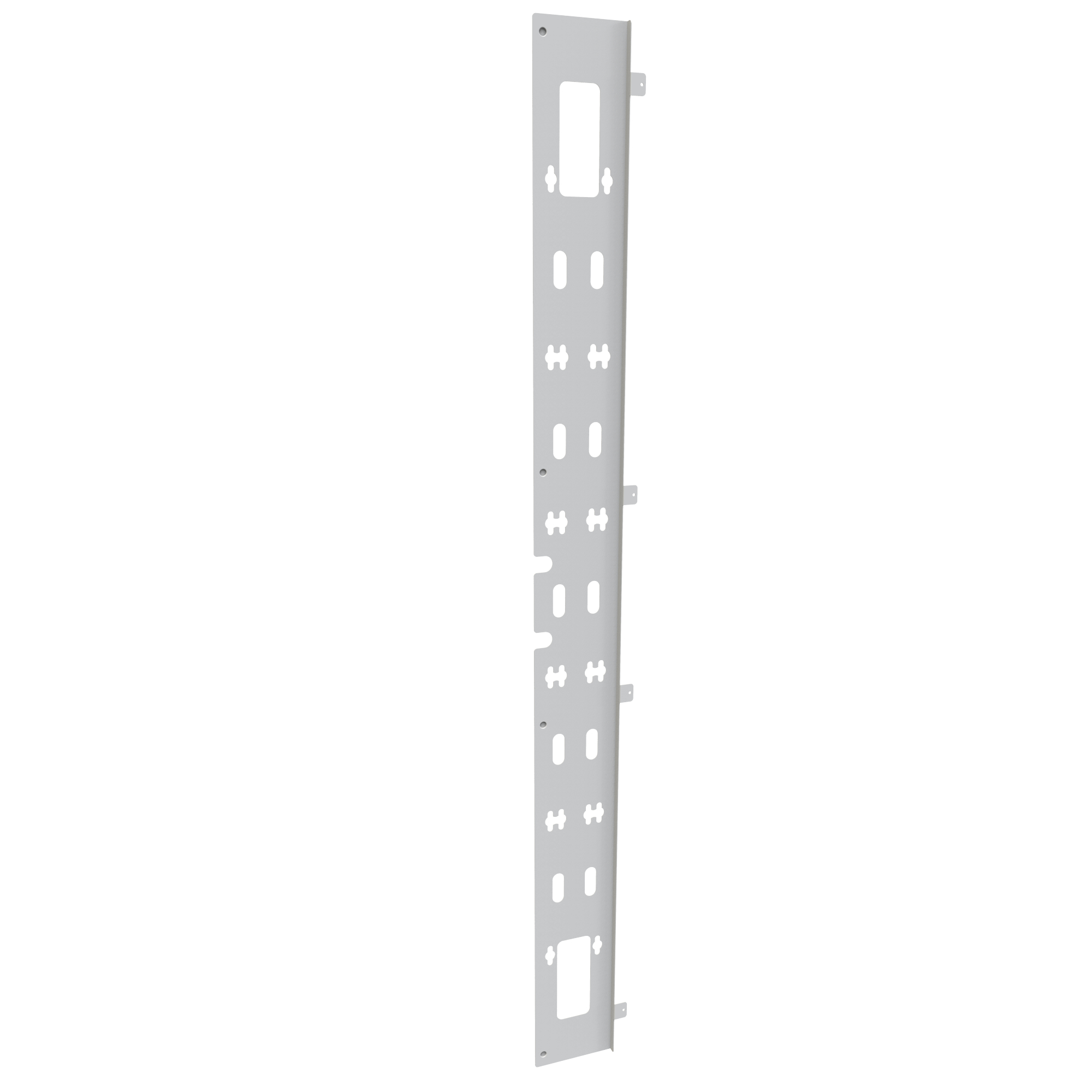

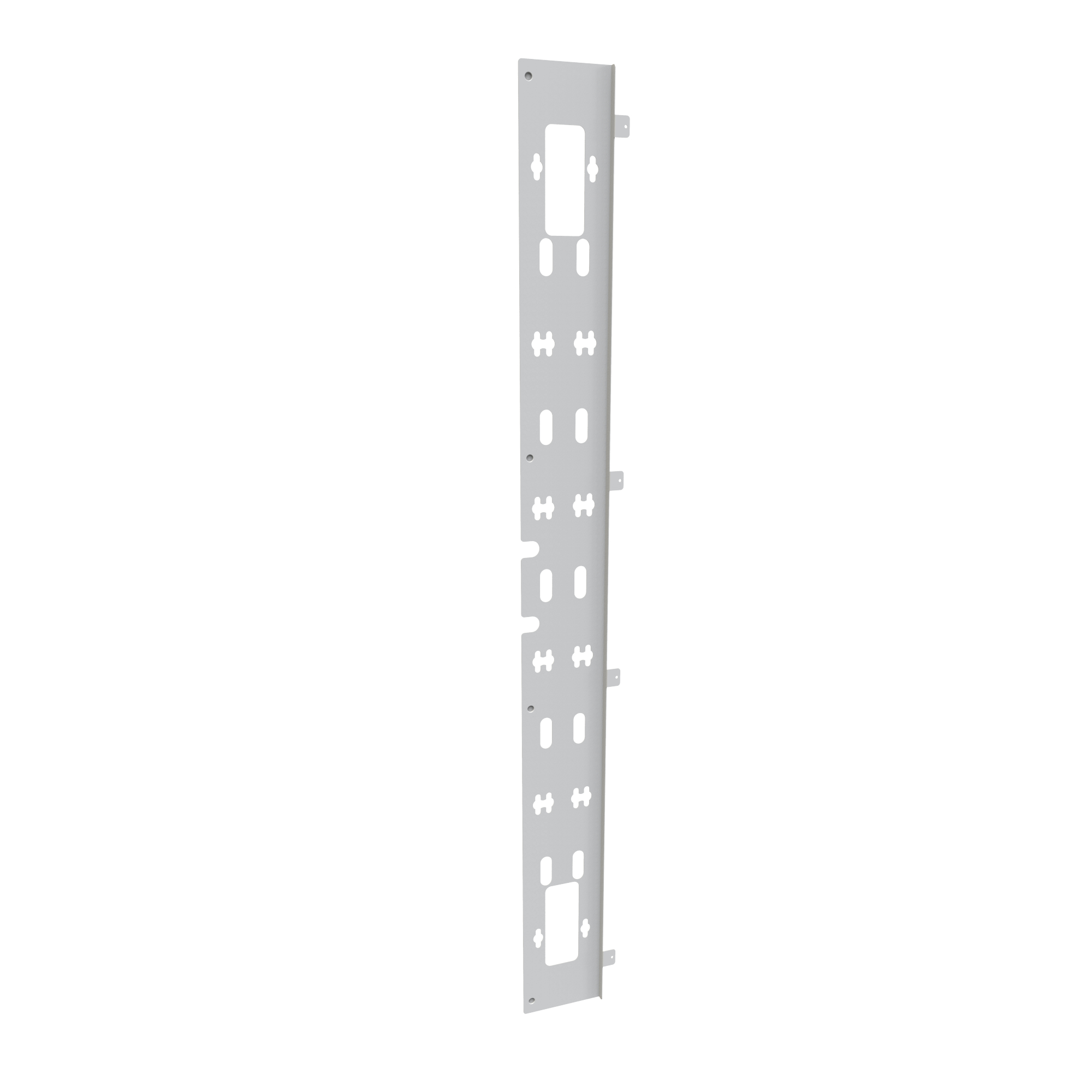

Vertical Cable Tray with PDU Mount for H1 Server Cabinets · H1PDU Series

Key Features and Benefits

The H1PDU Series vertical cable trays provide an efficient solution for expanding cable routing and power distribution capacity within H1 server cabinets. Designed to complement the included tray, they allow installers to add a second vertical pathway for cables and PDUs.

With integrated tie-down points and tool-free PDU mounting, the H1PDU Series supports organized cable routing and scalable power distribution in high-density cabinet environments.

• ■16-gauge steel construction provides durable vertical cable routing and PDU support for high-density cabinet environments.
• ■Designed for H1 cabinets to expand cable management and PDU mounting capacity beyond the included tray.
• ■Folded (flanged) edges increase structural strength and improve cable handling and organization.
• ■Includes cutouts for cable ties or hook and loop straps for flexible cable routing and strain relief.
• ■Integrated tool-free mounting supports most PDUs with button-style mounting hardware.
• ■Supports combined cable routing and power distribution within a single vertical pathway.
• ■Ideal for adding a second tray to manage increased cable volume or additional PDUs.
• ■Includes cabinet mounting hardware for fast installation.
• ■Available in multiple heights to match cabinet sizes (42U–52U).
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Powder-coated finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.

PDU Mounting Compatibility

The H1The maximum space for the PDU to fit including large power plugs:

• ■H1 42U – 70.25”
• ■H1 45U – 75.50”
• ■H1 48U – 80.75”
• ■H1 52U – 87.75”
