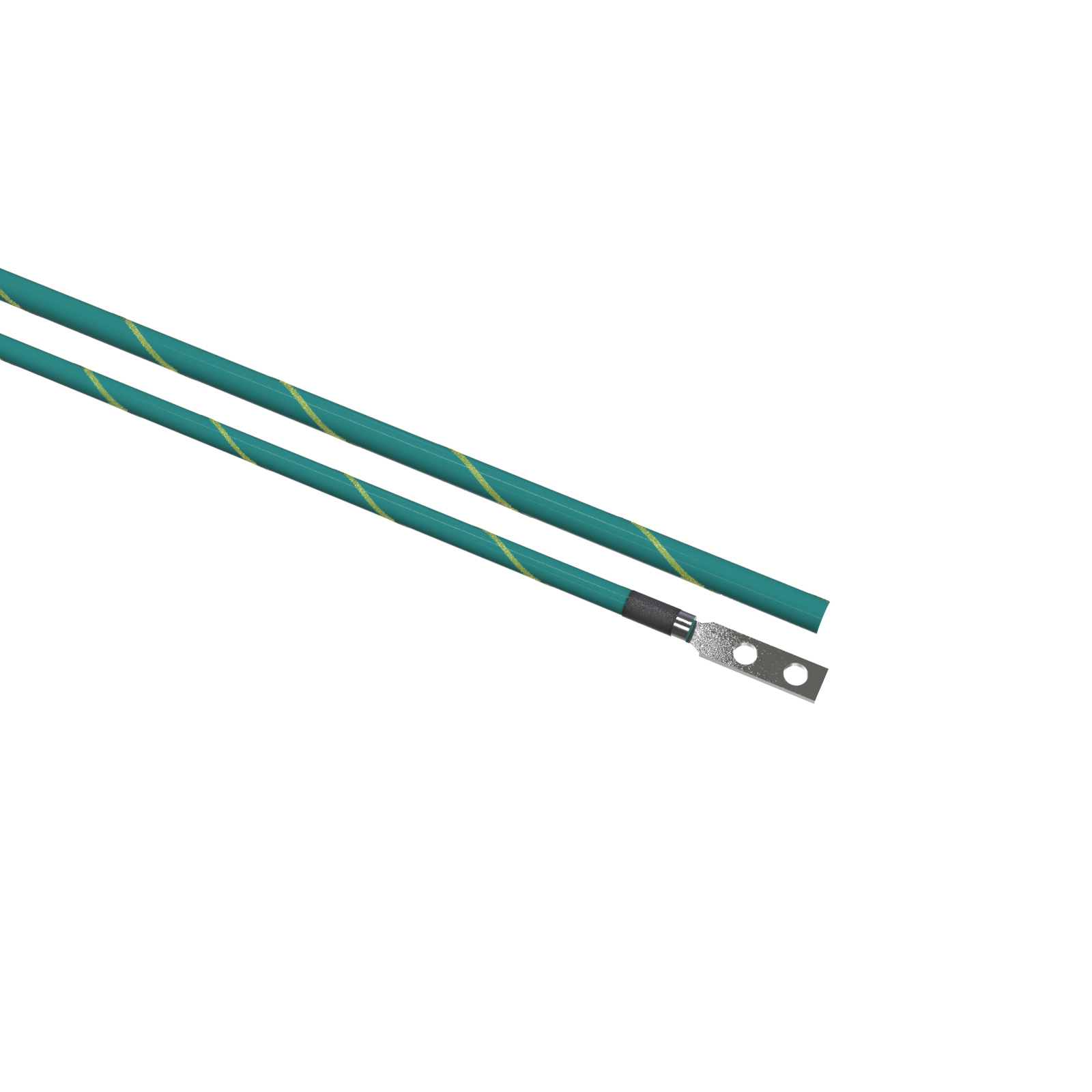

6 AWG X 108 Inch Bond Jumper
$83.07In stock
Buy now
Bonding Wire Jumper · BWJ Series
Brand: Hammond Manufacturing · 6 part numbers
- ■Constructed with UL Listed components.
- ■#6 AWG 266 strand copper, MTW/TEW UL1283 type, Green-insulated with a yellow stripe.
- ■Two holes compression lugs with bolt holes that are 0.281" (7.1 mm) in diameter and spaced 5/8" (15.9 mm) apart.
- ■Terminated with crimped-on compression lug at one (1) end.
- ■Mounting hardware included for fastening to either 1/4-20 or 10–32 studs.
- ■Stick-on grounding symbol for compliance.
from $45.43
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BWJ Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Length | Cable Qty Included | Bolt Hole Qty | Bolt Hole Spacing | Bolt Hole ∅ | Wire Gauge | Hardware Included | Quick Disconnecting Terminals | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| BWJ6A60 | 60.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $45.43In stock | Buy now |
| BWJ6A96 | 96.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $58.41In stock | Buy now |
| BWJ6A108 | 108.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $83.07In stock | Buy now |
| BWJ6A120 | 120.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $64.90In stock | Buy now |
| BWJ6A180 | 180.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $90.86In stock | Buy now |
| BWJ6A1200 | 1200.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No | $447.81In stock | Buy now |
Features
- ■Constructed with UL Listed components.
- ■#6 AWG 266 strand copper, MTW/TEW UL1283 type, Green-insulated with a yellow stripe.
- ■Two holes compression lugs with bolt holes that are 0.281" (7.1 mm) in diameter and spaced 5/8" (15.9 mm) apart.
- ■Terminated with crimped-on compression lug at one (1) end.
- ■Mounting hardware included for fastening to either 1/4-20 or 10–32 studs.
- ■Stick-on grounding symbol for compliance.
- ■TAA-compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
Documents
Additional information
Part Details
| Part No. | Length | Cable Qty Included | Bolt Hole Qty | Bolt Hole Spacing | Bolt Hole ∅ | Wire Gauge | Hardware Included | Quick Disconnecting Terminals |
|---|---|---|---|---|---|---|---|---|
| BWJ6A60 | 60.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
| BWJ6A96 | 96.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
| BWJ6A108 | 108.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
| BWJ6A120 | 120.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
| BWJ6A180 | 180.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
| BWJ6A1200 | 1200.00 | 1 | 2 | 0.62 | 0.28 | 6 AWG | Yes | No |
