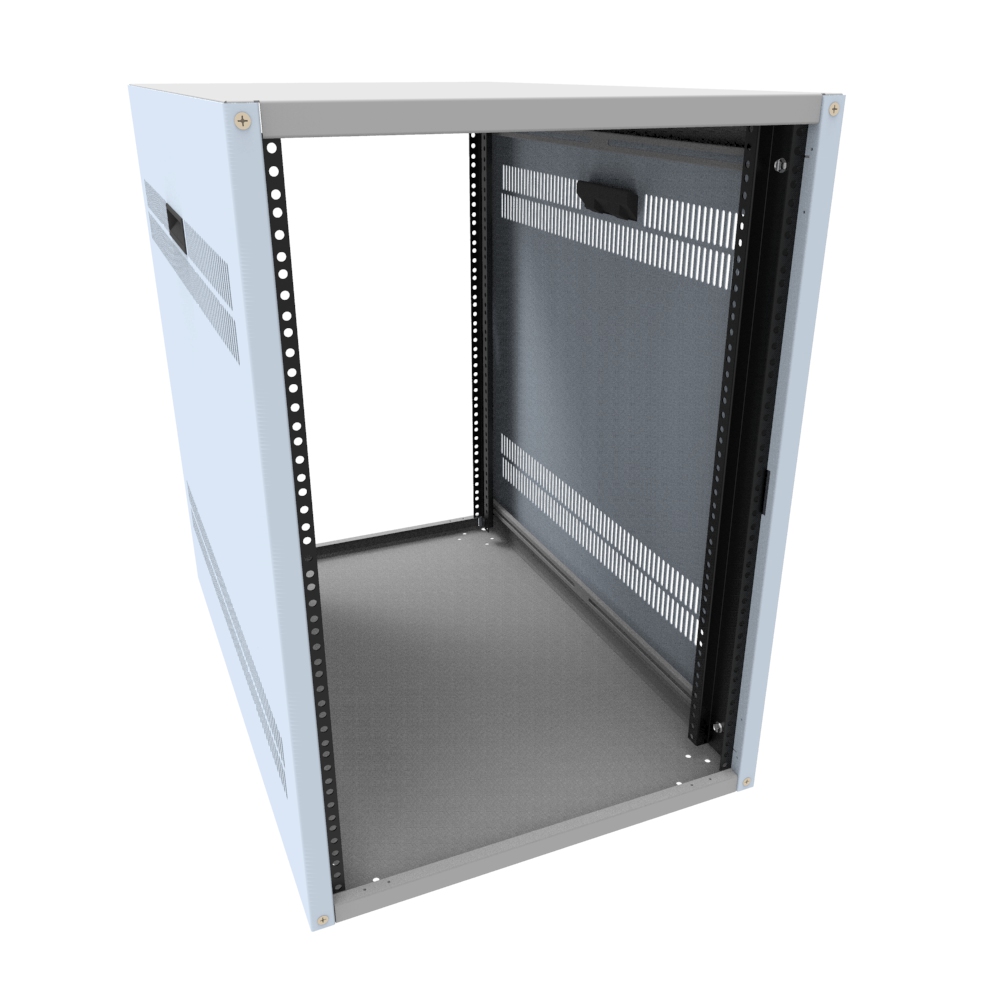

Hammond RCHV1902831LG1 16U Vented Rack Cabinet, 31.5 in Deep, Gray
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16U of usable rack space: 28.00 in (711 mm) height, 19.00 in (483 mm) width, 30.25 in (768 mm) usable depth
- 800 lb load rating from 16-gauge steel construction for AV, lab and light IT equipment
- Vented side panels support passive cooling in ventilated-enclosure applications
- Two pairs of adjustable-depth EIA-310 round-hole rails with 16 included 10-32 screws and clip nuts
- Knock-down design ships unassembled; self-squaring assembly uses minimal hardware
- RAL7035 light gray textured powder coat; GREENGUARD, TSCA and RoHS compliant finish
- Includes PVC non-marking feet and two black plastic lifting handles
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
The RCHV1902831LG1 is a 16U vented-side rack cabinet from the RCH knock-down series, built for AV and media installations, test and measurement benches, industrial control systems, labs and small IT or network setups. It accepts standard 19-inch rack equipment and ships unassembled for easier transport into constrained spaces.
Construction is 16-gauge mild steel with an 800 lb load rating, finished in RAL7035 light gray textured powder coat (GREENGUARD, TSCA and RoHS compliant). Vented side panels support passive cooling, while the open frame cabinet structure accepts optional panels and doors so the configuration can be tuned for airflow or access. PVC non-marking feet and lifting handles are included for mobility and surface protection.
Overall dimensions are 30.00 in H x 21.00 in W x 31.50 in D (762 x 533 x 800 mm), with usable mounting space of 28.00 in H x 19.00 in W x 30.25 in D (711 x 483 x 768 mm) — 16U of rack space. The 19-inch mounting width measures 18.35 in (466 mm) with a 17.81 in (452 mm) opening. Shipping weight is 75 lbs (34.02 kg).
- Two pairs of adjustable-depth, EIA-310 compliant round-hole mounting rails
- Starter pack of 16 clip nuts and 10-32 screws included
- Self-squaring design for quick assembly with minimal hardware
RCHV1902831LG1 is TAA-compliant and manufactured in North America (country of origin CA), USMCA compliant, RoHS and REACH compliant, ECCN EAR99. Optional caster kits and matching doors are available within the series. Note: this product is not designed nor intended to be wall mounted.
Ideal For
- AV and media installations
- Test and measurement environments
- Industrial control and automation systems
- Small IT and network setups
- Lab and development environments needing ventilated passive cooling
Overview
| Series | RCH Series – Rack Cabinet, Knock-Down Design (800 lb) |
| Assembly | Knock-down; shipped unassembled for handling ease and protection |
| Rack Type | Cabinet |
| Rack Units | 16U |
| Part Number | RCHV1902831LG1 |
| Load Capacity | 800 lb |
| Side Panel Style | Vented sides (RCHV) |
| Short Description | 16U 31.5D VENTED RACK CABINET |
| Black Equivalent Part | RCHV1902831BK1 |
Dimensions
| Overall Depth | 31.50 in (800 mm) |
| Overall Width | 21.00 in (533 mm) |
| Overall Height | 30.00 in (762 mm) |
| Size H X W X D | 30 in x 21 in x 31.5 in (762 mm x 533 mm x 800 mm) |
Identifiers
| UPC | 623980480190 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980480190 |
| UPC W/o Check Digit | 62398048019 |
Rack Mounting
| Rail Type | Round Hole with 10-32 Clip Nut |
| Mounting Rails | Two (2) pairs of adjustable-depth, EIA-310 compliant round-hole rails (4 punched combo rails) |
| Front Opening Width | 17.81 in (452 mm) |
| Usable Mounting Depth | 30.25 in (768 mm) |
| Usable Mounting Width | 19.00 in (483 mm) |
| 19-inch Mounting Width | 18.35 in (466 mm) |
| Usable Mounting Height | 28.00 in (711 mm) / 28.06 in (713 mm) = 16U |
| Rail Mounting Hole Diameter | 0.28 in (7 mm) |
| Included Clip Nuts And Screws | 16 |
| Bottom Caster Hole Mounting Pattern | 1.75 in (44 mm) width x 3.00 in (76 mm) depth |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 75 lbs (34.02 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Feet | PVC non-marking feet included |
| Finish | Textured powder coat, painted RAL7035 textured (GREENGUARD, TSCA, RoHS compliant) |
| Handles | Lifting handles included |
| Material | Mild Steel, 16-gauge |
| Paint Color | RAL7035 Light Gray |
| Included Components | Top panel assembly (1), knock-down sides (2), bottom panel assembly (1), punched combo rails (4), black plastic handles (2), 1/4-20 x 1/2 hex slot bolts (8), 1/4-20 spring nuts (8), M6 x 1.0 x 12 mm screws (8) |
Environmental & Protection
| Ventilation | Vented side panels for passive cooling |
| Mounting Limitation | Not designed nor intended to be wall mounted |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Rack Standard | EIA-310 compliant mounting rails |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much usable rack space does RCHV1902831LG1 provide?▾
It offers 16U of mounting space: 28.00 in (711 mm) usable height, 19.00 in (483 mm) usable width and 30.25 in (768 mm) usable depth, within overall dimensions of 30 x 21 x 31.5 in (762 x 533 x 800 mm).
Does this cabinet arrive assembled?▾
No. It is a knock-down cabinet shipped unassembled for handling ease and protection. The self-squaring design allows quick assembly using minimal hardware, and the supplied hardware includes 1/4-20 bolts and spring nuts plus M6 screws.
What mounting rails and hardware are included?▾
Two pairs of adjustable-depth, EIA-310 compliant round-hole mounting rails (four punched combo rails) are included, along with a starter pack of 16 clip nuts and 10-32 screws.
What is the load capacity and finish?▾
The RCH series cabinet is 16-gauge steel rated for 800 lb. This part number is finished in RAL7035 light gray textured powder coat, which is GREENGUARD, TSCA and RoHS compliant.
Can this cabinet be wall mounted or fitted with casters?▾
It is not designed nor intended to be wall mounted. Optional caster kits are offered in the series (1425BLSOFT, 1425BM, 1425BH, 1425BHLOCK), and the bottom hole mounting pattern is 1.75 in x 3.00 in.
Is a matching door available for a 16U RCH cabinet?▾
Yes. For 16U (28.00 in panel height), the series lists door part numbers RCHD1928BK1 (black) and RCHD1928LG1 (RAL 7035 light gray), plus RCHR1928 for an additional pair of mounting rails.
Is RCHV1902831LG1 suitable for government procurement?▾
It is TAA-compliant and manufactured in North America, with country of origin CA, USMCA compliance, RoHS and REACH compliance, and ECCN EAR99.
