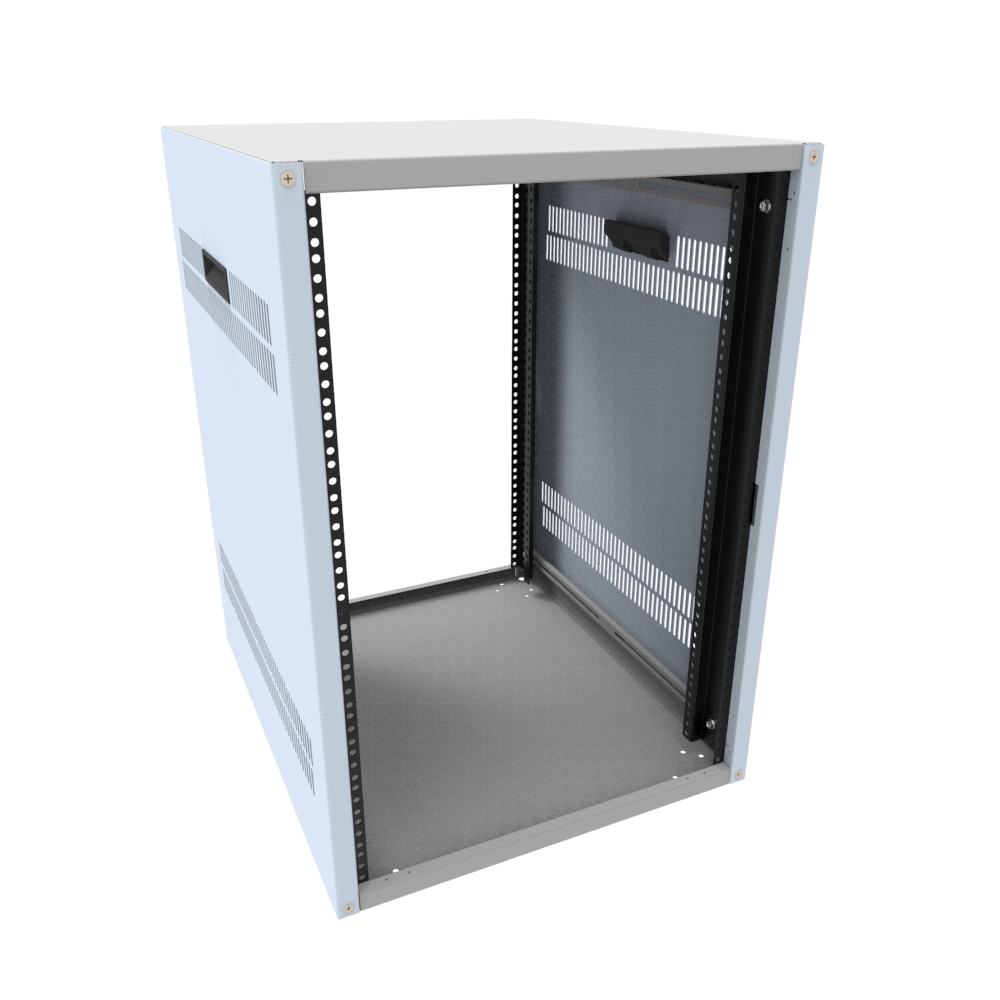

Hammond RCHV1902824LG1 16U Vented Rack Cabinet, 24.5 in Deep, Light Gray

The RCHV1902824LG1 is a 16U vented-side rack cabinet from the RCH Series, built for AV and media installations, test and measurement benches, industrial control systems, labs and small IT or network setups. It ships knocked down for handling ease and protection, then assembles with a self-squaring design using minimal hardware, which makes it practical for sites with tight access or limited staging space.

Construction is 16-gauge mild steel with an 800 lb load rating, finished in RAL7035 light gray textured powder coat (GREENGUARD, TSCA and RoHS compliant). Vented side panels support passive cooling, and the open cabinet structure accepts optional panels and doors so the configuration can be matched to airflow and access needs. PVC non-marking feet protect finished floors and two plastic lifting handles assist positioning.

Overall dimensions are 30.00 in H x 21.00 in W x 24.50 in D (762 x 533 x 622 mm), with usable mounting space of 28.00 in H x 19.00 in W x 23.25 in D (711 x 483 x 591 mm) and a 17.81 in (452 mm) front opening. Two pairs of adjustable-depth, EIA-310 compliant punched combo rails provide 19-inch round-hole mounting with a starter pack of sixteen 10-32 screws and clip nuts included. Shipping weight is 76 lbs (34.47 kg).

RCHV1902824LG1 is manufactured in Canada, is TAA- and USMCA-compliant, and is RoHS and REACH compliant, supporting government and regulated procurement. An optional caster kit is available from the series for mobile deployments. This product is not designed nor intended to be wall mounted.
