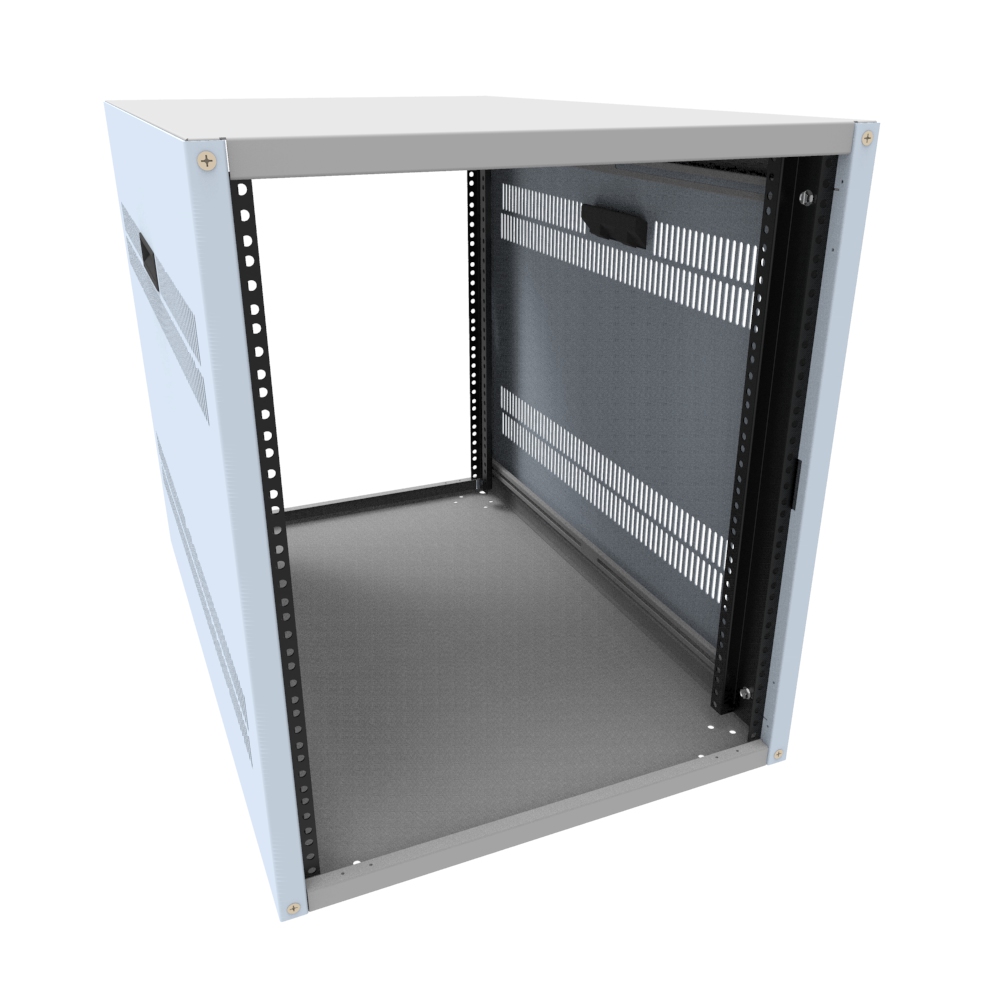

Hammond RCHV1902231LG1 13U Vented Knock-Down Rack Cabinet, 31.5 in Deep

RCHV1902231LG1 is a 13U rack cabinet with vented sides from the RCH knock-down series, intended for mounting standard 19-inch equipment in AV, test and measurement, industrial control and light IT installations. The vented side panels support passive cooling, while the open cabinet structure accepts optional panels and doors so the configuration can be adapted to the access and airflow needs of the room.

Construction is 16-gauge mild steel with an 800 lb load rating, finished in RAL7035 light gray textured powder coat that is GREENGUARD, TSCA and RoHS compliant. The cabinet ships knocked down for handling ease and protection, and assembles with a self-squaring design using minimal hardware. The shipment includes the top and bottom panel assemblies, two knock-down sides, four punched combo rails, two black plastic handles and the required 1/4-20 and M6 fasteners, plus PVC non-marking feet and lifting handles.

Overall dimensions are 24.75 in x 21.00 in x 31.50 in (629 mm x 533 mm x 800 mm), with 13U of usable mounting height measuring 22.75 in (578 mm), 19.00 in (483 mm) usable width and 30.25 in (768 mm) usable depth. Two pairs of adjustable-depth, EIA-310 compliant round-hole mounting rails are supplied, along with a starter pack of 16 10-32 screws and clip nuts.

• Rack units: 13U; rail type: round hole with 10-32 clip nut
• Shipping weight: 80 lbs (36.29 kg)
• Bottom hole pattern 1.75 in x 3.00 in for the optional caster kits listed for the series

RCHV1902231LG1 is TAA compliant and manufactured in Canada, supporting government procurement requirements, and is also USMCA, REACH and RoHS compliant. This product is not designed nor intended to be wall mounted.
