Hammond CCR22TZPL 13U 10-32 Tapped Combination Rack Rail Pair
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 13U mounting height — 22.75 in (578 mm) overall, 22.25 in (565 mm) EIA spacing on the front face
- Sold in pairs; tapped 10-32 holes to EIA-310 for standard 19-inch rack equipment
- Heavy-duty 10-gauge mild steel with zinc plated finish for corrosion resistance and grounding continuity
- Combination profile allows side-mounted accessories such as shelves and cable management
- Designed specifically for Hammond C2 and REFK cabinets for replacement, conversion or added mounting positions
- Stamped numbered 1U rack unit markings on the front face simplify alignment
- Installs vertically with the included strut mounting hardware; rack mounting hardware sold separately
- TAA-compliant, made in North America; RoHS, REACH and USMCA compliant

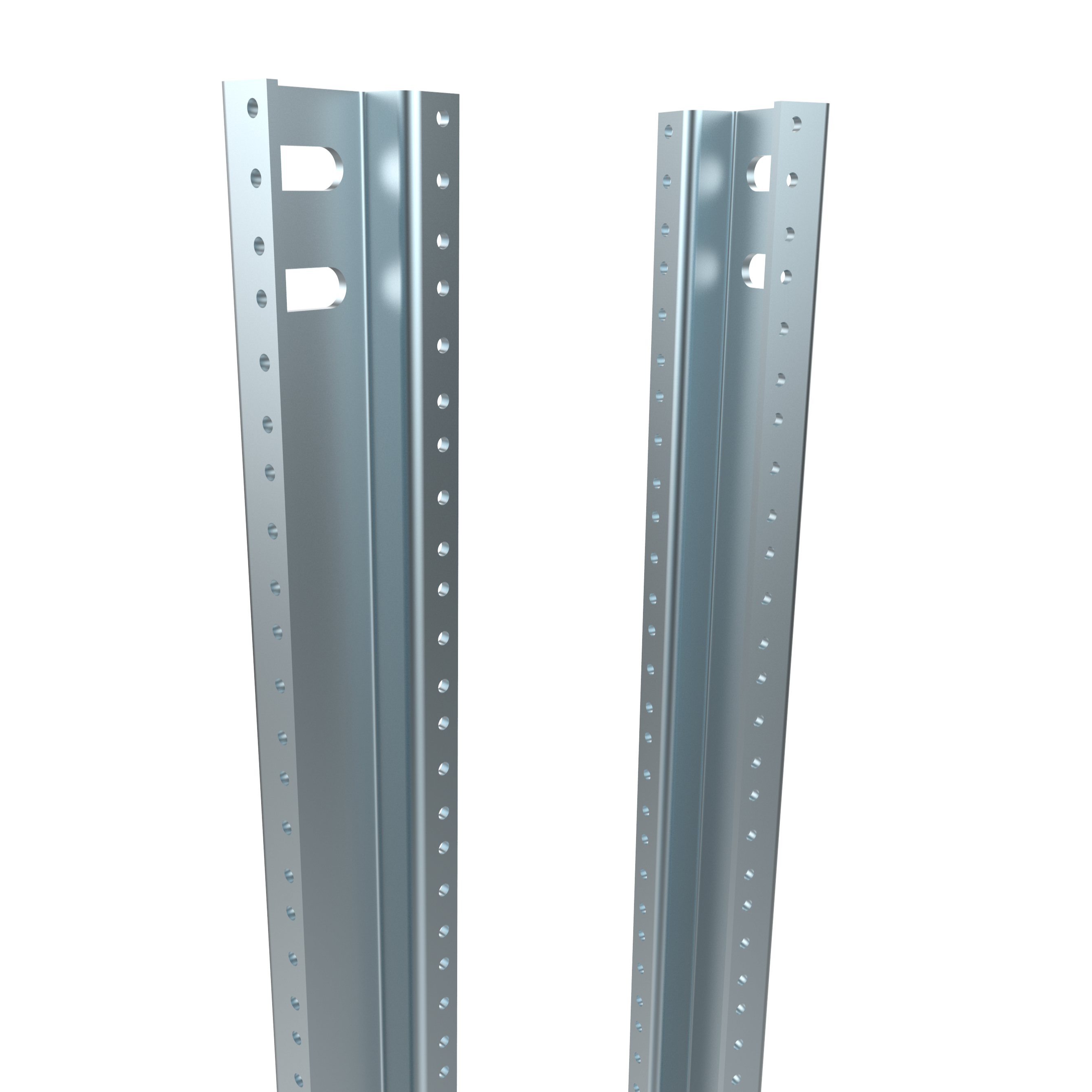

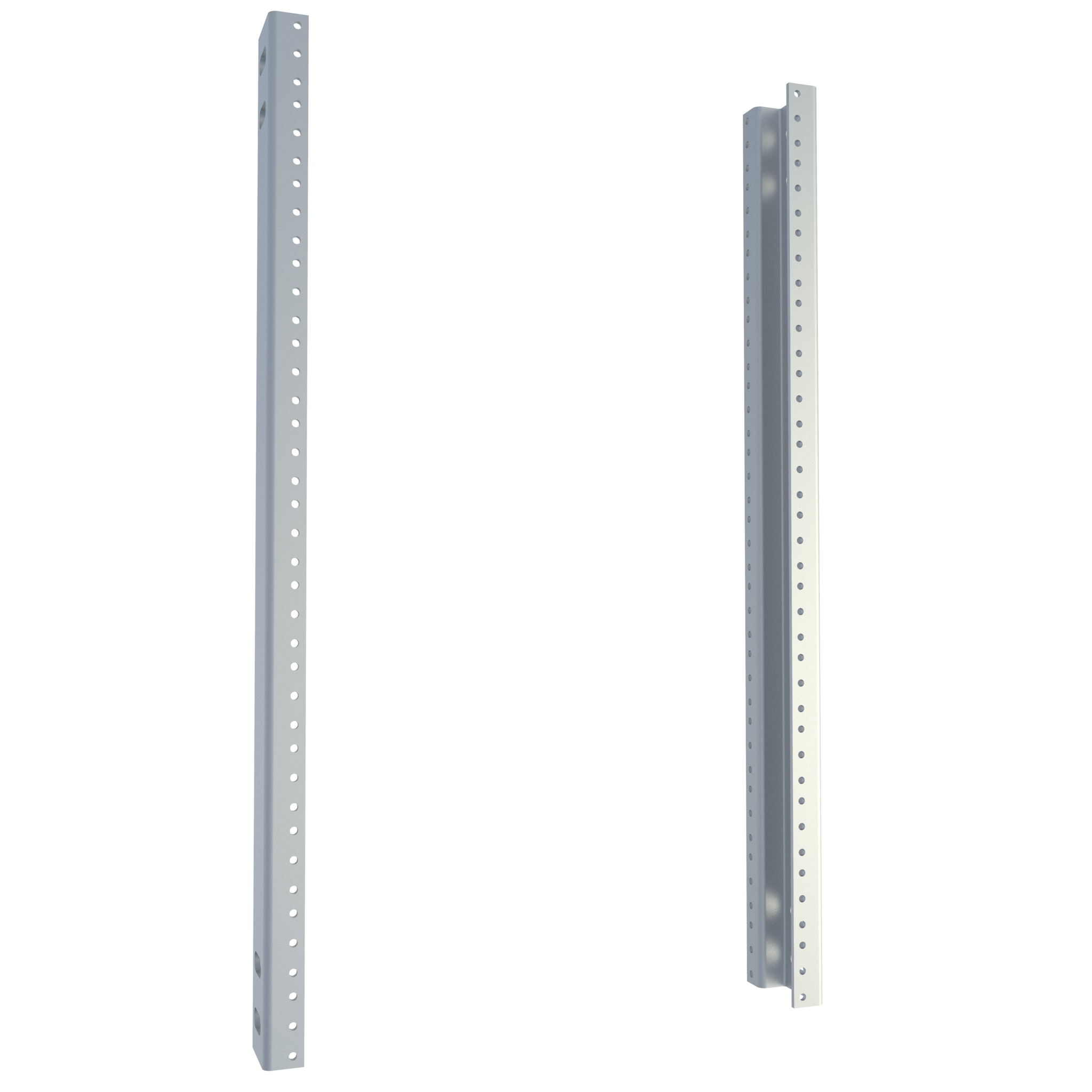

The CCR22TZPL is a 13U pair of tapped 10-32 combination rack mount rails, supplied as a factory replacement or expansion set for Hammond C2 modular cabinet systems and REFK rack cabinets. It suits IT and AV integrators, industrial control builders, telecom facilities and OEM engineers who need to restore damaged rails, add mounting positions, or set a cabinet up for standard 19-inch rack equipment.
Construction is heavy-duty 10-gauge mild steel with a zinc plated finish, which provides corrosion resistance while improving electrical grounding continuity through the cabinet. The front face carries EIA-310 compliant 10-32 threaded holes with stamped numbered "U" markings, so equipment can be aligned quickly and future expansion planned without measuring.
Each rail in the CCR22TZPL pair measures 22.75 in (578 mm) high, 0.86 in (22 mm) wide and 2.45 in (62 mm) deep, giving 13 rack units of usable mounting height with 22.25 in (565 mm) of EIA spacing on the front face. Shipping weight for the pair is 6 lbs (2.72 kg).
Unlike a plain rack rail, this is a combination profile: it provides front rack mounting and also allows compatible accessories such as shelves, cable management and specialty hardware to be fastened directly to the side of the rail. Note that combination rails may conflict with rack slides because of the accessory rail. Rails install vertically using the included strut mounting hardware; rack mounting hardware is sold separately.
- RoHS, REACH and USMCA compliant, TAA-compliant and made in North America in an ISO 9001 certified facility.
Ideal For
- C2 modular cabinet systems and REFK rack cabinets
- Industrial automation and control system enclosures
- Test and measurement equipment racks
- Telecommunications facilities and OEM equipment installations
- Replacing damaged rack rails or refurbishing existing cabinets
Overview
| Series | CCR Series — Rack Mount Rails for C2 & REFK Cabinets |
| Quantity | Sold in pairs |
| Part Number | CCR22TZPL |
| Long Description | 13U Pair of Tapped 10-32 Combination Rails |
| Short Description | 13U 10-32 TAPPED FORMED RAIL |
Dimensions
| Overall Depth | 2.45 in (62 mm) |
| Overall Width | 0.86 in (22 mm) |
| Overall Height | 22.75 in (578 mm) |
| Rail Face Width (Front View) | 0.84 in (21 mm) |
| Rail Return Depth (Right Side View) | 1.85 in (47 mm) |
Identifiers
| UPC | 623980929606 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980929606 |
| UPC W/o Check Digit | 62398092960 |
Rack Mounting
| Hole Type | 10-32 tapped (threaded) |
| Rail Type | Combination rail — front rack mounting plus side accessory mounting |
| Rack Units | 13U |
| Hole Spacing | EIA-310 compliant; 22.25 in (565 mm) EIA spacing |
| Installation | Installs vertically using included strut mounting hardware; rack mounting hardware sold separately |
| Rack Unit Markings | Stamped numbered "U" markings on front face |
| Cabinet Compatibility | Hammond C2 and REFK cabinet series |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 6 lbs (2.72 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 10-gauge steel |
| Finish | Zinc plated |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Manufacturing | Made in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many rails come with CCR22TZPL?▾
CCR22TZPL is sold in pairs — the drawing and description both specify a 13U pair of tapped 10-32 combination rails.
What hole pattern do these rails use?▾
They use 10-32 tapped (threaded) holes on EIA-310 compliant spacing, with 22.25 in (565 mm) of EIA spacing on the 22.75 in tall rail.
Which cabinets are these rails made for?▾
They are engineered for Hammond C2 modular cabinet systems and REFK rack cabinets, for replacing damaged rails, adding mounting positions, or converting between threaded and square-hole mounting.
Is mounting hardware included?▾
The strut mounting hardware needed to install the rails vertically is included. Rack mounting hardware for equipment is sold separately.
Can I use rack slides with these rails?▾
Note that combination rails may conflict with rack slides due to the accessory rail. The combination profile is intended for front rack mounting plus accessories mounted to the side of the rail.
Is there a square-hole version of this size?▾
The series ordering table lists no square-hole L-rail counterpart for the 13U CCR22TZPL; square-hole CPR rails are listed in other heights such as 20U, 24U, 32U, 44U and 49U.
