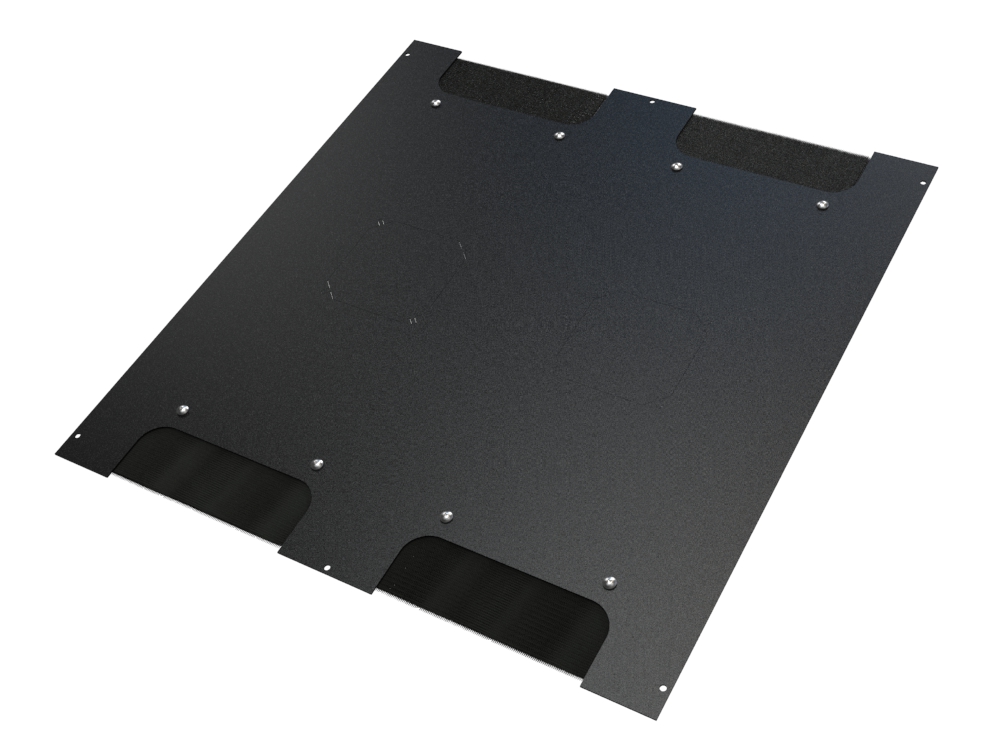

Hammond C2T2431BFBK1 4-Opening Brush Cable Entry Cabinet Top Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 25.00 in (635 mm) wide x 23.75 in (603 mm) deep top panel; nominal size 30W 36D
- Four integrated brush openings, each 2.36 in (60 mm) wide x 7.50 in (191 mm) long for organized cable entry
- Dual-purpose 4 in fan knockouts accept optional FK Series fan kits or provide extra cable entry
- 14-gauge steel construction for durable enclosure protection and long-term reliability
- Black powder coat finish; GREENGUARD, TSCA and RoHS compliant
- Includes CLPKIT832-6 cabinet mounting hardware for quick installation
- Fits C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series (H1 requires H1TC Series)
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
The C2T2431BFBK1 is a rack cabinet top panel with integrated brush cable entry, designed for IT, network, AV and structured cabling teams who need to bring cables into a cabinet from overhead ladder rack or cable tray while keeping the enclosure organized and airflow under control. It replaces a solid top panel so cables can pass cleanly into the cabinet without sacrificing cable management.
Construction is 14-gauge steel for durable enclosure protection and long-term reliability, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant to support indoor air quality and environmental compliance. The material is mild steel, and the part is TAA-compliant and manufactured in North America with a Country of Origin of Canada, which helps satisfy government procurement requirements.
This panel measures 25.00 in (635 mm) wide by 23.75 in (603 mm) deep and is listed under the nominal size 30W 36D. It includes four brush openings, each with a cable entry area of 2.36 in (60 mm) wide by 7.50 in (191 mm) long, giving generous capacity for high-density cable bundles. Dual-purpose 4 in fan knockouts let you add optional FK Series fan kits for active cooling or open up additional cable entry area as requirements change.
C2T2431BFBK1 ships with CLPKIT832-6 cabinet mounting hardware for quick installation, and is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series; H1 cabinets require the H1TC Series for mounting. The part is REACH and RoHS compliant and USMCA compliant, with ECCN EAR99.
Ideal For
- Data centers and IT rooms with overhead cable routing
- Network and telecom installations
- AV and broadcast environments
- Structured cabling deployments
- High-density rack environments needing airflow and cable management
Overview
| Series | C2T_BF |
| Description | BRUSH TOP PANEL 30W 36D |
| Part Number | C2T2431BFBK1 |
| Nominal Size | 30W 36D |
| Product Type | Rack cabinet top panel with brush cable entry and fan knockouts |
Dimensions
| Overall Depth | 23.75 in (603 mm) |
| Overall Width | 25.00 in (635 mm) |
| Cable Entry Width | 2.36 in (60 mm) |
| Cable Entry Length | 7.50 in (191 mm) |
| Brushed Openings Included | 4 |
Identifiers
| UPC | 623980015583 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980015583 |
| UPC W/o Check Digit | 62398001558 |
Rack Mounting
| Optional Cooling | FK Series fan kits via fan knockouts |
| Mounting Hardware | CLPKIT832-6 cabinet mounting hardware included |
| Compatible Cabinet Series | C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK, CLC (H1 requires H1TC Series for mounting) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 14-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
Environmental & Protection
| Finish Environmental Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many brush cable entry openings does C2T2431BFBK1 have?▾
It includes four brush openings. Each cable entry area measures 2.36 in (60 mm) wide by 7.50 in (191 mm) long.
What size cabinet does this top panel fit?▾
The panel measures 25.00 in (635 mm) wide by 23.75 in (603 mm) deep and is listed with the nominal size 30W 36D. It is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series; H1 cabinets require the H1TC Series for mounting.
Is mounting hardware included?▾
Yes. CLPKIT832-6 cabinet mounting hardware is included for quick installation, as noted on the part drawing and series data.
Can I add fans to this panel?▾
Yes. The panel has dual-purpose 4 in fan knockouts that support optional FK Series fan kits for active cooling, or can be opened up for additional cable entry.
Is C2T2431BFBK1 TAA compliant?▾
Yes. It is listed as TAA-compliant and manufactured in North America, with a Country of Origin of CA. It is also RoHS, REACH and USMCA compliant, with ECCN EAR99.
What is the panel made of and how is it finished?▾
It is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
