Hammond C2T2423SLG1 Light Gray Solid Cabinet Top Panel, 25 x 15

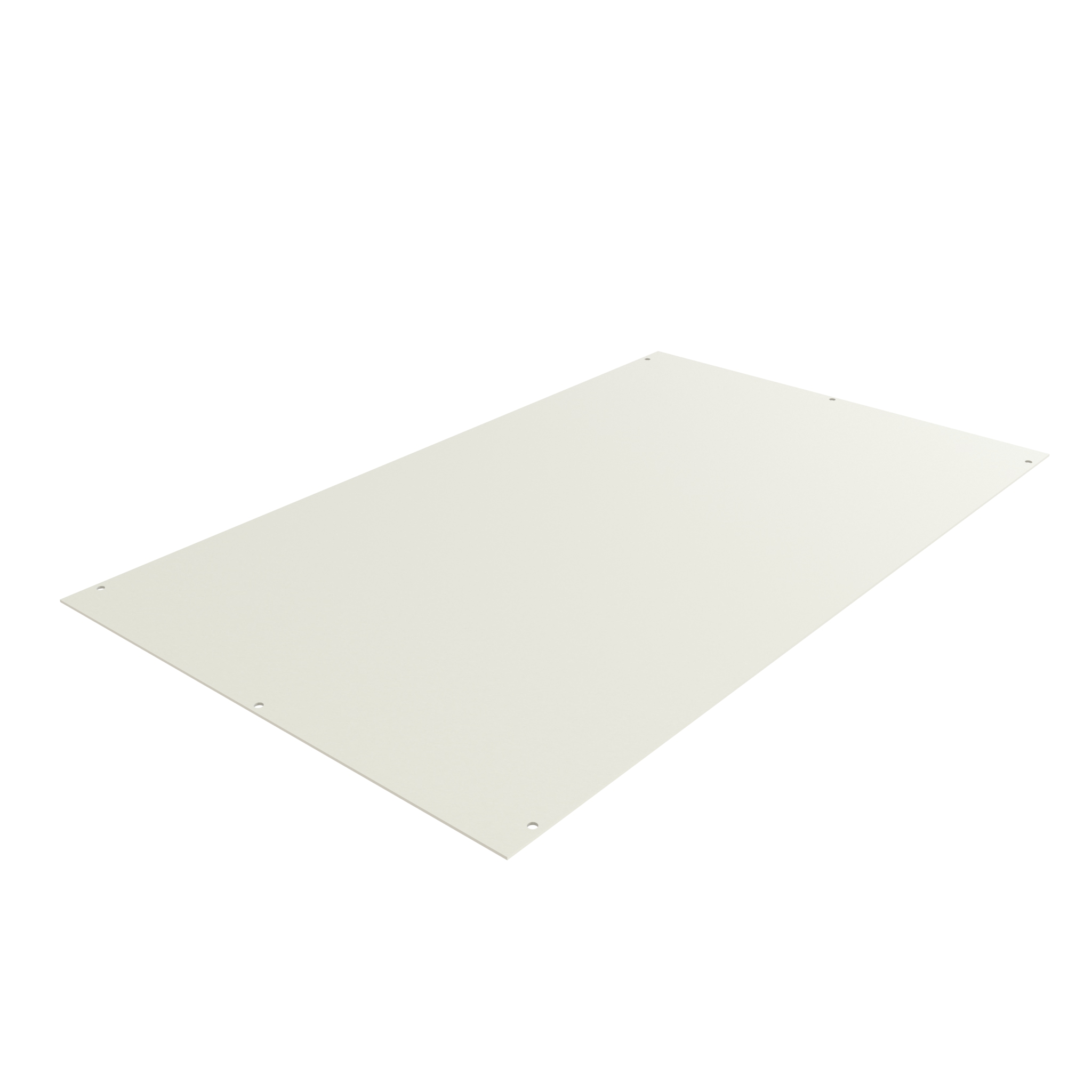

The C2T2423SLG1 is a solid steel top panel for rack cabinets, measuring 25.00 in (635 mm) wide by 15.00 in (381 mm) deep and finished in light gray (RAL7035 textured). It is intended for IT and network teams, integrators, and facilities groups who need to close off the top of a cabinet so airflow follows a defined front-to-rear path instead of leaking through the cabinet roof.

Construction is 14-gauge steel with a black powder coat finish process that is GREENGUARD, TSCA and RoHS compliant; the panel material is mild steel and this version ships painted RAL7035 textured light gray. Because the panel is solid rather than vented or slotted for cable entry, it also blocks dust, debris and contaminants from entering the enclosure from above, which suits industrial and controlled environments as well as data centers.

Mounting hardware is included in the box: one top panel, six 8-32 clip nuts (black oxide finish) and six 8-32 x 0.5 in zinc-plated machine screws, all covered by replacement part number CLPKIT832-6. Assembly instructions (BUL86698) cover installation of the clip nuts and screws.

Panels in the C2T2423 size are listed for use on C4 cabinets with a 30.00 in width and 31.50 in depth. The broader series is designed for use with C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinet series, with H1 cabinets requiring the H1TC Series for mounting. C2T2423SLG1 is TAA-compliant and manufactured in North America (country of origin CA), is USMCA, RoHS and REACH compliant, and ships at 6 lbs (2.72 kg).
