Hammond C2BPCE1931BK1 31 in Deep Cable Entry Bottom Panel, Black Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Cable entry (microcell) bottom panel for Hammond C2 and C2RR cabinet frames, sized for C2F19xx31xx frames
- 14 gauge mild steel construction finished in RAL9005 black powder paint
- Encloses the cabinet base for airflow management while allowing cable entry from below
- Includes GSK11043 gasket, 1/4 in thick, at the cable entry
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (CLPKIT832-6)
- Powder coat finish complies with Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant
- Manufactured in North America; USMCA compliant

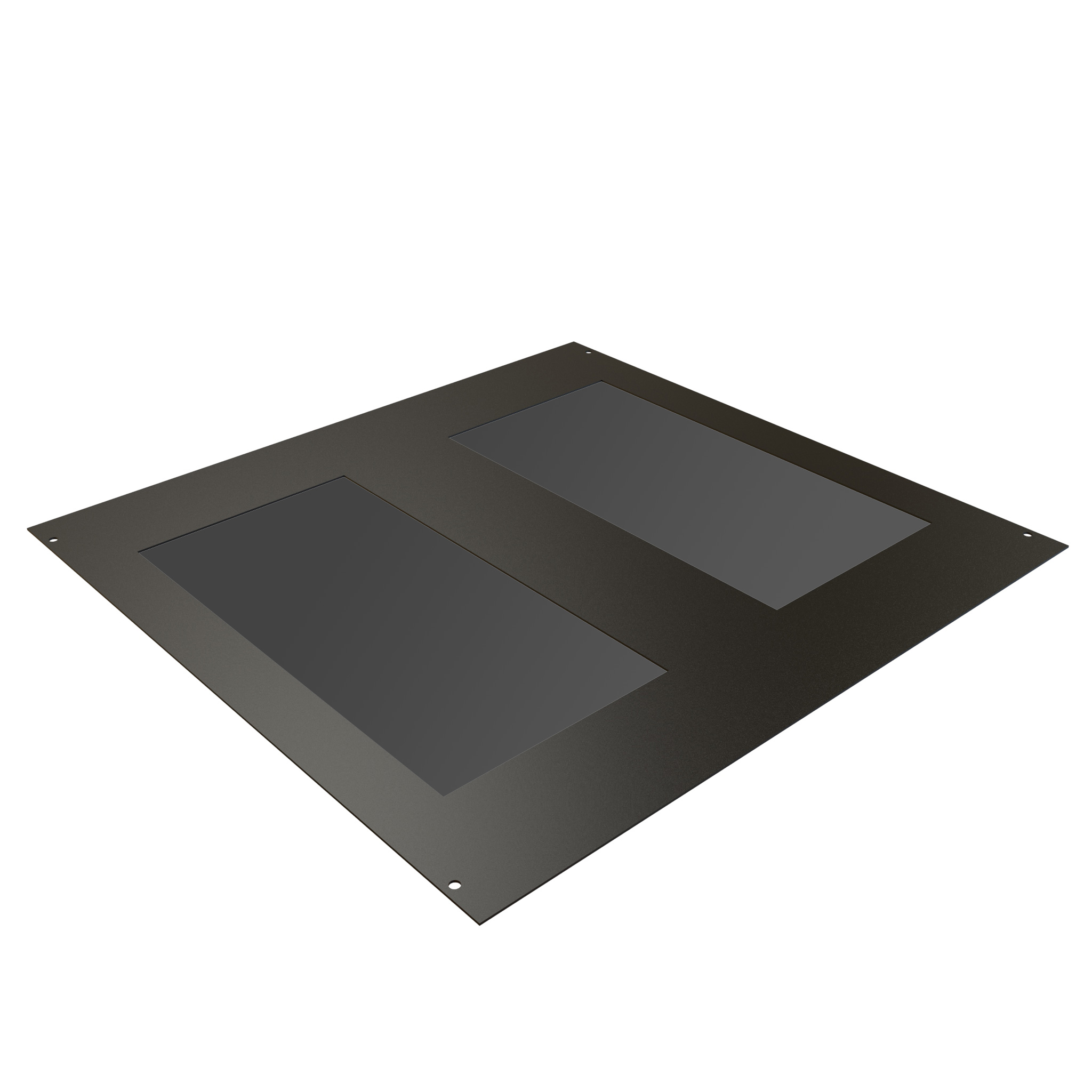

The C2BPCE1931BK1 is a cable entry (microcell) bottom panel designed specifically for Hammond C2 and C2RR cabinet frames, sized for the C2F19xx31xx frame. It closes off the base of an open cabinet frame so that data centre, network and AV installers can manage airflow through the enclosure while still routing cabling into the cabinet from below.
The panel is formed from 14 gauge mild steel and finished in RAL9005 black powder paint, a coating that complies with the Greenguard guidelines for indoor air quality. A GSK11043 gasket, 1/4 in thick, is supplied as part of the assembly at the cable entry. The panel measures 18.50 in (470 mm) by 17.69 in (449 mm) overall, with a 6.00 in (152 mm) by 2.88 in (73 mm) cable entry area and four Ø0.22 in (6 mm) mounting holes.
Mounting hardware is included in the box: six 8-32 clip nuts with black oxide finish and six 8-32 x 0.5 in zinc plated machine screws, available separately as CLPKIT832-6. Shipping weight is 5 lbs (2.27 kg).
C2BPCE1931BK1 is manufactured in North America (country of origin Canada), is USMCA compliant, TAA-compliant for GSA Schedule purchases, and is both RoHS and REACH compliant, making it suitable for government, institutional and OEM specifications.
Ideal For
- Airflow management in C2 and C2RR server cabinets
- Bottom cable entry for raised-floor data centre cabinets
- Closing the base of open C2 cabinet frames
- TAA-compliant GSA Schedule cabinet build-outs
Overview
| Series | C2B Series Bottom Panels |
| Panel Type | Microcell / Cable Entry Bottom Panel |
| Description | C2 Cable Gland Bottom Panel |
| Part Number | C2BPCE1931BK1 |
| Use With Cabinet Frame | C2F19xx31xx (C2 and C2RR cabinet series) |
Dimensions
| Overall Depth | 17.69 in (449 mm) |
| Overall Width | 18.50 in (470 mm) |
| Panel Width (Inner) | 18.00 in (457 mm) |
| Flange / Edge Height | 1.50 in (38 mm) |
| Panel Depth Dimension | 15.75 in (400 mm) |
| Cable Entry Opening Depth | 2.88 in (73 mm) |
| Cable Entry Opening Width | 6.00 in (152 mm) |
| Additional Depth Dimension | 11.94 in (303 mm) |
Identifiers
| UPC | 623980328713 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980328713 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
| UPC W/o Check Digit | 62398032871 |
Rack Mounting
| Mounting Holes | 4X Ø0.22 in (6 mm) |
| Mounting Hardware | Included |
Packaging & Shipping
| In The Box | 1 x Bottom Panel; 6 x 8-32 Clip Nut (black oxide); 6 x 8-32 x 0.5 in Machine Screw (zinc plated) |
| Shipping Weight | 5 lbs (2.27 kg) |
| Hardware Replacement Part No. | CLPKIT832-6 |
Construction & Finish
| Finish | RAL9005 black powder paint coat |
| Gasket | GSK11043, 1/4 in thick (qty 1) |
| Material | Mild Steel, 14 gauge |
Environmental & Protection
| Function | Encloses cabinet base for airflow management |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinet frames does C2BPCE1931BK1 fit?▾
It is made for Hammond C2 and C2RR cabinet frames, specifically the C2F19xx31xx frame size.
Is mounting hardware included?▾
Yes. The box contains six 8-32 clip nuts with black oxide finish and six 8-32 x 0.5 in zinc plated machine screws, also sold as CLPKIT832-6.
What colour is this panel, and is a gray version available?▾
C2BPCE1931BK1 is finished in RAL9005 black. The light gray equivalent for the same frame depth is C2BPCE1931LG1.
Does the panel include a gasket at the cable entry?▾
Yes, a GSK11043 gasket, 1/4 in thick, is supplied as part of the assembly.
Is this part TAA-compliant for government purchases?▾
Yes, it is TAA-compliant for GSA Schedule purchases, USMCA compliant, and manufactured in North America with country of origin Canada.
What is the purpose of a bottom panel on an open cabinet frame?▾
It encloses the base of the cabinet for airflow management, while the cable entry opening allows cabling to be routed into the cabinet.
Related Products
Save 35%C2BPCE1923LG1 — C2 Cable Gland Bottom Panel
Hammond Manufacturing · C2BPCE1923LG1

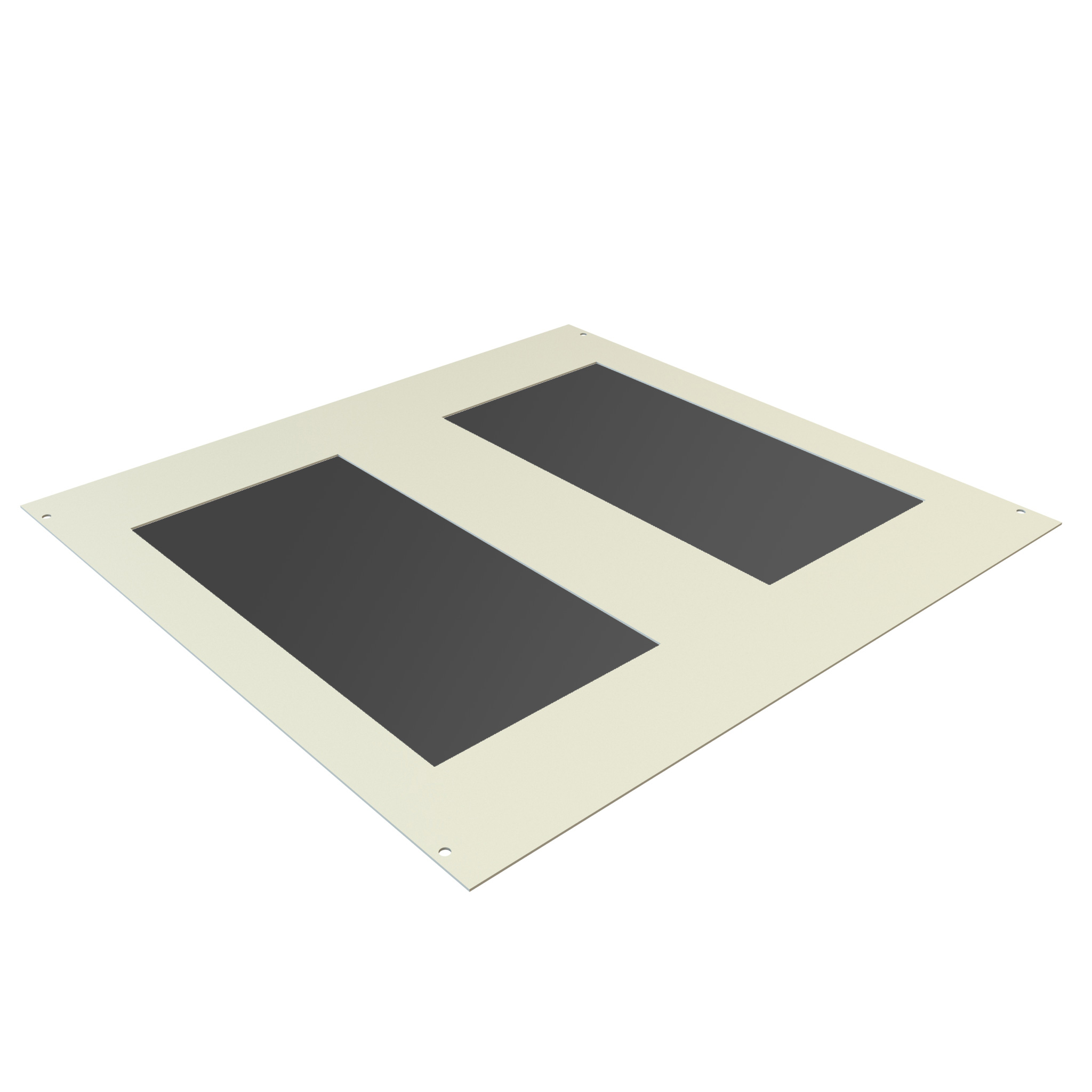

Save 35%C2BPCE1931LG1 — C2 Cable Gland Bottom Panel
