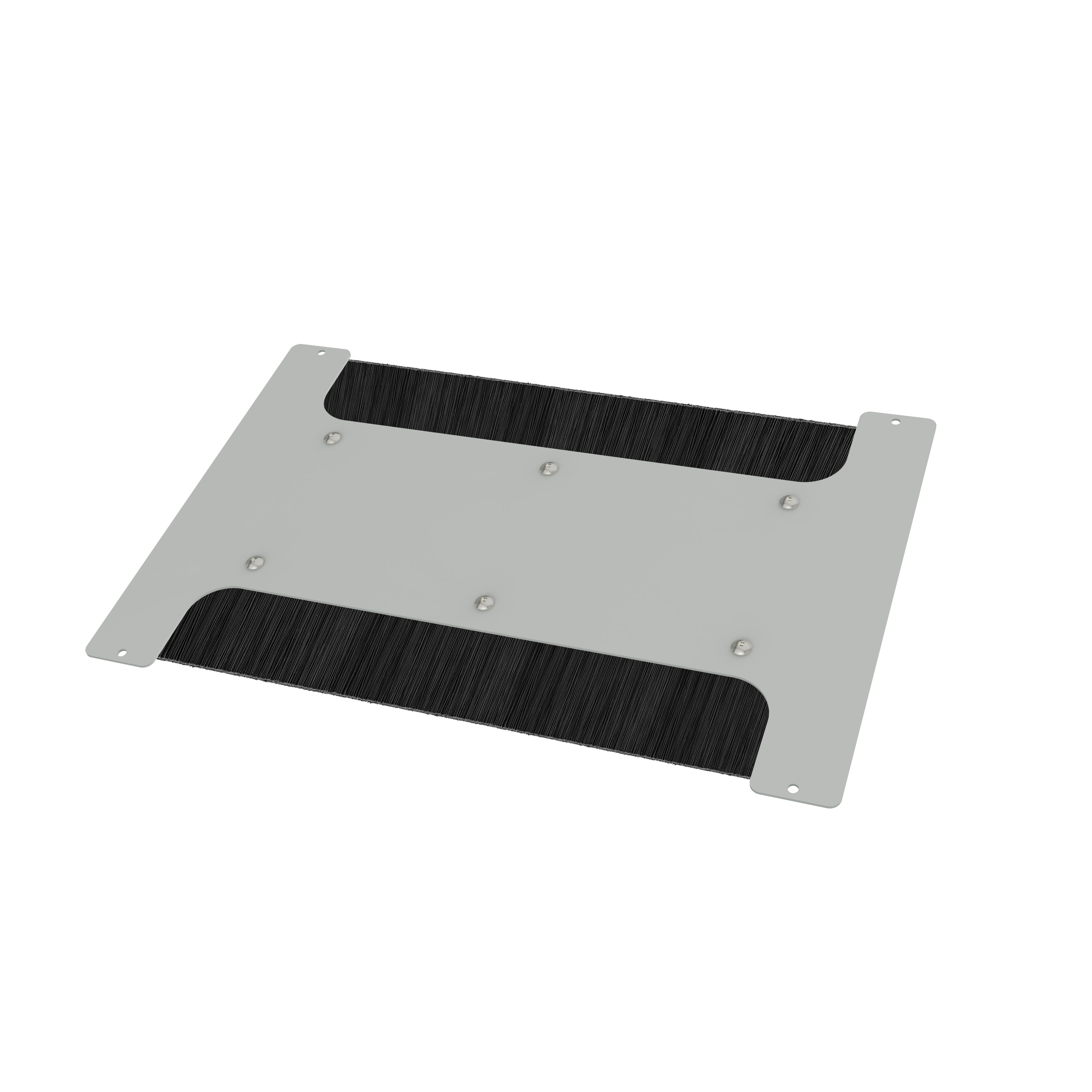

Hammond C2BBCE1923LG1 Brushed Cable Entry Bottom Panel in Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Brushed cable-entry bottom panel for C2 and C2RR series cabinet frames; use with C2F19xx23xx frames
- 14 gauge mild steel construction
- RAL7035 light gray powder paint coat that complies with Greenguard indoor air quality guidelines
- Encloses the cabinet base for airflow management while allowing cable pass-through
- Overall size 17.69 in (449 mm) x 14.00 in (356 mm); brush opening 11.50 in (292 mm) x 2.36 in (60 mm)
- Includes six 8-32 black oxide clip nuts and six 8-32 x 0.5 in zinc plated screws (CLPKIT832-6)
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant
- Manufactured in North America; USMCA compliant
C2BBCE1923LG1 is a brushed cable-entry bottom panel for C2 and C2RR series cabinet frames, intended for IT, data centre and AV installers who need to close off the base of an open cabinet frame while still routing cables in from below. The brush strip lets power and data cabling pass through the floor of the cabinet while the panel keeps the enclosure closed for airflow management.
The panel is fabricated from 14 gauge mild steel and finished in an RAL7035 light gray powder paint coat that complies with the Greenguard guidelines for indoor air quality. Overall panel dimensions are 17.69 in (449 mm) by 14.00 in (356 mm), with the brushed cable opening measuring 11.50 in (292 mm) by 2.36 in (60 mm). Mounting holes are 0.22 in (6 mm) diameter, and the formed front profile measures 0.86 in (22 mm) with 0.07 in (2 mm) material detail. Shipping weight is 9 lbs (4.08 kg).
Each C2BBCE1923LG1 ships with the panel plus cabinet mounting hardware: six 8-32 clip nuts in black oxide finish and six 8-32 x 0.5 in zinc plated machine screws, available separately as replacement kit CLPKIT832-6. Pair this panel with C2F19xx23xx cabinet frames; the matching black version is C2BBCE1923BK1.
The panel is manufactured in North America (country of origin Canada), is USMCA compliant, RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, and is classified ECCN EAR99 under tariff code 8538.10.0000.
Ideal For
- Closing the base of C2 and C2RR series cabinet frames
- Bottom cable entry for power and data cabling into a cabinet
- Cabinet airflow management and containment
- Light gray cabinet builds matching RAL7035 finishes
- TAA-compliant cabinet builds for GSA Schedule projects
Overview
| Series | C2B Series Bottom Panels |
| Panel Type | Brushed bottom panel (cable entry) |
| Description | C2 Brushed Cable Bottom Panel |
| Part Number | C2BBCE1923LG1 |
| Nominal Size | 1923 (per part number designation) |
Dimensions
| Overall Width | 14.00 in (356 mm) |
| Overall Length | 17.69 in (449 mm) |
| Front Profile Height | 0.86 in (22 mm) |
| Brushed Cable Opening | 11.50 in (292 mm) x 2.36 in (60 mm) |
| Mounting Hole Diameter | 0.22 in (6 mm) |
| Material Detail (Front View) | 0.07 in (2 mm) |
Identifiers
| UPC | 623980005126 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980005126 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398000512 |
Rack Mounting
| Mounting Hardware | Included (see What's Inside the Box) |
| Use With Cabinet Frame | C2F19xx23xx |
| Compatible Cabinet Series | C2 and C2RR cabinet series |
Packaging & Shipping
| Shipping Weight | 9 lbs (4.08 kg) |
| Included: Bottom Panel | 1 |
| Included: 8-32 Clip Nut (Black Oxide Finish) | 6 (replacement part CLPKIT832-6) |
| Included: 8-32 X 0.5 In Machine Screw (Zinc Plated) | 6 (replacement part CLPKIT832-6) |
Construction & Finish
| Gauge | 14 gauge steel |
| Finish | RAL7035 light gray powder paint coat |
| Material | Mild steel |
| Matching Black Version | C2BBCE1923BK1 (RAL9005 black) |
Environmental & Protection
| Function | Encloses cabinets for airflow management |
| Indoor Air Quality | Paint finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinet frames does C2BBCE1923LG1 fit?▾
It is listed for use with C2F19xx23xx cabinet frames, and the C2B series is intended for the C2 and C2RR cabinet series.
Is mounting hardware included?▾
Yes. The box contains the bottom panel, six 8-32 black oxide clip nuts and six 8-32 x 0.5 in zinc plated machine screws. The hardware is available separately as CLPKIT832-6.
What is the size of the cable opening?▾
The brushed cable entry measures 11.50 in (292 mm) by 2.36 in (60 mm). The overall panel is 17.69 in (449 mm) by 14.00 in (356 mm).
What colour and material is this panel?▾
It is 14 gauge mild steel finished in RAL7035 light gray powder paint coat, a finish that complies with Greenguard indoor air quality guidelines.
Is there a black version of this panel?▾
Yes, C2BBCE1923BK1 is the RAL9005 black equivalent for the same C2F19xx23xx cabinet frames.
Is this part TAA compliant for government purchases?▾
Yes. The C2B series is TAA-compliant for GSA Schedule purchases, and this part is also RoHS, REACH and USMCA compliant with ECCN EAR99.
Related Products

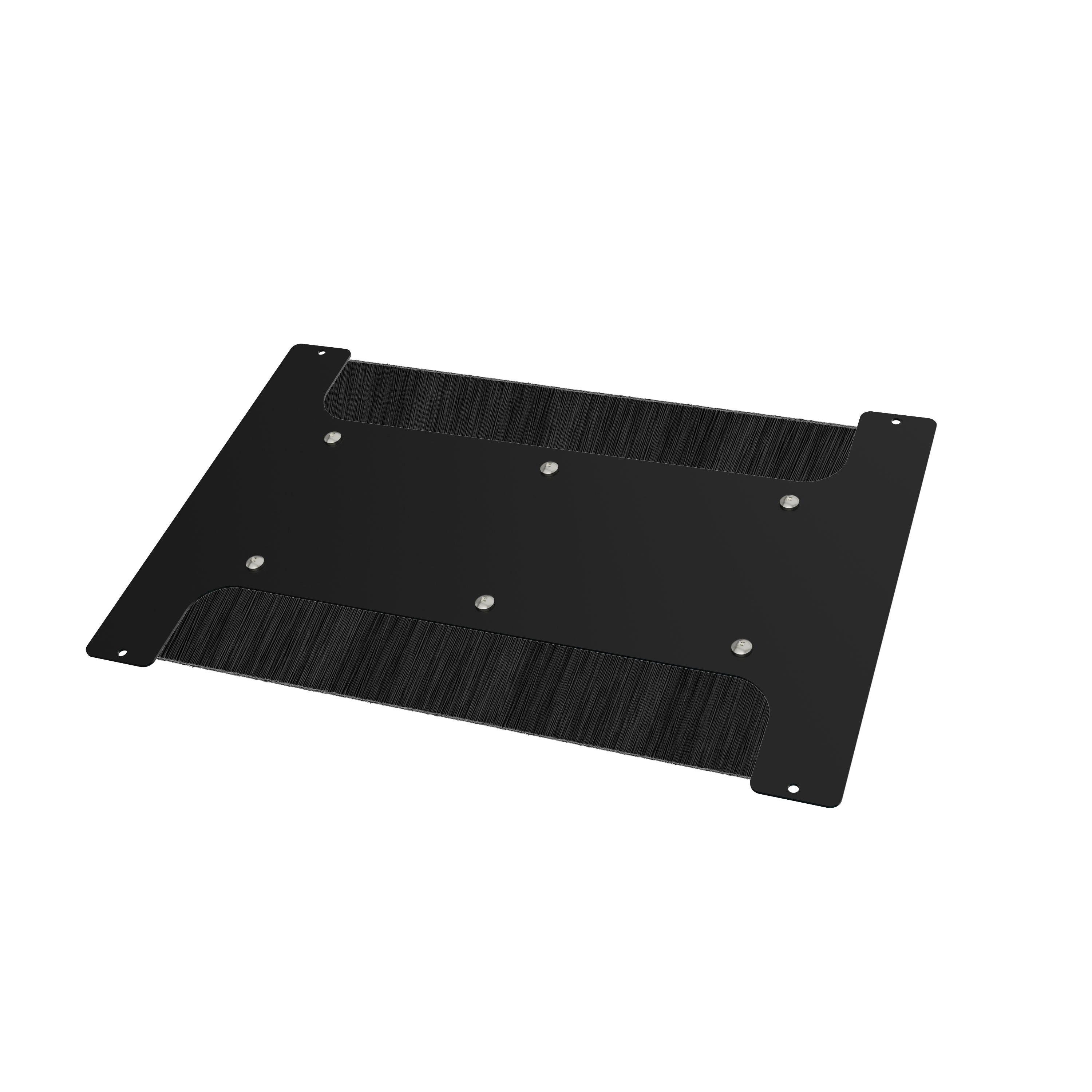

Save 35%C2BBCE1923BK1 — C2 Brushed Cable Bottom Panel
Hammond Manufacturing · C2BBCE1923BK1

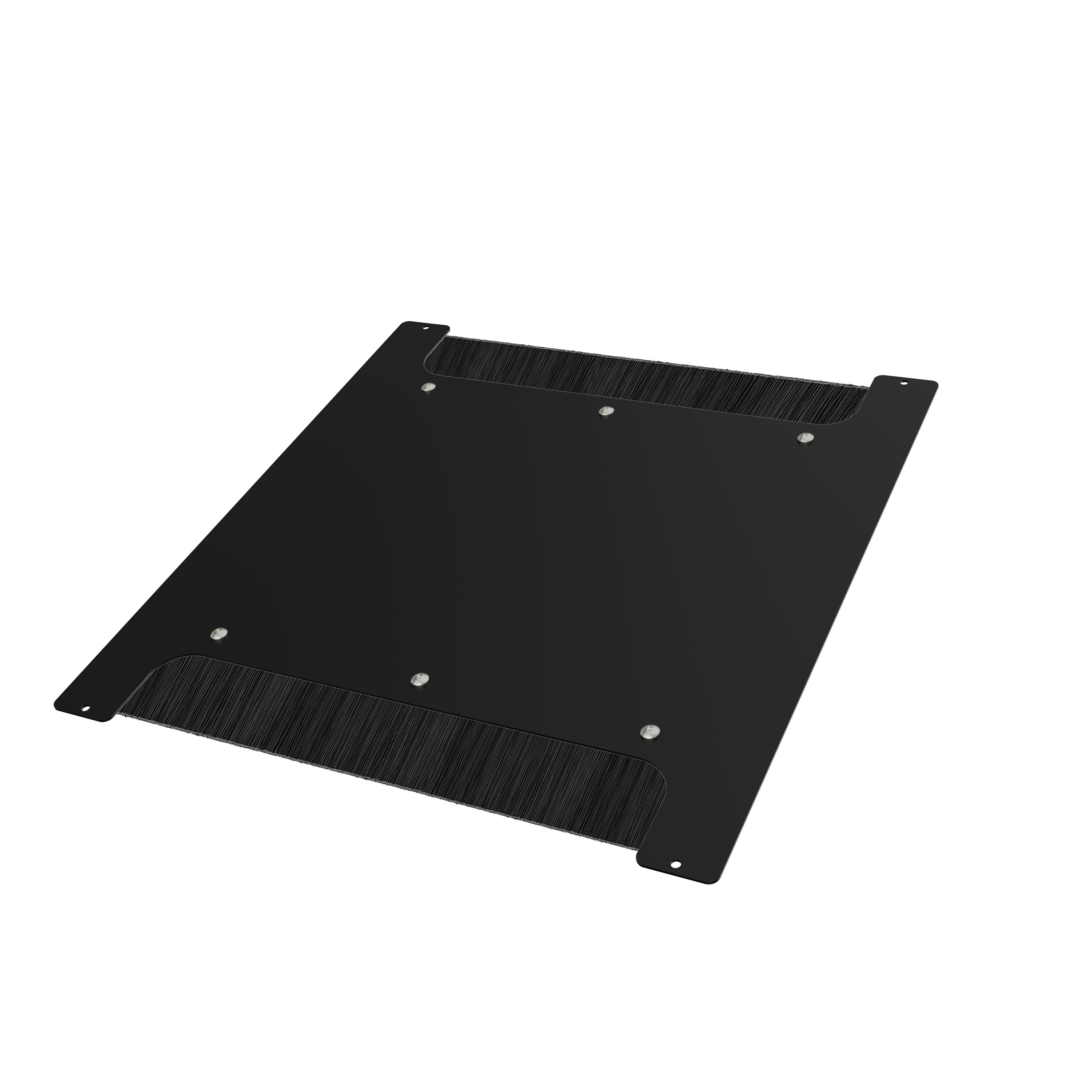

Save 35%C2BBCE1931BK1 — C2 Brushed Cable Bottom Panel
Hammond Manufacturing · C2BBCE1931BK1

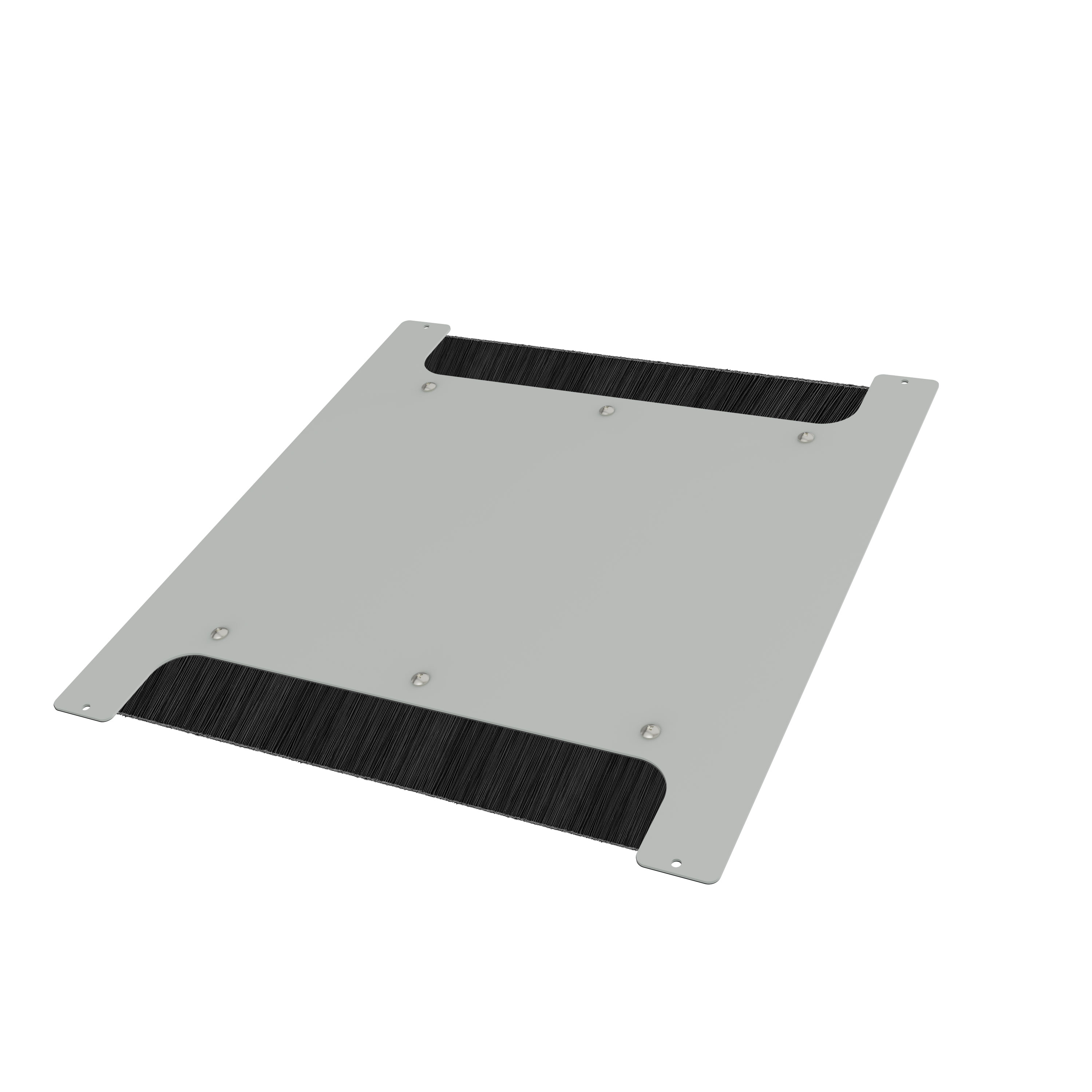

Save 35%C2BBCE1931LG1 — C2 Brushed Cable Bottom Panel
Hammond Manufacturing · C2BBCE1931LG1

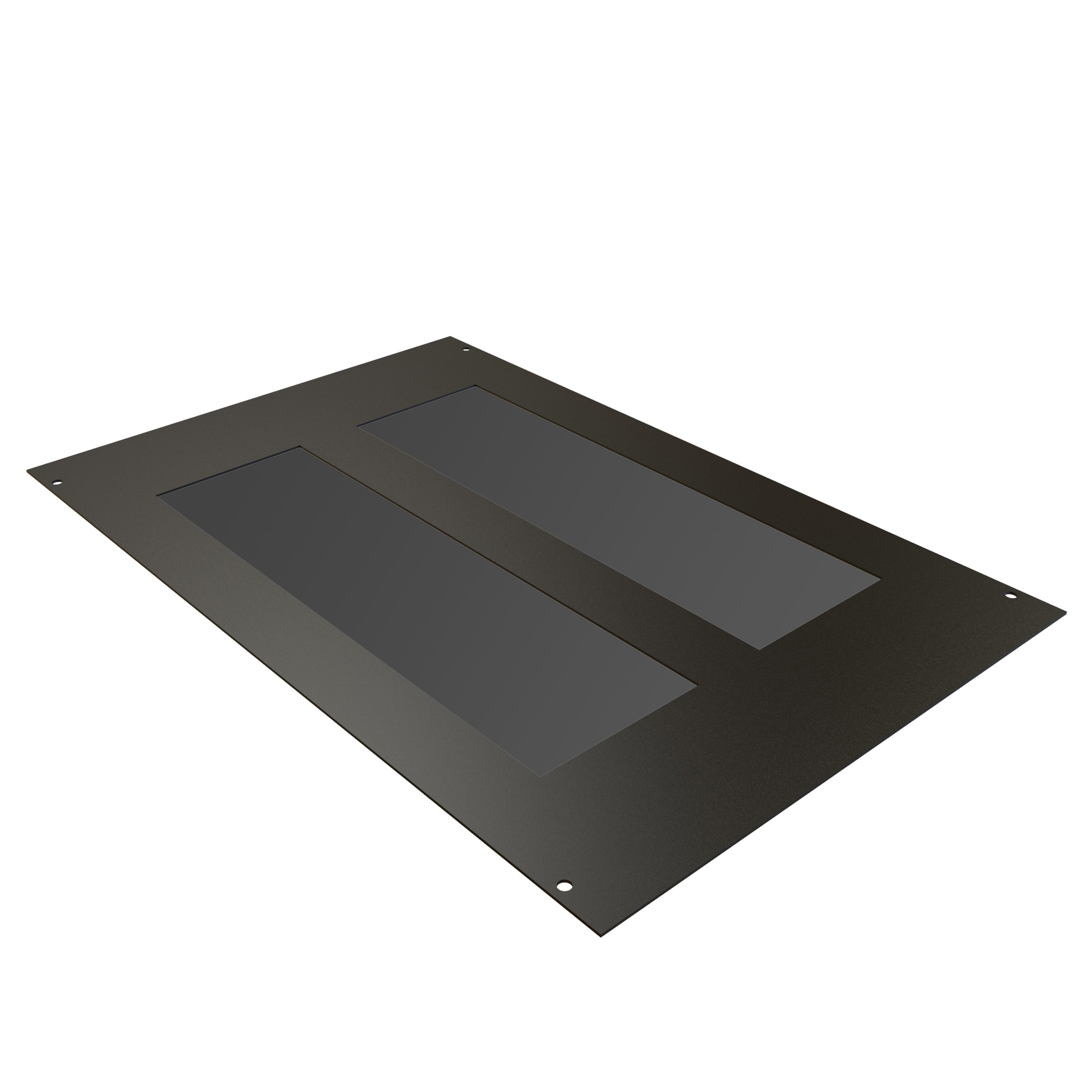

Save 35%C2BPCE1923BK1 — C2 Cable Gland Bottom Panel
Hammond Manufacturing · C2BPCE1923BK1

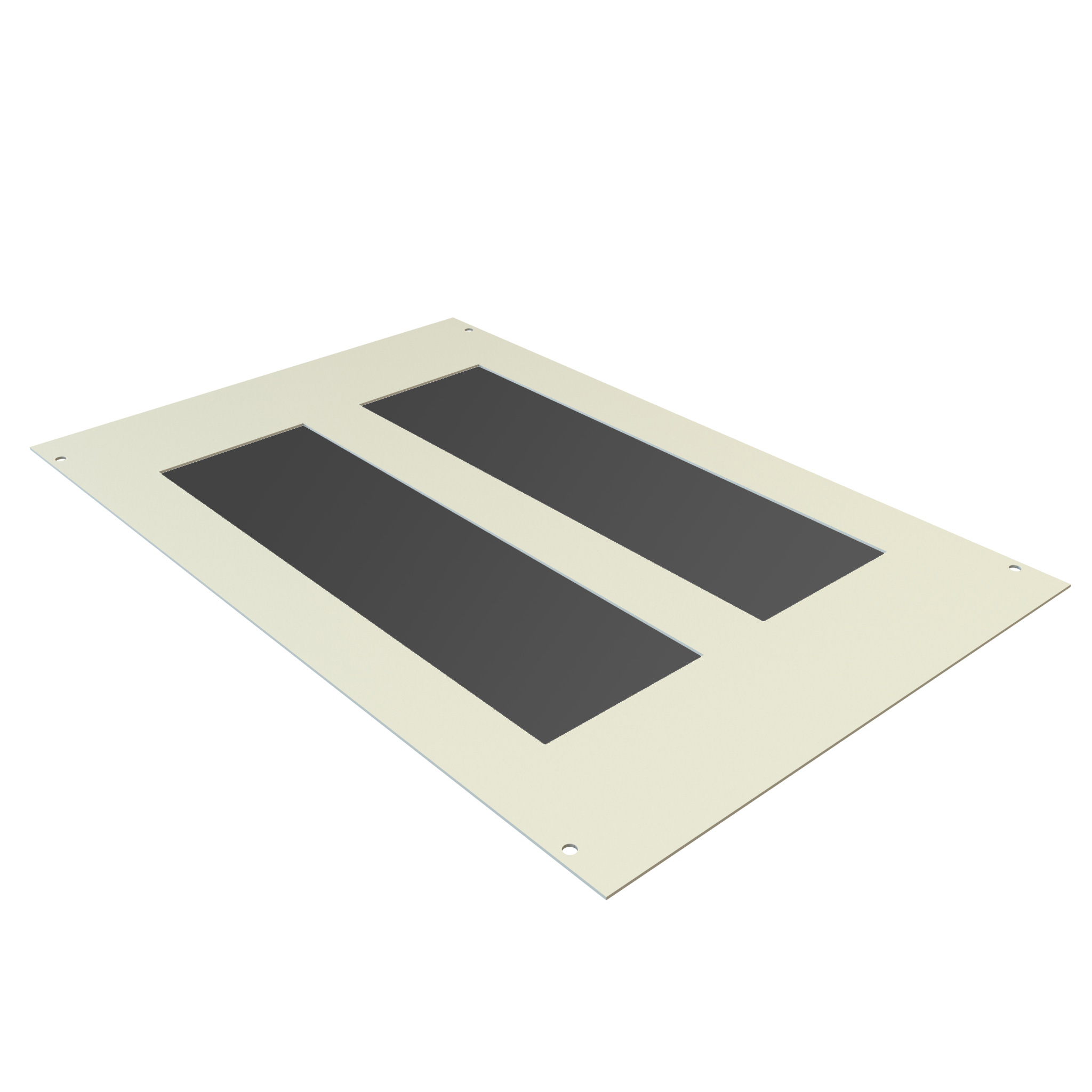

Save 35%C2BPCE1923LG1 — C2 Cable Gland Bottom Panel
