Hammond 1599ETSGY 170 x 86 mm Short-Slope Console, Gray FR Abs

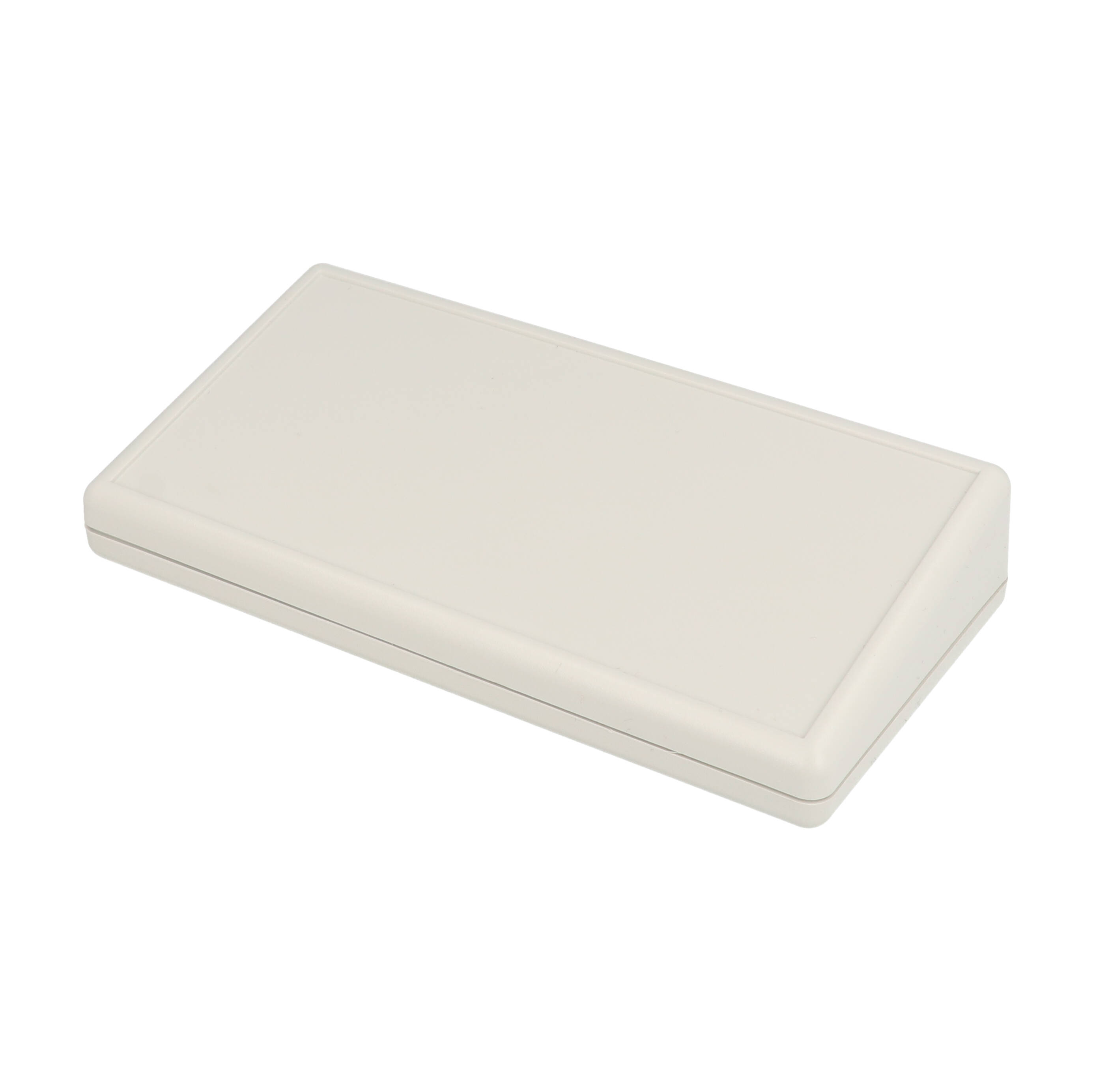

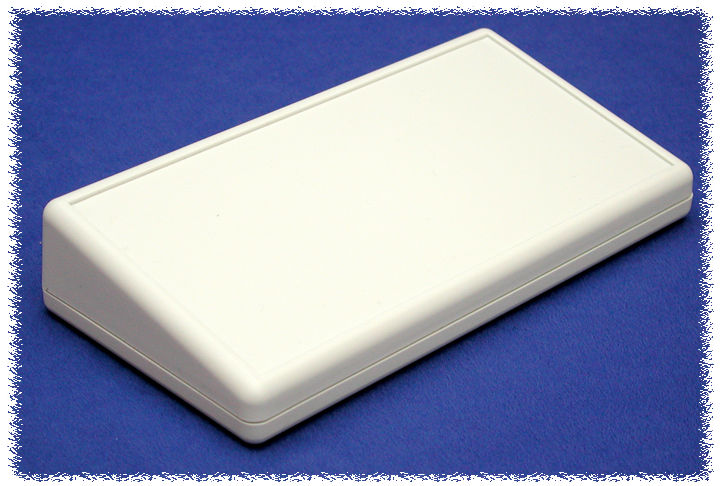

The 1599ETSGY is a light gray short-slope sloping console from the 1599T series, a slope-top plastic console for interface and control electronics built by OEM engineers and integrators. This E-size console is 170 mm wide and 86 mm from front to rear, stepping from its 17 mm front height up to a 34 mm rear height.

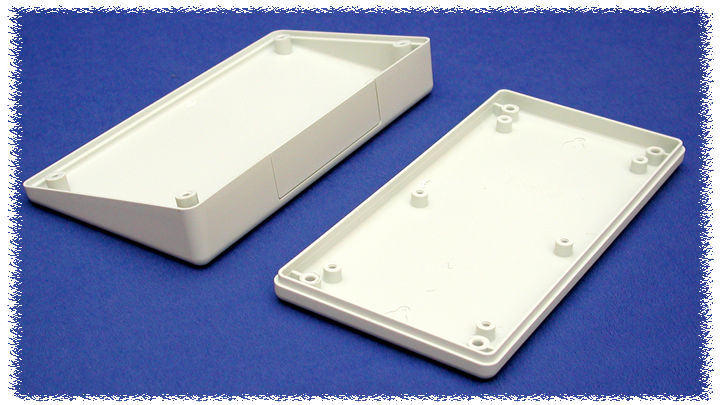

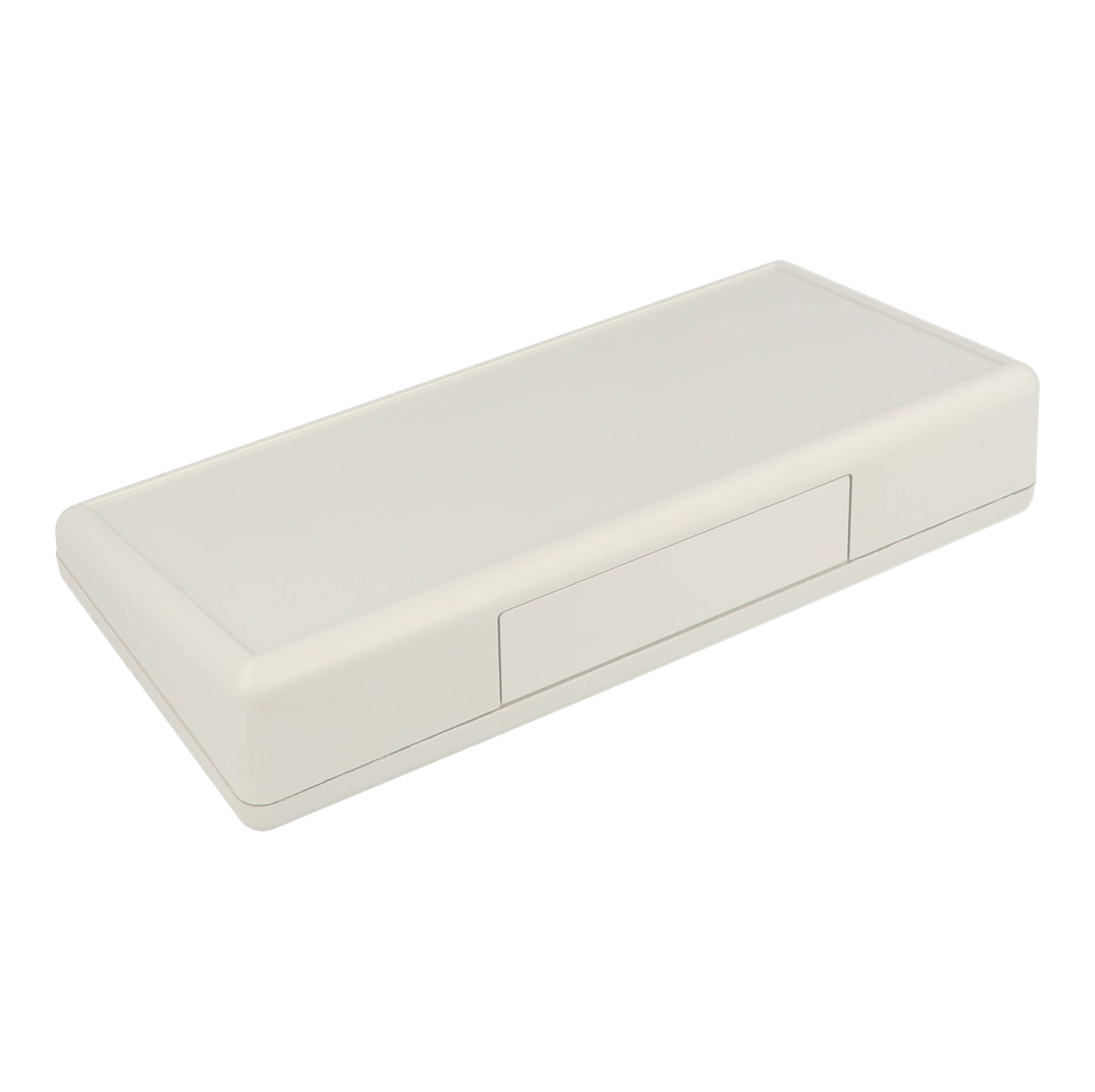

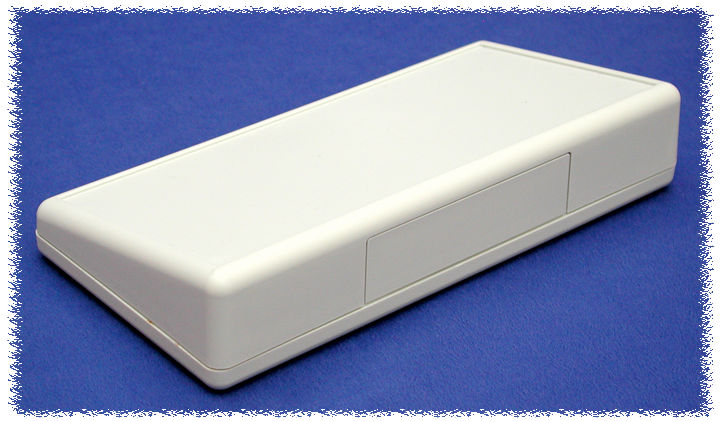

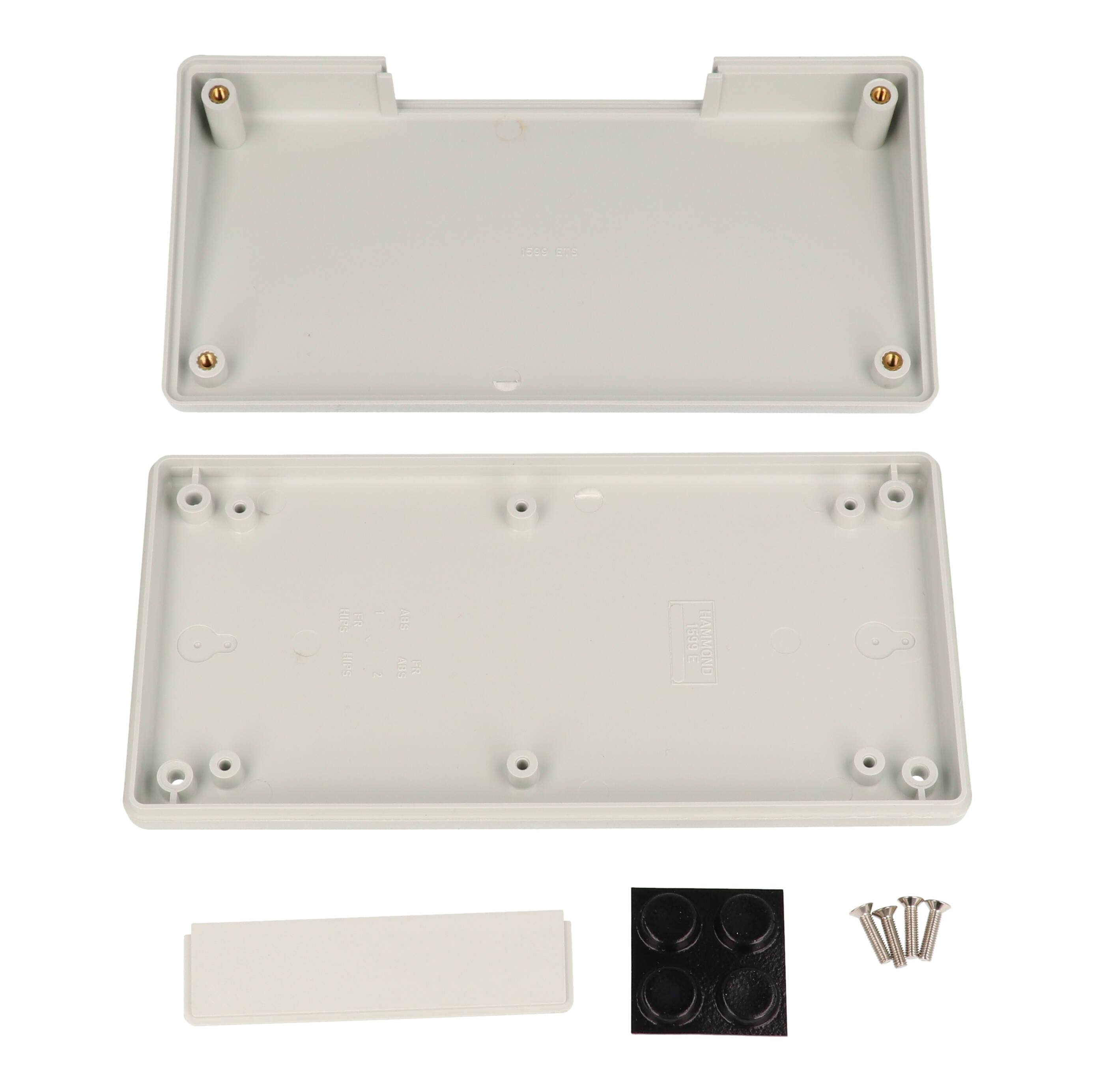

The box and lid are molded from flame retardant ABS rated UL94 V-0. Standard versions close with M3-0.5 machine screws that thread into brass bushings, so the lid can be removed and refitted repeatedly; the recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). The rear of the enclosure has one flat removable panel for easy modification, and the E size includes PC board standoffs on the inside bottom. Four black rubber feet are included with the enclosure.

The maximum P.C. board size is 72 mm long by 162.5 mm wide (board not supplied), and the inside of the box accepts #4 self-tapping screws for mounting it. The top carries a recessed inlay of 157.00 mm [6.18 in] by 74.35 mm [2.93 in], set at a 12.6° slope angle on the drawing.

The 1599ETSGY is listed with an IP54 rating, is RoHS and REACH compliant, and ships shrink-wrapped with a shipping weight of 0.3 lbs (0.14 kg). An economy equivalent is available as 1599ESTSGY.

Some chemicals can damage or weaken ABS, including acetone, ketones, thread-locking compounds and cutting or tapping fluid, so check any cleaner, lubricant or fluid for plastic compatibility before use.
