Hammond 1590Z162PL 260x160x90mm Enclosure Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

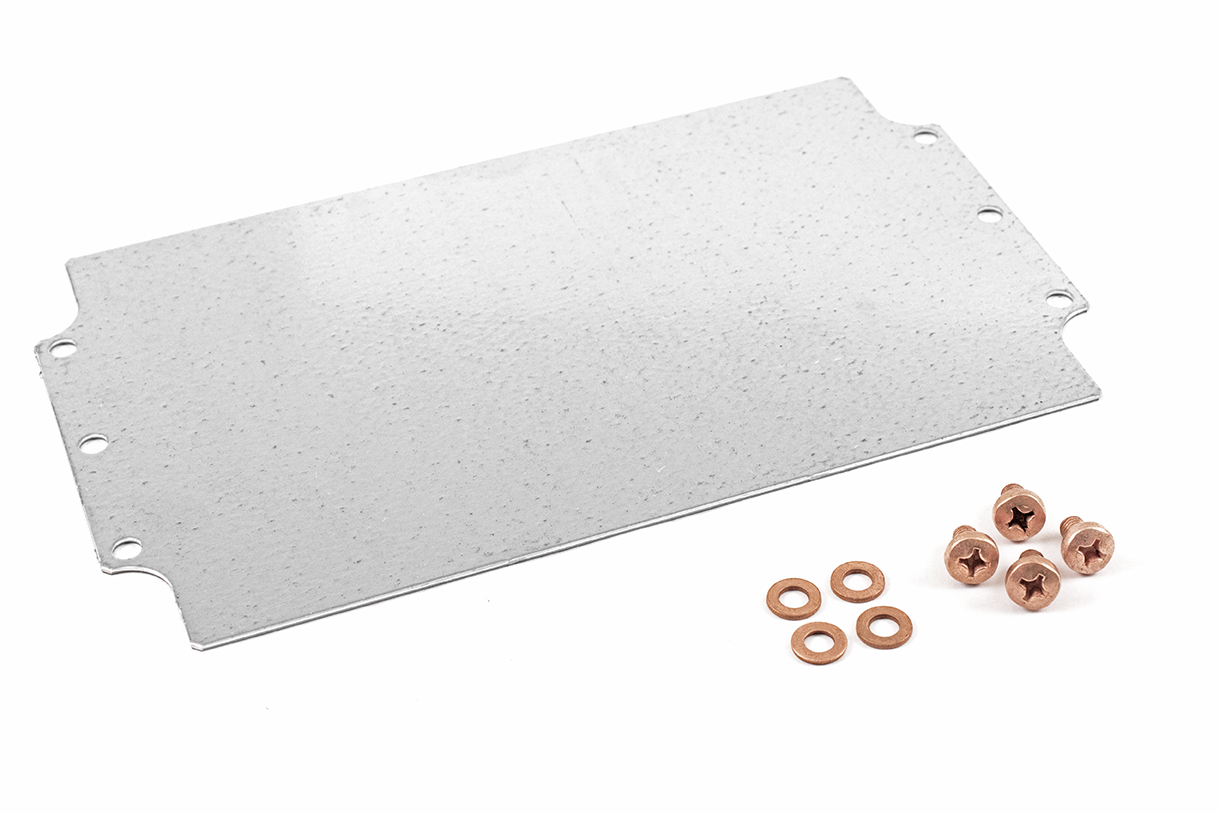

- Inner mounting panel for 1590Z162, 1590Z162BK and 1590Z162GY enclosures
- 16 gauge galvanized steel
- 9.56 in x 5.81 in x 0.06 in (243 mm x 148 mm x 2 mm)
- Drawing size 242.70 x 147.52 mm matches the enclosure's max. P.C. board figures
- Mounts to the enclosure's internal shelf; SCGM6-20 listed as extra panel screws
- RoHS and REACH compliant; 1.13 lbs (0.51 kg) shipping weight
The 1590Z162PL is the inner mounting panel for the 1590Z162 diecast aluminum enclosures, which measure 10.24 in (260 mm) long, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep. It fits the natural 1590Z162, the textured black 1590Z162BK and the RAL 7001 gray 1590Z162GY, giving builders a removable plate for boards, DIN hardware or terminal strips inside the sealed box.
The panel is 16 gauge galvanized steel. The part page gives its size as 9.56 in x 5.81 in x 0.06 in (243 mm x 148 mm x 2 mm), and the drawing dimensions it at 242.70 mm [9.56 in] by 147.52 mm [5.81 in]. Those drawing figures match the maximum P.C. board figures listed for the 1590Z162 (242.7 mm and 147.52 mm), so the panel covers the full usable footprint.

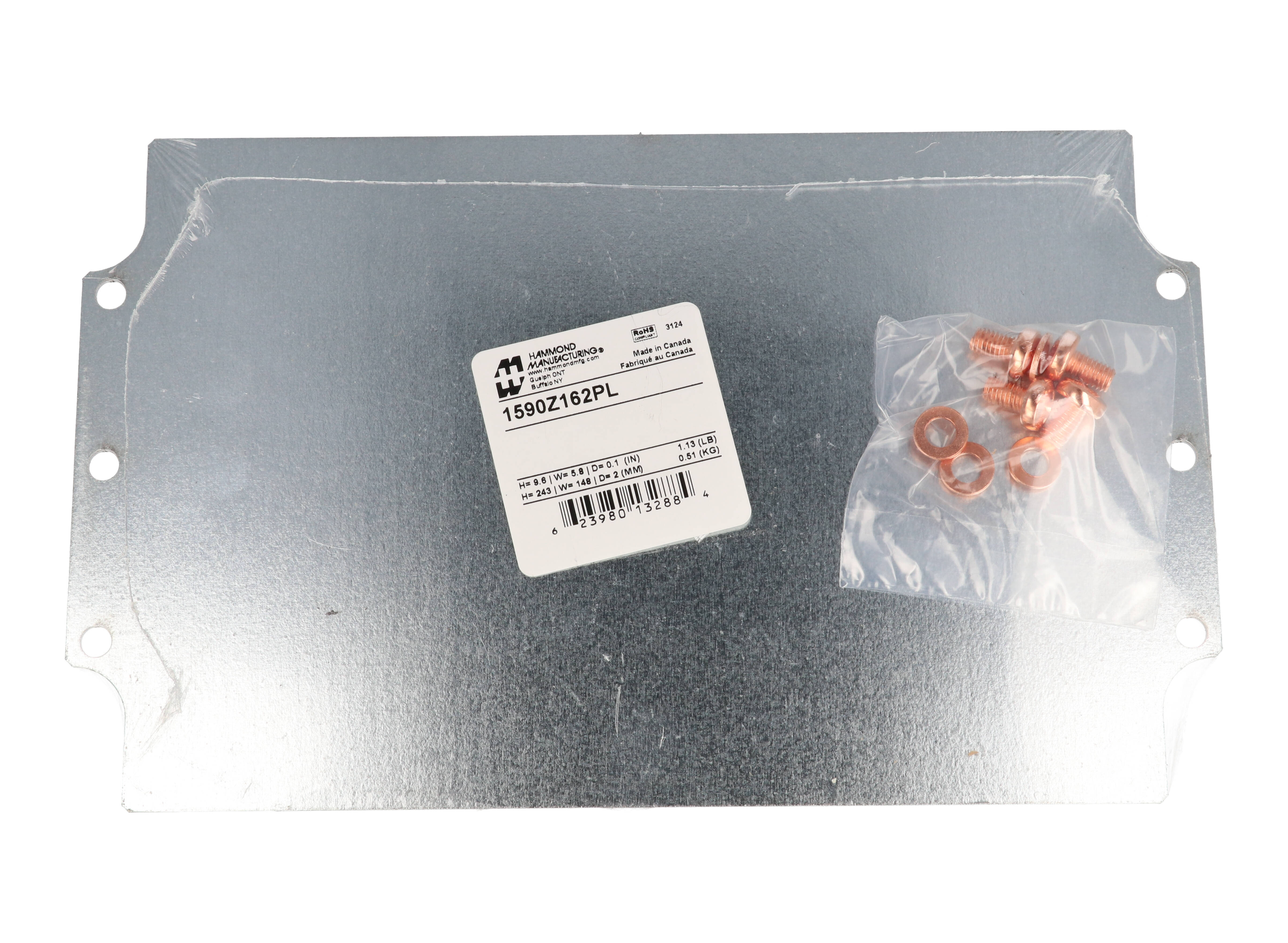

The panel attaches to the enclosure's internal mounting shelf, and the series ordering table lists SCGM6-20 as the extra panel screws for this enclosure size. The 1590Z162PL is sold separately and ships in shrink wrap at 1.13 lbs (0.51 kg).
It is RoHS and REACH compliant, UNSPSC 39121301. Note that the taller 1590Z163 enclosure uses its own panel, 1590Z163PL, even though both boxes share the same 260 x 160 mm footprint.
Ideal For
- Mounting circuit boards inside a 1590Z162 enclosure
- Building control assemblies on a removable steel plate
- Adding an internal sub-panel to a 260 x 160 x 90 mm diecast box
Overview
| Type | Inner Panel |
| Description | 1590Z162 INNER PANEL |
| Part Number | 1590Z162PL |
| Fits Enclosures | 1590Z162, 1590Z162BK, 1590Z162GY |
| Long Description | inner mounting panel for 1590Z162 enclosures |
Dimensions
| Size (L X W X H) | 9.56 in x 5.81 in x 0.06 in (243 mm x 148 mm x 2 mm) |
| Panel Width (Drawing) | 147.52 mm [5.81 in] |
| Panel Length (Drawing) | 242.70 mm [9.56 in] |
Identifiers
| UPC | 623980132884 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Sold | Separately from the enclosure |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.13 lbs (0.51 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Drawing) | 16 gauge galvanized steel |
| Extra Panel Screws (Listed For Enclosure) | SCGM6-20 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1590Z162PL?▾
The 1590Z162, 1590Z162BK and 1590Z162GY diecast aluminum enclosures.
Will it fit the 1590Z163?▾
The ordering table lists a different inner panel, 1590Z163PL, for the 1590Z163 enclosures.
What material and thickness is it?▾
16 gauge galvanized steel, 0.06 in (2 mm) thick per the part page.
What are the panel dimensions?▾
9.56 in x 5.81 in x 0.06 in (243 mm x 148 mm x 2 mm); the drawing shows 242.70 mm [9.56 in] by 147.52 mm [5.81 in].
Is it included with the enclosure?▾
No, the inner panel is sold separately.
