Hammond 1590Z160PL 160mm Square Enclosure Steel Inner Mounting Panel

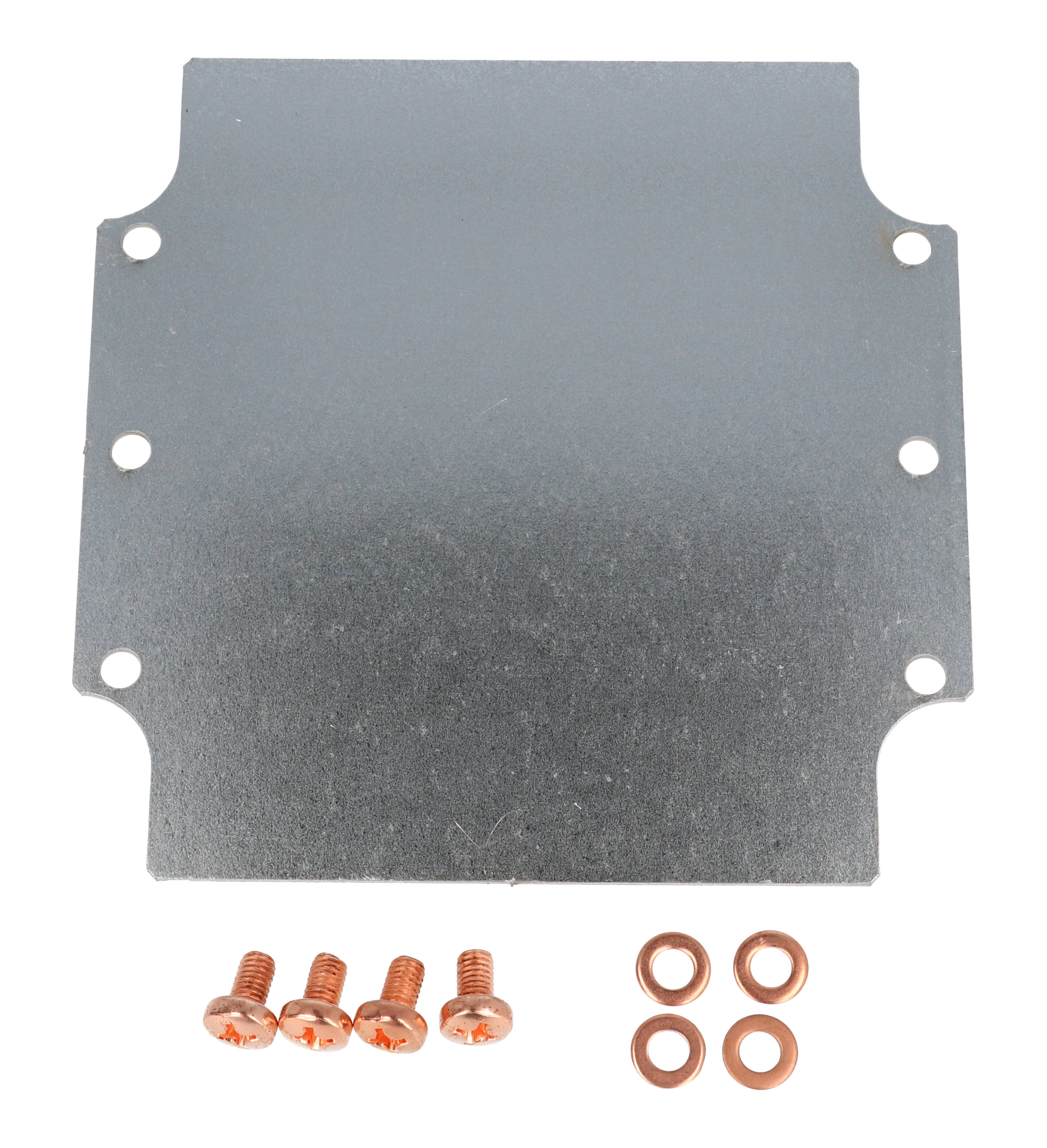

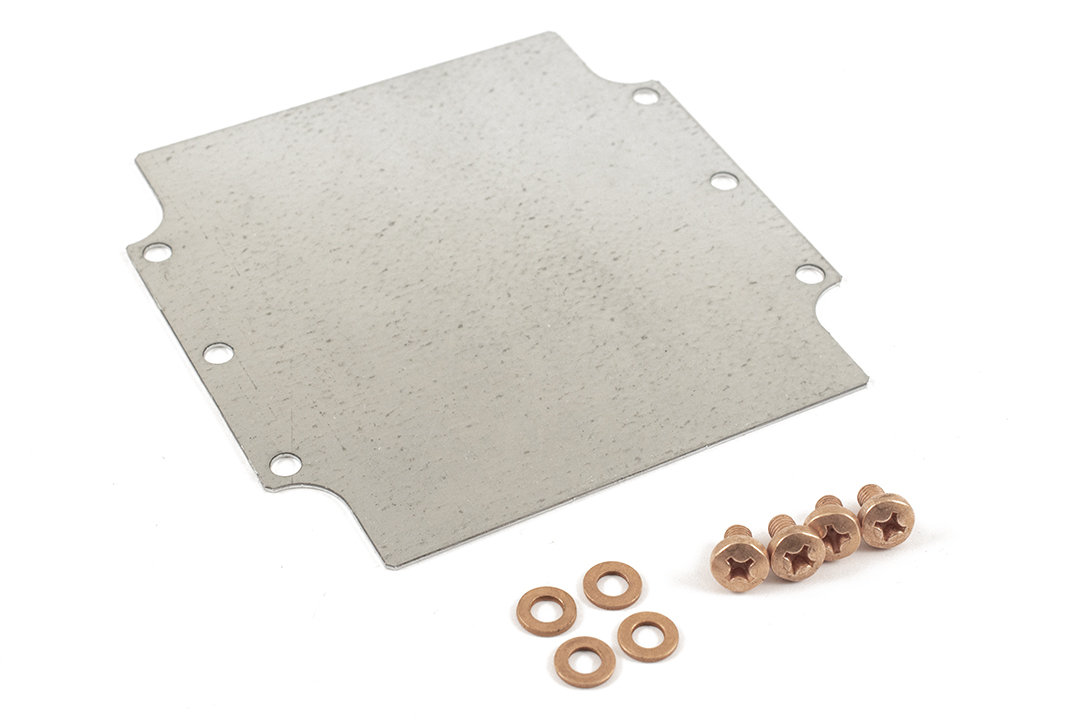

The 1590Z160PL is the steel inner mounting panel made for the 1590Z160 diecast aluminum enclosure family: the natural 1590Z160, the textured black 1590Z160BK and the smooth gray 1590Z160GY. Those enclosures measure 6.30 in (160 mm) square with a 3.54 in (90 mm) total depth and have an internal mounting shelf, and this panel gives OEM engineers and panel builders a flat plate to fasten circuit boards, terminal blocks and other components to before dropping the assembly into the box.

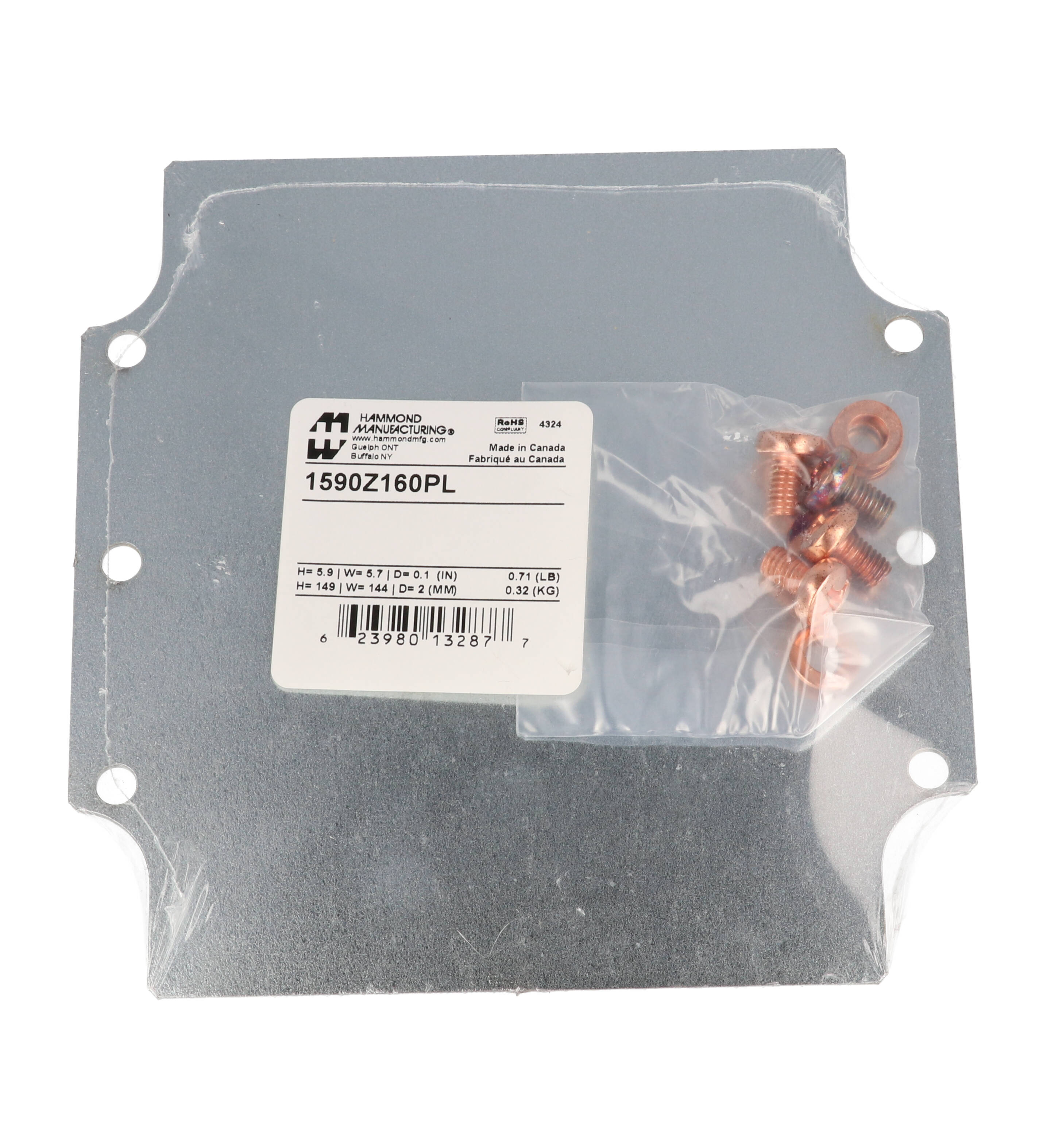

The panel is formed from 16 gauge galvanized steel. The part page lists its size as 5.85 in x 5.66 in x 0.06 in (149 mm x 144 mm x 2 mm), and the drawing dimensions it at 148.46 mm [5.85 in] by 143.69 mm [5.66 in]. Shipping weight is 0.71 lbs (0.32 kg), and it ships in shrink wrap.

Inner panels are sold separately from the enclosure; the series ordering table pairs the 1590Z160 enclosures with SCGM6-20 as the extra panel screws. Because the panel sits inside the gasketed box, you can drill and populate it on the bench, keeping the enclosure walls free of extra holes.

The part is RoHS and REACH compliant, and the UNSPSC code is 39121301. The 1590Z160PL is listed for the 1590Z160 enclosures only, so check your enclosure part number before ordering.
